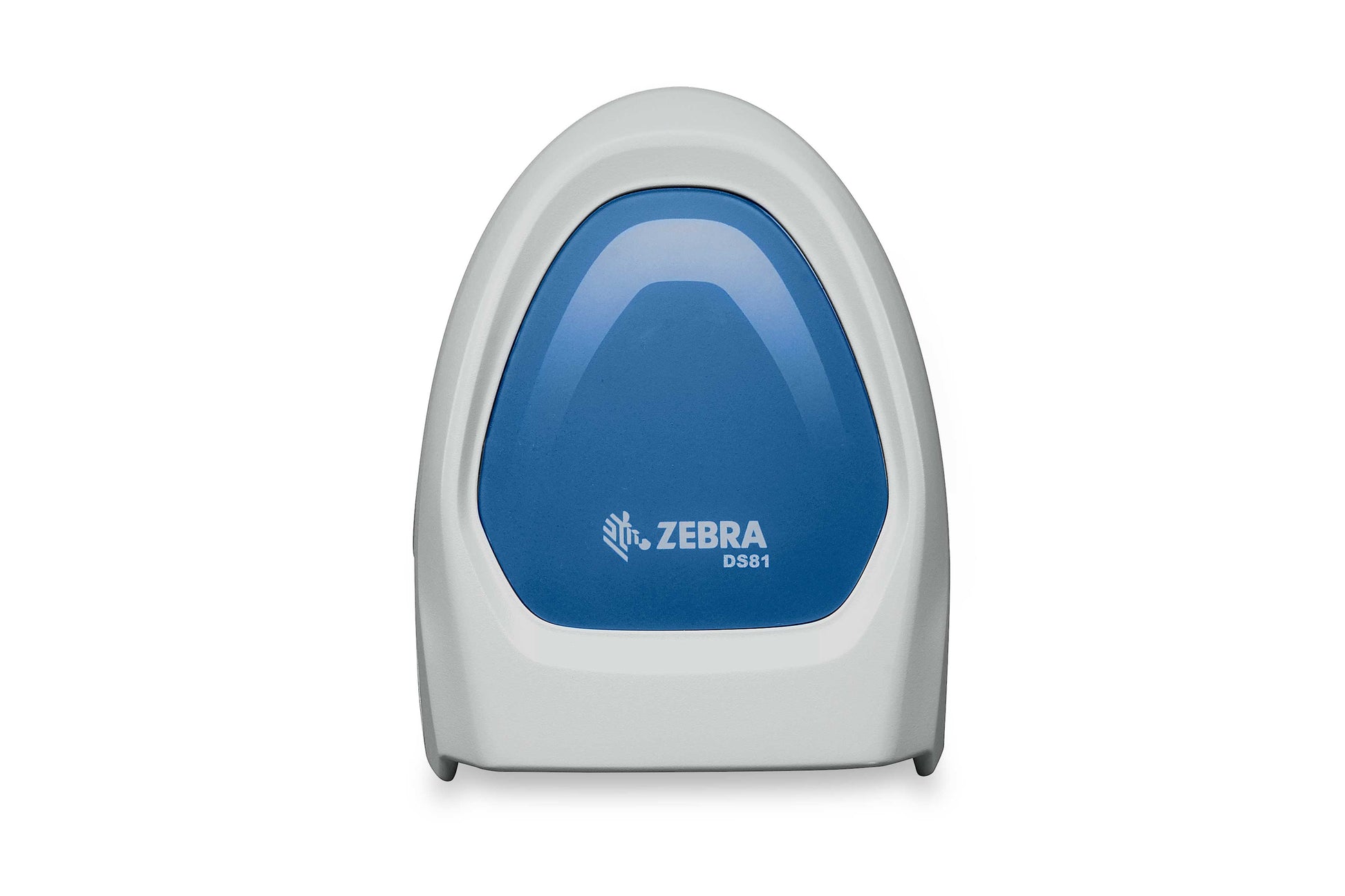

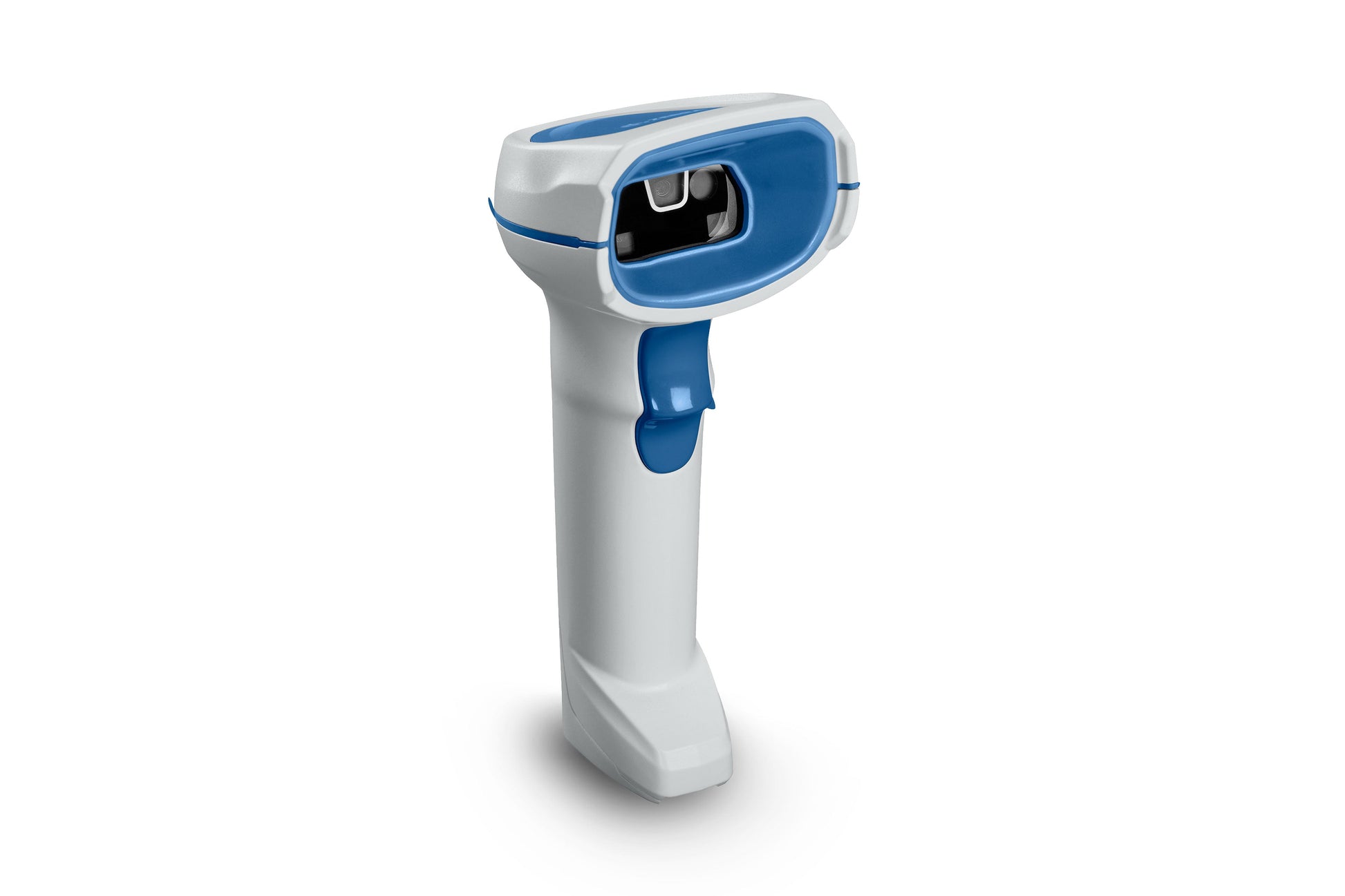

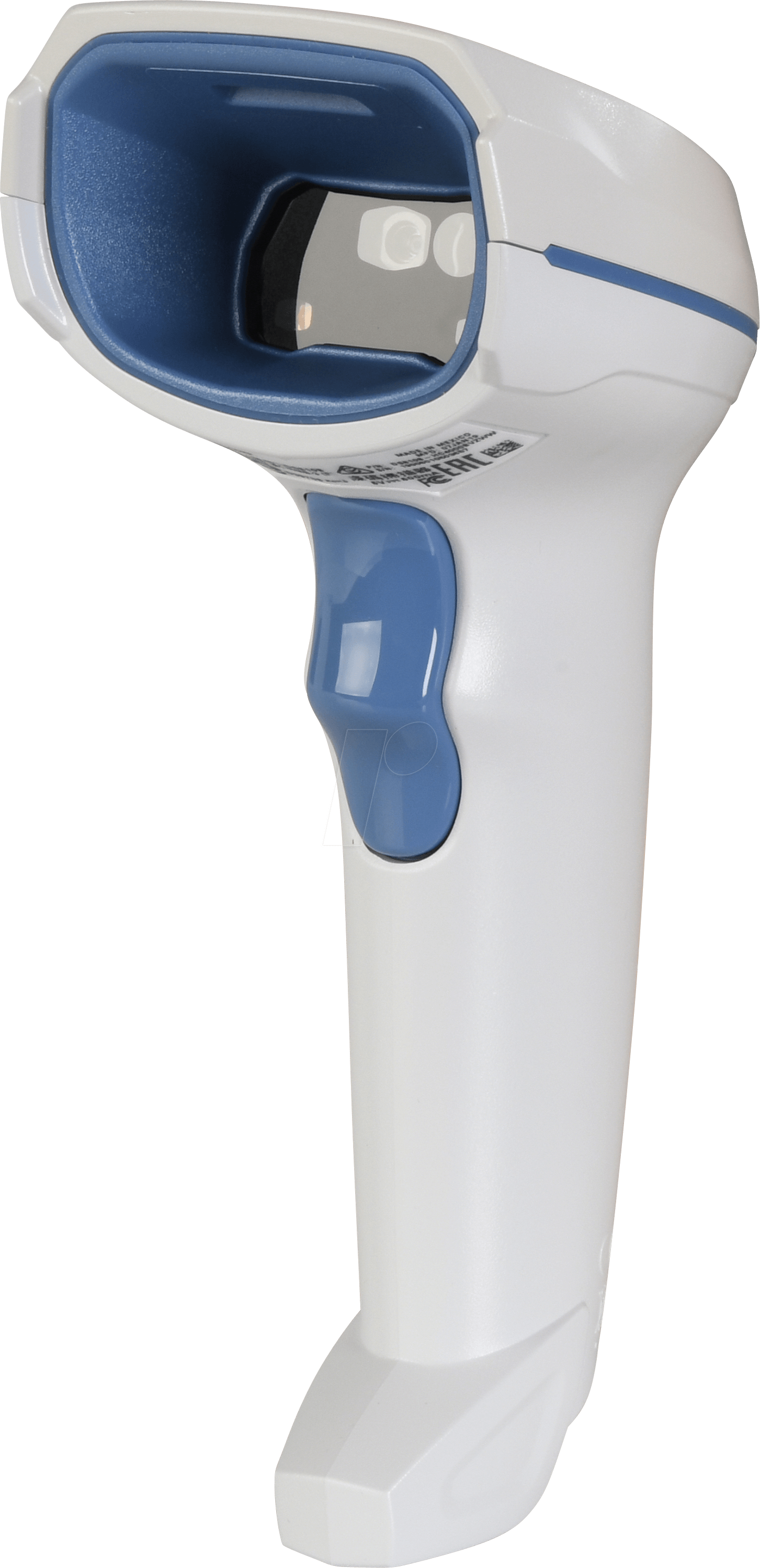

Zebra DS8108-HC 2D Barcode Scanner (DS8108-HCBU2104ZVW)

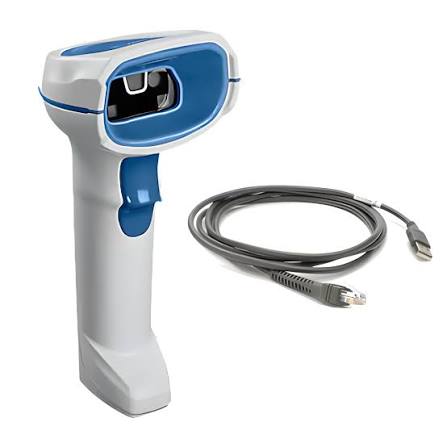

The Zebra DS8108-HC is the corded model of Zebra's premium DS8100 Series for Healthcare. Its industry-first disinfectant-ready Healthcare White housing withstands wipe-downs with the harshest hospital disinfectants and has concealed screw holes and seams where bacteria could hide, its megapixel sensor with PRZM Intelligent Imaging instantly captures dense, tiny, curved, damaged and on-screen barcodes, and its NICU-safe green LED aimer and Night Mode with Vibrate help keep patients undisturbed. The scanner is backed by a 5-year (60-month) Zebra warranty. This version, DS8108-HCBU2104ZVW, is a USB kit: the scanner plus a USB cable, ready to plug in and scan.

Key Features

• Disinfectant-ready housing – special plastics allow safe wipe-downs with the widest selection of the harshest disinfectants used in today's hospitals, and concealed screw holes and seams eliminate areas where bacteria could hide (see Zebra's Product Reference Guide for the list of approved cleaners).
• Reads virtually every barcode in any condition – 1D and 2D codes on patient wristbands, medication, IV bags, syringes and specimens, including dense, tiny, curved, shiny, crinkled, faded, dirty or damaged barcodes and electronic barcodes on dimly lit phone and tablet screens.
• Megapixel sensor with PRZM Intelligent Imaging – an 800 MHz processor, a 1280 × 960 sensor and Zebra's exclusive PRZM algorithms deliver instant decoding, a wide 48° × 37° field of view and a resolution down to 3 mil (Code 39 and Code 128).
• NICU-safe green LED aimer – a highly visible, eye-friendly green LED aiming dot instead of a laser, so the scanner can be used throughout the hospital, including the neonatal intensive care unit.
• Night Mode with Vibrate – choose haptic/vibration feedback, the good-decode LED, an adjustable beep or the Direct Decode Indicator that projects the illumination onto the barcode; in Night Mode a quick press of the trigger toggles between beep and vibration, so patients are disturbed as little as possible.
• UDI Scan+ – scan the barcode on medical device packaging and the Unique Device Identification (UDI) data is automatically parsed, formatted and sent in the right order to the right fields of your EHR or other application – no manual data entry.
• Preferred Symbol and Multi-Code Data Formatting – on items with several barcodes, output only the barcode you need, or capture several barcodes with one trigger pull and send them in the order your application expects.
• Handheld or hands-free – place the scanner in the optional Gooseneck Intellistand and it switches to hands-free mode automatically – ideal in the lab and pharmacy.
• Plug and play – auto-host-detect cables select USB, RS232, Keyboard Wedge or IBM 46XX automatically. Uses the same Zebra cables as the DS4608, DS2208 and LS2208, supports more than 90 international keyboards and is FIPS 140-2 certified.
• Built to last – withstands multiple 1.8 m drops to concrete and 2,000 tumbles, IP52 sealing protects against dust and spills, and the Zebra warranty runs for 60 months.
• Free management tools – configure with 123Scan, update firmware and settings remotely with Scanner Management Service (SMS), monitor decode performance with ScanSpeed Analytics and integrate with EHR/EMR applications using the Zebra Scanner SDK (Zebra DataCapture DNA).

Ideal Applications

• Positive patient identification and verification – at admission, in the ER and triage and at the bedside (including the NICU)
• Medication administration and verification at the point of care
• Hospital pharmacy – medication intake and inventory, chain of custody of controlled substances
• Laboratory specimen track and trace
• Operating room – tracking of surgical supplies, instruments and implants (UDI)
• Caregiver accountability and audit trails, dietary management
• Electronic health record (EHR/EMR) access in hospitals, outpatient clinics and care facilities

All DS8108-HC Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? If your workstations already have a Zebra DS8108, DS4608, DS2208 or LS2208 cable, the scanner-only version is the most economical choice; for a new workstation, pick the USB kit with the cable included. Need a cordless scanner for the bedside? See the Zebra DS8178-HC. For retail and general-purpose scanning, see the standard Zebra DS8108. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
