Zebra DS8108 2D Barcode Scanner (DS8108-SR7U2100AZW)

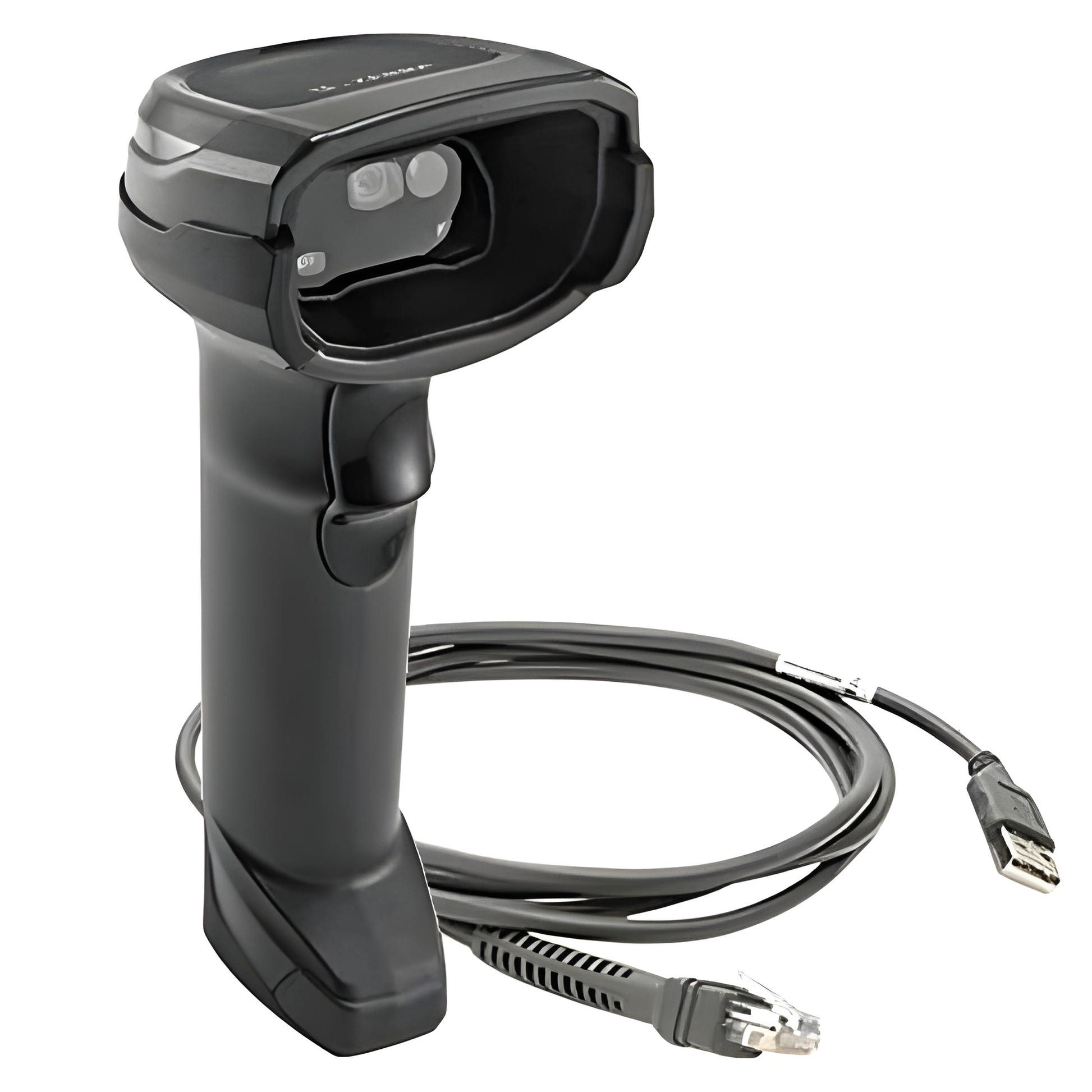

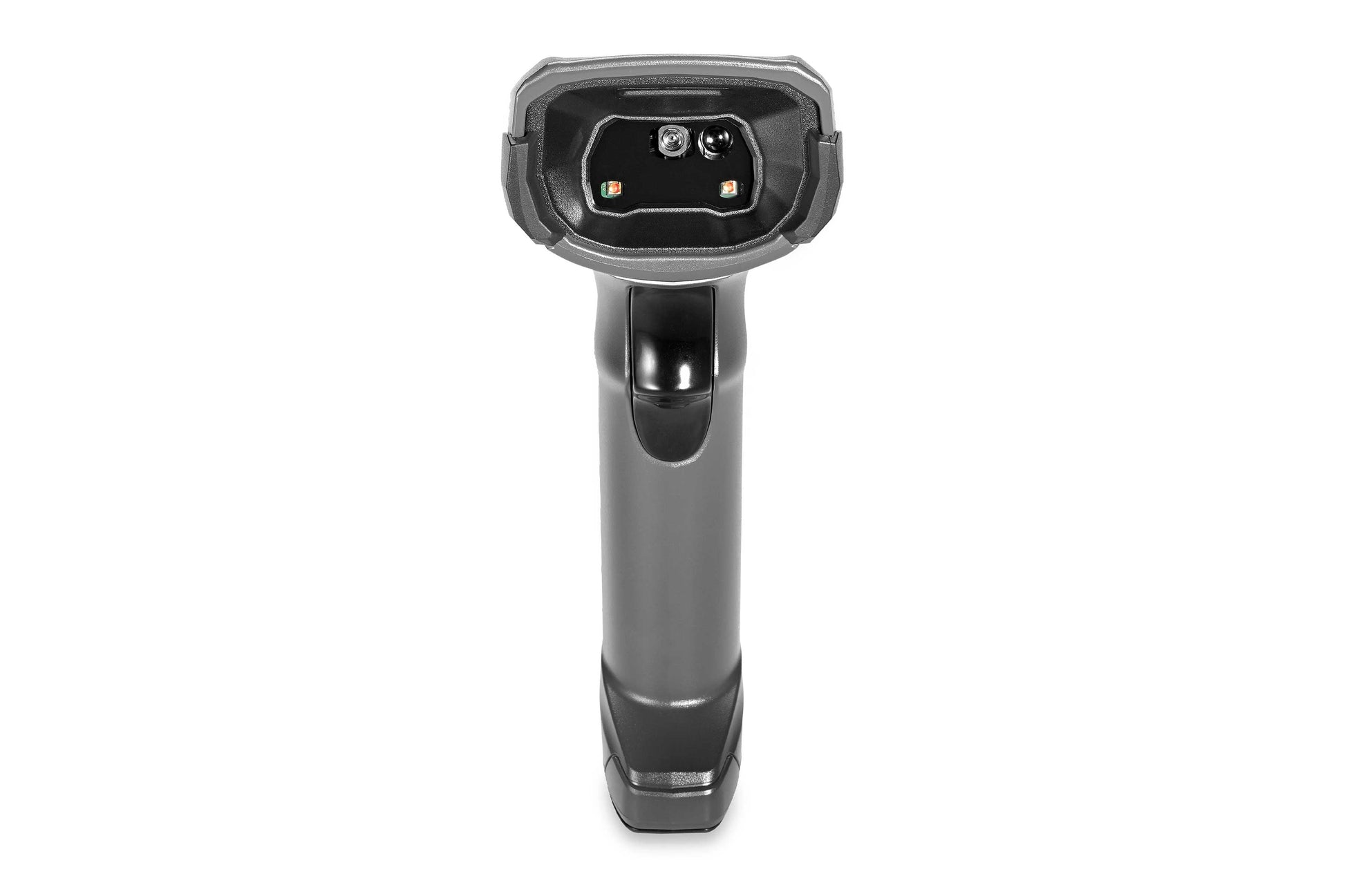

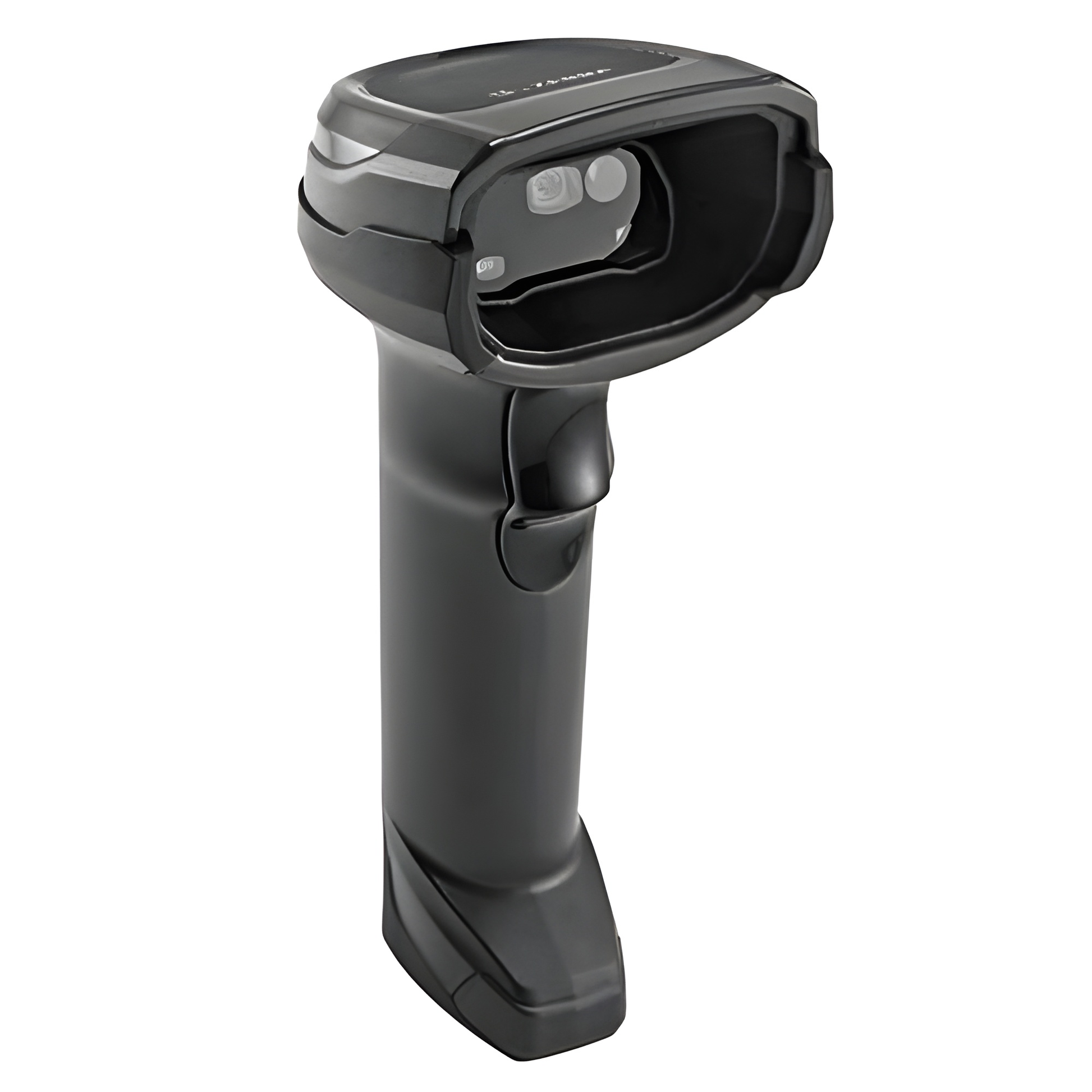

The Zebra DS8108 is the corded model of Zebra's premium DS8100 Series of handheld imagers. An 800 MHz processor, a megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging instantly capture virtually every 1D and 2D barcode – including dense, poorly printed, crinkled, faded, dirty or damaged codes and electronic barcodes on dimly lit phone screens – and UPC codes are read from up to 61 cm away. The scanner also reads Digimarc digital watermarks and is backed by a 5-year (60-month) Zebra warranty. This version, DS8108-SR7U2100AZW, has the Standard Range (SR) imager, comes in Twilight Black and is supplied with a USB cable, ready to plug in and scan.

Key Features

• Reads virtually every barcode in any condition – 1D and 2D codes on paper labels and on phone and tablet screens (e-coupons, loyalty cards, mobile tickets), including dense, poorly printed, crinkled, faded, distorted, dirty or damaged barcodes – first time, without re-scans or manual entry.
• Megapixel sensor with PRZM Intelligent Imaging – an 800 MHz processor, a 1280 × 960 sensor and Zebra's exclusive PRZM algorithms deliver instant decoding, a wide 48° × 37° field of view and a resolution down to 3 mil (Code 39 and Code 128).
• Superior scan range – reads 13 mil UPC codes from contact up to 61 cm and 20 mil Code 39 up to 93 cm, so cashiers can scan bulky items in a customer's shopping cart without leaving the checkout.
• Digimarc support – reads Digimarc digital watermarks printed invisibly over the entire surface of the packaging, so cashiers no longer need to look for the barcode – for faster checkout and easier self-checkout.
• Direct Decode Indicator – the illumination on the barcode flashes to confirm a good decode, so cashiers never need to pause and check; good-decode and rear-view LEDs and a beeper with adjustable tone and volume add clear feedback.
• Preferred Symbol and Multi-Code Data Formatting – on items with several barcodes, output only the barcode you need, or capture several barcodes with one trigger pull and send them in the order your application expects.
• ScanSpeed Analytics – captures the symbology and scan speed of every barcode, plus an image of the slowest-to-scan barcode, so you can find and fix problem barcodes before they slow down the checkout.
• Handheld or hands-free – place the scanner in the optional Gooseneck Intellistand (20-71043-04R) and it switches to hands-free presentation mode automatically.
• Plug and play – auto-host-detect cables select USB, RS232, Keyboard Wedge or IBM 46XX automatically. Uses the same Zebra cables as the DS4608, DS2208 and LS2208, supports more than 90 international keyboards and is FIPS 140-2 certified.
• Built to last – withstands multiple 1.8 m drops to concrete and 2,000 tumbles, IP52 sealing protects against dust and spills, and the Zebra warranty runs for 60 months.
• Free management tools – configure with 123Scan, update firmware and settings remotely with Scanner Management Service (SMS) – no depot staging required – and integrate scanning into your applications with the Zebra Scanner SDK for Windows, Android, iOS and Linux (Zebra DataCapture DNA).

Ideal Applications

• Retail point of sale and self-checkout – fast, first-time scanning of UPC, 2D and Digimarc codes
• Loyalty programmes, electronic coupon redemption and mobile payment codes
• Backroom receiving and inventory management
• Hospitality – check-in and ticketing for concerts, sporting events and more
• Transport & logistics – shipping and receiving, picking, product tracking, postal services and passenger ticketing
• Light manufacturing – product and component tracking, work-in-process (WIP)
• Government and banking – lottery and gaming, administration, bank branches

All DS8108 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? For a new checkout, choose DS8108-SR7U2100AZW (USB cable included) or DS8108-SR7U2100SGW (USB cable and Gooseneck Intellistand for hands-free scanning). The DS8108 uses the same Zebra cables as the DS4608, DS2208 and LS2208, so if you already have one at the checkout, the scanner-only DS8108-SR00007ZZWW (Twilight Black) or DS8108-SR00006ZZWW (Nova White) is the most economical choice, and DS8108-SR00007ZCWW is the version for stores that use Checkpoint EAS security tags. Working in a hospital? See the Zebra DS8108-HC with its disinfectant-ready housing. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
