TSC TC310 Desktop Label Printer (99-059A002-3202)

Regular price 696,15 € +VAT
Resolution (dpi)
203300
Wireless
NoneWi-Fi + Bluetooth
Wired Interfaces
USB, RS232, EthernetUSB, RS232, Ethernet, Parallel
Color
BeigeNavy
Display
—Yes

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

TSC TC310 4-inch thermal transfer desktop label printer, 300 dpi, colour display, USB + RS-232 + Ethernet + Wi-Fi + Bluetooth, navy (99-059A002-3202) – front view
TSC
TSC TC310 Desktop Label Printer (99-059A002-3202)
Regular price 696,15 € +VAT

The TSC TC310 (99-059A002-3202) is a space-saving 4-inch desktop label printer for thermal-transfer and direct-thermal printing at 300 dpi and up to 102 mm/s (4 ips). It takes 127 mm label rolls up to 112 mm wide and 110 m ribbons, runs TSPL-EZ with EPL and ZPL emulation, has a 2.3" colour display with six control buttons, and connects via USB 2.0, USB host, RS-232 and 10/100 Ethernet plus factory-fitted Wi-Fi (802.11a/b/g/n) and Bluetooth. Supplied with power supply, EU power cord and USB cable – ready to print.

📦 What's in the box – 99-059A002-3202

  • TSC TC310 label printer – 300 dpi, 2.3" colour display, USB 2.0, USB host, RS-232, Ethernet 10/100 + Wi-Fi 802.11a/b/g/n + Bluetooth
  • Power supply – external universal power supply, 100–240 V AC → 24 V DC, 90 W
  • Power cord – EU plug (Schuko)
  • USB cable – USB 2.0 A-to-B – connect and print straight away
  • Windows drivers & labeling software – TSC driver and labeling software (CD or free download from TSC)
  • Setup guide

Ready to print: power supply, power cord and USB cable are in the box – you only need labels (and a ribbon for thermal-transfer printing).

💡 To get started, you might also consider compatible labels for your application and, for thermal-transfer printing, a ribbon – plus a standard Ethernet cable for network use.

View accessories →

Key Features

  • Thermal transfer and direct thermal at 300 dpi – up to 102 mm/s (4 ips), max. print width 105.6 mm

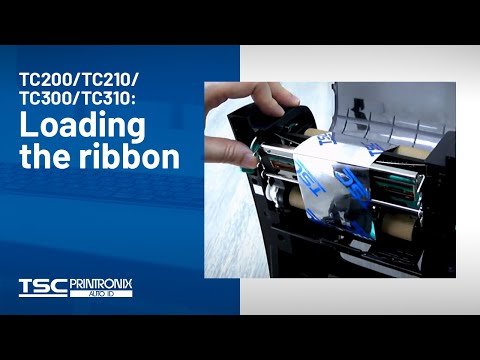

  • Easy ribbon loading: 110 m ribbons on a 0.5" core (ink outside), 40–110 mm wide

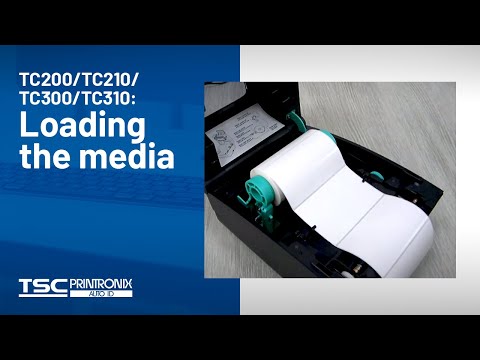

  • 127 mm (5") label rolls on 25.4–38.1 mm cores, media 20–112 mm wide; centre-biased, spring-loaded media guides and fanfold feed
  • 32-bit RISC processor with 64 MB SDRAM, 128 MB Flash and an SD card slot (up to 32 GB)
  • TSPL-EZ firmware with EPL and ZPL/ZPL II emulation, file manager, BASIC programming and stand-alone operation
  • USB 2.0, RS-232, 10/100 Ethernet and a USB host port, plus factory-fitted Wi-Fi and Bluetooth for wireless printing
  • 2.3" colour TFT display (320 × 240 px) with six buttons for menu-driven setup without a PC
  • Transmissive gap, adjustable black-mark, ribbon-end and head-open sensors
  • Dealer options: guillotine cutter and peel-off module; double-walled clamshell, ENERGY STAR qualified

Ideal Applications

  • Retail point of sale – price tags, product marking and coupons
  • Compliance and product labels in light manufacturing
  • Asset tracking and inventory control
  • Shipping and receiving labels
  • Healthcare – specimen labels and patient tracking
  • Document management and file labels

All TC Series Versions

The highlighted row is the version you are currently viewing.

Part Number Model Resolution Interfaces Display Wireless Color
99-059A003-6002 TC200 203 dpi USB, RS-232, parallel, Ethernet LED (no display) — Navy View product
99-059A004-7002 TC300 300 dpi USB, RS-232, parallel, Ethernet LED (no display) — Navy View product
99-059A001-1002 TC210 203 dpi USB, USB host, RS-232, Ethernet 2.3" colour display — Navy View product
99-059A001-1202 TC210 203 dpi USB, USB host, RS-232, Ethernet 2.3" colour display Wi-Fi + Bluetooth Navy View product
99-059A009-1002 TC210 203 dpi USB, USB host, RS-232, Ethernet 2.3" colour display — Beige View product
99-059A002-3002 TC310 300 dpi USB, USB host, RS-232, Ethernet 2.3" colour display — Navy View product
99-059A002-3202 (this version) TC310 300 dpi USB, USB host, RS-232, Ethernet 2.3" colour display Wi-Fi + Bluetooth Navy Viewing

Technical Specifications

Part Number 99-059A002-3202
Model TSC TC310 (TC Series)
Printer Type 4-inch desktop thermal transfer label printer
Print Method Thermal transfer and direct thermal
Resolution 300 dpi (12 dots/mm)
Print Speed Up to 102 mm/s (4 ips)
Max Print Width 105.6 mm (4.15")
Max Print Length 11,430 mm (450")
Media Width 20–112 mm (0.79"–4.4")
Media Thickness 0.06–0.19 mm (2.36–7.48 mil)
Roll Diameter 127 mm (5") OD inside the printer; larger rolls with the optional external roll mount
Core Size 25.4–38.1 mm (1"–1.5")
Media Types Continuous, die-cut, black mark, fanfold, notched; label length 10 mm – 11,430 mm
Sensors Transmissive gap sensor, reflective black-mark sensor (position adjustable), ribbon-end sensor, head-open sensor
Ribbon 110 m on 0.5" (12.7 mm) core, max. OD 40 mm; width 40–110 mm; ink coated OUTSIDE
Interfaces USB 2.0 (high speed), USB host, RS-232 serial, internal Ethernet 10/100 Mbps; SD card slot
Wireless Wi-Fi 802.11a/b/g/n + Bluetooth (factory-fitted)
Processor 32-bit RISC CPU
Memory 64 MB SDRAM, 128 MB Flash; SD card up to 32 GB
Real-Time Clock Yes
Printer Languages TSPL-EZ (EPL, ZPL, ZPL II compatible); file manager, BASIC programming, stand-alone operation
Fonts / Character Sets 8 alphanumeric bitmap fonts; Monotype true-type engine with CG Triumvirate Bold Condensed scalable font; 0/90/180/270° rotation
Barcodes 1D: Code 39, Code 93, Code 128 (UCC, subsets A/B/C), Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, MSI, Plessey, Postnet, LOGMARS, Code 11, Code 49, China Post, ITF-14, Telepen, Planet, Deutsche Post Identcode/Leitcode; 2D: GS1 DataBar, GS1 DataMatrix, MaxiCode, Aztec, PDF417, MicroPDF417, QR Code
Display 2.3" colour TFT display (320 × 240 px), 6 operation buttons (menu, feed/pause, up, down, left, right), three-colour LED
Media Options Tear-off (standard); dealer options: guillotine cutter (full cut), peel-off module
Options External roll mount; KP-200 Plus keyboard display unit; KU-007 Plus programmable smart keyboard; external Bluetooth / Wi-Fi module (serial)
Drivers & Software Windows drivers and TSC labeling software (CD / free download), TSC Console
Power Supply External universal switching power supply: 100–240 V AC, 2.5 A, 50–60 Hz input; 24 V DC, 3.75 A, 90 W output
Dimensions (W × D × H) 203 × 259.3 × 191.5 mm (W × D × H)
Weight 2.3 kg
Color Navy
Enclosure Double-walled plastic clamshell
Operating Temperature 5–40 °C, 25–85% RH non-condensing
Storage Temperature −40–60 °C, 10–90% RH non-condensing
Certifications FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/Safety, CCC, ENERGY STAR; RoHS, WEEE
Warranty Printer: 3 years (TSC EMEA, purchases from 1 June 2024); printhead 25 km or 12 months, platen 50 km or 12 months (whichever comes first)
In the Box TSC TC310 printer (300 dpi, 2.3" colour display, USB 2.0, USB host, RS-232, Ethernet 10/100 + Wi-Fi 802.11a/b/g/n + Bluetooth, navy), external universal power supply (24 V DC, 90 W), power cord (EU Schuko plug), USB cable, Windows labeling software (CD or download), quick start guide

Need a different interface, resolution or wireless option? All TC Series versions are listed above. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
