RAM Mounts GDS Hardwire Charger, Female USB-C (PD), 10–30 V Input, No Cable (RAM-GDS-CHARGE-V3FC-2U-NC)

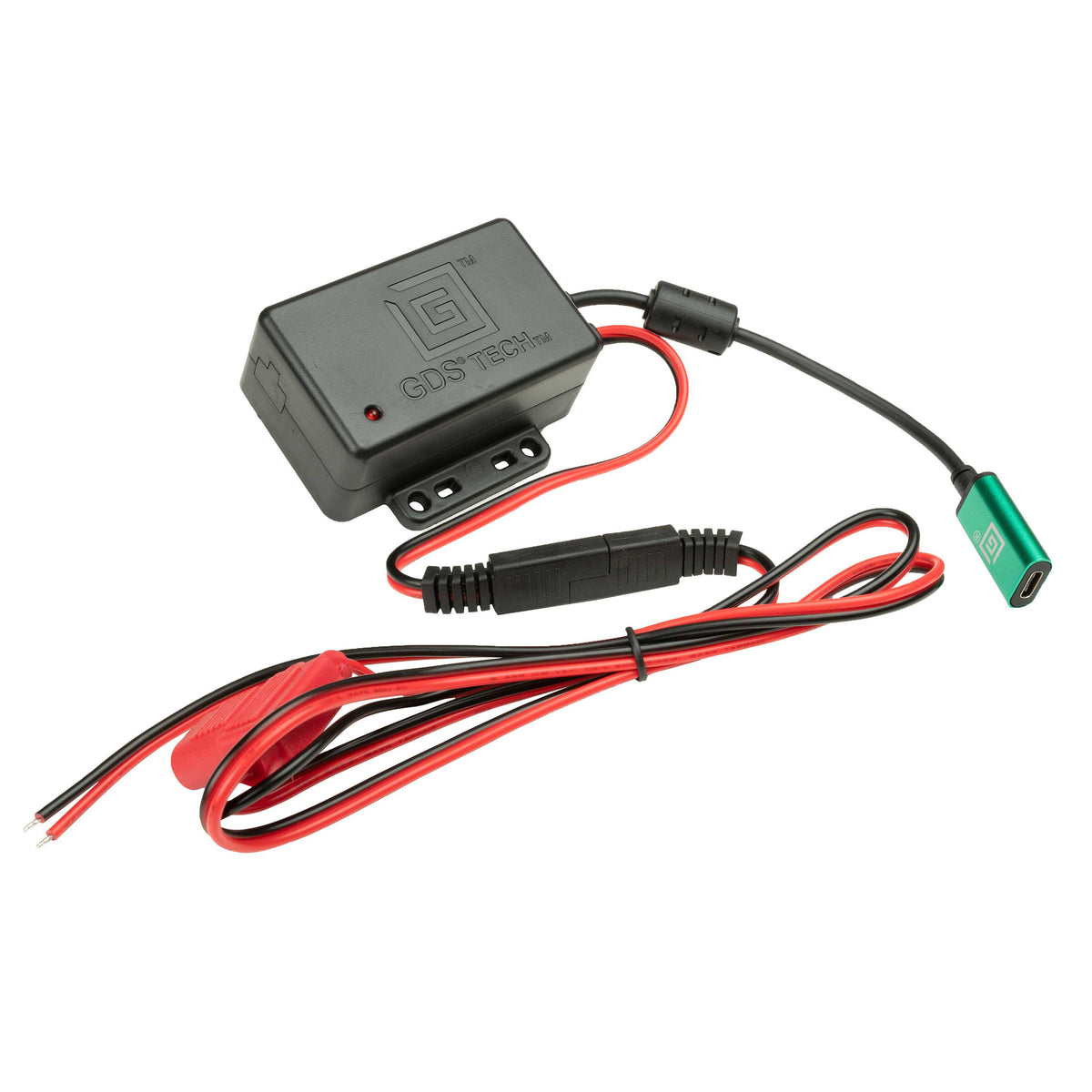

RAM Mounts GDS Hardwire Charger, Female USB-C (PD), 10–30 V Input, No Cable (RAM-GDS-CHARGE-V3FC-2U-NC) is a GDS hardwire charger with a female USB-C socket on a short 150 mm lead, designed to power USB-C GDS vehicle solutions from a 10–30 V DC supply. It supports USB Power Delivery 2.0 and 3.0 with 5 V/1 A, 9 V/2 A and 12 V/2 A profiles (up to 24 W). As the name says, no USB-C cable is included – the dock or device is connected with a USB-C cable of your choice. The 1.2 m input cable has a 2-pole flat marine quick-disconnect, so chargers can be swapped without rewiring when devices change.

Key Features

• Female USB-C with PD – USB PD 2.0/3.0: 5 V/1 A (5 W), 9 V/2 A (18 W), 12 V/2 A (24 W); max. 3 A
• Use any USB-C cable – short 150 mm lead with socket; cable not included
• Modular quick-disconnect – 2-pole flat marine connector on the 1.2 m input cable – swap chargers without rewiring
• Protected and certified – short-circuit and over-voltage protection; SAE J1113-5a; operating −20 to +70 °C; FCC, IC, CE, RCM, WEEE and RoHS
• 3-year warranty – backed by RAM Mounts

Compatibility

• USB-C GDS vehicle solutions powered via a USB-C cable (cable not included)
• USB-C devices with USB Power Delivery 2.0/3.0
• Vehicle electrical systems with 10–30 V DC

Technical Specifications
