Elo I-Series 3 15" 4:3 Touch Computer, Core i5, 8 GB / 128 GB, Win 10 IoT, with Stand (E701351)

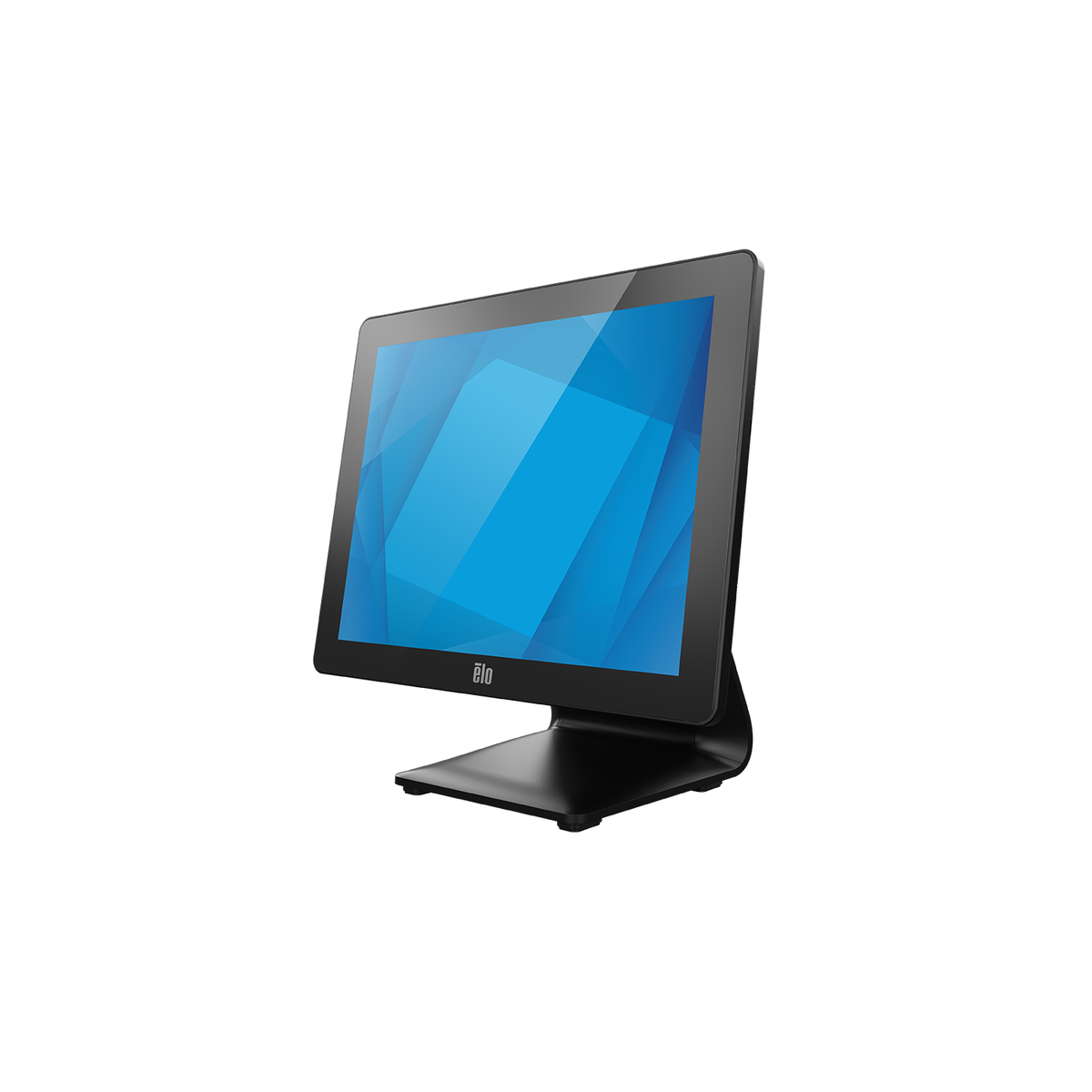

The Elo I-Series 3 with Intel 15" 4:3 is a fanless, IP54-rated POS terminal for retailers and restaurants whose cash register software is designed for the classic 4:3 screen format (1024 × 768). A bright 340-nit anti-glare TouchPro PCAP touchscreen, 12th-generation Intel processors, Wi-Fi 6E and Bluetooth 5.3 are combined with an integrated POS stand that adds powered USB, a cash drawer port and powered serial. It is the natural successor for older 15" POS terminals – modern hardware without redesigning your user interface. This version, E701351, combines an Intel Core i5-1245UL with 8 GB DDR5 RAM and a 128 GB NVMe SSD and is supplied with Windows 10 IoT Enterprise LTSC 2021 (64-bit) preinstalled. The POS stand, a 180 W power adapter with EU and US power cords and an RJ50-to-DB9 serial cable are included.

Key Features

• 12th-gen Intel performance – Celeron 7305L up to Core i7-1265UL, DDR5 memory (expandable to 64 GB) and NVMe SSD; Intel vPro and AMT on Core i5/i7
• Fanless and IP54-sealed – silent operation and a dust- and splash-resistant front for kitchens and busy counters; 50,000 h MTBF
• TouchPro PCAP display – 15" 4:3 (1024 × 768), 340 nits with 10-point touch and anti-glare glass
• POS-ready stand – 24 V and 2× 12 V powered USB, RJ50 powered serial, cash drawer port (12/24 V) and USB-C with DisplayPort for a second screen
• Elo Edge Connect – four micro-USB ports on the display edges for card reader, barcode scanner, fingerprint reader, status light or RFID – no cable clutter
• Modern connectivity and security – Wi-Fi 6E, Bluetooth 5.3, Gigabit LAN and TPM 2.0
• Flexible OS choice – No OS, Windows 10 IoT Enterprise LTSC 2021 or Windows 10/11 IoT Enterprise LTSC; Linux (Ubuntu, SUSE, Red Hat) pretested by Elo

Ideal Applications

• POS terminal replacement – upgrade legacy 15" 4:3 registers without changing the software layout
• Supermarkets and retail chains – checkout lanes with scanners, printers and cash drawers
• Restaurants and bars – robust, easy-to-clean counter POS
• Petrol stations and convenience stores – fast, reliable everyday checkout

Technical Specifications

Need a different processor, memory or OS? The I-Series 3 with Intel family covers Celeron, Core i3, i5 and i7 versions, with or without stand, in 15" 4:3, 15.6", 17", 22" and 24" sizes – choose a stand version for a ready-to-use POS, or a version without stand for wall, pole and kiosk installations. Compare all options in our POS PCs collection or contact us for volume pricing and project configurations.
