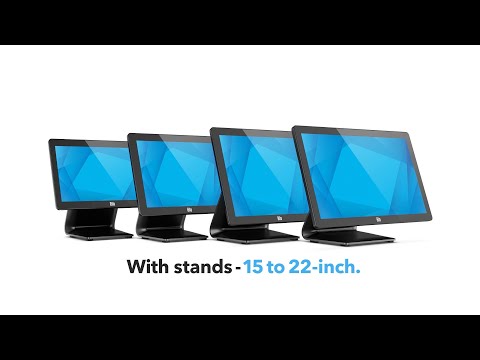

Elo I-Series 3 15.6" Touch Computer, Core i5, 16 GB / 256 GB, Win 10 IoT, with Stand (E743853)

The Elo I-Series 3 with Intel 15.6" is a fanless, IP54-rated all-in-one touch computer for point-of-sale, self-ordering and hospitality counters running Windows or Linux POS software. It pairs a Full HD IPS touchscreen with 10-point TouchPro PCAP, 12th-generation Intel processors, Wi-Fi 6E and Bluetooth 5.3 in a slim, easy-to-clean unit. The integrated POS stand adds powered USB, a cash drawer port and powered serial, so receipt printers, scanners and cash drawers connect directly without an extra hub. This version, E743853, combines an Intel Core i5-1245UL with 16 GB DDR5 RAM and a 256 GB NVMe SSD and is supplied with Windows 10 IoT Enterprise LTSC 2021 (64-bit) preinstalled. The POS stand, a 180 W power adapter with EU and US power cords and an RJ50-to-DB9 serial cable are included.

Key Features

• 12th-gen Intel performance – Celeron 7305L up to Core i7-1265UL, DDR5 memory (expandable to 64 GB) and NVMe SSD; Intel vPro and AMT on Core i5/i7
• Fanless and IP54-sealed – silent operation and a dust- and splash-resistant front for kitchens and busy counters; 50,000 h MTBF
• TouchPro PCAP display – 15.6" Full HD IPS (1920 × 1080), 297.5 nits with 10-point touch and anti-glare glass
• POS-ready stand – 24 V and 2× 12 V powered USB, RJ50 powered serial, cash drawer port (12/24 V) and USB-C with DisplayPort for a second screen
• Elo Edge Connect – four micro-USB ports on the display edges for card reader, barcode scanner, fingerprint reader, status light or RFID – no cable clutter
• Modern connectivity and security – Wi-Fi 6E, Bluetooth 5.3, Gigabit LAN and TPM 2.0
• Flexible OS choice – No OS, Windows 10 IoT Enterprise LTSC 2021 or Windows 10/11 IoT Enterprise LTSC; Linux (Ubuntu, SUSE, Red Hat) pretested by Elo

Ideal Applications

• Retail checkout – fashion, electronics, pharmacy and convenience stores
• Restaurants and cafés – counter POS and order taking with printer and cash drawer connected to the stand
• Quick-service restaurants – assisted ordering and payment stations
• Hospitality – hotel front desks, ticketing and visitor registration
• Service counters – workplaces that need card, barcode or fingerprint peripherals

Technical Specifications

Need a different processor, memory or OS? The I-Series 3 with Intel family covers Celeron, Core i3, i5 and i7 versions, with or without stand, in 15" 4:3, 15.6", 17", 22" and 24" sizes – choose a stand version for a ready-to-use POS, or a version without stand for wall, pole and kiosk installations. Compare all options in our POS PCs collection or contact us for volume pricing and project configurations.
