| Daļas numurs | ZD6A143-D0ER02EZ |

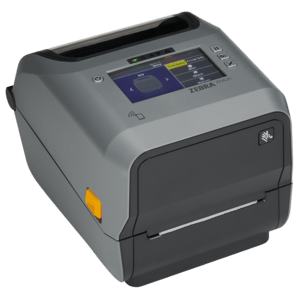

| Modelis | Zebra ZD621d |
| Printera tips | 4-inch premium desktop label printer (ZD600 Series) |
| Drukas metode | Direct thermal |
| Izšķirtspēja | 300 dpi (12 dots/mm) |
| Drukas ātrums | Up to 152 mm/s (6 in/s) |
| Maks. drukas platums | 108 mm (4.27 in) |
| Materiāla platums | 15–108 mm (0.585–4.25 in) |
| Etiķetes garums | 6.4–991 mm (0.25–39 in) |
| Ruļļa diametrs | Max. 127 mm (5 in) outer diameter |
| Serdes diametrs | 12.7 mm (0.5 in) and 25.4 mm (1 in) standard; 38.1, 50.8 and 76.2 mm with optional adapters |
| Materiāla biezums | 0.08–0.19 mm (max. in tear-off mode) |
| Materiāla veids | Roll-fed or fanfold; die-cut or continuous labels with or without black mark, tag stock, continuous receipt paper, wristbands |
| Sensori | Full-width movable reflective / black-mark sensor; multi-position transmissive / gap sensor |
| Interfeisi | USB 2.0, USB Host, RS-232 serial, 10/100 Ethernet (all standard) |
| Bezvadu savienojums | Wi-Fi 6 (802.11ax) + Bluetooth 5.3 (MIMO), factory-installed; BLE for setup |
| NFC | Print Touch (NFC) tag – tap to pair and open help pages |
| Atmiņa | 512 MB Flash, 256 MB SDRAM (64 MB Flash / 8 MB SDRAM user available); real-time clock |
| Printera valodas | ZPL II, EPL 2, XML, ZBI, PDF Direct; Print DNA printer emulations; Link-OS |
| Fonti / rakstzīmju kopas | 16 resident expandable ZPL II bitmap fonts, 2 scalable ZPL fonts, 5 EPL2 fonts, native OpenType support, Unicode |
| Svītrkodi | 1D: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13 (+2/+5), Plessey, Postnet, Standard / Industrial / Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code; 2D: Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Displejs | 4.3-inch full-colour LCD touch display (480 × 272), 5 status icons and 3-button interface |
| Materiāla apstrādes iespējas | Tear-off (standard); field-installable dispenser / peeler (P1112640-031) and cutter (P1112640-030) |
| Draiveri un programmatūra | Print DNA (PrintSecure, Printer Profile Manager Enterprise, Zebra Printer Setup app), ZebraDesigner Essentials (free), Windows drivers |
| Mobilā drukāšana | Android, iOS, Windows |
| Barošana | Auto-detecting 100–240 V AC, 50–60 Hz external power supply (24 V DC, 3.125 A, C13 inlet, PFC); ENERGY STAR, Efficiency Level VI; optional 2750 mAh battery and attached power supply |
| Izmēri (P × Dz × A) | 177 × 221 × 151 mm |
| Svars | 1.6 kg |
| Krāsa | Dark grey |
| Darba temperatūra | 4.4 °C to 41 °C |
| Uzglabāšanas temperatūra | −40 °C to 60 °C |
| Mitrums | 10–90% non-condensing (operating) |
| Sertifikāti | IEC 62368-1, EN 55032 Class B, EN 55035, EN 300 328, EN 301 893, FCC Class B, CE; RoHS |
| Garantija | 24 months (Zebra ZD600 Series standard warranty) |
| Iepakojuma saturs | Zebra ZD621d printer (4.3-inch colour touch display, tear-off), external power supply (100–240 V AC), EU and UK power cords, USB cable, quick start guide, regulatory guide – labels NOT included |
