| Preces kods | TC5010-041B2B0001-A6 |

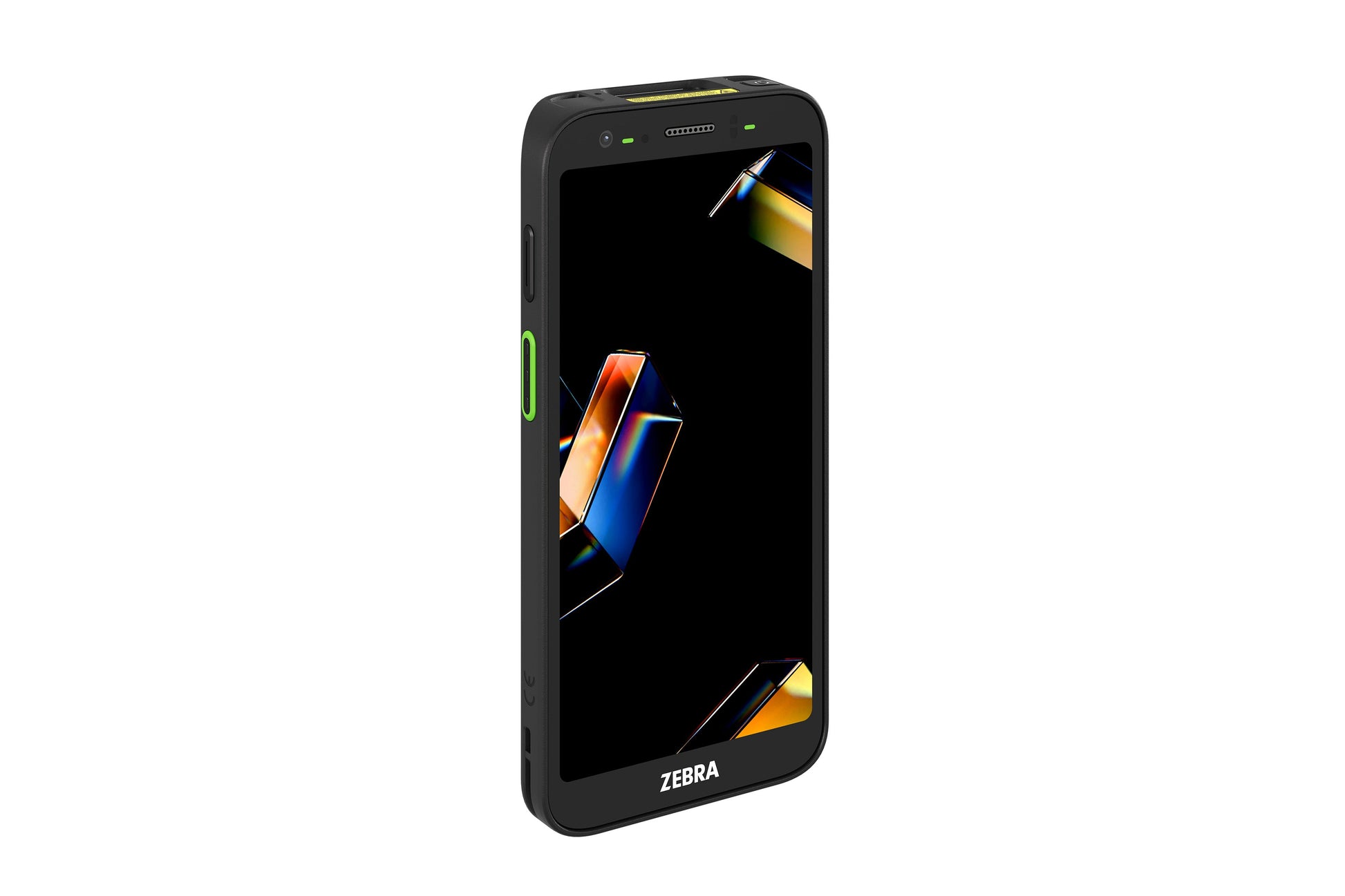

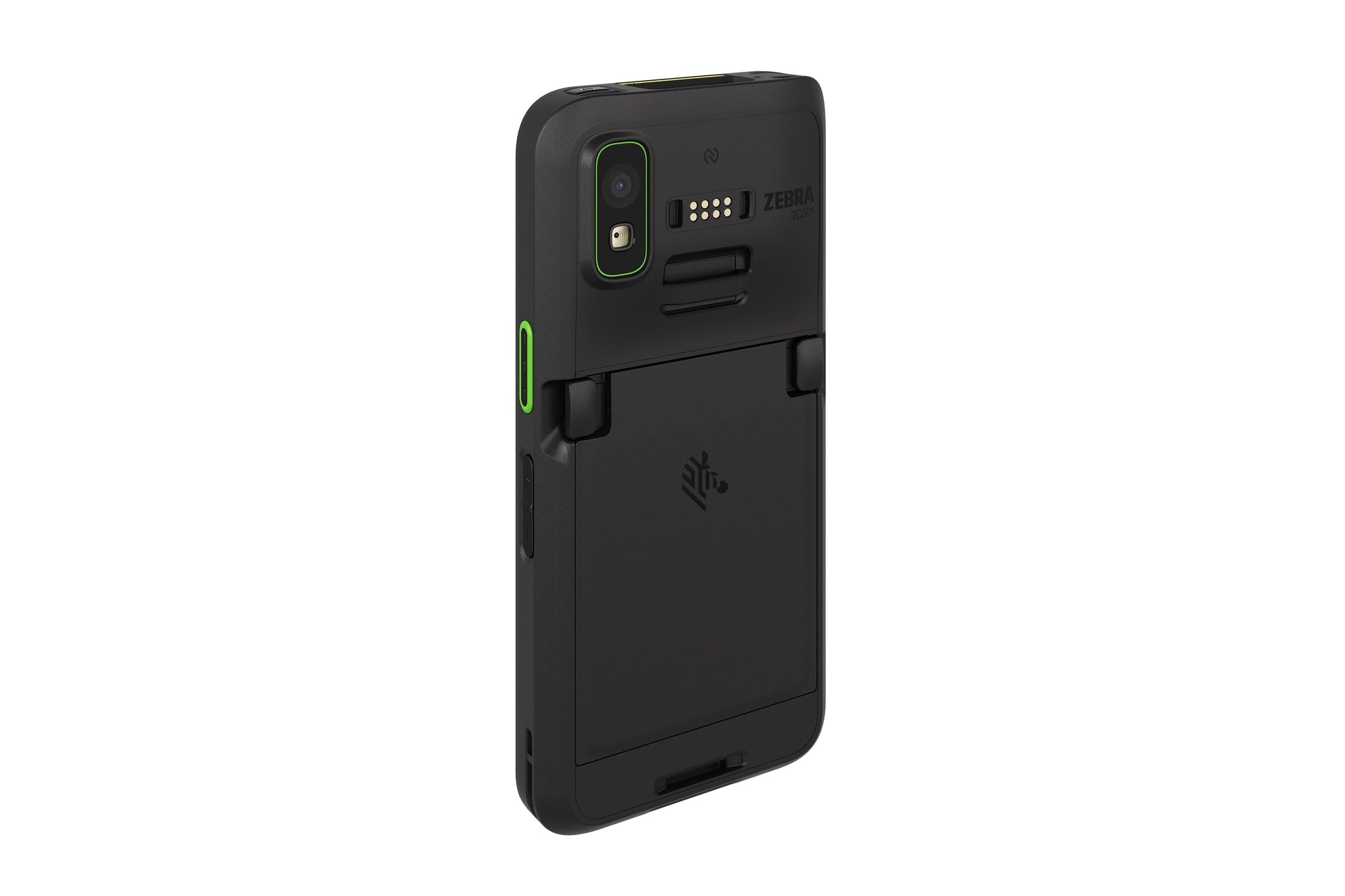

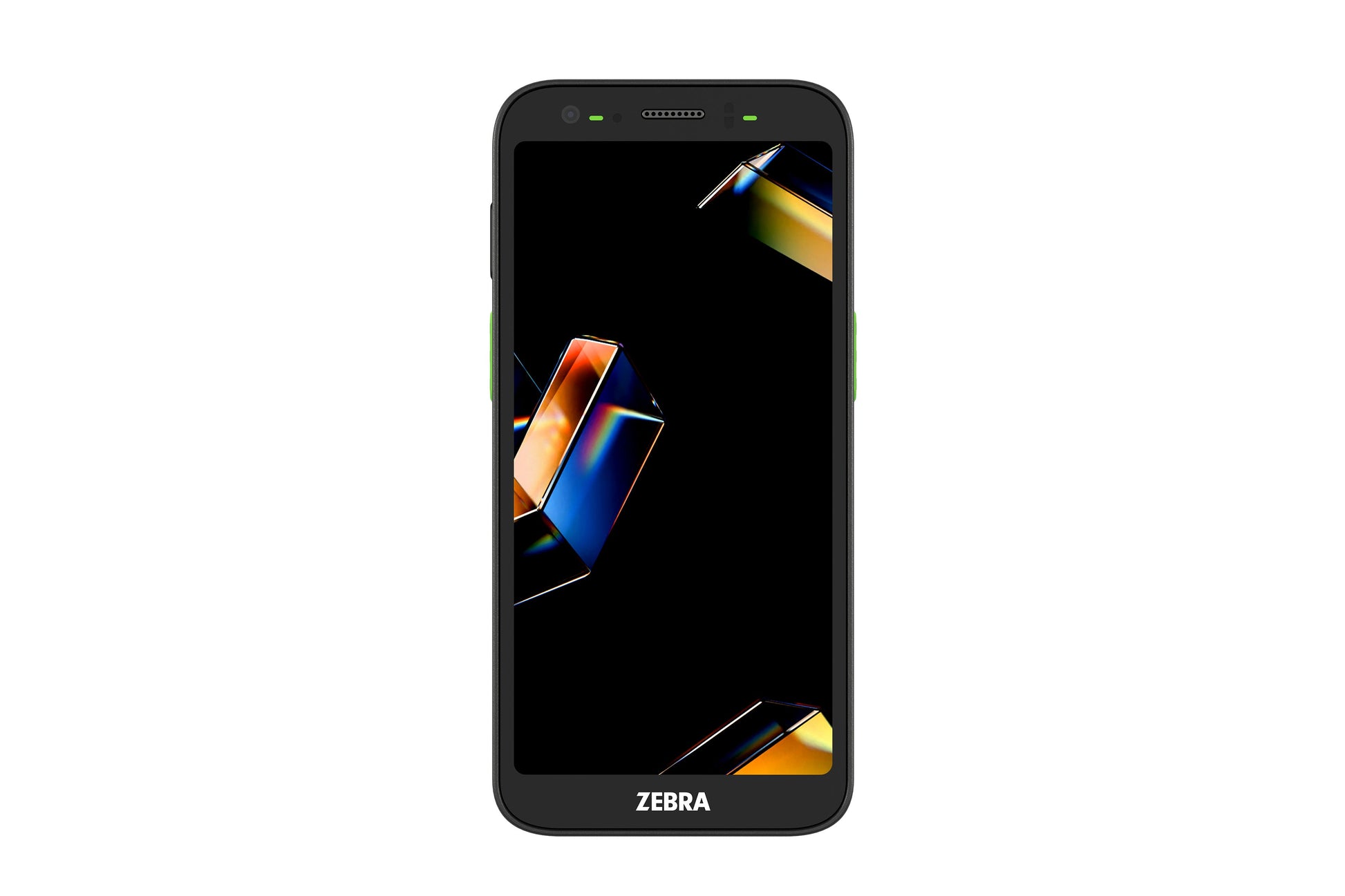

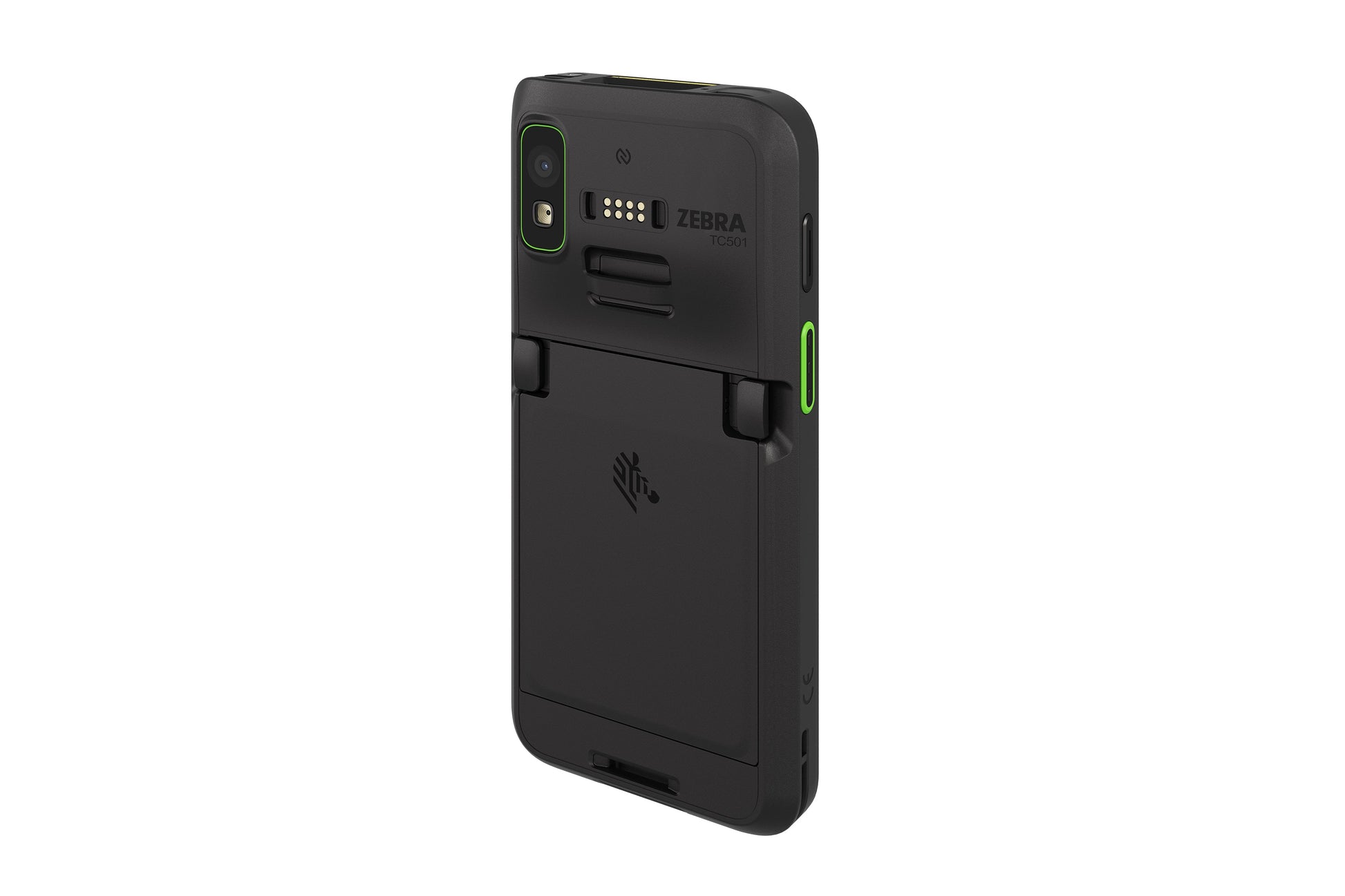

| Modelis | Zebra TC501 (Wi-Fi model; TC5 series) |
| Operētājsistēma | Android with Google Mobile Services (GMS); LifeGuard for Android security updates – supported Android versions per zebra.com/android-versions |
| Procesors | Qualcomm Dragonwing Q-6690 octa-core with dedicated AI engine, 2.9 GHz |
| Atmiņa (RAM / Flash) | 12 GB LPDDR5 RAM / 256 GB UFS 3.1 Flash |
| Paplašināšana | User-accessible microSD slot, up to 2 TB |
| Displejs | 6.0" Full HD+ (2160 × 1080) AMOLED, 1500 nits, adaptive refresh rate, optically bonded; Corning Gorilla Glass Victus 2 |
| Skārienpanelis | Multi-mode capacitive touch – bare or gloved finger or passive stylus (sold separately); water-droplet rejection, anti-smudge coating |
| Tastatūra | On-screen keypad |
| Pogas | Dual dedicated scan buttons, dedicated push-to-talk button, volume up/down, power |
| Skenēšanas modulis | SR560 1D/2D scan engine – improved 2D barcode finder (aimer) for fast, accurate capture on the move; Corning Gorilla Glass exit window |
| Aizmugurējā kamera | 50 MP autofocus (PDAF) + 13 MP ultra-wide autofocus camera (5 cm – infinity), flash LED, HDR |
| Priekšējā kamera | 8 MP fixed focus |
| Wi-Fi | Wi-Fi 7 (IEEE 802.11be/ax/ac/n/a/g/b), tri-band 2.4 / 5 / 6 GHz, 2x2 MU-MIMO, MLO; WPA3; fast roaming 802.11r / OKC / CCKM |
| Bluetooth | Bluetooth 6.0, Class 1 and 2, BLE Audio; chipset-based secondary BLE beacon for locating lost devices |
| NFC | ISO 14443 A/B, MIFARE, FeliCa, ISO 15693; host card emulation; contactless payment support; Apple VAS / ECP and Google Smart Tap certified |
| Mobilie dati (WWAN) | Not available – Wi-Fi only (choose a TC501G version for 5G) |
| GPS/GNSS | Not available (5G models only) |
| Balss un audio | Stereo speakers, 2 microphones with AI-based noise suppression and echo cancellation, USB-C and Bluetooth headsets, PTT; HD Voice / VoIP |
| Pieslēgvietas | USB-C (USB 3.1, host and client) at the bottom; USB 2.0 rear I/O (host) |
| Sensori | Light sensor, proximity sensor, 3-axis accelerometer, 3-axis gyroscope, magnetometer (eCompass) |
| RFID | Integrated short-range UHF RFID reader (EPC Class 1 Gen2 / Gen2 V2, EU 865–868 MHz): up to 2 m, more than 200 tags per second |
| Akumulators | 5000 mAh / 19.45 Wh PowerPrecision+ Li-ion, hot-swappable (BTRY-TC5A7A-SC-01); optional 7240 mAh extended and Qi wireless-charging batteries |
| Uzlāde | Via USB-C (cable + USB power adapter) or a charging cradle – not included; fast charging 0–70% in approx. 45 minutes |
| Korpusa tips | Touch computer with 6" display |
| Izmēri | 163.15 × 77.9 × 15.5 mm (L × W × D) |
| Svars | 273 g with 5000 mAh battery |
| Izturība pret kritieniem | 1.83 m to concrete across −20 °C to +50 °C; 2.44 m to concrete at room temperature (exceeds MIL-STD-810H); with rugged boot 2.13 m / 2.74 m |
| Izturība pret velšanos | 2,000 tumbles at 0.5 m; 2,000 tumbles at 1.0 m with rugged boot |
| Aizsardzības klase | IP68 and IP65 (IEC 60529) |
| Darba temperatūra | −20 °C to +50 °C |
| Uzglabāšanas temperatūra | −40 °C to +70 °C |
| Mitrums | 5–95% non-condensing |
| Programmatūra un pārvaldība | Zebra DNA (staging, device management, DataWedge, Workstation Connect, PTT); Frontline AI Suite; Identity Guardian and Device Guardian (licence) |
| Krāsa | Black |
| Garantija | 12 months (Zebra 1-year hardware warranty); Zebra OneCare Essential / Select service plans available |
| Iepakojuma saturs | Zebra TC501 mobile computer (TC5010-041B2B0001-A6), standard 5000 mAh PowerPrecision+ Li-ion battery (BTRY-TC5A7A-SC-01), Google Mobile Services (GMS) licence preinstalled, regulatory guide – USB power adapter, USB-C cable, charging cradle and hand strap NOT included (order separately) |
