| Daļas numurs | RS61B0-KESSXWR |

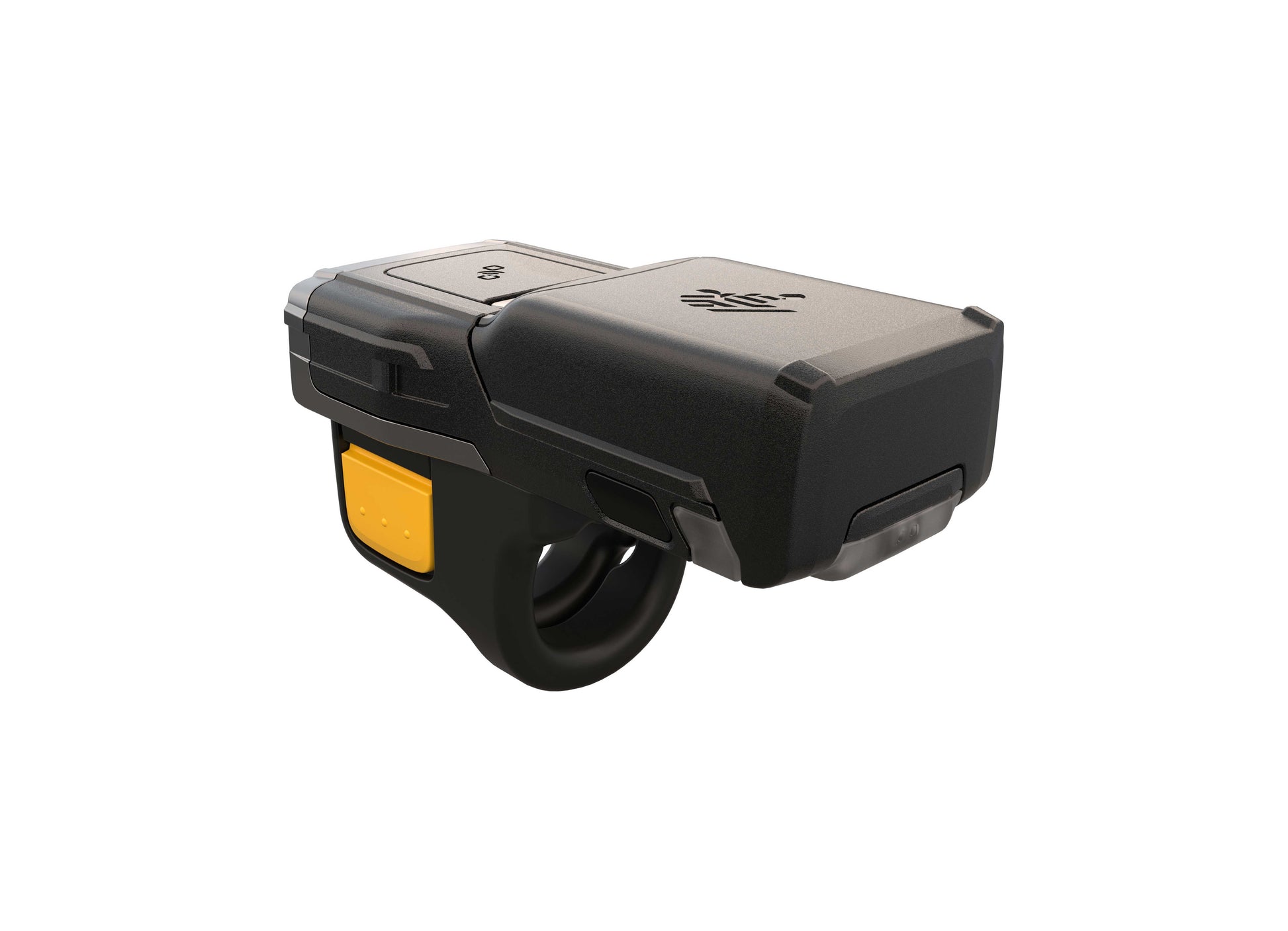

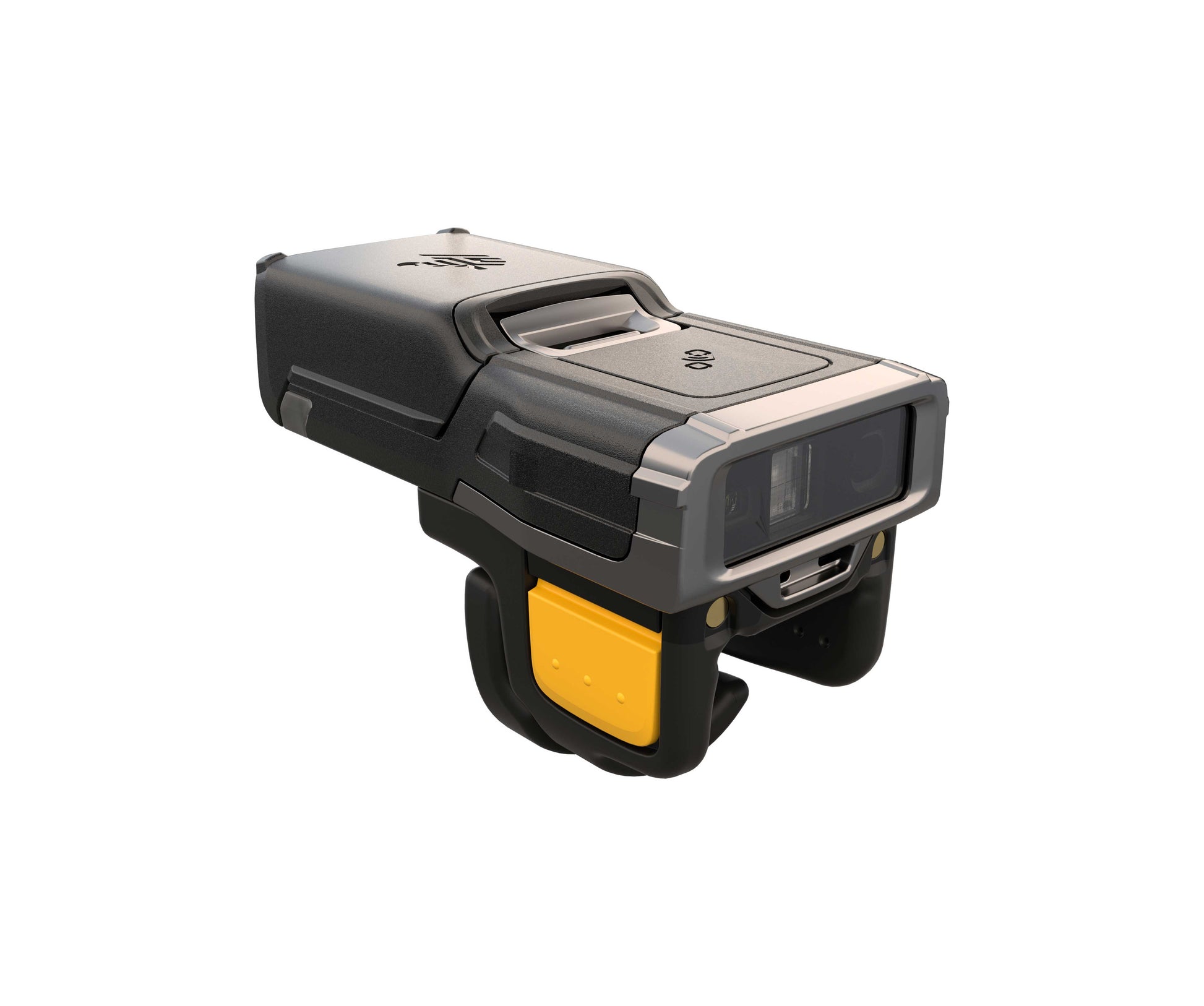

| Modelis | Zebra RS6100 (RS6100 series) |
| Skenera tips | Bluetooth wearable ring scanner, 1D/2D area imager |
| Skenēšanas modulis | SE55 1D/2D Advanced Range scan engine with IntelliFocus technology |
| Attēla sensors | 2688 × 1520 pixels |
| Redzes lauks | 37° H × 21.4° V |
| Skenēšanas diapazons | 3 mil Code 39: 6.9–41.1 cm; 5 mil Code 39: 6.4–67.6 cm; 5 mil PDF417: 7.1–49.8 cm; 6.7 mil PDF417: 6.6–65.0 cm; 10 mil Data Matrix: 5.6–68.8 cm; 13 mil UPC (100%): 6.4–180 cm; 15 mil Code 128: 18.2–182.9 cm; 20 mil Code 39: up to 276.9 cm; 55 mil Code 39: up to 744.2 cm; 100 mil Code 39: up to 1,407.2 cm; 100 mil Data Matrix: up to 685.8 cm (typical; up to 12.2 m) |
| Slīpums / sasvere / rotācija | Skew ±60° / pitch ±60° / roll 360° |
| Gaismas avots | Aiming: 515 nm laser; illumination: 1 warm white LED |
| 1D simboloģijas | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI, UPC/EAN, Interleaved 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D simboloģijas | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
| OCR | OCR-A, OCR-B |
| Bezvadu savienojums | Bluetooth 5.2, Class 1 and 2, with Bluetooth Low Energy (BLE); profiles SPP, HID, SDAP; Wi-Fi Friendly Mode |
| Savienošana pārī | NFC tap-to-pair with NFC-enabled Zebra devices; pairing barcode |
| Saderīgās ierīces | Bluetooth-enabled Zebra handheld, wearable, tablet and vehicle-mount computers (e.g. WT6300, WT6000, TC2x, TC5x); any Bluetooth smartphone, tablet or PC (HID); PCs without Bluetooth via Zebra Bluetooth adapter |
| Valkāšanas veids | Single trigger – finger-worn, removable and rotatable for left- or right-hand use; comfort pad and nylon finger strap |
| Akumulators | Extended PowerPrecision+ Li-ion battery, 735 mAh (included) |
| Indikatori | 4 programmable RGB LEDs on the back; beeper up to 85 dBA at 10 cm; restore key; haptic feedback with optional vibrating trigger |
| Krāsa | Black |
| Izmēri (A × P × Dz) | 66.6 × 32.7 × 21 mm (L × W × D) |
| Svars | 70 g with standard battery; 76 g with extended battery |
| Barošana | PowerPrecision+ Li-ion battery (480 mAh standard / 735 mAh extended) or 660 mAh freezer battery; corded adapters for WT6000, WT6300, TC21/TC26 and TC53/TC58 (battery-free operation) |
| Aizsardzības klase | IP65 (IEC 60529) |
| Kritieni / apgāšanās | Multiple 1.8 m drops to concrete across the operating temperature range; 1,000 tumbles at 0.5 m |
| Elektrostatiskā izlāde | ±15 kV air, ±8 kV contact discharge |
| Apkārtējās gaismas noturība | Up to 107,639 lux (direct sunlight) |
| Darba temperatūra | −30 °C to 50 °C (extended battery) |
| Uzglabāšanas temperatūra | −40 °C to 60 °C with battery; −40 °C to 70 °C without battery |
| Mitrums | 5–95% RH, non-condensing |
| Programmatūra un pārvaldība | 123Scan, Scanner Management Service (SMS), Zebra Scanner SDK, PowerPrecision Console (Mobility DNA) |
| Garantija | 12 months |
| Iepakojuma saturs | RS6100 wearable scanner (SE55 1D/2D imager), extended battery (735 mAh, PowerPrecision+ Li-ion), single trigger (comfort pad and nylon finger strap), regulatory guide – charger/charging cradle NOT included (order separately) |
