| Daļas numurs | DH220LHC-A001-0032 |

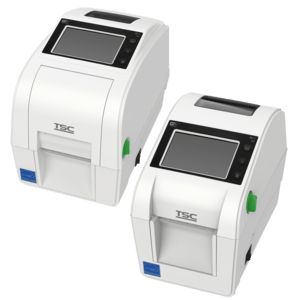

| Modelis | TSC DH220LHC (DH220L Series for Healthcare, 2-inch) |
| Printera tips | 2-inch direct thermal desktop label printer for healthcare |
| Drukas metode | Direct thermal |
| Izšķirtspēja | 203 dpi (8 dots/mm) |
| Drukas ātrums | Up to 203 mm/s (8 ips) |
| Maks. drukas platums | 54 mm (2.13") |
| Maks. drukas garums | 25,400 mm (1,000") |
| Materiāla platums | 10–60 mm (0.39"–2.36") |
| Materiāla biezums | 0.06–0.19 mm (2.36–7.48 mil) |
| Ruļļa diametrs | 165 mm (6.5") OD |
| Serdes izmērs | 25.4–38.1 mm (1"–1.5") |
| Materiālu veidi | Linerless (liner-free) direct thermal labels – this version is fitted with the linerless platen roller; label length 5 mm – 25,400 mm |
| Sensori | Transmissive gap sensor, reflective black-mark sensor (position adjustable), head-open sensor |
| Interfeisi | USB 2.0, RS-232 serial, internal Ethernet 10/100 Mbps, USB host; microSD card slot |
| Bezvadu savienojums | None as standard – optional Wi-Fi 802.11a/b/g/n/ac + Bluetooth 5.0 combo module (WF-DH220HC-2001) |
| Procesors | 32-bit RISC CPU |
| Atmiņa | 256 MB SDRAM, 512 MB Flash; microSD expansion up to 512 GB (FAT32/exFAT) |
| Reāllaika pulkstenis | Standard (plus buzzer) |
| Printera valodas | TSPL-EZD with automatic EPL, ZPL, ZPL II and DPL language switching |
| Fonti / rakstzīmju kopas | 8 alphanumeric bitmap fonts; Monotype true-type engine with CG Triumvirate Bold Condensed; ARIALUNI.TTF Unicode font (UTF-8); 0/90/180/270° rotation |
| Svītrkodi | 1D: Code 39, Code 93, Code 128 (UCC, subsets A/B/C), Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN/UPC add-on, MSI, Plessey, Postnet, China Post, ITF-14, EAN-14, Code 11, Telepen, Planet, Code 49, Deutsche Post Identcode/Leitcode, LOGMARS; 2D: TLC39, Codablock F, PDF417, MicroPDF417, MaxiCode, DataMatrix, QR Code, Aztec, GS1 DataBar |
| Displejs | 3.5" colour touch display (480 × 320 px); power, feed and reprint buttons |
| Materiāla apstrādes iespējas | Linerless cutter kit – linerless platen roller + cutter, full cut (factory-fitted) |
| Papildaprīkojums | Guillotine cutter, peel-off module, linerless cutter kit, linerless tear-off kit, Wi-Fi + Bluetooth 5.0 combo module, HF RFID tear-off upgrade kit, external label roll mount, KP-200 Plus keyboard, 10 mm narrow media adaptor |
| Pārvaldība un drošība | Internal embedded web page, virtual control panel, TSC Console, SOTI Connect (licence); HTTPS, SNMPv3, 802.1X, TCP/IP port 9100 filter; TPH Care printhead diagnostics |
| Korpuss | Double-walled clamshell; disinfectant-ready, antibacterial white plastic with easy-to-clean surface and sealed buttons |
| Barošana | IEC 60601-1 certified universal switching power supply: 100–240 V AC, 2.0 A, 50–60 Hz input; 24 V DC, 2.5 A, 60 W output |
| Svars | approx. 1.6 kg (3.6 lb) |
| Krāsa | White |
| Darba temperatūra | 0–40 °C, 25–85% RH non-condensing |
| Uzglabāšanas temperatūra | −40–60 °C, 10–90% RH non-condensing |
| Garantija | Printer: 3 years (TSC EMEA); printhead 25 km or 12 months, platen 50 km or 12 months (whichever comes first) |
| Iepakojuma saturs | TSC DH220LHC printer (203 dpi, 3.5" colour touch LCD, USB 2.0 + RS-232 + Ethernet + USB host, factory-fitted linerless cutter kit (linerless platen + cutter)), IEC 60601-1 medical-grade power supply (24 V DC, 60 W), power cord (EU Schuko plug), USB cable, quick start guide – linerless labels NOT included |
