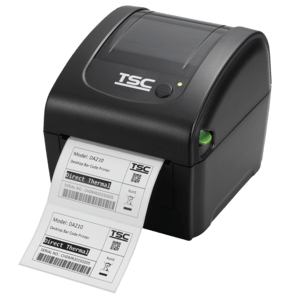

TSC DA320 (99-158A016-2102) ir kompakts 4 collu tiešās termodrukas galda etiķešu printeris, kas drukā ar izšķirtspēju 300 dpi un ātrumu līdz 102 mm/s (4 ips) – lente nav vajadzīga. Divsienu atveramais korpuss uzņem 127 mm etiķešu ruļļus līdz 114 mm platumam, TSPL-EZD programmaparatūra emulē EPL, ZPL un DPL, un printeris savienojas, izmantojot USB 2.0, USB resursdatora portu, RS-232 un 10/100 Ethernet. Komplektā barošanas bloks, strāvas vads ar ES kontaktdakšu un USB kabelis – gatavs drukāšanai.
📦 Iepakojuma saturs – 99-158A016-2102
- ✅ Etiķešu printeris TSC DA320 – 300 dpi, USB 2.0, USB host, RS-232, Ethernet 10/100
- ✅ Barošanas bloks – ārējs universālais barošanas bloks, 100–240 V AC → 24 V DC, 60 W
- ✅ Strāvas vads – ES kontaktdakša (Schuko)
- ✅ USB kabelis – USB 2.0 A–B – pievienojiet un drukājiet uzreiz
- ✅ Windows draiveri un etiķešu programmatūra – TSC draiveris un etiķešu programmatūra (CD vai bezmaksas lejupielāde no TSC)
- ✅ Uzstādīšanas pamācība
- ❌ Etiķetes – NAV iekļauts – pasūtiet savam pielietojumam piemērotas etiķetes (skatīt saderīgās etiķetes zemāk)
- ❌ Ethernet (LAN) kabelis – NAV iekļauts – der jebkurš standarta RJ45 tīkla kabelis
✅ Gatavs drukāšanai: barošanas bloks, strāvas vads un USB kabelis ir komplektā – nepieciešamas tikai tiešās termodrukas etiķetes (lente nav vajadzīga).
💡 Noderīgi papildinājumi: tiešās termodrukas etiķetes, piem., TSC 38-T100150-12LF (100 × 150 mm sūtījumu etiķetes); ārējais ruļļu turētājs TSC OP-COM-0002 lieliem 214 mm (8,4") ruļļiem uz 3" serdes; giljotīnas griezējs TSC CUT-DA210-0001 (pilns/daļējs griezums) vai etiķešu atdalītājs TSC PEL-DA210-0001; tastatūra TSC KP-200 Plus autonomai drukāšanai bez datora.
Galvenās iespējas
- Tiešā termodruka ar 300 dpi – līdz 102 mm/s (4 ips), maks. drukas platums 105.7 mm; lente nav jāpērk vai jāmaina
- Kompakts divsienu atveramais korpuss (172 × 195 × 165 mm, 1,5 kg) un vienkārša materiāla ievietošana
- 127 mm (5") etiķešu ruļļi uz 25,4–38 mm serdes, materiāla platums 19–114 mm; nepārtraukts, ar atstarpēm, melnās atzīmes, Z-locījuma un robots materiāls
- 32 bitu RISC procesors ar 64 MB DRAM, 128 MB Flash un reāllaika pulksteni
- TSPL-EZD programmaparatūra ar EPL, ZPL/ZPL II un DPL emulāciju – vienkārši aizstāj esošos etiķešu printerus
- USB 2.0, RS-232 seriālais un 10/100 Ethernet koplietojamai tīkla drukai, kā arī USB resursdatora ports skenerim vai tastatūrai
- Caurlaidības atstarpes sensors, melnās atzīmes sensors un atvērtas galviņas sensors
- Papildaprīkojums: etiķešu atdalītājs, giljotīnas griezējs (pilns/daļējs griezums) un bezpamatnes komplekti; KP-200 Plus tastatūra autonomai drukai (RS-232)
- Viegla drukas galviņas un veltņa nomaiņa; 3 gadu TSC garantija EMEA reģionā
Ideāli piemērots
- Paku sūtījumu un e-komercijas nosūtīšanas etiķetes
- Pasta telpas adrešu un maršrutēšanas etiķetes
- Preču nosūtīšana un pieņemšana noliktavās un loģistikā
- Mazumtirdzniecības kases – cenu, plauktu un produktu etiķetes
- Izklaides un transporta biļetes
- Mapju un biroja dokumentu marķēšana
Visas DA sērija versijas
Iezīmētā rinda ir versija, kuru pašlaik skatāties.
| Daļas numurs | Modelis | Izšķirtspēja | Saskarnes | Bezvadu | Strāvas vads | Krāsa | Materiāla apstrāde | |
|---|---|---|---|---|---|---|---|---|
| 99-158A001-0002 | DA210 | 203 dpi | USB | — | ES (Schuko) | Melns | Noplēšana | Skatīt produktu |
| 99-158A001-0003 | DA210 | 203 dpi | USB | — | UK | Melns | Noplēšana | Skatīt produktu |
| 99-158A005-0202 | DA210 | 203 dpi | USB | Bluetooth (MFi) | ES (Schuko) | Melns | Noplēšana | Skatīt produktu |
| 99-158A002-0002 | DA310 | 300 dpi | USB | — | ES (Schuko) | Melns | Noplēšana | Skatīt produktu |
| 99-158A013-1102 | DA220 | 203 dpi | USB, USB host, RS-232, Ethernet | — | ES (Schuko) | Melns | Noplēšana | Skatīt produktu |
| 99-158A028-1502 | DA220 | 203 dpi | USB, USB host, RS-232, Ethernet | Bluetooth 4.0 | ES (Schuko) | Melns | Noplēšana | Skatīt produktu |
| 99-158A015-2102 | DA220 | 203 dpi | USB, Ethernet | — | ES (Schuko) | Melns | Noplēšana | Skatīt produktu |
| 99-158A025-2702 | DA220 | 203 dpi | USB, Ethernet | Wi-Fi | ES (Schuko) | Melns | Noplēšana | Skatīt produktu |
| 99-158A015-2152 | DA220 | 203 dpi | USB, Ethernet | — | ES (Schuko) | Melns | Bezpamatnes griezējs | Skatīt produktu |
| 99-158A016-2102 (šī versija) | DA320 | 300 dpi | USB, USB host, RS-232, Ethernet | — | ES (Schuko) | Melns | Noplēšana | Skatāt |
| 99-158A020-1702 | DA320 | 300 dpi | USB, USB host, RS-232, Ethernet | Wi-Fi | ES (Schuko) | Melns | Noplēšana | Skatīt produktu |
| 99-158A020-20LF | DA320 | 300 dpi | USB, USB host, RS-232, Ethernet | Wi-Fi | UK | Melns | Noplēšana | Skatīt produktu |
| DA220W-A001-1102 | DA220W | 203 dpi | USB, USB host, RS-232, Ethernet | — | ES (Schuko) | Balts | Noplēšana | Skatīt produktu |
| DA220W-A001-2102 | DA220W | 203 dpi | USB, Ethernet | — | ES (Schuko) | Balts | Noplēšana | Skatīt produktu |
| DA220W-A001-21C2 | DA220W | 203 dpi | USB, Ethernet | — | ES (Schuko) | Balts | Ārējais ruļļu turētājs | Skatīt produktu |
Tehniskās specifikācijas
| Daļas numurs | 99-158A016-2102 |
|---|---|
| Modelis | TSC DA320 (DA Series) |
| Printera tips | 4-inch desktop direct thermal label printer |
| Drukas metode | Direct thermal (no ribbon) |
| Izšķirtspēja | 300 dpi (12 dots/mm) |
| Drukas ātrums | Up to 102 mm/s (4 ips) |
| Maks. drukas platums | 105.7 mm (4.16") |
| Maks. drukas garums | 11,430 mm (450") |
| Materiāla platums | 19–114 mm (0.7"–4.5") |
| Materiāla biezums | 0.055–0.19 mm (2.16–7.48 mil) |
| Ruļļa diametrs | 127 mm (5") OD inside the printer; up to 214 mm (8.4") OD on 3" core with the optional external roll mount |
| Serdes izmērs | 25.4–38 mm (1"–1.5") |
| Materiālu veidi | Continuous, die-cut (gap), black mark, fanfold, notched (outside wound); direct-thermal media; label length 10 mm – 11,430 mm |
| Sensori | Transmissive gap sensor, black-mark reflective sensor, head-open sensor |
| Interfeisi | PCBA1: USB 2.0 (high speed), USB host, RS-232 serial, Ethernet 10/100 Mbps |
| Bezvadu savienojums | None |
| Procesors | 32-bit RISC CPU |
| Atmiņa | 64 MB DRAM, 128 MB Flash |
| Reāllaika pulkstenis | Standard |
| Printera valodas | TSPL-EZD (EPL, ZPL, ZPL II and DPL compatible) |
| Fonti / rakstzīmju kopas | 8 alphanumeric bitmap fonts; Monotype true-type engine with CG Triumvirate Bold Condensed scalable font; 0/90/180/270° rotation |
| Svītrkodi | 1D: Code 39, Code 93, Code 128 (UCC, subsets A/B/C), Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN/UPC 2(5)-digit add-on, MSI, Plessey, Postnet, RSS-Stacked, GS1 DataBar, Code 11, China Post; 2D: PDF417, MicroPDF417, MaxiCode, DataMatrix, QR Code, Aztec |
| Displejs | No LCD – 1 three-colour status LED (green/amber/red), 1 feed button, power switch |
| Materiāla apstrādes iespējas | Tear-off (standard); dealer options: peel-off module, guillotine cutter (full or partial cut), linerless cutter / linerless tear kits |
| Papildaprīkojums | 1.5" core adaptor; external roll mount (214 mm OD, 3" core); KP-200 Plus keyboard display unit (serial) |
| Draiveri un programmatūra | Windows drivers and TSC labeling software (CD / free download), TSC Console |
| Barošana | External universal switching power supply: 100–240 V AC, 50–60 Hz input; 24 V DC, 2.5 A, 60 W output |
| Izmēri (P × Dz × A) | 172 × 195 × 165 mm (W × D × H) |
| Svars | 1.5 kg |
| Krāsa | Black |
| Korpuss | Double-walled plastic clamshell |
| Darba temperatūra | 5–40 °C, 25–85% RH non-condensing |
| Uzglabāšanas temperatūra | −40–60 °C, 10–90% RH non-condensing |
| Sertifikāti | FCC Class A, CE Class A, RCM, CB, CCC, ENERGY STAR, KC, BIS, UL, EAC; RoHS, WEEE |
| Garantija | Printer: 3 years (TSC EMEA, purchases from 1 June 2024); printhead 25 km or 12 months, platen 50 km or 12 months (whichever comes first) |
| Iepakojuma saturs | TSC DA320 printer (300 dpi, USB 2.0, USB host, RS-232, Ethernet 10/100), external universal power supply (24 V DC, 60 W), power cord (EU Schuko plug), USB cable, Windows labeling software (CD or download), quick start guide – labels NOT included |
Nepieciešama cita saskarne, izšķirtspēja, kontaktdakša vai veselības aprūpes versija? Visas DA sērijas versijas ir norādītas augstāk. Salīdziniet citus modeļus mūsu kolekcijā Galda etiķešu printeri vai sazinieties ar mūsu komandu par vairumcenām.
Pieejamās versijas
99-158A001-0002
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, EPL, ZPL, ZPLII, TSPL-EZ, DPL, RAM: 16 MB, Flash: 8 MB, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
99-158A001-0003
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, EPL, ZPL, ZPLII, TSPL-EZ, DPL, RAM: 16 MB, Flash: 8 MB, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (UK), label design software, QSG
99-158A002-0002
Resolution (dpi)
300
Wireless
None
Wired Interfaces
USB
Linerless
No
Color
Black
label printer, direct thermal, 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 105mm, roll diameter (max.): 127mm, speed (max.): 102 mm/s, USB, EPL, ZPL, ZPLII, TSPL-EZ, DPL, RAM: 16 MB, Flash: 8 MB, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
99-158A005-0202
Resolution (dpi)
203
Wireless
Bluetooth
Wired Interfaces
USB
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, Bluetooth (iOS), EPL, ZPL, ZPLII, TSPL-EZ, DPL, RAM: 16 MB, Flash: 8 MB, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
99-158A013-1102
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, USB Host, RS232, Ethernet, EPL, ZPL, ZPLII, TSPL-EZ, DPL, RAM: 64 MB, Flash: 128 MB, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
99-158A015-2102
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, Ethernet, emulation: EPL, ZPL, ZPLII, DPL, RAM: 128 MB, Flash: 64 MB, real time clock, incl.: cable (USB), power supply unit, power cable (EU), label design software
99-158A015-2152
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB, Ethernet
Linerless
Yes
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, Ethernet, emulation: EPL, ZPL, ZPLII, DPL, RAM: 128 MB, Flash: 64 MB, cutter, linerless platen, real time clock, incl.: cable (USB), power supply unit, power cable (EU), label design software
99-158A016-2102
Izvēlēts
Resolution (dpi)
300
Wireless
None
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 105mm, roll diameter (max.): 127mm, speed (max.): 102 mm/s, USB (Host), RS232, Ethernet, EPL, ZPL, ZPLII, TSPL-EZ, RAM: 64 MB, Flash: 128 MB, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
425,88 €Nav noliktavā
99-158A020-1702
Resolution (dpi)
300
Wireless
Wi-Fi
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 105mm, roll diameter (max.): 127mm, speed (max.): 102 mm/s, USB (Host), USB Host, RS232, Ethernet, Wi-Fi (802.11a/b/g/n), EPL, ZPL, ZPLII, TSPL-EZ, RAM: 64 MB, Flash: 128 MB, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
99-158A020-20LF
Resolution (dpi)
300
Wireless
Wi-Fi
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 105mm, roll diameter (max.): 127mm, speed (max.): 102 mm/s, USB (Host), RS232, Ethernet, Wi-Fi (802.11a/b/g/n), EPL, ZPL, ZPLII, TSPL-EZ, RAM: 64 MB, Flash: 128 MB, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (UK), label design software, QSG
99-158A025-2702
Resolution (dpi)
203
Wireless
Wi-Fi
Wired Interfaces
USB, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, Ethernet, Wi-Fi (802.11a/b/g/n), emulation: EPL, ZPL, ZPLII, DPL, RAM: 64 MB, Flash: 128 MB, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable
99-158A028-1502
Resolution (dpi)
203
Wireless
Bluetooth
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Color
Black
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, RS232, Bluetooth, Ethernet, EPL, ZPL, ZPLII, TSPL-EZ, DPL, RAM: 64 MB, Flash: 128 MB, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), label design software, QSG
DA220W-A001-1102
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Color
White
label printer, healthcare, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB (2.0), USB Host, RS232, Ethernet, RAM: 64 MB, Flash: 128 MB, desinfectable housing, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable, design software, QSG, colour: white
DA220W-A001-2102
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB, Ethernet
Linerless
No
Color
White
label printer, healthcare, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB (2.0), Ethernet, RAM: 64 MB, Flash: 128 MB, desinfectable housing, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable, design software, QSG, colour: white
DA220W-A001-21C2
Resolution (dpi)
203
Wireless
None
Wired Interfaces
USB, Ethernet
Linerless
No
Color
White
label printer, healthcare, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB (2.0), Ethernet, RAM: 64 MB, Flash: 128 MB, desinfectable housing, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable, design software, QSG, colour: white
