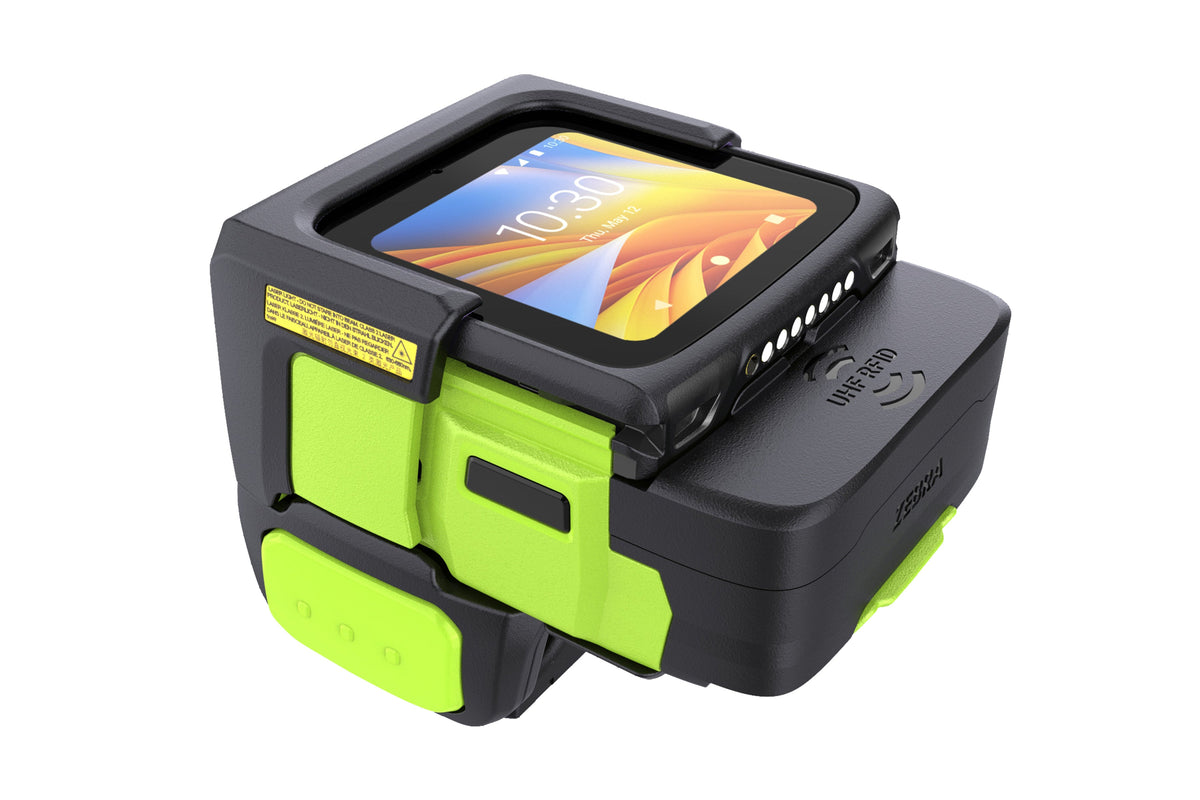

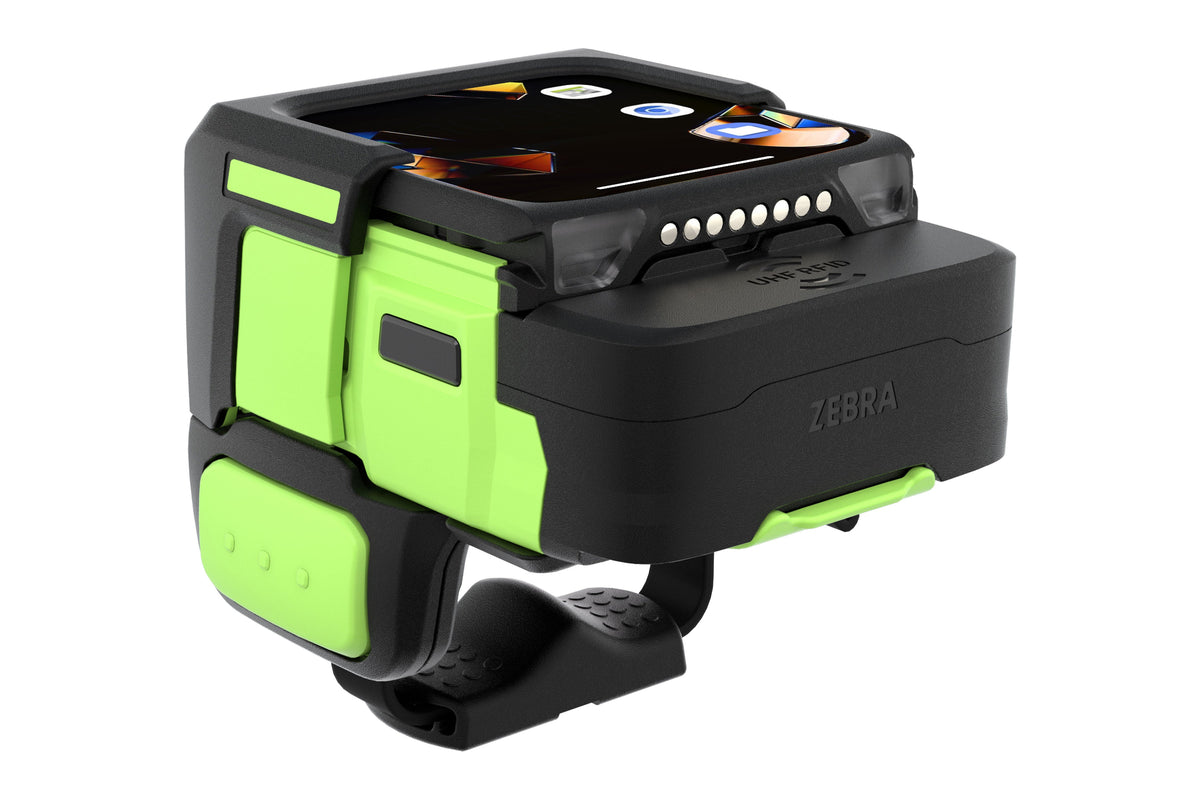

Zebra WS501-R Wearable Terminal (WS5012-0D3M1030ERW)

The Zebra WS501-R is the smallest all-in-one RFID wearable computer: a UHF RFID reader, an SR560 1D/2D imager and a full Android computer with a 2" AMOLED touchscreen, worn on the hand – no RFID sled, handheld reader or ring scanner needed. With 3 GB RAM / 32 GB Flash, Wi-Fi 6, Bluetooth 5.3 and a 2400 mAh hot-swap battery, it speeds up receiving, picking, sorting and inventory in RFID-tagged operations. This version, WS5012-0D3M1030ERW, is the rest-of-world regional version – for use in the EU/EEA please choose WS5012-0D3M1030EEA.

Key Features

• RFID and barcodes in one wearable – capture UHF RFID tags and 1D/2D barcodes without switching devices.
• Flexible read range – integrated upward-facing antenna plus an optional downward-facing external antenna; read range up to approx. 1.5 m, adjustable per task.
• SR560 imager – reads damaged and poorly printed barcodes, even in motion, with a wide field of view.
• Next-generation platform – Qualcomm quad-core 2.0 GHz, 3 GB RAM / 32 GB Flash, Wi-Fi 6 and Bluetooth 5.3 – triple the memory of the WS50 RFID.
• Three wearing styles – wrist, two-finger or back-of-hand, changeable as workflows change.
• Built for the floor – IP65, 1.5 m drops to concrete, 2,000 tumbles, replaceable front shell; 2400 mAh hot-swap battery with fast charging.

Ideal Applications

• Receiving and put-away with RFID verification
• Order picking and shipment verification before dispatch
• Inventory and cycle counts of RFID-tagged goods
• Parts tracking and finished-goods verification in manufacturing
• Retail back-of-store operations and markdowns

All WS501-R Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

The WS501-R succeeds the WS50 RFID; without RFID, see the WS501. Related Zebra wearables: Zebra WS501, Zebra WS50 and Zebra WS301. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
