| Part Number |
PS30JP-0H1A600 |
| Model |

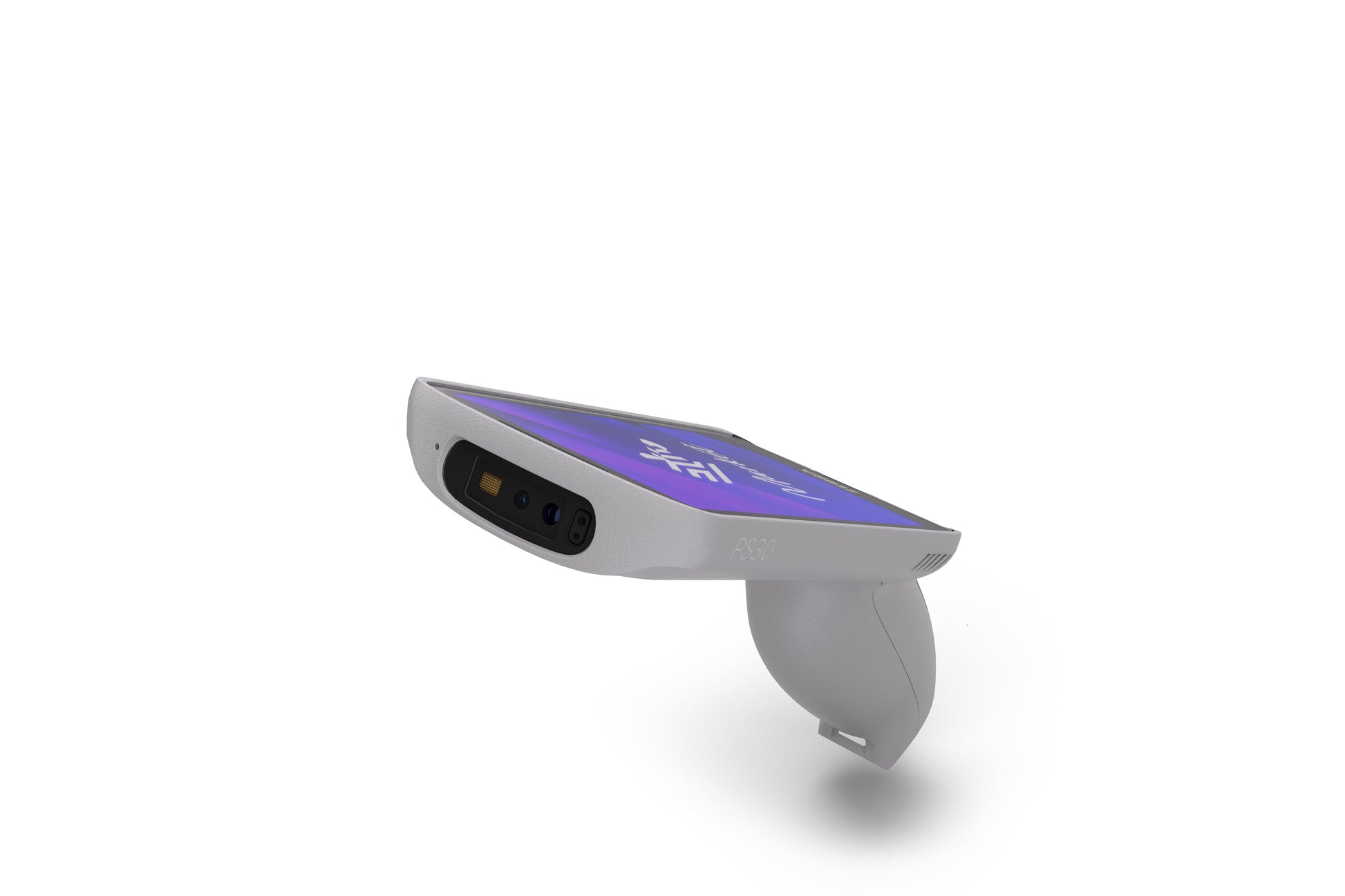

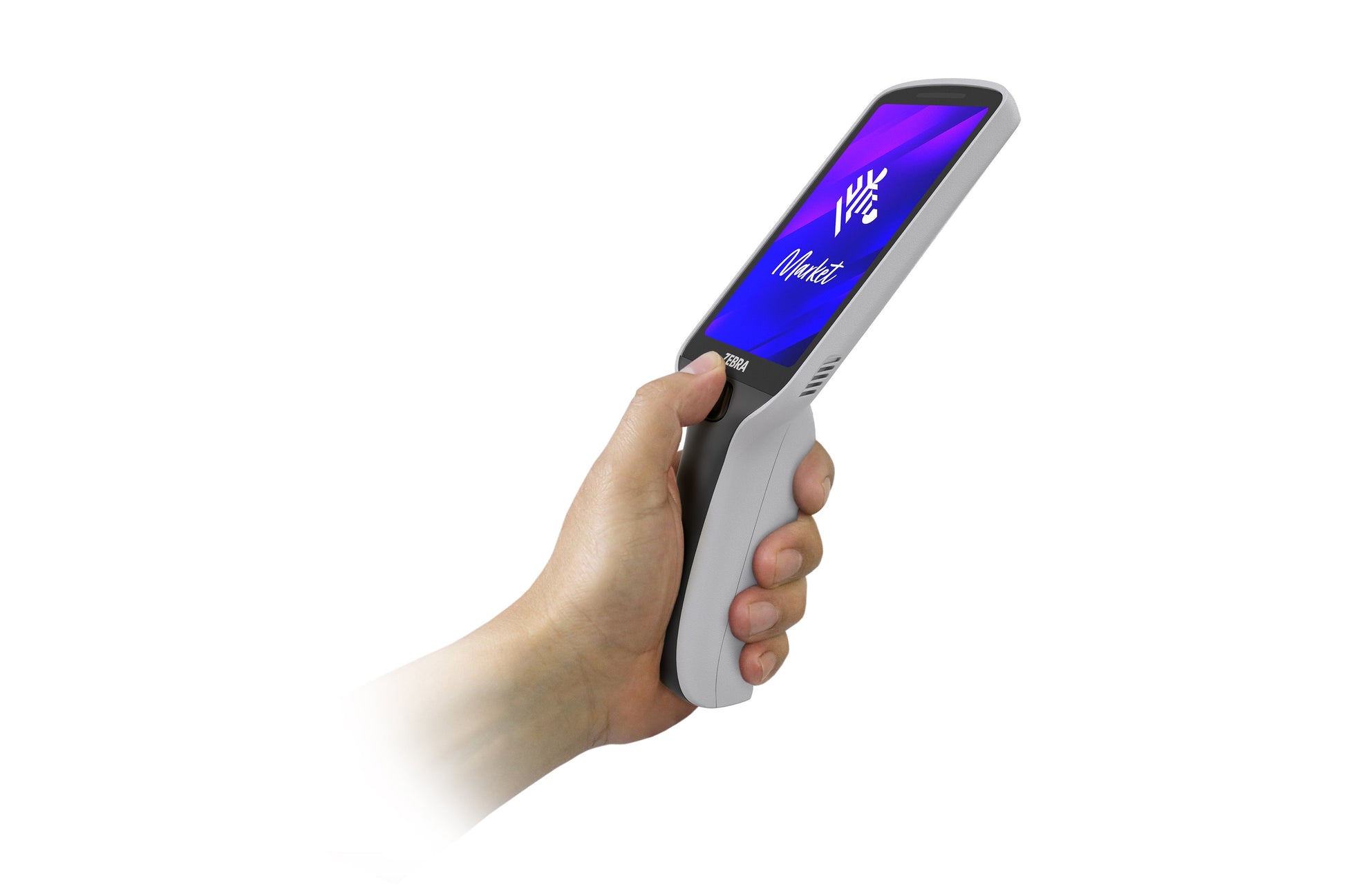

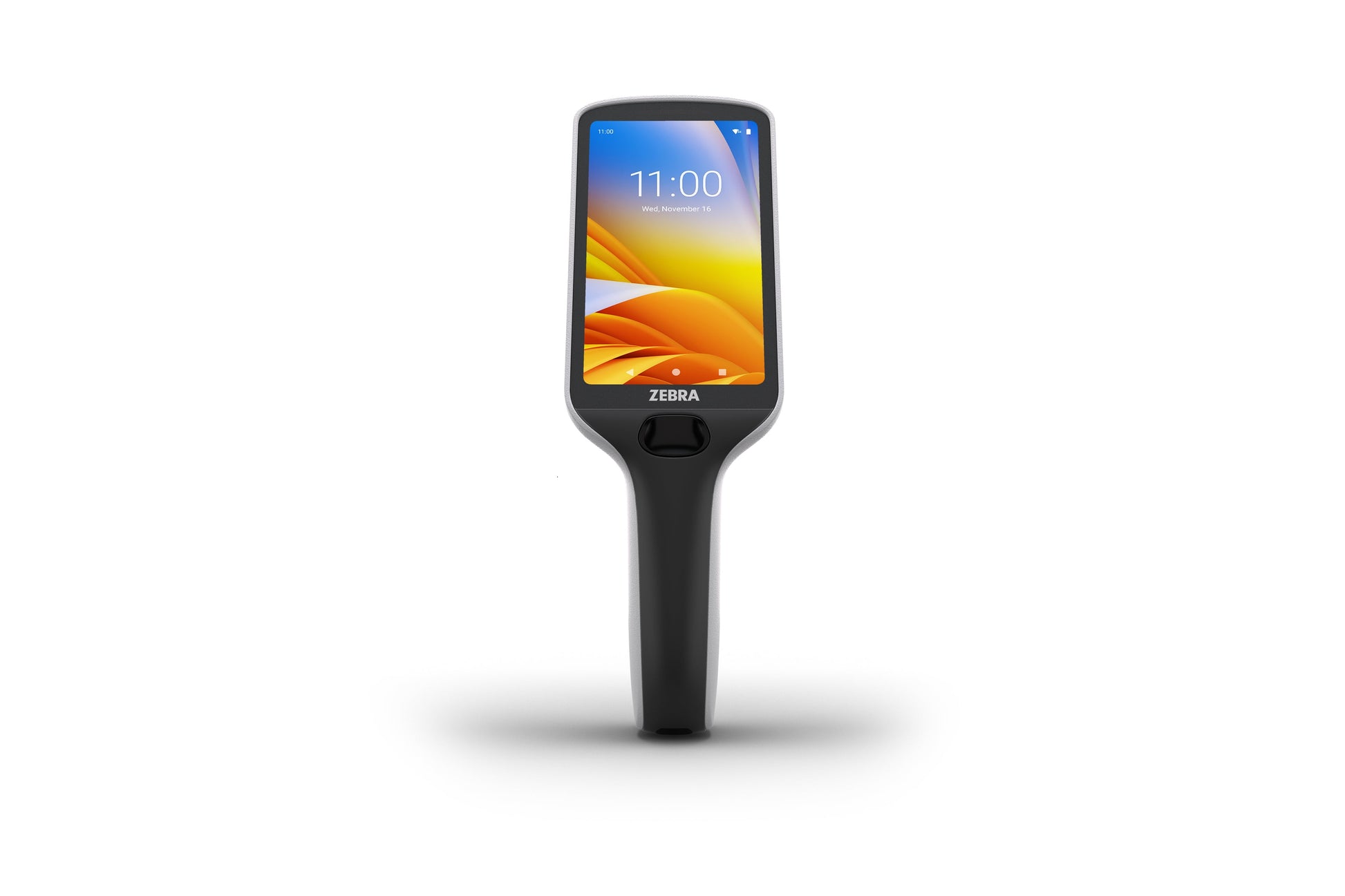

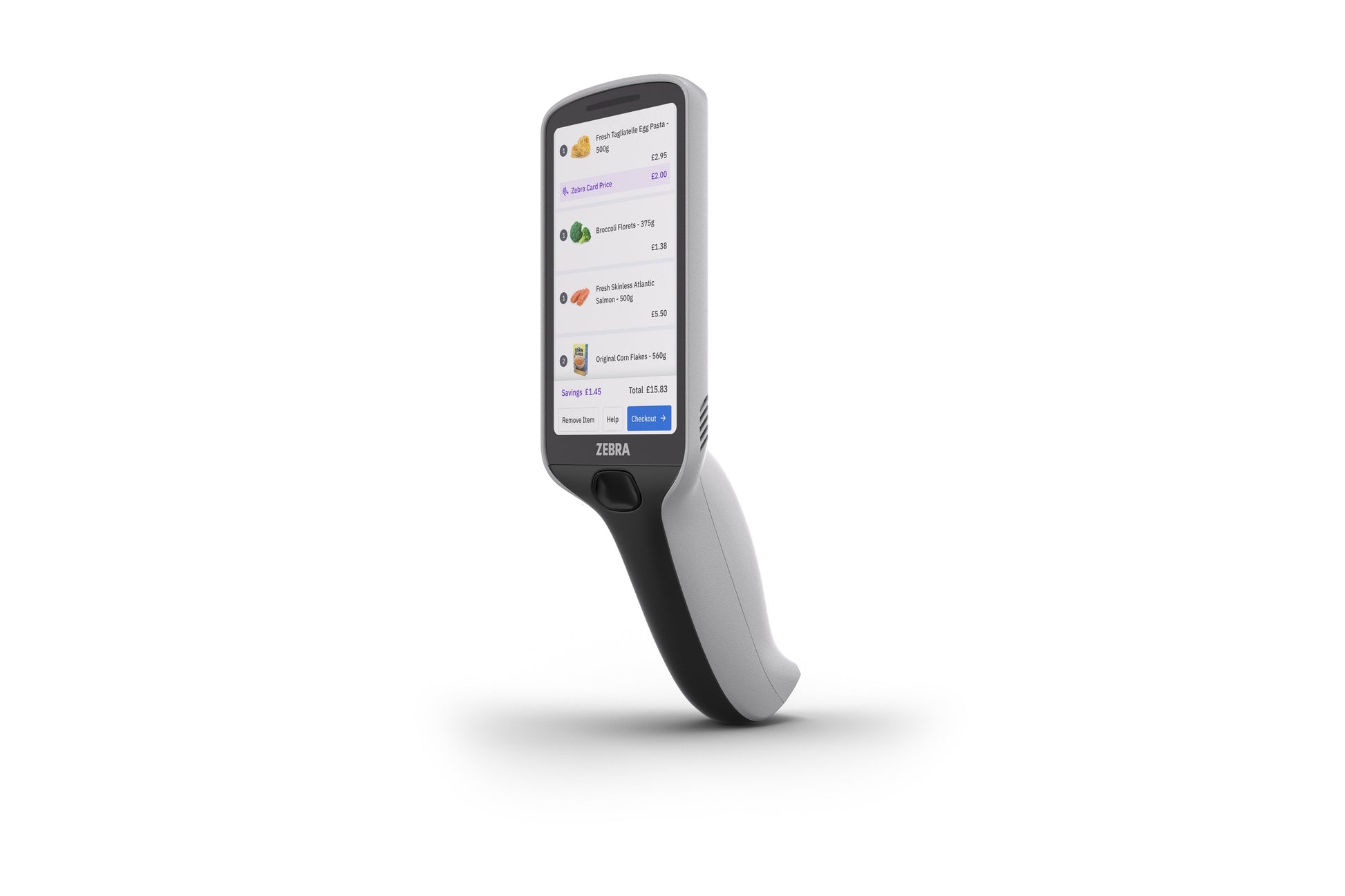

Zebra PS30 Personal Shopper – Plus model (NFC + interactive sensors) |
| Operating System |
Android; upgradeable to Android 17 |
| Processor |
Qualcomm QCS4490 Kryo octa-core, 2.4 GHz |
| Memory (RAM / Flash) |
6 GB RAM / 64 GB Flash |
| Display |
4.7" colour HD (1280 × 720), optically bonded to the touch panel, 540 nits |
| Touch Panel |
Capacitive multi-touch, Corning Gorilla Glass |
| Buttons |
1 dedicated scan button |
| Scan Engine |
SE4710 1D/2D imager, red LED illumination with LED dot aimer; Digimarc support; hands-free scan trigger (proximity sensor); Corning Gorilla Glass imager window |
| Wi-Fi |
Wi-Fi 6E (IEEE 802.11a/b/g/n/ac/ax), tri-band 2.4/5/6 GHz, 2x2 MU-MIMO; WPA3; fast roaming 802.11r / OKC / CCKM |
| Bluetooth |
Bluetooth 5.3, Class 2, Bluetooth Low Energy |
| NFC |
ISO 14443 A/B, Mifare, FeliCa, ISO 15693; host card emulation; contactless payment support (with a certified payment provider); Google Smart Tap ready |
| Mobile Data (WWAN) |
Not available – Wi-Fi only |
| Voice & Audio |
1 microphone and 2 speakers for voice query and assistance |
| Ports |
Charging/cradle connector; USB 2.0 client via the CBL-PS30-USBCHG-01 cable (device maintenance) |
| Sensors |
3-axis accelerometer, gyroscope, magnetometer, barometer (pressure sensor), proximity sensor for hands-free scan trigger |
| Locationing |
Integrated sensors compatible with third-party locationing software; supports Zebra Device Tracker, SmartLens, SNAP and MPact |
| Notifications |
Audible tone, multi-colour LED, haptic feedback |
| Battery |
3500 mAh PowerPrecision+ Li-ion, rechargeable (BTRY-PS30-35MA-01); fitted by the user under the screwed battery cover |
| Charging |

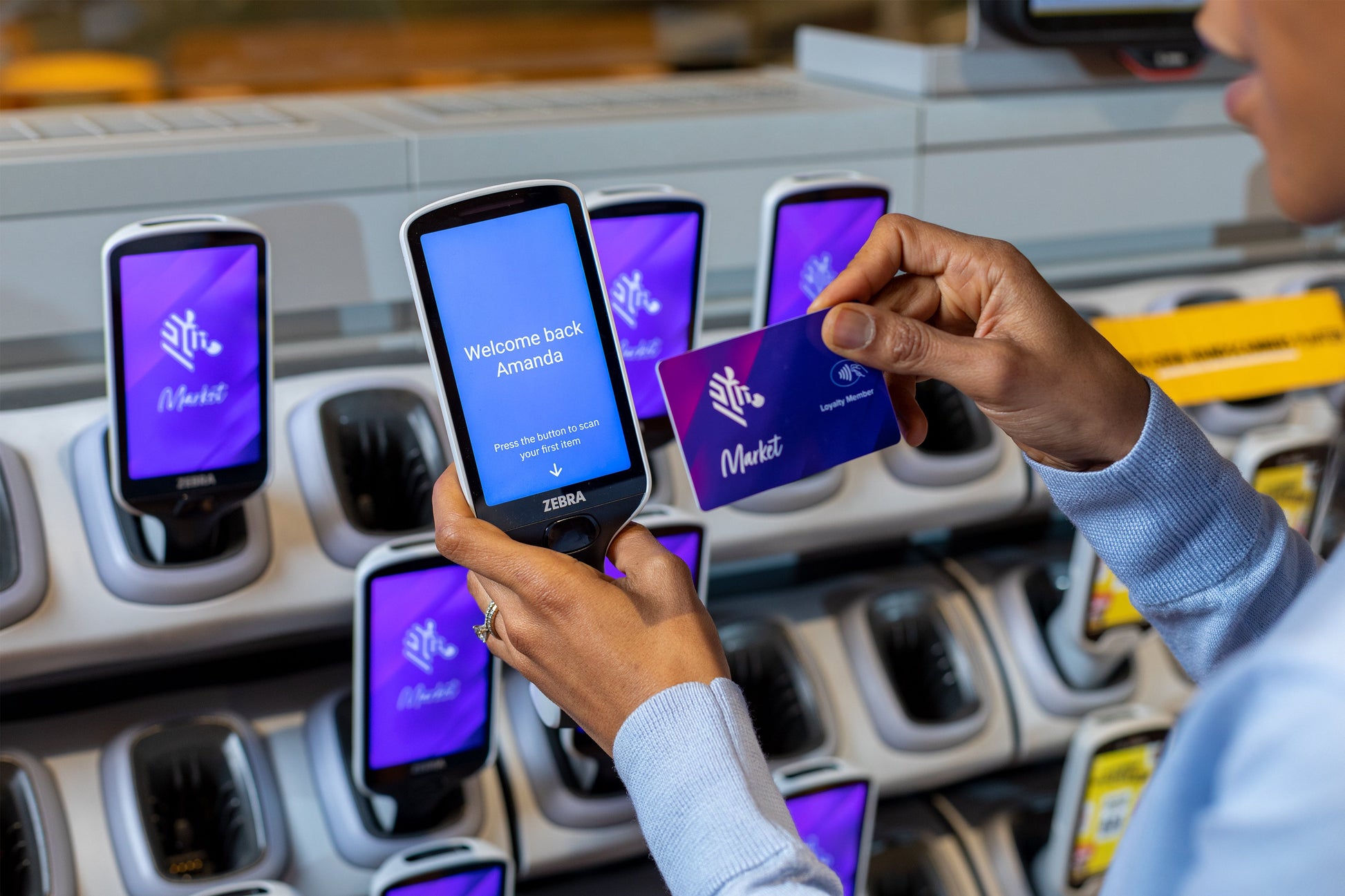

In 1-slot or 3-slot MC18/PS30 charging cradles (CRD-MC18-1SLOT-01 / -3SLOTH-01 / -3SLCKH-01) – not included |
| Form Factor |
Handheld personal shopper with ergonomic handle |
| Dimensions |
216.5 × 72 × 19.4 mm (L × W × H) |
| Weight |
282 g |
| Drop Spec |
Multiple 1.2 m drops to concrete across the operating temperature range |
| Tumble Spec |
1,000 tumbles at 0.5 m (room temperature) |
| Sealing |
PSS casual spill |
| Disinfecting & Cleaning |
Advanced chemical-resistant plastics and smooth unibody housing for frequent cleaning with approved disinfectants; EAS tag can be fitted in the handle |
| Operating Temperature |
−10 °C to 50 °C |
| Storage Temperature |
−40 °C to 70 °C |
| Humidity |
5–95% non-condensing |
| Certifications |
Common Criteria certified (ISO 15408); Secure Boot, Verified Boot |
| Software & Management |
Zebra Mobility DNA (StageNow, Enterprise Browser, Mobility DNA Wireless); self-provisioning cradle set-up; optional Device Tracker; Zebra OneCare and VisibilityIQ services |
| Warranty |
12 months (Zebra 1-year hardware warranty) |
| In the Box |
Zebra PS30 Plus personal shopper (PS30JP-0H1A600), 3500 mAh PowerPrecision+ Li-ion battery (BTRY-PS30-35MA-01, packed separately – insert before use), regulatory guide – charging cradle, power supply, DC cable and mains cord NOT included (order separately) |
