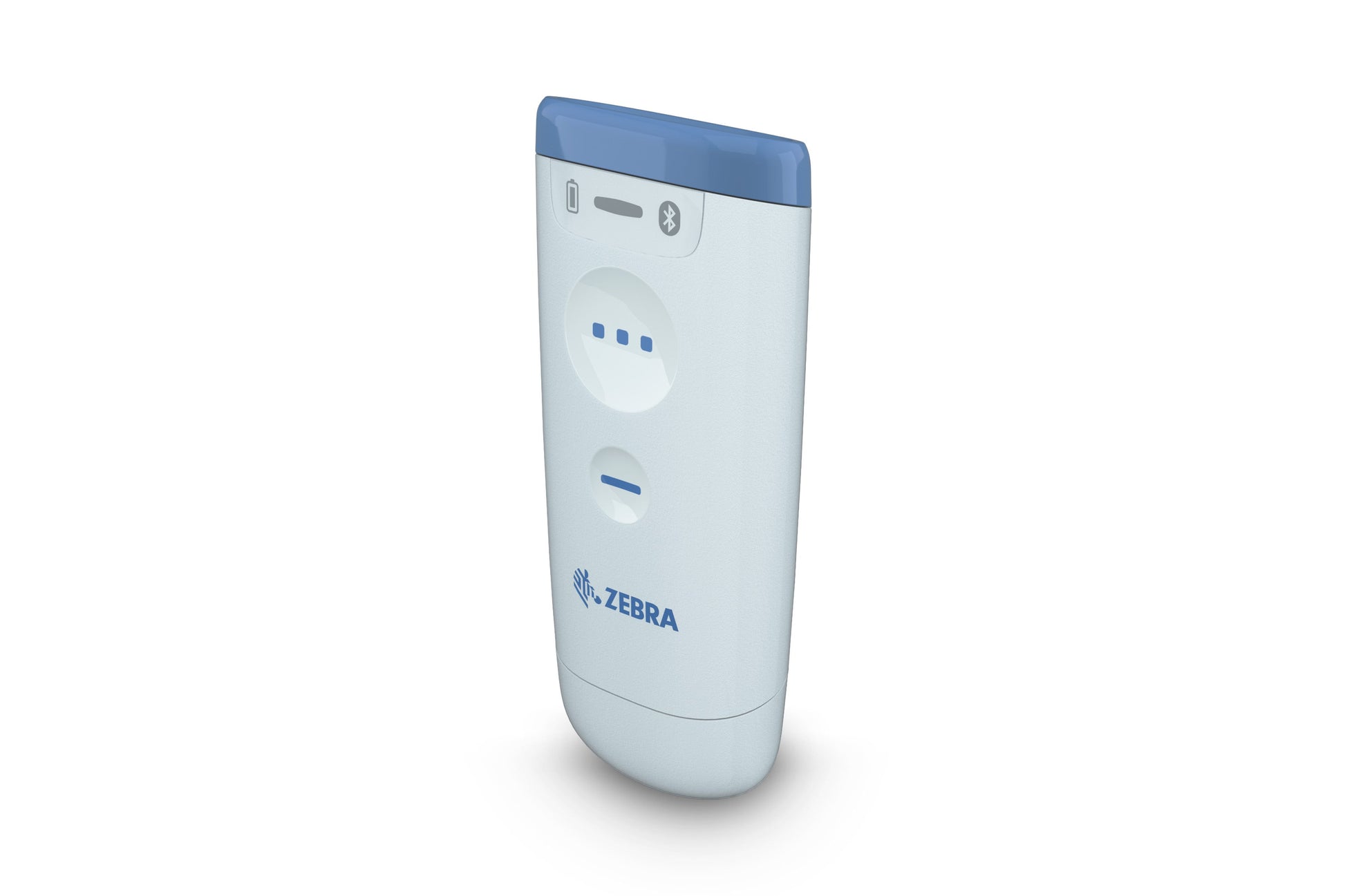

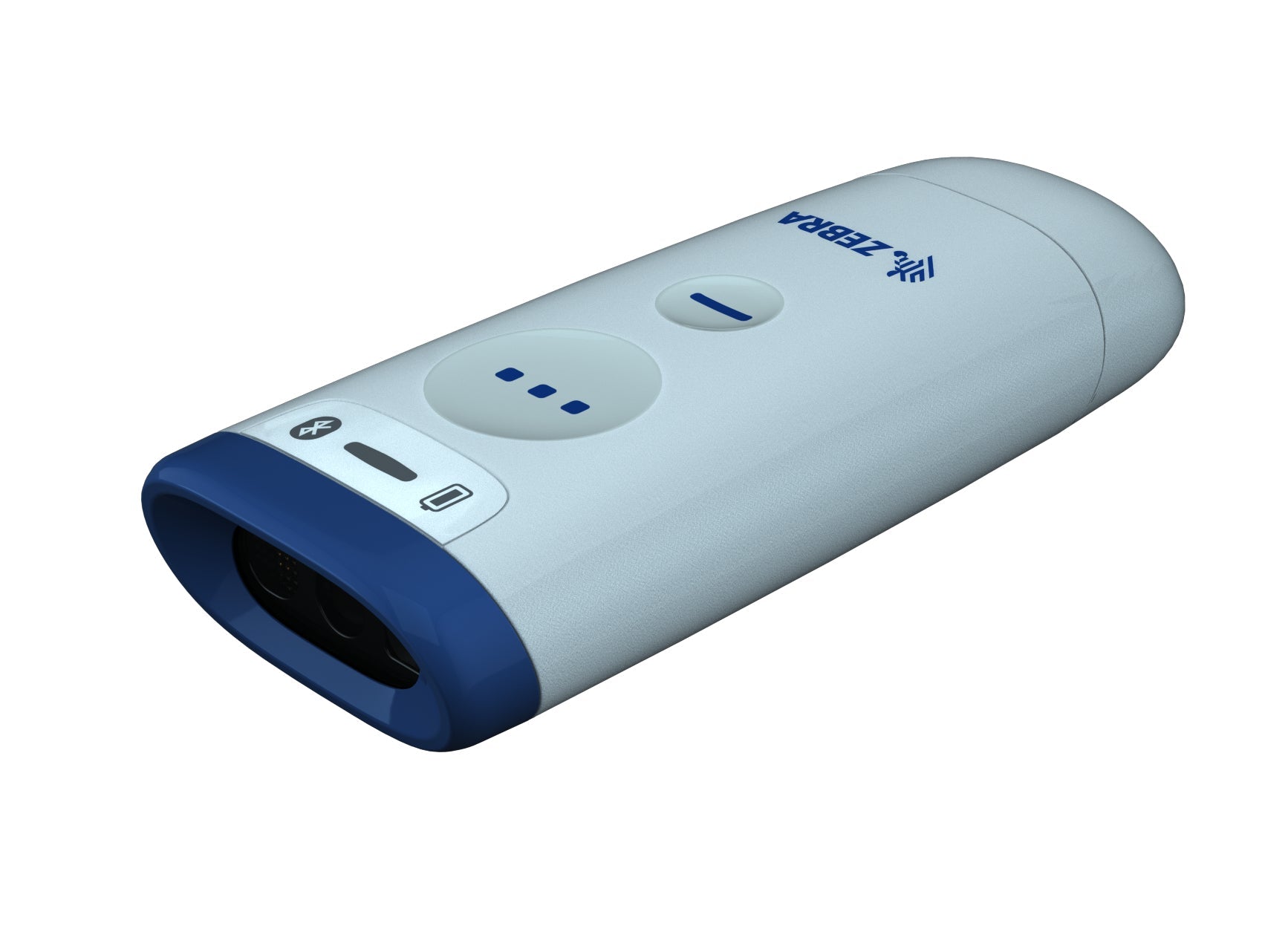

Zebra CS60-HC Barcode Scanner (CS6080-HCKF00BVZWW)

The Zebra CS60-HC (CS6080-HC) is Zebra's ultra-compact healthcare companion scanner with a first-of-its-kind convertible design: swap the battery for the corded USB converter – or back – at any time, and the same scanner works as a cordless Bluetooth® pocket scanner at the point of care, a corded handheld scanner in the pharmacy or a hands-free presentation scanner in the lab. Its disinfectant-ready Healthcare White housing with IP65 sealing withstands wipe-downs with the widest selection of aggressive hospital disinfectants, the safe green LED aimer can be used even in the NICU, and a 1280 × 960 megapixel sensor with Zebra's PRZM Intelligent Imaging reads the barcodes on patient wristbands, medication vials, IV bags and specimen trays at the first attempt. A 3-year (36-month) Zebra warranty is included. This version, CS6080-HCKF00BVZWW, is the corded USB scanner: it comes with the corded USB converter cable installed in place of the battery – plug it into a USB port and start scanning; no stand is included.

Key Features

• First-of-its-kind convertible design – swap the battery and the corded USB converter at any time: a cordless companion scanner at the bedside today, a corded scanner at the pharmacy counter or lab station tomorrow; the presentation cradle or the Gooseneck Intellistand switches automatically between handheld and hands-free scanning – full investment protection.
• Disinfectant-ready housing – special Healthcare White plastics and IP65 sealing allow safe wipe-downs with the widest selection of aggressive disinfectants used in today's hospitals, while the seamless monocoque design, inductive-sensing touch buttons and contactless charging leave no crevices where germs can hide (see Zebra's Product Reference Guide for the list of approved cleaners).
• Reads every hospital barcode – a 1280 × 960 megapixel sensor and Zebra's PRZM Intelligent Imaging capture the barcodes on patient wristbands, medication vials, IV bags and specimen trays – including poorly printed, damaged, low-contrast and glossy codes and electronic codes on screens; UPC codes are read from 4.6 to 49.5 cm.
• Safe throughout the hospital – the circular green LED aimer (no laser) can be used in the NICU, labour and delivery and mother-baby units, and the scanner's built-in lamp doubles as a workstation light, so there is no need to turn on the overhead lights and wake sleeping patients.
• Night Mode with vibration – a quick trigger press toggles between an audible beep and silent vibration, so clinicians know a wristband or vial was scanned without disturbing patients; plus Direct Decode Indicator, good-decode LED and a beeper with adjustable tone and volume.
• UDI Scan+ and Blood Bag Parse+ – automatically parses Unique Device Identification (UDI) data on medical device packaging into the right fields of your application, and captures all the data on a blood bag – blood type, donation date and location, expiry date – with a single scan.
• Pocketable and wearable – at just 87 g (cordless) or 58 g (corded) and 2.3 cm thin, the CS60-HC fits in a scrub pocket and naturally in the hand; with the optional lanyard and silicone protector it can be worn comfortably all shift long.
• Bluetooth 5.0 with 100 m range – Class 1 Bluetooth with BLE for up to 100 m of roaming from the cradle, split-second NFC tap-to-pair with phones and tablets, and Wi-Fi friendly mode that keeps the scanner off the channels used by your Wi-Fi network; an MFi-certified version is available for iOS.
• Full-shift power and Qi charging – the 745 mAh battery delivers up to 18 hours or 13,000 scans per charge, is swapped without tools and has a dedicated battery gauge; contactless inductive charging needs no contact cleaning, and any off-the-shelf Qi pad can charge the scanner.
• Second programmable button – instantly toggle between two host applications, such as the electronic medical record (EMR) and a blood collection application, and send data in the right format and order.
• Anti-loss tools and AutoConfig – Virtual Tether alerts you when a scanner is out of range or left out of the cradle for too long, the cradle's paging button finds a misplaced scanner, and AutoConfig stores the scanner settings in the cradle, so a scanner automatically takes on the settings of the cradle it is paired with.
• Built for all-day use – IP65 sealing against dust and water jets, multiple 1.8 m drops to concrete and 250 tumbles; the scanner and cradle carry a 36-month Zebra warranty.
• Easy to deploy and manage – Zebra DataCapture DNA tools such as 123Scan, Scanner Management Service and Remote Diagnostics; supports more than 90 international keyboards and is FIPS 140-3 compliant.

Ideal Applications

• Pharmacy counters and lab stations – corded or hands-free with the presentation cradle or Gooseneck Intellistand
• Positive patient identification (PPID) at the bedside, in admissions and at the nurses' station
• Medication administration – wristbands, medication vials and IV bags
• Specimen collection and phlebotomy
• Electronic medical record (EMR) access at in-room workstations, carts and mobile devices
• Inventory management and UDI capture of medical devices and supplies
• Clinicians, technicians, pharmacists and admissions staff

All CS60-HC Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? For cordless scanning at a PC, EMR workstation or medication cart, choose the presentation cradle kit CS6080-HCB00004P1W. The scanner-only versions CS6080-HC4F00BVZWW and CS6080-HC4F00BVMWW (Apple MFi) are intended as additional or replacement scanners for an existing CR6080 cradle or for direct Bluetooth pairing with tablets, smartphones and mobile computers. For the pharmacy counter or a lab station, choose the corded CS6080-HCKF00BVZWW. Looking for the standard black version for retail? See the Zebra CS60. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
