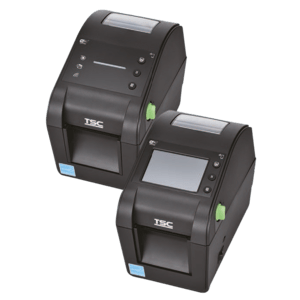

TSC DH220L Desktop Label Printer (DH220L-A001-1032)

The TSC DH220L (DH220L-A001-1032) is a 2-inch direct thermal desktop label printer from TSC's DH-L generation, printing at 203 dpi and up to 203 mm/s (8 ips) with a max. print width of 54 mm. This LED version keeps operation simple with status icons and three buttons – ideal when little configuration is needed. The factory-fitted linerless cutter kit prints on liner-free labels and cuts them cleanly – no backing paper to throw away. It takes label rolls up to 165 mm (6.5") OD and media 10–60 mm wide, speaks TSPL-EZD with automatic EPL, ZPL and DPL emulation and connects via USB 2.0, RS-232, 10/100 Ethernet and a USB host port. Supplied with power supply, EU power cord and USB cable – ready to print, no ribbon needed.

Key Features

• Direct thermal at 203 dpi – up to 203 mm/s (8 ips), max. print width 54 mm, labels up to 25.4 m long
• LED status and icon indicators with feed, pause and reprint buttons – no display to configure
• Large 165 mm (6.5") label roll capacity on 25.4–38.1 mm cores – fewer roll changes than with 127 mm printers
• Media 10–60 mm wide: continuous, die-cut, black-mark, fanfold and notched labels plus wristbands; linerless media with the linerless kit
• Factory-fitted linerless cutter kit – less waste and more labels per roll
• TSPL-EZD firmware with automatic EPL, ZPL/ZPL II and DPL language switching – existing label templates print unchanged
• USB 2.0, RS-232, 10/100 Ethernet and USB host as standard; Wi-Fi + Bluetooth 5.0 or Bluetooth 5.3 modules can be added later
• 256 MB SDRAM, 512 MB Flash, microSD slot (up to 512 GB) and real-time clock
• Remote management via embedded web page, TSC Console and SOTI Connect; HTTPS, SNMPv3 and 802.1X security
• Tool-free printhead and platen roller replacement, clamshell design and built-in buzzer

Ideal Applications

• Food service and delivery – order, bag and grab-and-go labels without liner waste
• Retail and deli counters – price, weighing-scale and promotional labels
• Food and beverage – date, ingredient and product labels
• Transport and logistics – shipping and parcel labels with less waste
• Sustainability programmes – no liner to dispose of, more labels per roll

All DH220L / DH320L Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Need a different resolution, display, wireless option or media handling? All DH220L / DH320L versions are listed above. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
