RAM Mounts No-Drill Universal Vehicle Floor Mount with Dual Swing Arms and Round AMPS Plate (RAM-VB-196-SW2)

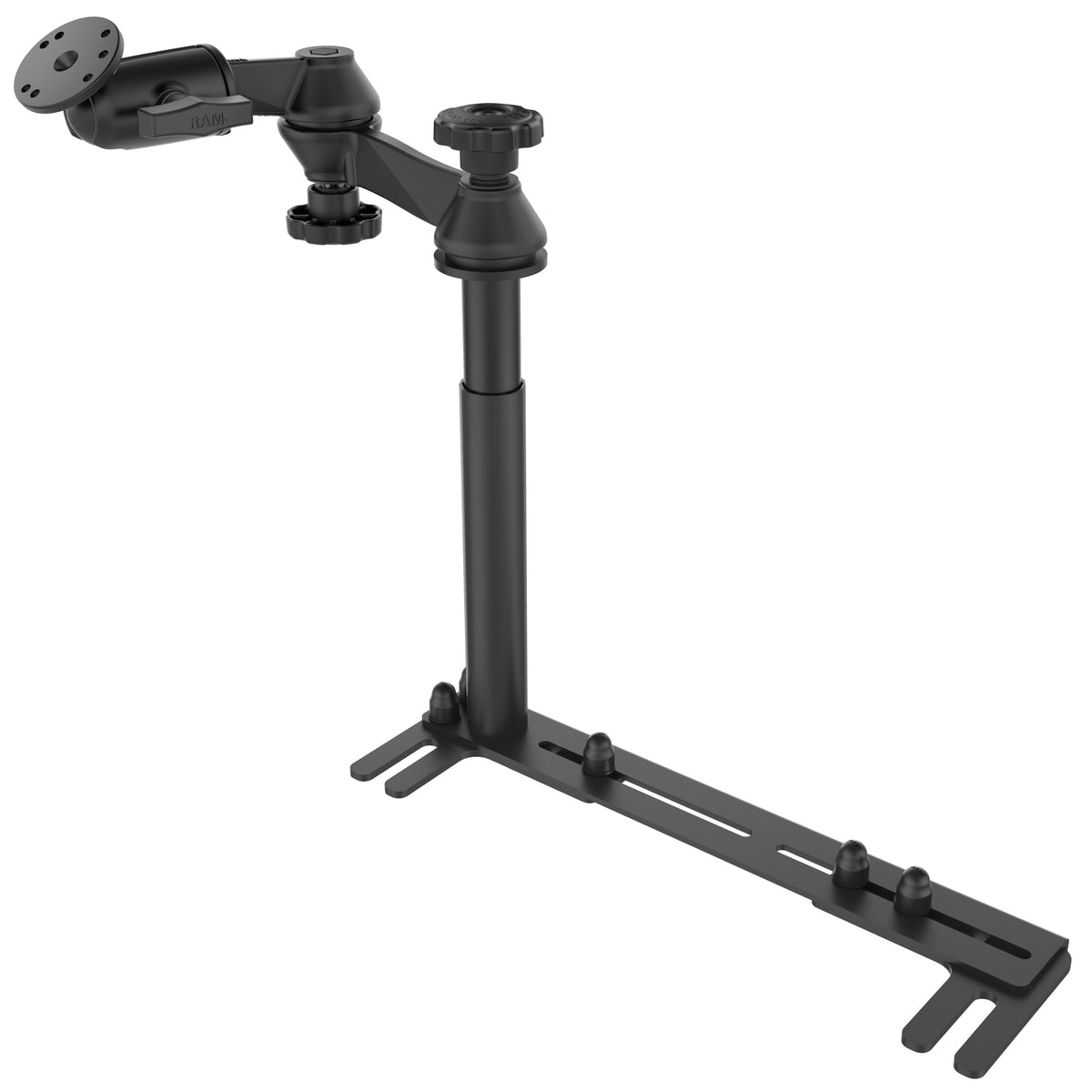

RAM Mounts No-Drill Universal Vehicle Floor Mount with Dual Swing Arms and Round AMPS Plate (RAM-VB-196-SW2) installs on the existing passenger seat bolts, so the vehicle floor stays intact. The telescoping pole sets the height between 400 and 546 mm, and two articulating swing arms with 305 mm reach bring the tablet or laptop holder within easy reach of both driver and passenger. The 63.5 mm round plate with a C-size (1.5") ball and the universal AMPS pattern takes RAM tablet and laptop holders, while the rubber ball joint allows extra adjustment and absorbs shock and vibration.

Key Features

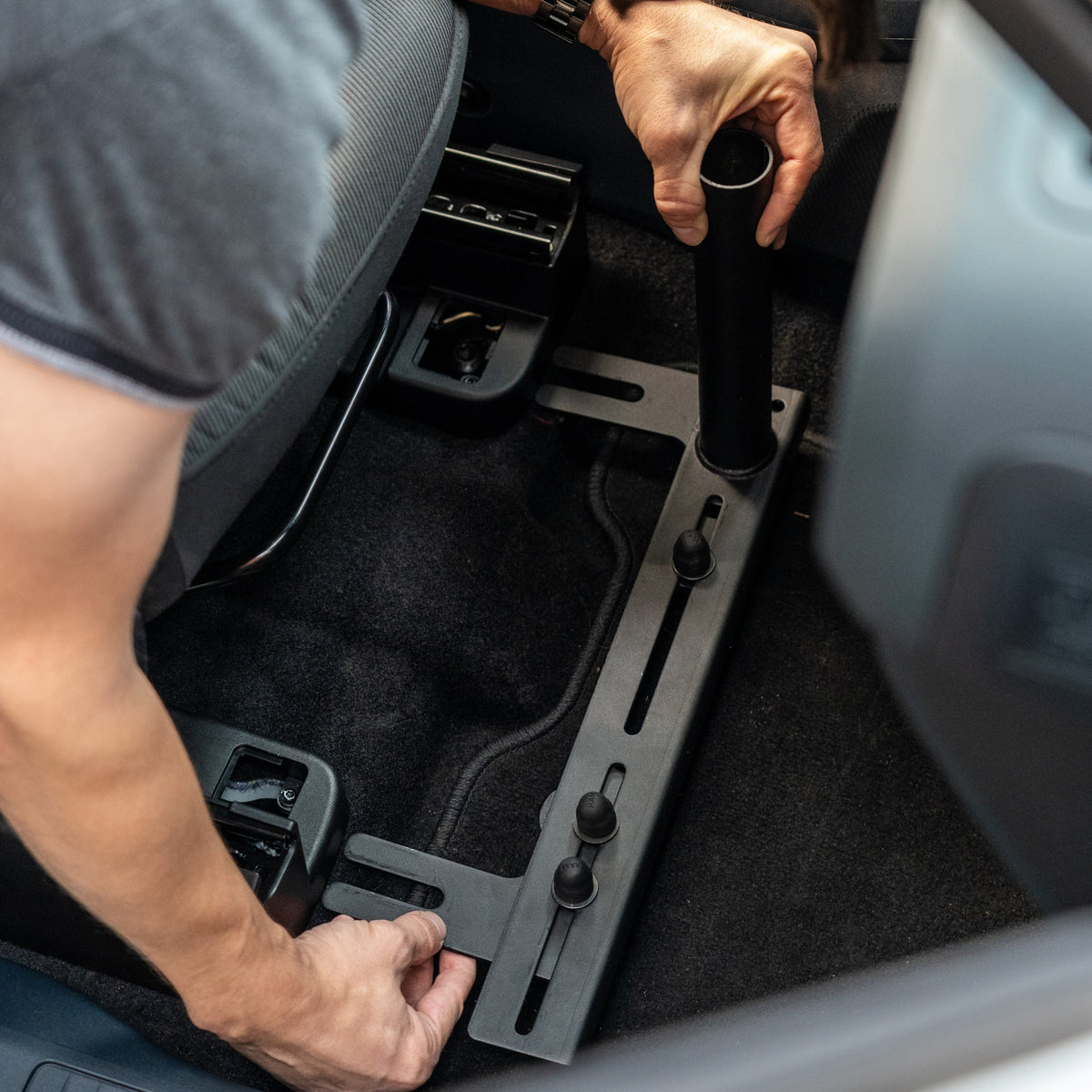

• No-Drill floor mount – uses the existing passenger seat bolts (229–479 mm spacing); the telescoping pole sets the height between 400 and 546 mm

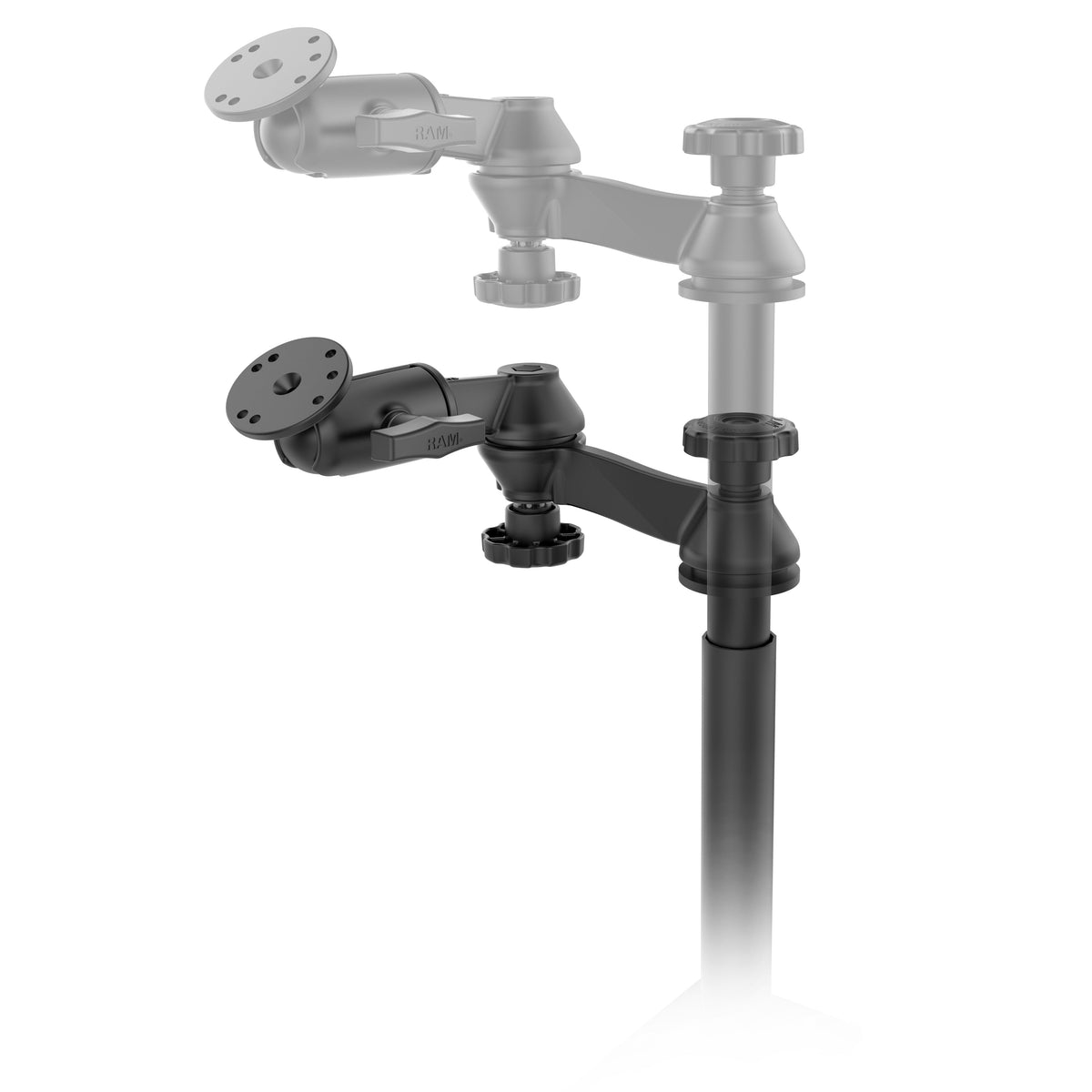

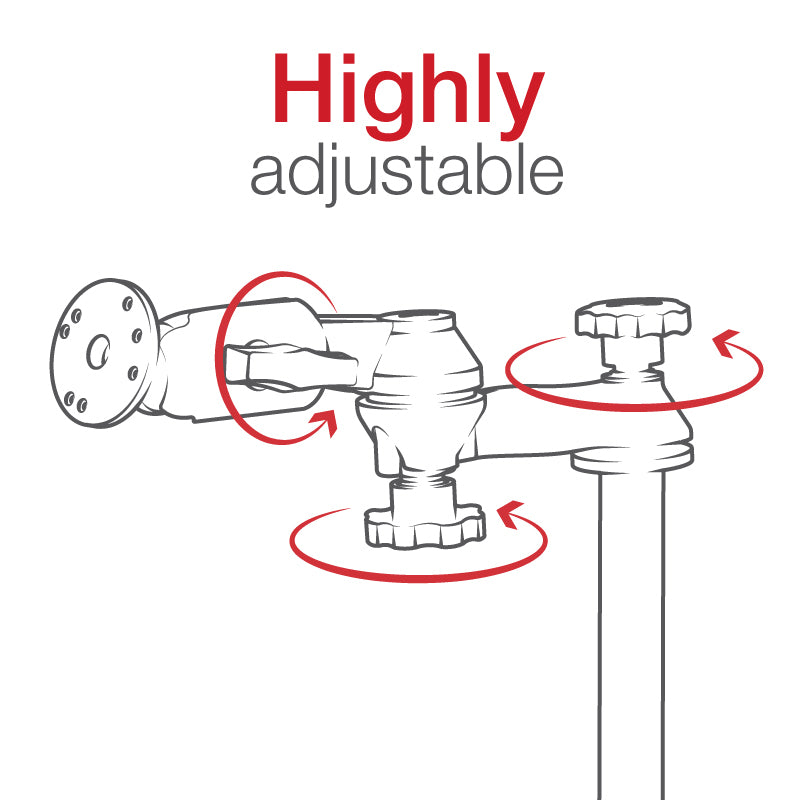

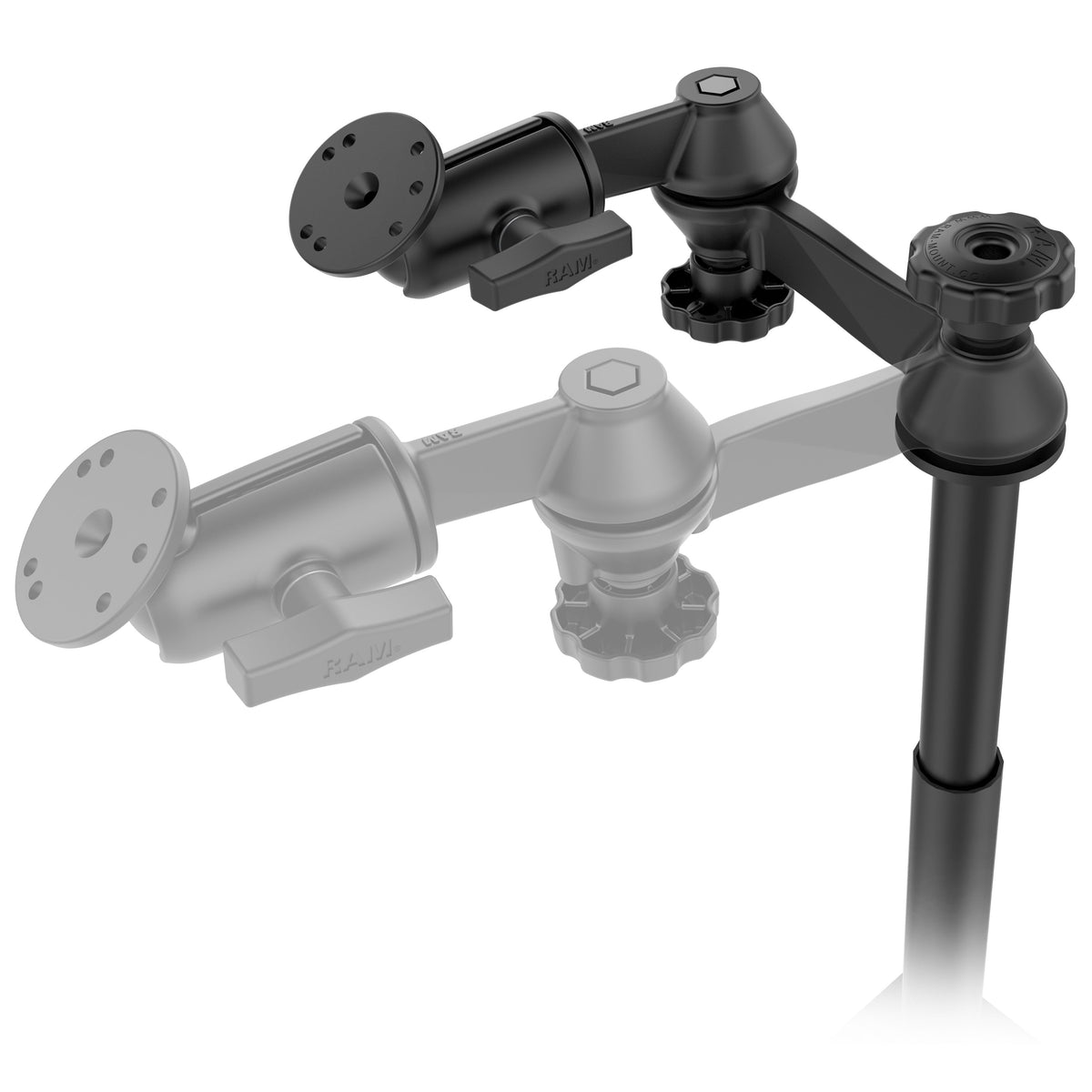

• Dual swing arms – two articulating swing arms with 305 mm reach let both driver and passenger use the device
• Universal AMPS pattern – the Ø 63.5 mm round plate has the 4-hole AMPS (30 × 38 mm) and 3-hole 120° (Ø 46 mm) patterns used by most RAM and third-party cradles
• Load capacity – 1.8 kg (4 lb) for standard use, 1.4 kg (3 lb) for heavy-duty use
• Durable construction – powder-coated steel and marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

• Passenger seat bolts 229–479 mm apart (centre to centre)
• Vehicles tested by RAM include Toyota RAV4, Prius and Corolla, Ford Escape and Maverick, Mazda CX-5, Chevrolet Equinox and Traverse, GMC Terrain and Dodge Grand Caravan; some installations may limit passenger seat adjustment
• Tablet and laptop holders with the AMPS pattern, e.g. RAM Tough-Tray and Tab-Tite
• Cradles and devices with the AMPS 4-hole pattern (30 × 38 mm)

Technical Specifications

Looking for the device to mount? Browse our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
