RAM Mounts Key-Locking Powered Dock for Zebra ET80 & ET85 (RAM-HOL-ZE22PLU)

RAM Mounts Key-Locking Powered Dock (RAM-HOL-ZE22PLU) is made for the Zebra ET80 and ET85 2-in-1 tablets and suits forklifts, delivery vans, field-service vehicles and other mobile workplaces. It holds the tablet with or without the Rugged Frame and the optional Friction Hinge Rugged Keyboard and leaves room for the Zebra Expansion Back, GDS Roto-Mag and GDS Hand-Stand, and a key lock (2 keys included) protects it against theft. The tablet charges through pogo-pin contacts as soon as it is docked; power is supplied via a 1 m cable with a 5.5 mm DC connector.

Key Features

• Form-Fit design – shaped for the Zebra ET80 and ET85, with or without the Rugged Frame and Friction Hinge Rugged Keyboard
• Key lock – deters theft; 2 keys included
• Charging via pogo pins – 5.5 mm DC input on a 1 m cable; contacts rated for 100,000 docking cycles; charger sold separately
• Accessory-ready – two rear housings for NFC Repeater, RAM Vent-Temp and Temp-Right modules, plus a built-in 2-hole plate and side bracket for a phone, scanner or NFC Repeater

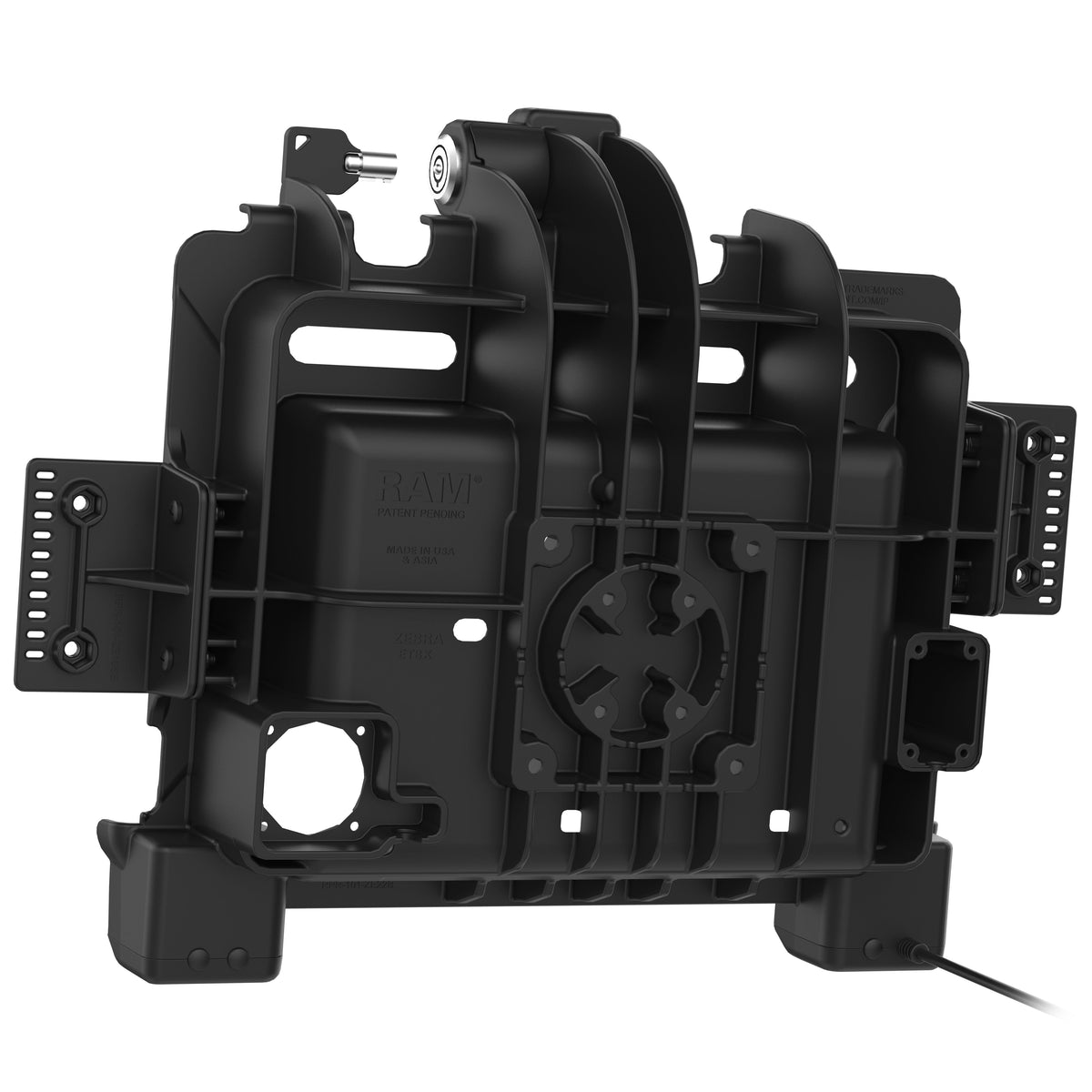

• Universal mounting – 75 × 75 mm VESA and 4-hole AMPS (30 × 38 mm) pattern for RAM ball bases; high-strength composite; 3-year RAM warranty

Compatibility

• Zebra ET80 (with or without Rugged Frame)
• Zebra ET85 (with or without Rugged Frame)

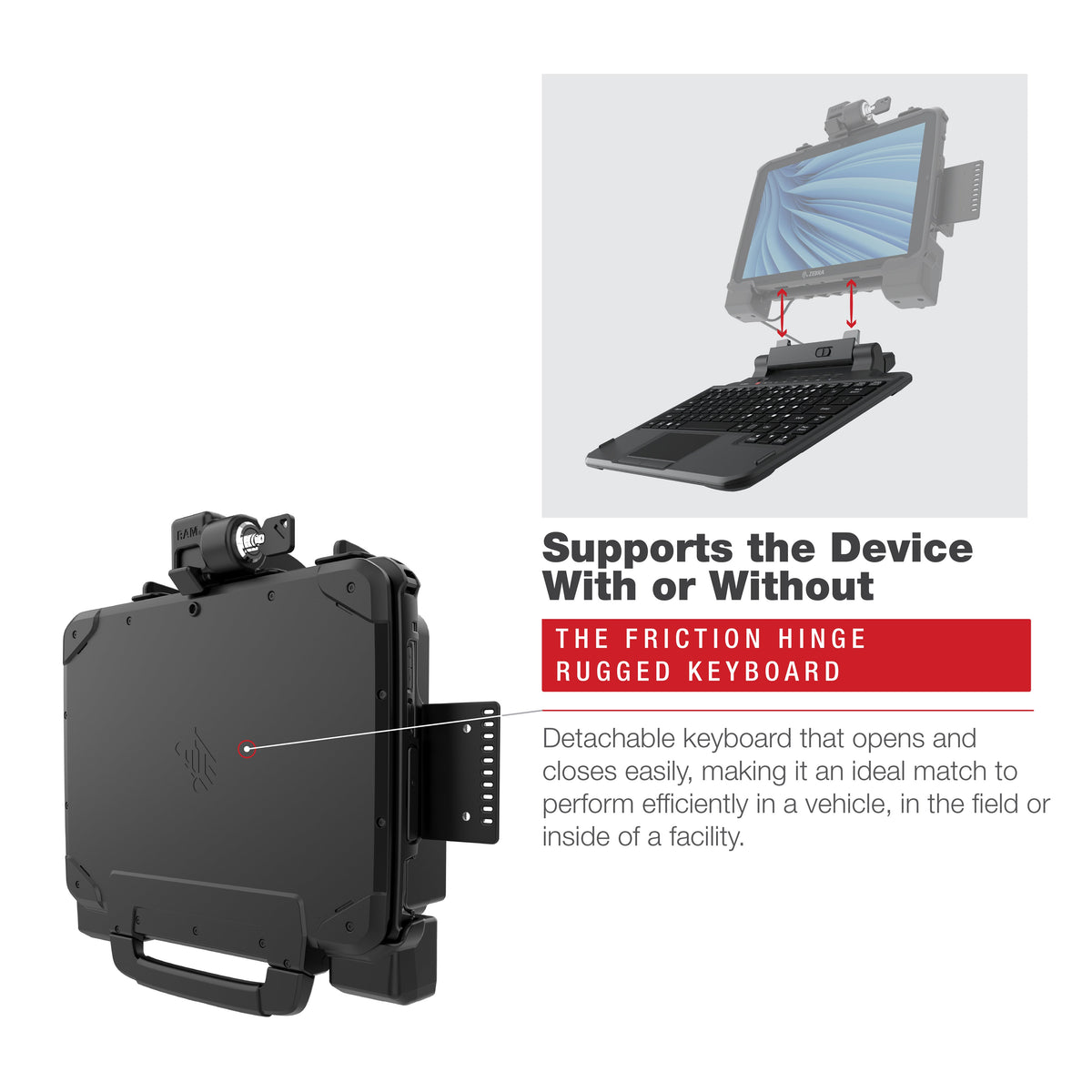

• Zebra Friction Hinge Rugged Keyboard (optional)
• RAM ball bases with 75 × 75 mm VESA or 4-hole AMPS (30 × 38 mm) pattern

Technical Specifications

Looking for the device itself? Browse our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
