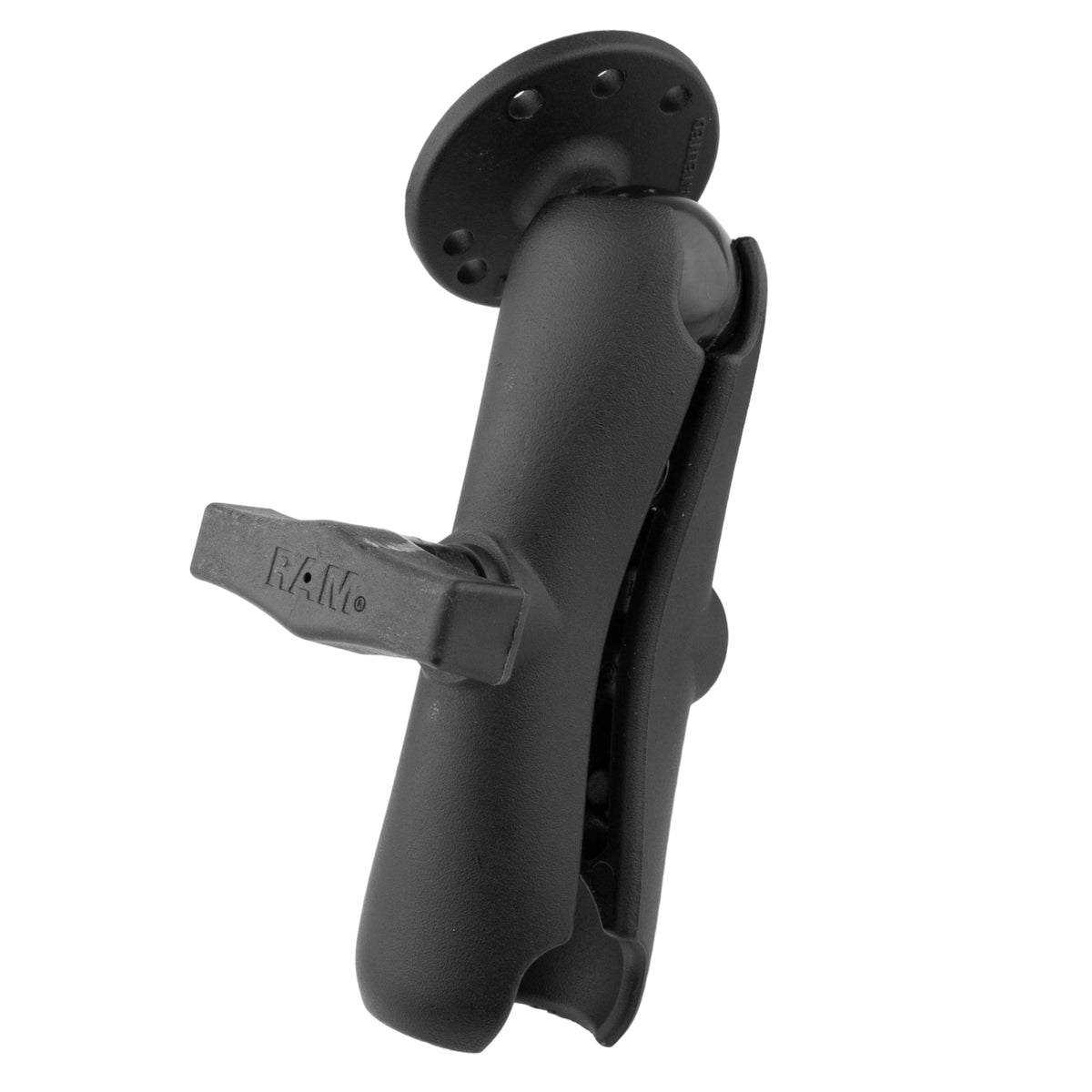

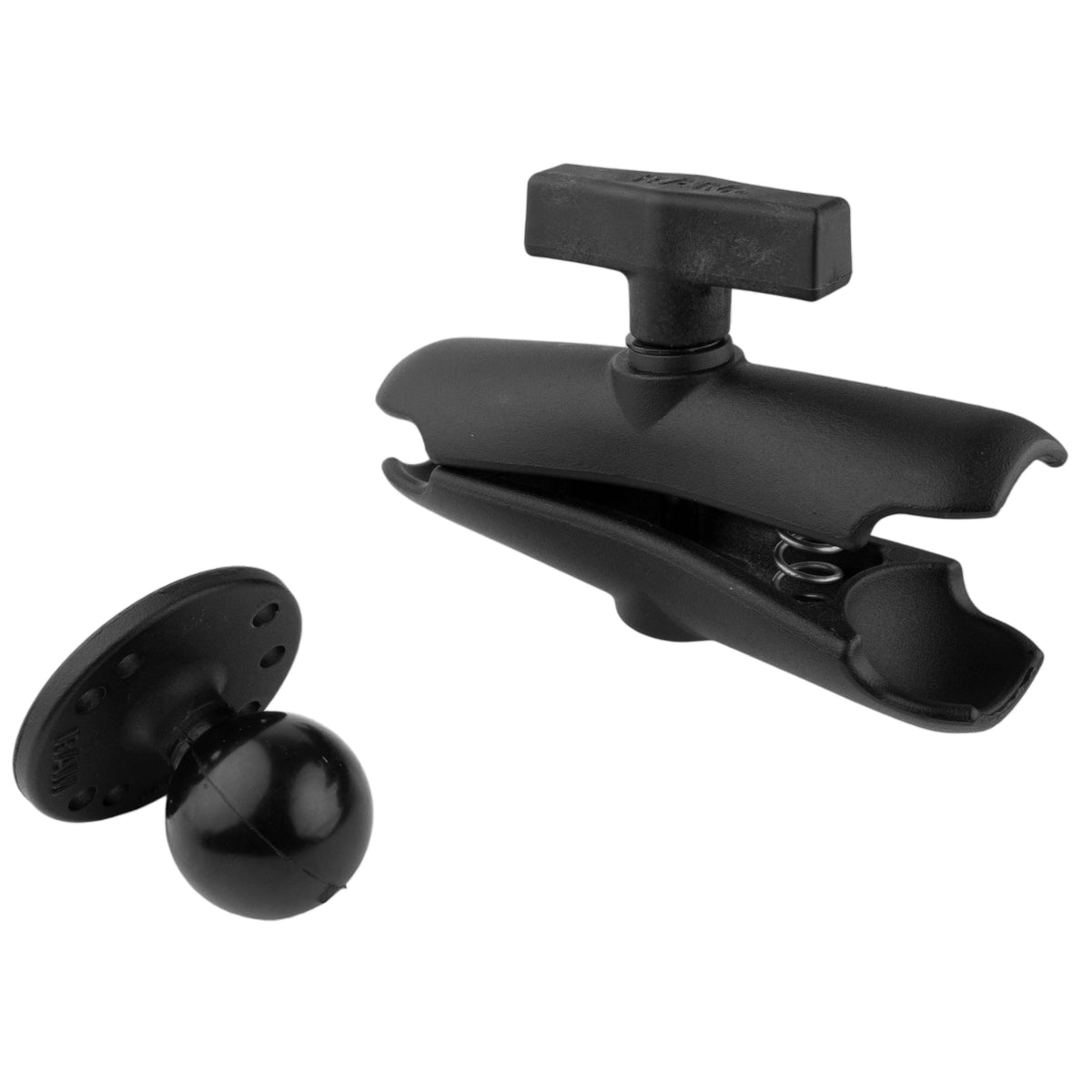

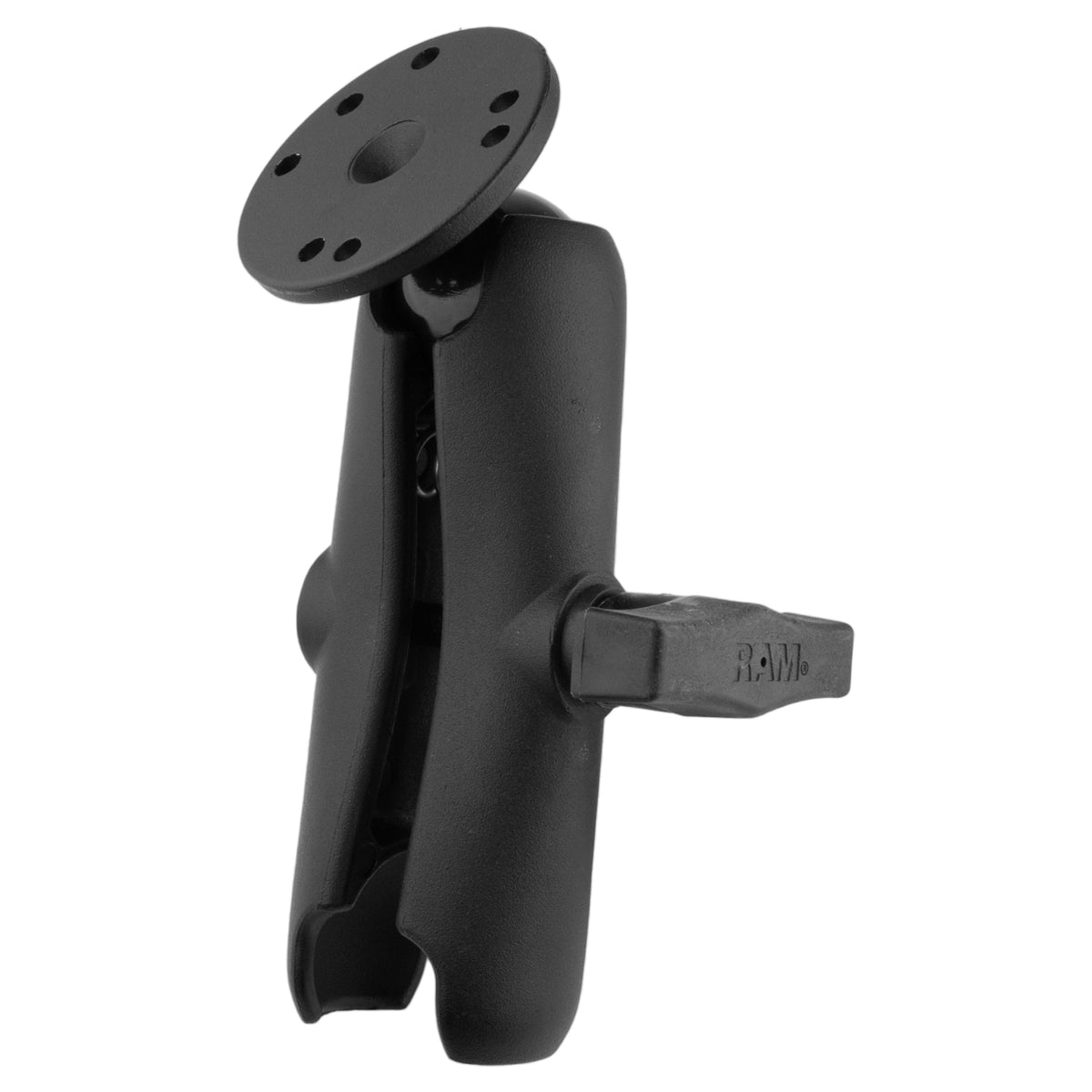

RAM Mounts Double Socket Arm with Round Ball Plate, C-Size, Medium (RAM-103U)

RAM Mounts Double Socket Arm with Round Ball Plate, C-Size, Medium (RAM-103U) combines a medium 145 mm C-size (1.5") double socket arm with a 63.5 mm round plate whose ball sits at a right angle to the plate. The plate bolts to any cradle with the universal AMPS pattern, while the open socket end attaches to a C-size base you already have or choose for the job – a clamp, suction cup or drill-down base. A practical way to add a device to an existing RAM installation.

Key Features

• Patented ball-and-socket system – C-size (1.5") rubber balls adjust at both ends of the arm and damp shock and vibration
• One open socket – attaches to any C-size base or cradle with a 1.5" ball, so you can build exactly the mount you need
• Medium double socket arm – 145 mm overall, 118 mm socket to socket, with an easy-to-adjust knob
• Universal AMPS pattern – the Ø 63.5 mm round plate has the 4-hole AMPS (30 × 38 mm) and 3-hole 120° (Ø 46 mm) patterns used by most RAM and third-party cradles
• Load capacity – 1.8 kg (4 lb) for standard use, 1.4 kg (3 lb) for heavy-duty use
• Durable construction – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

• All RAM C-size (1.5") ball bases, adapters and holders
• Cradles and devices with the AMPS 4-hole pattern (30 × 38 mm)
• Holders with the 3-hole 120° pattern (Ø 46 mm)

Technical Specifications
