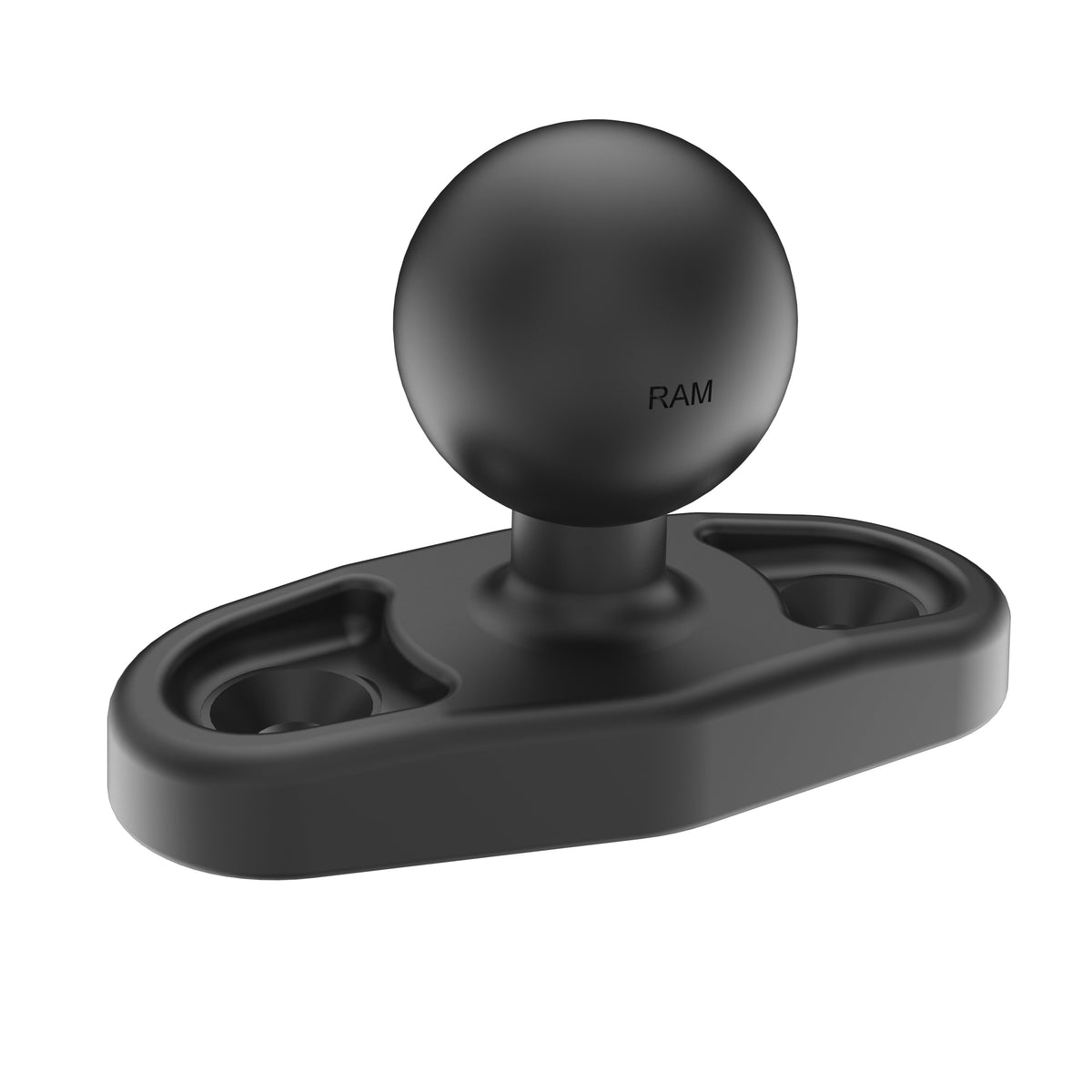

RAM Mounts C-size ball base with 2-hole 2 3/8 inch clamp plate RAM-247U-2NHB – product photo
RAM Mounts C-size ball base with 2-hole 2 3/8 inch clamp plate RAM-247U-2NHB – product photo
RAM Mounts C-size ball base with 2-hole 2 3/8 inch clamp plate RAM-247U-2NHB – product photo
RAM Mounts C-size ball base with 2-hole 2 3/8 inch clamp plate RAM-247U-2NHB – product photo

RAM Mounts Ball Base with 2-Hole Pattern 2 3/8" / 60 mm, C-Size (RAM-247U-2NHB)

33,17 € +VAT
Mount type
Clamp plate, 2-hole 60 mm, no hardwareSquare post clamp 44–102 mmSquare post clamp ≤ 64 mmSquare post clamp ≤ 64 mm, no hardwareSquare post clamp ≤ 76 mm
Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: Out Of Stock
  • Vendor: RAM MOUNT
  • Type: For Mobile Terminals
  • Barcode: RAM-247U-2NHB
RAM Mounts C-size ball base with 2-hole 2 3/8 inch clamp plate RAM-247U-2NHB – product photo
RAM MOUNT
RAM Mounts Ball Base with 2-Hole Pattern 2 3/8" / 60 mm, C-Size (RAM-247U-2NHB)
33,17 € +VAT

RAM Mounts Ball Base with 2-Hole Pattern 2 3/8" / 60 mm, C-Size (RAM-247U-2NHB) is a C-size (1.5") ball on the clamp plate of RAM's 2" (50.8 mm) clamp base, with two holes 60.3 mm (2 3/8") apart. It is supplied without screws and nuts – suitable as a replacement part or for installations with your own hardware. Add any RAM C-size double socket arm and a holder to complete the mount.

📦 What's in the box – RAM-247U-2NHB

  • Ball base – clamp plate with 2 holes 60.3 mm (2 3/8") apart, C-size (1.5") ball

💡 You might also consider a C-size double socket arm to connect it to your device holder, or an X-Grip holder for 7" tablets with C-size ball as a ready-to-use universal holder.

View accessories →

Key Features

  • 2-hole pattern – 60.3 mm (2 3/8") centre to centre
  • Replacement part – for RAM's 2" (50.8 mm) clamp base
  • C-size (1.5") rubber ball – connects to any RAM C-size double socket arm, with near-infinite adjustment
  • Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
  • Material – marine-grade aluminium

Compatibility

  • All RAM C-size (1.5") double socket arms
  • RAM clamp base for posts up to 2" (50.8 mm) wide

Technical Specifications

Part Number RAM-247U-2NHB
Product Type Ball base
Connection C-size (1.5") ball; 2-hole pattern 60.3 mm / 2 3/8"
Load Capacity 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
Material Marine-grade aluminium
Weight 0.15 kg (0.34 lb)
In the Box Ball base

More RAM ball bases, socket arms and mounting kits are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.

Available Versions

Part NumberMount typePrice
RAM Mounts Square Post Clamp Base for Posts 44–102 mm Wide, C-Size (RAM-247U) RAM-247USquare post clamp 44–102 mm48,22 €+VATIn Stock
RAM Mounts Square Post Clamp Base for Posts up to 64 mm Wide, C-Size (RAM-247U-25) RAM-247U-25Square post clamp ≤ 64 mm24,80 €+VATOut of Stock View
RAM Mounts Square Post Clamp Base for Posts up to 64 mm Wide, without Hardware, C-Size (RAM-247U-25NH) RAM-247U-25NHSquare post clamp ≤ 64 mm, no hardware23,27 €+VATOut of Stock View
RAM Mounts Ball Base with 2-Hole Pattern 2 3/8" / 60 mm, C-Size (RAM-247U-2NHB) RAM-247U-2NHBViewingClamp plate, 2-hole 60 mm, no hardware33,17 €+VATOut of Stock
RAM Mounts Square Post Clamp Base for Posts up to 76 mm Wide, C-Size (RAM-247U-3) RAM-247U-3Square post clamp ≤ 76 mm54,95 €+VATOut of Stock View
