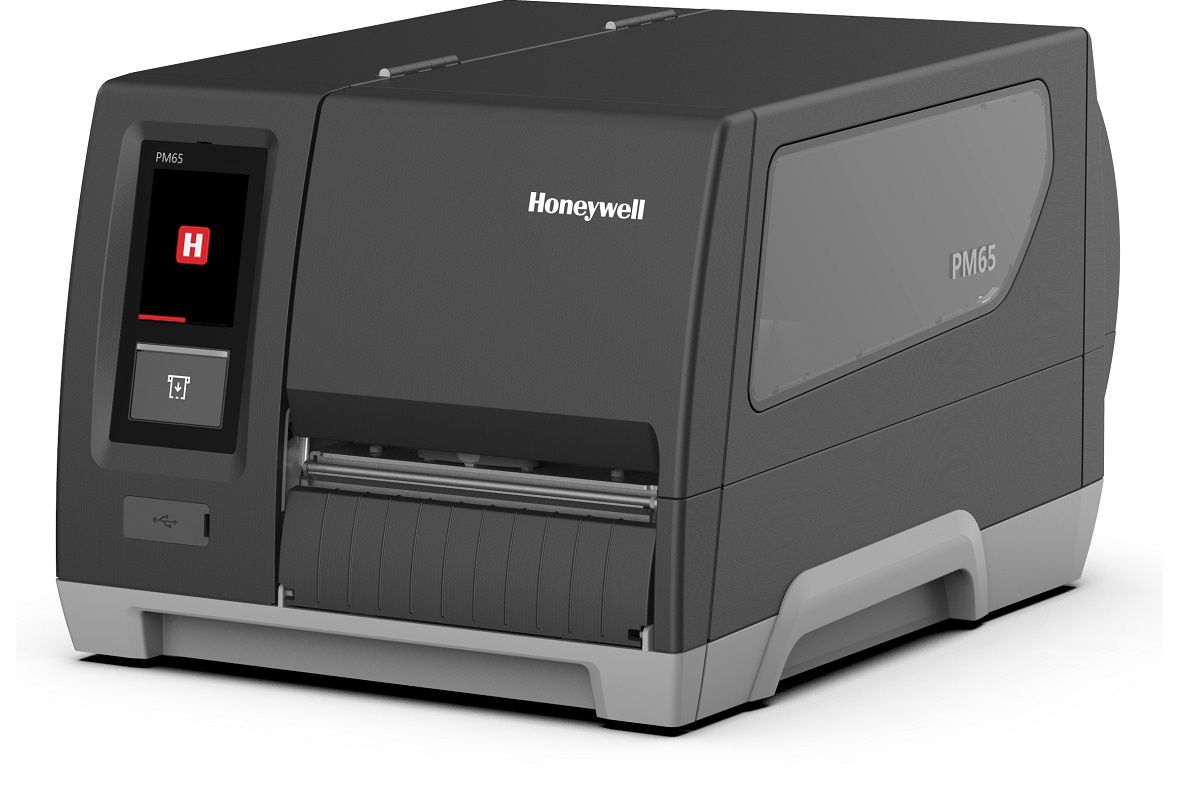

The Honeywell PM65 is the 6-inch member of the PM series: a rugged industrial label printer with a print width of 167.4 mm for wide labels such as pallet, drum, GHS chemical and A5 shipping labels. It prints at up to 12 ips (300 mm/s), takes 213 mm label rolls and 450 m ribbons, and comes with Ethernet, USB and RS-232 as standard – Wi-Fi 6 + Bluetooth 5.2 and parallel versions are available. This version, PM65A12000000300, comes with: thermal transfer and direct thermal printing, 300 dpi print head, full touch display, tear bar, USB, RS-232 and Ethernet plus Wi-Fi + Bluetooth.

📦 What's in the box – PM65A12000000300

✅ Honeywell PM65 printer – 300 dpi, thermal transfer, touch display, tear bar, Wi-Fi + BT
✅ Power adapter – external, 100–240 V AC
❌ Power cord – NOT included – please order a C13 mains cable (EU or UK plug)
❌ USB cable – NOT included – order a USB A-to-B cable or connect via Ethernet (LAN cable not included)
❌ Labels and ribbon – not included – please order labels and a ribbon separately
✅ Documentation – product documentation; drivers, utilities and manuals are a free download from Honeywell

⚠️ Please note: no power cord and no USB cable are included. The printer ships with its power adapter only – please order a C13 power cord, e.g. the Zebra 450044 (EU plug) or the Honeywell 77900507E (UK plug), and a USB cable such as the Honeywell 321-576-004, or connect the printer to your network with a standard Ethernet patch cable.

💡 Useful extras: the Honeywell PM45-PAR-01 parallel interface board; Honeywell cleaning cards 1-110501-00 for regular print-head cleaning.

Key Features

Thermal transfer and direct thermal – print durable labels with wax, wax/resin or resin ribbons (ink in or out, 1-inch core, up to 450 m) or use direct thermal media without a ribbon.
6-inch print width – 167.4 mm print width and media up to 178 mm wide for pallet, drum, chemical (GHS) and A5 labels.
Built for industry – all-metal print mechanism with tool-free print head and platen roller replacement for minimal downtime and easy maintenance.
High throughput – up to 12 ips (300 mm/s) and label rolls up to 213 mm mean fewer media changes.
Easy drop-in replacement – Fingerprint, Direct Protocol, IPL, ZSim2 (ZPL II), DPL and XML for SAP AII / Oracle WMS let it replace existing Honeywell, Intermec or Zebra printers without changing your label formats.
Connected and scalable – Ethernet, USB 2.0 device and host and RS-232 as standard; field-upgradable with Wi-Fi + Bluetooth, parallel, industrial or applicator interfaces and UHF RFID.
Honeywell Printer Edge – centralised management, real-time monitoring and enhanced security; configure via the web interface, PrintSet 5 or the Print Set MC app (Android/iOS).
Smart printing – C# for Printers and Smart Parse let the printer run applications and adjust label layouts without a host PC or backend changes.

Ideal Applications

Manufacturing – product, carton, compliance and work-in-progress labels
Warehousing and distribution – shipping, pallet, bin and inventory labels
Food & beverage – product, traceability and date labels
Pharmaceuticals and chemicals – batch, small-component and GHS labels
Transport and logistics – high-volume shipping and cross-dock labelling
Wide labels – A5 shipping labels, drum and pallet labels, GHS chemical labels up to 6 inches

All PM65 Versions

The highlighted row is the version you are currently viewing.

Part Number	Print Method	Resolution	Display	Media handling	Connectivity
PM65A00000000200	TT + DT	203 dpi	Icon	Tear-off	USB, RS-232, LAN	View product
PM65A10000000200	TT + DT	203 dpi	Touch	Tear-off	USB, RS-232, LAN	View product
PM65A10000030200	TT + DT	203 dpi	Touch	Rewinder + LTS	USB, RS-232, LAN	View product
PM65A10010030200	TT + DT	203 dpi	Touch	Rewinder + LTS	USB, RS-232, LAN + parallel	View product
PM65A12000000200	TT + DT	203 dpi	Touch	Tear-off	USB, RS-232, LAN + Wi-Fi/BT	View product
PM65A12000030200	TT + DT	203 dpi	Touch	Rewinder + LTS	USB, RS-232, LAN + Wi-Fi/BT	View product
PM65A00000000300	TT + DT	300 dpi	Icon	Tear-off	USB, RS-232, LAN	View product
PM65A10000000300	TT + DT	300 dpi	Touch	Tear-off	USB, RS-232, LAN	View product
PM65A10000030300	TT + DT	300 dpi	Touch	Rewinder + LTS	USB, RS-232, LAN	View product
PM65A10010030300	TT + DT	300 dpi	Touch	Rewinder + LTS	USB, RS-232, LAN + parallel	View product
PM65A12000000300 (this version)	TT + DT	300 dpi	Touch	Tear-off	USB, RS-232, LAN + Wi-Fi/BT	Viewing
PM65A12000030300	TT + DT	300 dpi	Touch	Rewinder + LTS	USB, RS-232, LAN + Wi-Fi/BT	View product
PM65A00000000210	DT	203 dpi	Icon	Tear-off	USB, RS-232, LAN	View product
PM65A00000000310	DT	300 dpi	Icon	Tear-off	USB, RS-232, LAN	View product

Technical Specifications

Part Number	PM65A12000000300
Model	Honeywell PM65
Printer Type	6-inch industrial label printer (thermal transfer and direct thermal)
Print Method	Thermal transfer and direct thermal
Resolution	300 dpi (11.8 dots/mm)
Print Speed	Up to 250 mm/s (10 ips); min. 50 mm/s
Max Print Width	167.4 mm (6.59 in)
Label Length	Max. 2.2 m (85 in); min. 6.4 mm (25.4 mm with cutter, peel-off or RFID)
Media Width	51–178 mm (2–7 in)
Paper Thickness	0.076–0.26 mm (3–10.4 mil)
Roll Diameter	Max. 213 mm (8.38 in) outer diameter; fanfold supported
Core Size	38–76 mm (1.5–3 in)
Media Types	Labels, tags and linered media, roll-fed or fanfold – thermal transfer (paper, synthetic) and direct thermal media
Sensors	Gap, notch, black mark, continuous, media low, media end, head lift, ribbon low / end
Ribbon	Wax, wax/resin and resin; ink side IN or OUT; 25.4 mm (1 in) core; width 50.8–172.7 mm; max. 450 m (80 mm roll diameter)
Interfaces	Ethernet 10/100 Mbps, USB 2.0 device, USB 2.0 host, RS-232 (up to 115.2 kbit/s); optional: parallel (PM45-PAR-01), industrial interface (PM45-IND-01), applicator interface (PM45-APPL-01), UHF RFID (50180233-001)
Wireless	Wi-Fi 6 (802.11a/b/g/n/ac/ax, WPA3) + Bluetooth 5.2 – factory installed
Memory	512 MB Flash, 256 MB SDRAM (256 MB user partition); USB memory devices supported
Printer Languages	Fingerprint (FP), Direct Protocol (DP), Intermec IPL, ZSim2 (ZPL II), DPL, XML for SAP AII and Oracle WMS, PDF, C# for Printers (Smart Printing)
User Interface	Full touch display; web interface; UI languages incl. English, German, French, Spanish, Italian, Portuguese, Russian
Media Options	Tear bar (standard); field options: cutter (PM65-CUTTER), label dispenser (PM65-LD), collapsible core (PM65-CC)
Construction	Rugged all-metal print mechanism; tool-free print head and platen roller replacement
Barcodes	All major 1D and 2D symbologies; standards incl. UPC/EAN shipping container, GS1-128, SSCC, MH10.8, AIAG, HIBCC, ISBT 128, GM1724, UPS and Global Transport Label
Fonts / Character Sets	Monotype font engine; non-Latin fonts via WorldType Layout Engine (WTLE); graphics PCX, PNG, GIF, BMP
Drivers & Software	InterDriver Windows driver, CUPS driver (Linux), Honeywell Device Types for SAP, PrintSet 5, Print Set MC (Android/iOS), Smart Printing Developer Resource Kit (C#), Honeywell Printer Edge; optional Honeywell Operational Intelligence
Power Supply	100–240 V AC, 50–60 Hz via the included external power adapter; standby 9.6 W – power cord (C13) not included
Dimensions (W × D × H)	350 × 484 × 292 mm (13.8 × 19.1 × 11.5 in)
Weight	Approx. 13.7 kg (30.2 lb)
Operating Temperature	5 °C to 40 °C
Storage Temperature	−20 °C to 70 °C
Humidity	20–85% RH, non-condensing (storage 5–90%)
Certifications	RoHS, CE (EN 55032 Class B), FCC Class B, ENERGY STAR 3.0
Warranty	12 months
In the Box	Honeywell PM65 printer (300 dpi, thermal transfer, full touch display, tear bar, Wi-Fi + Bluetooth), external power adapter (100–240 V AC), product documentation – power cord (C13) NOT included; USB / interface cable NOT included; labels and ribbon not included (order separately)

Which version should you choose? Pick 203 dpi for large shipping and pallet labels or 300 dpi for fine text and small barcodes on wide labels; add the integrated rewinder for peel-off or rewound output, Wi-Fi 6 + Bluetooth for wireless networks or the parallel port for legacy hosts. All versions ship with a power adapter; the C13 power cord and the USB cable are ordered separately. For 4-inch labels, see the Honeywell PM45 (PM45A12000000300). Compare other models in our Midrange Label Printers collection or contact our team for volume pricing.
