Honeywell HF680 Presentation Scanner (HF680-R1-1USB-EU)

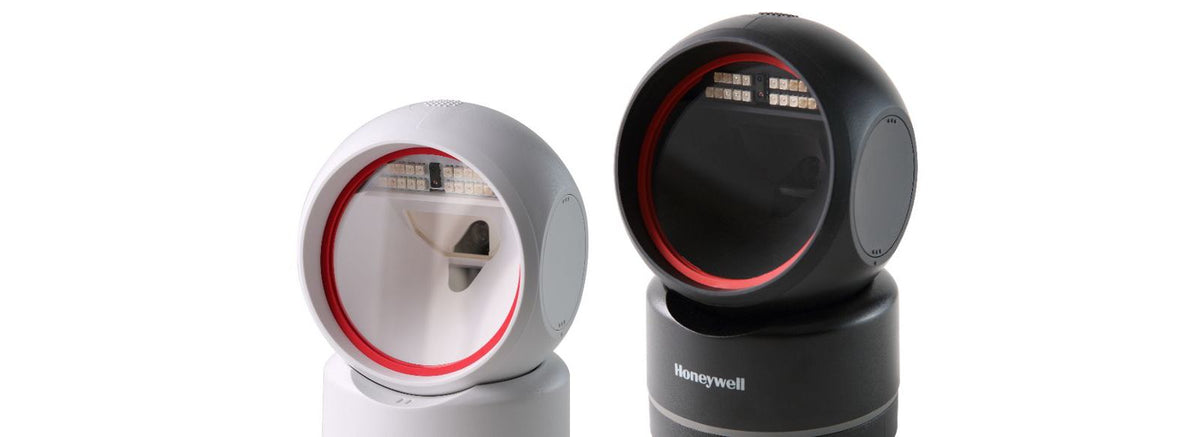

The Honeywell Orbit HF680 is a hands-free 2D presentation scanner for retail and hospitality checkouts. Its megapixel area imager reads 1D and 2D barcodes – including codes on phone screens and damaged labels – the moment they are presented, while the tilting scan head and the option to simply pick the scanner up make it easy to scan large or bulky items. This version, HF680-R1-1USB-EU, has a black housing and is supplied with a 1.5 m USB cable – the scanner is powered via USB, so you can plug it in and start scanning right away.

Key Features

• Hands-free with a tilting scan head – stands on the counter and reads codes the moment they are presented; tilt the head up or down to suit the checkout, or pick the scanner up to scan large, bulky items.
• Megapixel sensor and 1 GHz processor – the 1280 × 800 pixel area imager decodes 1D, PDF417 and 2D codes fast, including digital codes on phone screens and damaged or poorly printed labels.
• Customer-friendly lighting – low-profile, recessed LEDs do not dazzle shoppers and switch off automatically when the scanner is idle.
• Easy POS integration – configure it with Honeywell EZConfig; OPOS / JPOS drivers ensure compatibility with common POS software. USB or RS-232 – the interface is set by the cable used.
• Generous reading tolerance – ±60° pitch and ±70° skew, motion tolerance up to 2.5 m/s and a minimum resolution of 3 mil (1D) / 6.7 mil (2D).
• Designed for the counter – modern styling in black or white that looks good on display at the checkout; 278 g and designed to withstand 1 m drops.
• 3-year factory warranty – long-term peace of mind from Honeywell.

Ideal Applications

• PC-, tablet- and cloud-based POS systems with a USB port
• Retail checkouts, supermarkets and convenience stores
• Cafés, restaurants and pharmacies – scanning loyalty apps, mobile coupons and payment QR codes
• Ticket and voucher validation, service desks, post offices and libraries

All Orbit HF680 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose a USB kit for PCs, tablets and modern POS systems – the scanner is powered via USB, so no power supply is needed. Choose an RS232 kit for POS terminals and cash registers with a serial port; it includes the required power supply with an EU or UK plug. The 1.5 m cable suits compact checkouts, while the 2.7 m cable gives more freedom when the computer is further away. Compare other models in our Presentation Barcode Scanners collection or contact our team for volume pricing.
