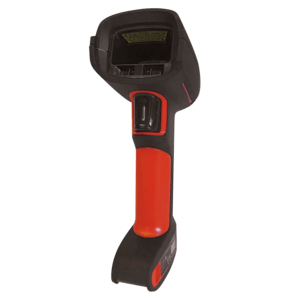

The Honeywell Granit XP 1990i is an ultra-rugged corded 2D handheld scanner built for warehouses, manufacturing plants, cold storage and logistics yards. It reads damaged and poor-quality 1D and 2D barcodes, survives 3 m drops to concrete and 7,000 tumbles, and is sealed to IP65 and IP67. The scanner is backed by a 3-year (36-month) Honeywell warranty. This version, 1990IXR-3USB-R, has Extended Range (XR) FlexRange optics (from close-up codes to 100 mil barcodes at 10 m) and is supplied with a 3 m straight USB cable, ready to plug in and scan.
📦 What's in the box – 1990IXR-3USB-R
- ✅ Honeywell Granit 1990i scanner – Extended Range (XR), Red / black
- ✅ USB cable – Type A, straight, 3 m, Honeywell CBL-500-300-S00
- ❌ Stand / holder – not included
💡 Need a place for the scanner? Add the Honeywell flexible stand STND-33F00-012-4 for hands-free scanning, the holder HOLDER-010-U for desk or wall mounting, or the tool balancer TOOLBAL to suspend the scanner above a workstation or on a vehicle.
Key Features
- Ultra-rugged design – survives 3 m (10 ft) drops to concrete (MIL-STD-810G) and 7,000 tumbles from 1 m.
- IP65 and IP67 sealing – dust-tight and protected against water jets and temporary immersion; the small, deeply recessed scan window is scratch- and impact-resistant.
- Extended Range (XR) optics with FlexRange technology – one scanner for close-up and distant codes: from 3 mil Code 39 in the hand to 13 mil UPC at 1.5 m, 70 mil Code 128 at 7.2 m and 100 mil Code 39 at 10 m.
- Reads damaged and poor-quality barcodes – Honeywell's imaging platform and decoding algorithms read damaged, dirty and poorly printed labels at the first attempt – standard 1D, PDF, 2D, Postal, Digimarc, DotCode and OCR.
- Works from −30 °C to 50 °C – in freezers, cold stores, outdoor docks and hot production halls (use an industrial-grade cable for the full temperature range).
- Fast, intuitive scanning – motion tolerance of up to 4.5 m/s and omnidirectional reading for quick point-and-shoot use.
- Clear feedback in noisy environments – bright good-decode LEDs, a beeper with adjustable tone and volume, and adjustable vibration.
- Flexible connectivity – USB, RS-232 and keyboard wedge, depending on the cable used; works with the standard Honeywell CBL-500 (USB) and CBL-020 (RS232) cables.
- Easy management – deploy and update scanners automatically with Honeywell Scanner Management Utility (SMU) and get on-demand scan insights with Honeywell Operational Intelligence.
Ideal Applications
- Warehouses and distribution centres – receiving, put-away, picking, inventory and shipping
- Manufacturing and automotive – work-in-process, parts tracking and quality control
- Cold storage and food processing – freezer rooms and wash-down areas (with an industrial-grade cable)
- Logistics yards, ports and outdoor areas – scanning in dust, rain and snow
- Forklift and high-bay scanning – reading labels on the upper rack levels (XR and XLR versions)
All Granit 1990i Versions
The highlighted row is the version you are currently viewing.
| Part Number | Scan Engine | Cable | |
|---|---|---|---|
| 1990ISR-3-R | Standard Range (SR) | ❌ Not included | View product |
| 1990ISR-3USB-R | Standard Range (SR) | USB, straight 3 m | View product |
| 1990IXR-3-R | Extended Range (XR) | ❌ Not included | View product |
| 1990IXR-3USB-R (this version) | Extended Range (XR) | USB, straight 3 m | Viewing |
| 1990IXR-3SER-R | Extended Range (XR) | RS232, coiled 3 m | View product |
| 1990IXLR-3USB-R | Extra Long Range (XLR) | USB, straight 3 m | View product |
| 1990IXLR-3SER-R | Extra Long Range (XLR) | RS232, coiled 3 m (industrial) | View product |
Technical Specifications
| Part Number | 1990IXR-3USB-R |
|---|---|
| Model | Honeywell Granit XP 1990iXR |
| Scanner Type | Corded handheld 2D area imager (reads 1D and 2D barcodes) |
| Scan Engine | Extended Range (XR) |
| Image Sensor | 1280 × 800 pixels |
| Field of View | 40° H × 30° V |
| Depth of Field (typical) | 5 mil Code 39: 20–220 mm; 10.4 mil Code 128: 3–343 mm; 13 mil UPC: 0–1,520 mm; 15 mil Code 128: 0–1,727 mm; 20 mil Code 39: 0–2,236 mm; 6.7 mil PDF417: 20–209 mm; 10 mil Data Matrix: 30–220 mm; 20 mil QR: 0–484 mm; 22 mil QR: 0–1,671 mm; 70 mil Code 128: 136–7,240 mm; 100 mil Code 39: up to 10 m |
| Minimum Element Resolution | Code 39: 3 mil (0.076 mm); Data Matrix: 6 mil (0.152 mm) |
| Motion Tolerance | Up to 4.5 m/s (177 in/s) |
| Minimum Print Contrast | 20% minimum reflectance difference |
| Roll / Pitch / Skew | 360° / 45° / 65° |
| Symbologies | Standard 1D, PDF, 2D, Postal, Digimarc, DotCode and OCR |
| Host Interfaces | USB, Keyboard Wedge, RS-232 (TTL) – interface depends on the cable used |
| User Indicators | Good-decode LEDs, beeper (adjustable tone and volume), adjustable vibration |
| Color | Red / black |
| Dimensions | 192 × 76 × 100 mm |
| Weight | 320 g |
| Power | 4.0–5.5 VDC; 2.35 W (470 mA at 5 VDC) operating, 0.5 W (100 mA at 5 VDC) standby |
| Environmental Sealing | IP65 and IP67 |
| Drop / Tumble | 50 drops from 2 m to concrete (−30 °C to 50 °C); 20 drops from 2.4 m (25 °C); 3 m drops (MIL-STD-810G, 25 °C); 7,000 tumbles at 1 m |
| Electrostatic Discharge | ±20 kV air, ±8 kV contact |
| Ambient Light Immunity | 0–100,000 lux |
| Operating Temperature | −30 °C to 50 °C (corded, with an industrial-grade cable) |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | Up to 95% RH, non-condensing |
| Software & Management | Honeywell Scanner Management Utility (SMU), Honeywell Operational Intelligence |
| Warranty | 36 months |
| In the Box | Granit 1990iXR scanner (red/black), USB cable (Type A, straight, 3 m, CBL-500-300-S00) |
Not sure which version you need? Choose SR for near-field scanning of 1D and 2D codes at workstations and on production lines, XR to read everything from small close-up labels to large codes at up to 10 m, and XLR for distances of up to 24 m – from a forklift to the top of high-bay racks. All versions use the same Honeywell cables: if you do not already have one, choose a version with a USB or RS232 cable included, and for freezers and use down to −30 °C add an industrial-grade cable. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
