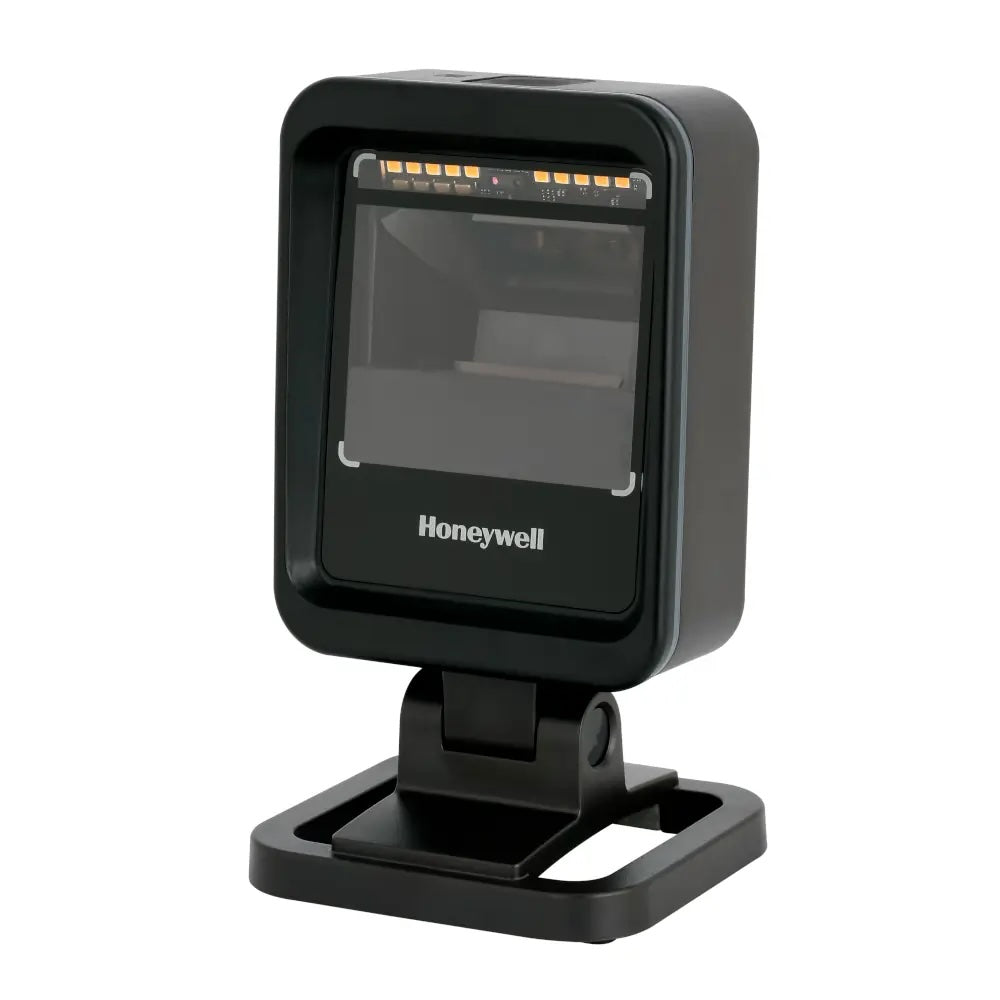

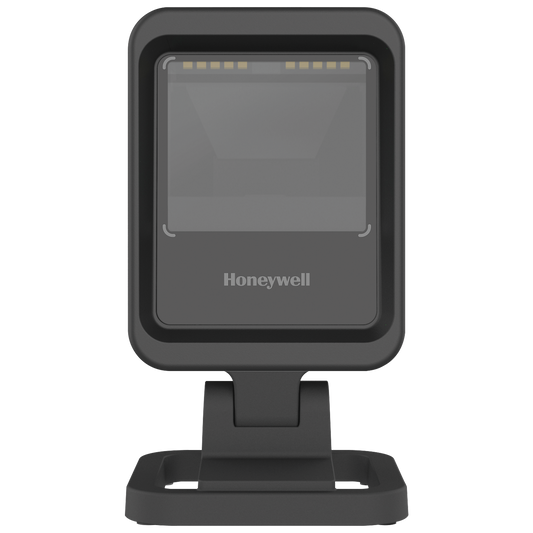

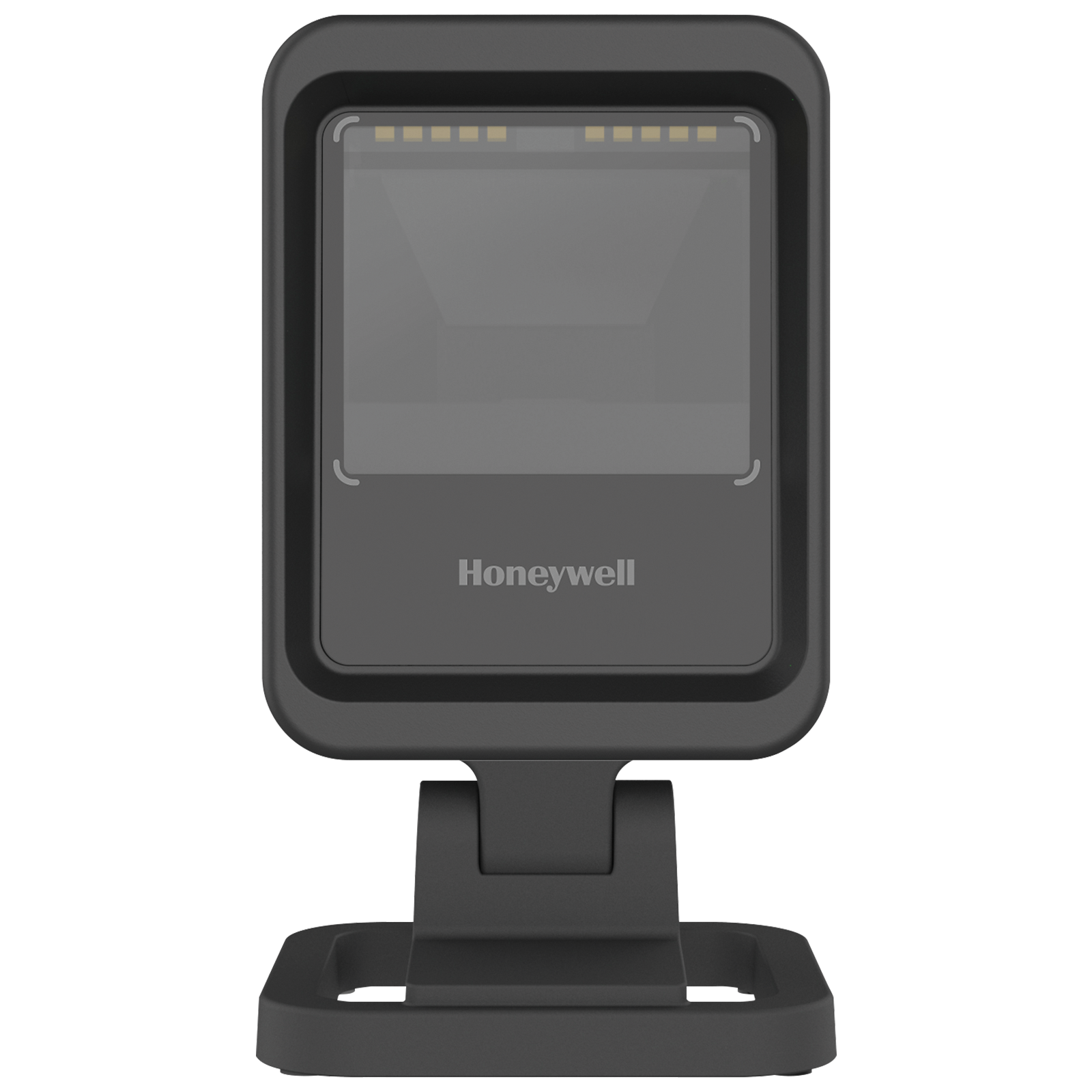

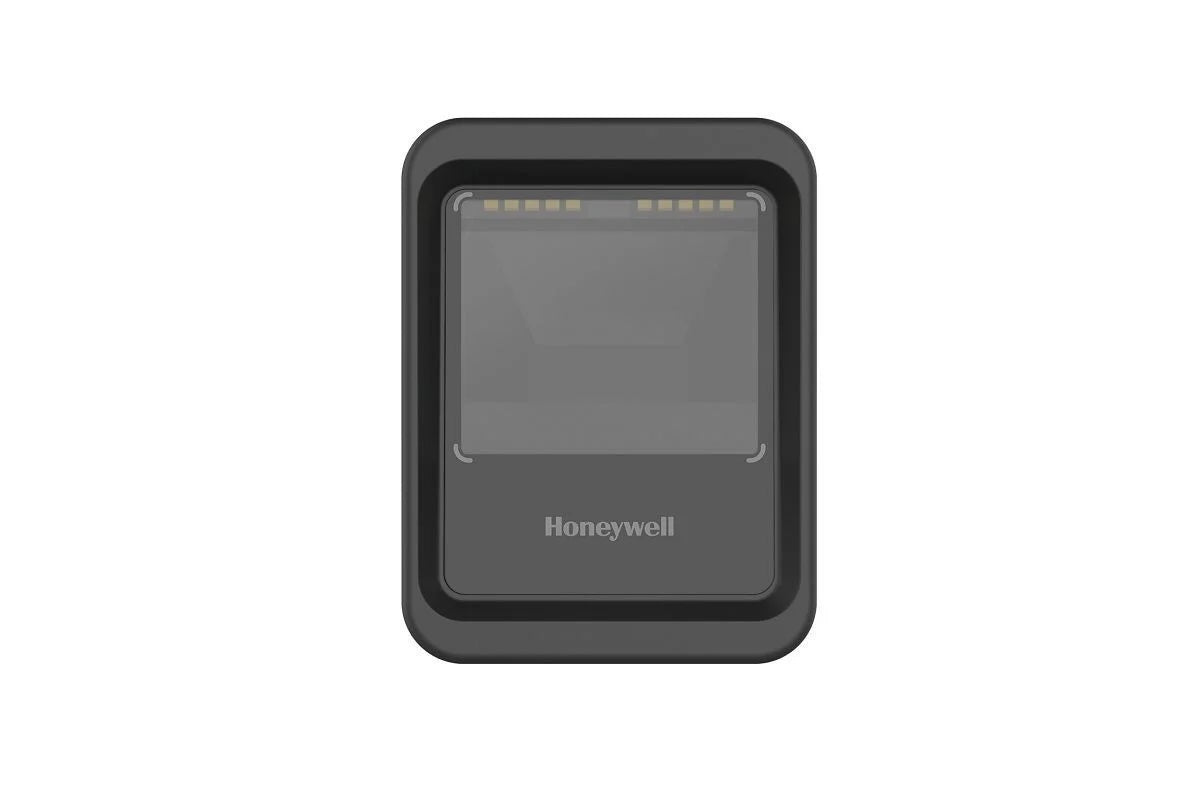

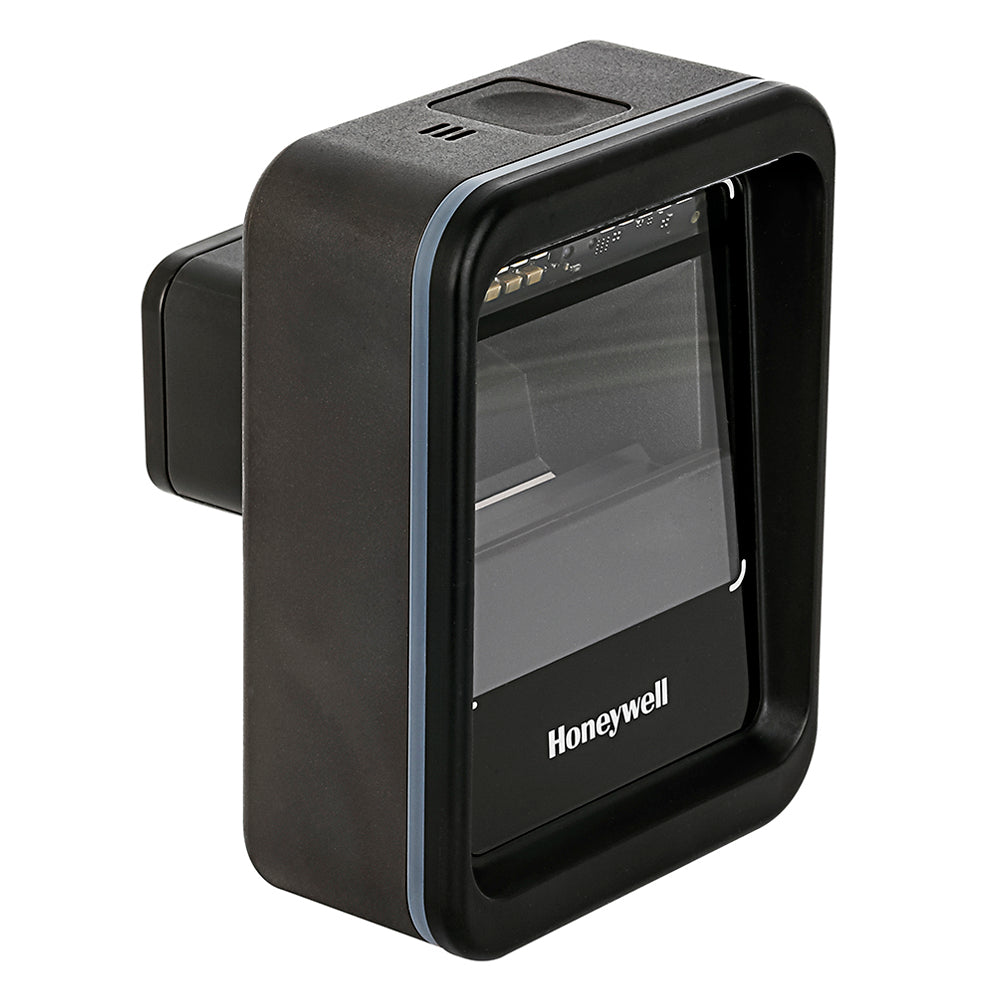

Honeywell Genesis XP 7680g Presentation Scanner (7680GSR-2-1-R)

The Honeywell Genesis XP 7680g is a compact, hands-free 2D presentation scanner for retail checkouts, pharmacies and service counters. Its 1 MP area imager reads printed and on-screen 1D and 2D barcodes – including Digimarc and DotCode – about 20% faster than its predecessor, the Genesis 7580g, and the removable scan module can sit on its adjustable stand, be mounted on a POS terminal or wall, or be built into a kiosk. This version, 7680GSR-2-1-R, has a black housing and is supplied with the adjustable stand – the interface cable is not included, so you can choose the USB, RS232, keyboard wedge or IBM cable that suits your system.

Key Features

• Hands-free with flexible placement – the compact scan module sits on a removable, adjustable stand; optional flexible POS mount, wall mount and vertical stand, plus a rear cable exit for kiosk integration.
• Fast and accurate – a 1280 × 800 pixel (1 MP) imager and a quad-core processor scan about 20% faster than the Genesis 7580g and read printed and digital codes, including damaged or poorly printed labels.
• Smart, customer-friendly lighting – a 360° tri-colour LED ring highlights the scan zone and gives clear feedback; the warm white illumination switches off completely between scans thanks to automatic object detection.
• Broad symbology support – standard 1D, PDF417, 2D, DotCode and Digimarc codes; 65° pitch and skew tolerance and a motion tolerance of up to 4 m/s.
• Easy integration and upgrade – USB, RS-232, keyboard wedge and IBM 46xx (RS-485), set by the cable used; backwards compatible with Genesis 7580g cables for a simple upgrade.
• Rugged and hygienic – IP52 sealing, withstands 50 drops from 1.5 m and 1,000 tumbles at 0.5 m; the disinfectant-ready housing can be cleaned with common disinfectants.
• 3-year factory warranty – long-term peace of mind from Honeywell.

Ideal Applications

• Checkouts upgrading from the Genesis 7580g – keep using your existing Honeywell interface cable
• Retail checkouts, supermarkets and convenience stores
• Pharmacies, cafés and restaurants – scanning loyalty apps, mobile coupons and payment QR codes
• Ticket and voucher validation, service desks, post offices and libraries

All Genesis XP 7680g Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose a USB kit for PCs, tablets and modern POS systems – the scanner is powered via USB, so no power supply is needed. Choose the RS232 kit for POS terminals and cash registers with a serial port; it includes the required power supply with an EU plug. The versions without a cable suit replacements, kiosk integration or upgrades from the Genesis 7580g, where you can reuse your existing Honeywell cable. Compare other models in our Presentation Barcode Scanners collection or contact our team for volume pricing.
