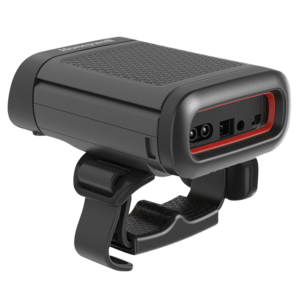

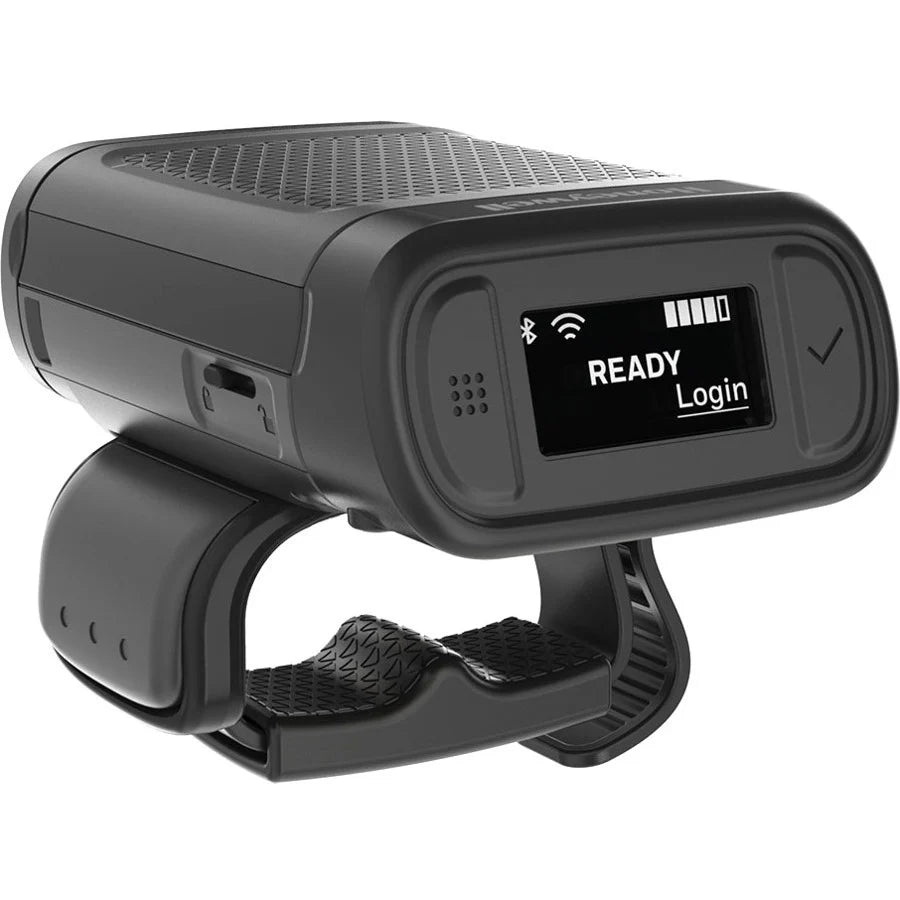

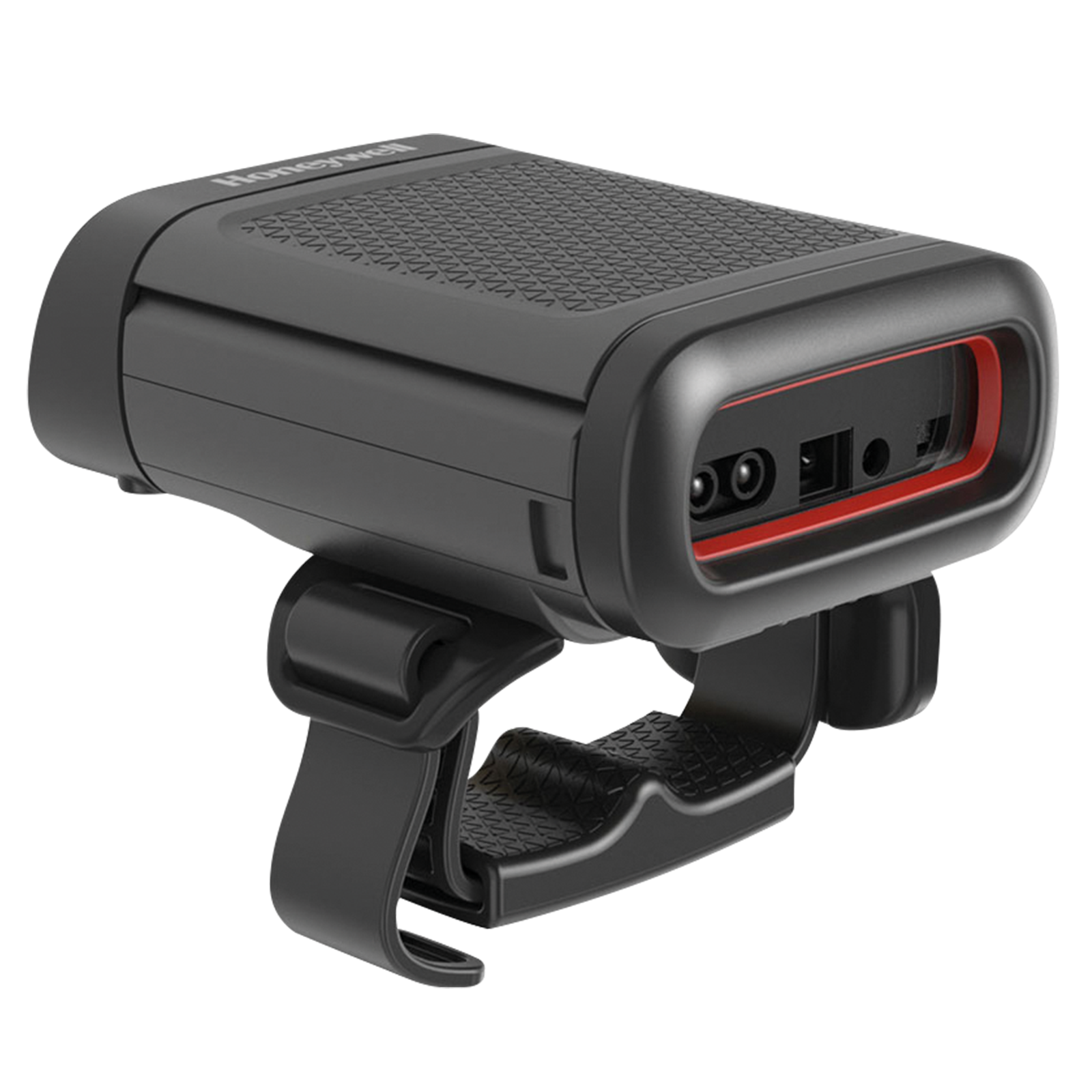

Honeywell 8680i Advanced Wearable Ring Scanner (8680IB202-2)

The Honeywell 8680i is a wearable mini mobile computer that sits on two fingers or on the back of the hand, so workers keep both hands free for picking, packing and sorting. Its omnidirectional 2D area imager reads 1D and 2D barcodes, a line-of-sight display shows connection, battery and scan status, and pairing with Android, iOS and Windows devices takes seconds via NFC or a Bluetooth barcode. IP54 sealing, 2,000 tumbles and an operating range of −20 °C to 50 °C make it ready for busy warehouses and cold areas. This version, 8680IB202-2, is the Advanced model of the updated 8680iB generation – Bluetooth 5.0, a customizable colour display, two-button interface, Wi-Fi with fast roaming and SDK, so it can run picking, packing and sorting workflows as a standalone device instead of a scanner plus mobile computer. It ships with the extended 2160 mAh battery and the triggered ring with two-finger strap.

Key Features

• Hands-free scanning – worn on two fingers or on the back of the hand, the 8680i saves picking up and putting down a handheld scanner on every scan; with the triggered ring and extended battery it weighs 168 g.
• Advanced – one device instead of scanner + mobile computer – the customizable line-of-sight colour display shows workflow instructions, two buttons let users navigate menus and confirm selections, and Wi-Fi plus SDK connect the 8680i directly to the network application – even offline via TotalFreedom™ plug-ins.
• Omnidirectional 2D area imager – reads 1D barcodes as well as PDF417, Data Matrix and QR codes in any orientation, with motion tolerance up to 584 cm/s and in light levels from darkness to 100,000 lux.
• Ring or glove – field-reconfigurable – the included triggered ring has a reversible trigger for right- or left-hand use; with the glove mount the scanner moves to a one-size strap glove (left or right hand) that can be worn on a bare hand or over a work glove and is machine-washable.
• Full-shift battery – the extended 2160 mAh battery delivers about 8,000 scans over a 10-hour shift and is swapped in seconds; a slim 1200 mAh battery (BAT-SCN03) is available for lighter weight in shorter shifts.
• Bluetooth 5.0 Class 1 with BLE + dual-band Wi-Fi – Bluetooth up to 100 m line of sight with NFC tap-to-pair and HID/SPP profiles, plus Wi-Fi 802.11 a/b/g/n/ac on 2.4 and 5 GHz with 802.11r fast roaming and WPA2-Enterprise security.
• Built for rugged work – IP54 sealing, 30 drops from 1.5 m to concrete and 2,000 tumbles at 0.5 m; operates from −20 °C to 50 °C.
• Easy fleet management – Honeywell Operational Intelligence manages the battery population lifecycle for uninterrupted full-shift operation and deploys settings and firmware updates.

Ideal Applications

• High-frequency order picking, put-away and replenishment – with both hands free
• Parcel sorting, goods receiving and cross-docking in distribution centres
• Packing stations and e-commerce order fulfilment
• Manufacturing – kitting, line-side supply and parts tracking
• Cold areas and unheated warehouses down to −20 °C
• Directed picking, packing and sorting workflows on the Advanced model – without a separate mobile computer

All 8680i Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Compare the 8680i with other wireless models in our Cordless / Wireless Barcode Scanners collection, or contact our team for advice on a complete wearable setup with chargers, spare batteries, gloves and volume pricing.
