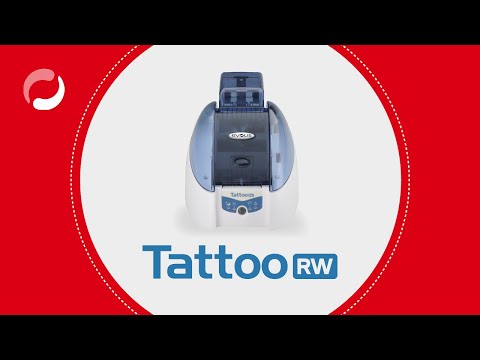

The Evolis Tattoo RW Mag ISO (TTR201BBH-M) is a rewritable card printer: instead of a ribbon it uses thermal rewrite technology to erase and reprint rewritable PVC cards up to 500 times – ideal for visitor badges, loyalty and membership cards whose data changes regularly. It erases and prints a card in about 8 seconds at 300 dpi, has a detachable 100-card feeder and connects via USB and Ethernet. This version includes a magnetic stripe encoder (ISO HiCo/LoCo, 3 tracks).
📦 What's in the box – TTR201BBH-M
- ✅ Evolis Tattoo RW Mag ISO card printer – 300 dpi rewrite printer – detachable 100-card feeder and 15-card output hopper
- ✅ Magnetic stripe encoder (factory-fitted) – ISO 7811, HiCo/LoCo, 3 tracks
- ✅ Power supply – external power adapter
- ✅ Power cord – EU plug (Schuko)
- ✅ USB cable – USB A to B – plug and print
- ✅ No ribbon needed – thermal rewrite technology – the card surface itself changes colour
- ❌ Rewritable cards – NOT included – Tattoo RW prints only on rewritable cards – order them separately
- ❌ Cleaning kit – NOT included – recommended for regular maintenance – see accessories
⚠️ Please note: no rewritable cards are included. Tattoo RW prints only on rewritable cards – please order them separately: Evolis C5201 (black print) or Evolis C5101 (blue print), 100 cards per pack.
💡 Useful extras: the Evolis A5002 cleaning kit for regular maintenance.
Key Features
- No ribbon, no waste – thermal rewrite technology prints directly on rewritable cards, so there are no ribbons to buy or change.
- Erase and reprint up to 500 times – update visitor data, loyalty points or validity dates on the same card in seconds.
- Fast – erase and print in 8 seconds (manual insertion) or 12 seconds (from the feeder) with a 300 dpi print head.
- Magnetic stripe encoding – ISO 7811 HiCo/LoCo (or JIS2) encoder updates the stripe in about 4 seconds.
- Detachable feeder and hopper – 100-card feeder and 15-card output hopper; manual insertion is also possible.
- Connected – USB and Ethernet as standard, one button and four status LEDs.
- Print area 48 × 76 mm – clear text and barcodes on CR80 rewritable cards (Mitsubishi black or blue).
Ideal Applications
- Visitor and temporary badges
- Loyalty cards showing the latest points balance
- Membership and subscription cards with changing validity dates
- Parking, transport and ski passes
- Library and student cards
All Evolis Tattoo RW Versions
The highlighted row is the version you are currently viewing.
| Part Number | Edition | Interfaces | Encoder | |
|---|---|---|---|---|
| TTR201BBH | Basic | USB, Ethernet | None | View product |
| TTR201BBH-M (this version) | Mag ISO | USB, Ethernet | Magnetic stripe (ISO HiCo/LoCo) | Viewing |
| TTR201BBH-00HS | Contactless | USB, Ethernet | Contactless (SpringCard HSP) | View product |
Technical Specifications
| Part Number | TTR201BBH-M |
|---|---|
| Model | Evolis Tattoo RW Mag ISO (Tattoo2 RW) |
| Printer Type | Rewritable card printer |
| Print Technology | Direct thermal printing and erasing on rewritable (thermochromic) cards – no ribbon |
| Printing | Single-sided; max. print area 48 × 76 mm |
| Resolution | 300 dpi (11.8 dots/mm) |
| Print Speed | Erase + print: 8 s per card (manual insertion), 12 s (from the feeder) |
| Card Types | Rewritable thermochromic cards – Mitsubishi black and blue (Ricoh on request); up to 500 rewrite cycles |
| Card Format | ISO CR80 – ISO 7810 (85.60 × 53.98 mm) |
| Card Thickness | 0.5–0.76 mm (20–30 mil) |
| Card Feeder / Output Hopper | Manual insertion or detachable feeder 100 cards (0.76 mm); detachable output hopper 15 cards |
| Encoding Options | ISO 7811 magnetic stripe encoder, HiCo/LoCo (or JIS2), 3 tracks – 4 s per card |
| Ribbons | Not required |
| Interfaces | USB (1.0–3.0), cable supplied; Ethernet |
| Display | 1 button, 4 LEDs |
| Drivers & Software | Windows drivers (32/64-bit) |
| Memory | 16 MB RAM |
| Dimensions (W × D × H) | 187 × 290 × 166 mm (368 mm deep with output hopper) |
| Weight | 2.4 kg |
| Color | White body, brilliant blue cover |
| Certifications | CE, FCC, ICES, VCCI, CCC, KC, BIS, EAC, RoHS |
| Warranty | 2 years (printer and print head), limited to 15,000 inserted cards |
| In the Box | Evolis Tattoo RW Mag ISO rewritable card printer (300 dpi, USB + Ethernet, magnetic stripe encoder), detachable 100-card feeder and 15-card output hopper, external power supply, power cord (EU plug), USB cable – no ribbon needed; rewritable cards NOT included (order separately) |
Matching ribbons, blank cards and cleaning kits are listed in the accessories on this page. Compare other models in our Plastic Card Printers collection or contact our team for volume pricing.
Available Versions
| Part Number | Series | Price | ||
|---|---|---|---|---|
 |
TTR201BBH | Standard | 989,35 €+VATOut of Stock | View |
 |
TTR201BBH-00HS | Contactless encoder | 1.303,85 €+VATOut of Stock | View |
 |
TTR201BBH-MViewing | Magnetic stripe encoder | 1.218,67 €+VATOut of Stock |
