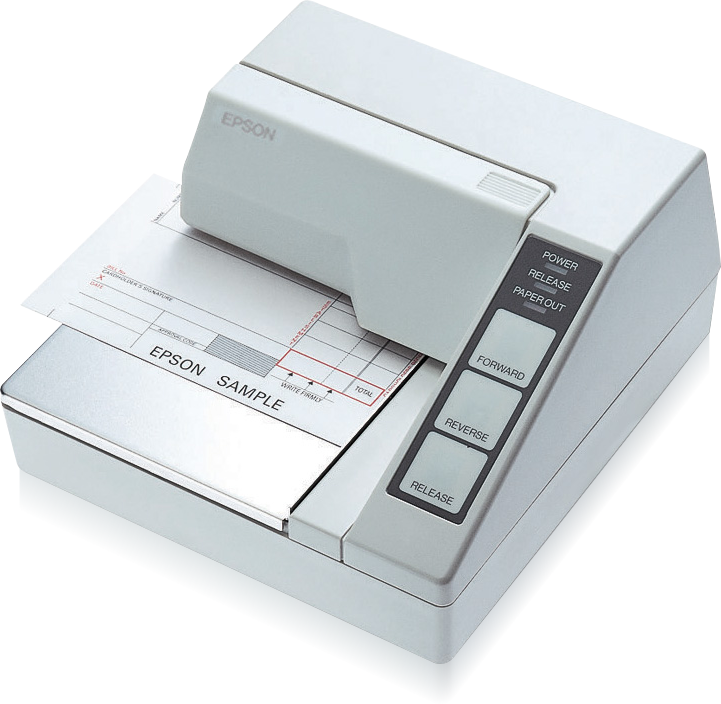

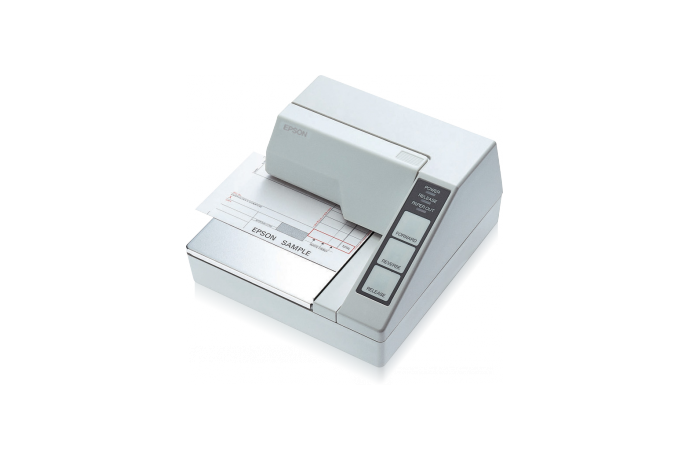

The Epson TM-U295 is one of the world's smallest slip printers – a compact 7-pin impact printer that prints directly onto cut sheets and forms such as prescriptions, cheques and vouchers, deposit slips, delivery notes and validation forms. Slips from 80 × 69 mm up to 182 × 257 mm are inserted from the front and printed as an original plus up to two copies, in four print directions and with page mode for free positioning. This version, C31C163272, comes in Epson Cool White with a serial (RS-232) interface; it ships with an ERC-27 black ribbon and the user manual – the power supply (Epson PS-180), the power cord and the interface cable are ordered separately.
📦 What's in the box – C31C163272
- ✅ Epson TM-U295 slip printer – serial RS-232, Epson Cool White
- ❌ Power supply – NOT included – the TM-U295 needs the Epson PS-180 power supply (24 V DC) – order separately
- ❌ Power cord – NOT included – the power supply needs a mains cable with a C13 connector – order the one with your plug separately
- ✅ Ribbon cassette – Epson ERC-27 (black), ready to print
- ✅ User manual – drivers, utilities and manuals are a free download from Epson
- ❌ Interface cable (serial RS-232) – NOT included
⚠️ Please note: the TM-U295 ships without power supply, power cord and interface cable. To get started, order the Epson PS-180 power supply (or its successor, the Epson PS-190), a C13 power cord – Epson 2119140 (EU) or Citizen C6009-300 (UK) – and the Bixolon SER-KAB-9-25 serial cable (9-pin PC to 25-pin printer).
💡 Useful extras: spare Epson ERC-27B ribbon cassettes (black, approx. 1 million characters each). The drawer kick-out port opens up to two cash drawers automatically.
Key Features
- One of the world's smallest slip printers – only 180 × 190.5 × 101.5 mm and 1.6 kg, so it fits on any counter next to the POS terminal.
- Prints directly on forms and slips – single sheets from 80 × 69 mm to 182 × 257 mm, 0.09–0.35 mm thick, as an original plus up to two copies.
- Variety of printing formats – two fonts (5 × 7 / 7 × 7), 35 or 42 columns, four print directions and page mode for printing practically anywhere on the slip.
- User-friendly operation – an easy-to-use touch panel and automatic paper feed-out; Automatic Status Back reports the printer status to the application.
- Serial (RS-232) interface and ESC/POS – the world-standard Epson command system keeps existing software assets usable.
- Drawer kick-out – drives up to two cash drawers.
- Epson reliability – MTBF 180,000 hours and MCBF 7 million lines.
Ideal Applications
- Pharmacies – printing prescriptions and dispensing labels on pre-printed forms
- Banks and post offices – deposit slips, payment forms and cheque endorsement
- Retail – vouchers, credit notes, returns and warranty forms
- Hotels and car rental – registration cards and contracts
- Logistics and wholesale – delivery notes and validation of documents
- Lottery, betting and ticket validation
All TM-U295 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Color | Interfaces | |
|---|---|---|---|
| C31C163272 (this version) | Epson Cool White | Serial (RS-232) | Viewing |
| C31C163292 | Epson Dark Grey | Serial (RS-232) | View product |
Technical Specifications
| Part Number | C31C163272 |
|---|---|
| Model | Epson TM-U295 |
| Printer Type | Compact impact dot matrix slip printer (front-loaded cut sheets and forms) |
| Print Method | 7-pin shuttle impact dot matrix |
| Print Speed | Approx. 2.1 lines/s |
| Paper Width | Slips 80–182 mm wide, 69–257 mm long |
| Characters per Line | 35 (5 × 7 font) / 42 (7 × 7 font) |
| Paper Thickness | 0.09–0.35 mm; 1 original + 2 copies |
| Media Type | Single cut sheets, forms and multi-part slips |
| Ribbon | Epson ERC-27B (black), approx. 1 million characters |
| Auto-cutter | Not applicable – cut-sheet (slip) printer |
| Interfaces | Serial RS-232C (25-pin D-sub) + drawer kick-out |
| Wireless | Not supported |
| Drawer Kick-out | Yes – up to 2 cash drawers |
| Emulation / Command Set | ESC/POS (four print directions, page mode) |
| Fonts / Character Sets | 5 × 7 / 7 × 7 dots; 95 alphanumeric, 32 international, 128 × 3 graphic characters; 13.5 / 16.2 cpi |
| Data Buffer | 512 bytes or 35 bytes |
| Power Supply | 24 V DC ± 10% – Epson PS-180 power supply (NOT included) |
| Power Consumption | Approx. 0.6 A at 24 V DC |
| Dimensions (W × D × H) | 180 × 190.5 × 101.5 mm |
| Weight | Approx. 1.6 kg |
| Color | Epson Cool White |
| Operating Temperature | 5 °C to 40 °C |
| Storage Temperature | −10 °C to 50 °C |
| Humidity | 30–85% RH (operation); 30–90% RH (storage) |
| Noise Level | Approx. 65 dB(A) |
| Reliability | MTBF 180,000 hours; MCBF 7 million lines |
| Certifications | CE marking, FCC class A, VCCI, UL / C-UL / TÜV |
| Warranty | 12 months |
| In the Box | Epson TM-U295 impact dot matrix slip printer (serial RS-232, Epson Cool White), ERC-27 black ribbon cassette, user manual – power supply (Epson PS-180), AC power cord (C13) and serial interface cable NOT included |
Which version should you choose? Both TM-U295 versions are identical serial (RS-232) slip printers and differ only in colour: C31C163272 is Epson Cool White, C31C163292 is Epson Dark Grey. Both come with an ERC-27 ribbon and the user manual – the power supply, the power cord and the interface cable are ordered separately. Compare other models in our Dot Matrix Printers collection or contact our team for volume pricing.
Available Versions
C31C163272
Selected
Color
White
prescription printer, dot-matrix printing, print width (max.): 65 mm, speed (max.): 2.1lps, RS232, ESC/POS, order separately: interface cable, power supply unit, colour: white
335,67 €In Stock
C31C163292
Color
Dark grey
prescription printer, dot-matrix printing, print width (max.): 65 mm, speed (max.): 2.1lps, RS232, ESC/POS, order separately: interface cable, power supply unit, colour: black
