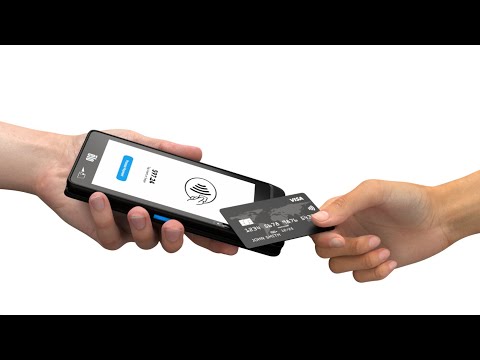

The Elo Pay M60 is an all-in-one Android mobile POS computer that takes card payments in the palm of your hand – EMV chip & PIN-on-glass, contactless NFC (Apple Pay, Google Pay, Samsung Pay) and a 3-track magnetic stripe reader, certified to PCI-PTS 6.x. A 6" HD Gorilla Glass display, Qualcomm Snapdragon 660 octa-core, Android 10 with Google Mobile Services and easy provisioning via EloView, Google Zero Touch or your own MDM make it ideal for table service, line busting, curbside pickup and payments on the go. This version, E863128, is the M60 Wi-Fi model – the slim 19.5 mm version without barcode scanner.
📦 What's in the box – E863128
- ✅ Elo Pay M60 – mobile POS computer, black, 6" HD, Wi-Fi, 3 GB / 32 GB
- ✅ Battery – 4000 mAh / 3.8 V Li-polymer, serviceable, installed
- ✅ USB Type-C charger – Qualcomm Quick Charge 4 – charges the M60 directly
- ✅ Google Mobile Services (GMS) – licensed and preinstalled – Google Play and Google apps ready to use
- ✅ Quick start guide – drivers, tools and user guides are a free download from Elo
- ❌ Hand strap – NOT included
- ❌ Payment application / acquirer contract – NOT included – card payments need a payment app certified for the Elo Pay M60 and an agreement with your payment provider
💡 Useful extras: the Elo E863687 EM10 expansion module that adds USB-A, USB-C and Ethernet ports for a counter setup; the Elo E873133 EloCare OS 360 3-year subscription – monthly Android security updates and the upgrade to Android 12.
Key Features
- Integrated payment, PCI-PTS 6.x certified – EMV contactless (ISO 14443 A/B, MIFARE, ISO 18092), EMV chip card reader with PIN-on-glass and 3-track MSR; EMV L1 & L2, Visa payWave, Mastercard PayPass, Amex ExpressPay and more.
- 6" HD touchscreen – optically bonded 1440 × 720 display, 430 nits, Corning Gorilla Glass with water rejection and anti-fingerprint coating.
- Android 10 with GMS – Qualcomm Snapdragon 660 octa-core 2.2 GHz, 3 GB RAM / 32 GB storage, microSD up to 256 GB (optional nano-SAM via microSD slot); upgrade to Android 12 with EloCare OS 360.
- Slim Wi-Fi handheld – dual-band Wi-Fi 5 (802.11a/b/g/n/ac, 2×2 MU-MIMO) and Bluetooth 5.0 in a 19.5 mm thin, 362 g housing – perfect for restaurants and stores with good Wi-Fi.
- All-day battery – 4000 mAh serviceable Li-polymer battery with Qualcomm Quick Charge 4; USB-C for charging, data and display output.
- Built for commercial use – IP54, multiple 1 m drops, 200 tumbles at 0.5 m; 8 MP auto-focus camera with flash for photos and barcode apps.
- Easy management – EloView, Google Zero Touch or any third-party MDM for provisioning and remote device management.
Ideal Applications
- Restaurants – order taking and pay-at-table
- Retail – line busting, mobile checkout and assisted selling
- Curbside pickup, deliveries and payment at the door
- Events, markets and pop-up stores
- Hospitality and services – payment wherever the customer is
All Elo Pay M60 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Model | Connectivity | Barcode Scanner | |
|---|---|---|---|---|
| E863128 (this version) | M60 | Wi-Fi only | No | Viewing |
| E897852 | M60SC | 4G LTE | SE4720 1D/2D | View product |
Technical Specifications
| Part Number | E863128 |
|---|---|
| Model | Elo Pay M60 – Wi-Fi model without barcode scanner (worldwide) |
| Operating System | Android 10 with Google Play Services (GMS), AOSP capable; planned upgrade to Android 12 with EloCare OS 360 subscription |
| Processor | Qualcomm Snapdragon 660 octa-core, 2.2 GHz |
| Memory (RAM / Flash) | 3 GB RAM / 32 GB storage |
| Expansion | microSD up to 32 GB SDHC / 256 GB SDXC; optional 1 × nano-SAM via the microSD slot |
| Display | 6" optically bonded HD LCD (1440 × 720), 430 nits, contrast 1500:1 |
| Touch Panel | Projected capacitive, Corning Gorilla Glass, water rejection, anti-fingerprint coating |
| Keypad | On-screen keyboard |
| Buttons | Left and right programmable buttons, power button |
| Payment | EMV contactless (ISO 14443 A/B, MIFARE, ISO 18092); EMV chip card reader (chip & PIN-on-glass); 3-track MSR (ISO 7810/7811) |
| Certifications | PCI-PTS 6.x (approval 4-30470), EMV L1 & L2, Visa payWave, Mastercard PayPass, Amex ExpressPay, Discover D-PAS, UnionPay QuickPass, JCB J/Speedy, Interac Flash, Apple Pay, Google Pay, Samsung Pay; UL, FCC/IC, CE, RCM |
| Scan Engine | None – choose the M60SC (E897852) for an integrated scanner |
| Rear Camera | 8 MP auto-focus with flash LED and torch |
| Wi-Fi | Wi-Fi 5 – IEEE 802.11 a/b/g/n/ac, 2×2 MU-MIMO |
| Bluetooth | Bluetooth 5.0 |
| Mobile Data (WWAN) | Not available – Wi-Fi only |
| GPS/GNSS | GPS, GLONASS, Galileo, BeiDou; A-GPS |
| Voice & Audio | Microphone, 1 W front-facing speaker, USB-C headset support |
| Notifications | Green/amber battery/charging LED, blue/red user-programmable LED |
| Ports | USB Type-C (charging, data and display output) |
| Sensors | Ambient light, proximity, accelerometer |
| Battery | 4000 mAh / 3.8 V rechargeable Li-polymer, serviceable; Qualcomm Quick Charge 4 |
| Charging | Via USB-C with the included USB Type-C charger |
| Form Factor | All-in-one mobile POS handheld with integrated payment |
| Dimensions | 186 × 86.4 × 19.5 mm |
| Weight | 362 g |
| Drop Spec | Multiple 1 m drops |
| Tumble Spec | 200 tumbles at 0.5 m (IEC 60068-2-32) |
| Sealing | IP54 (IEC 60529) |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −30 °C to 60 °C |
| Humidity | 5–95% non-condensing |
| Security Updates | Monthly Android security updates with the EloCare OS 360 package (e.g. E873133, 3 years) |
| Colour | Black |
| Warranty | 12 months (Elo 1-year warranty); extended Elo warranty and EloCare plans available |
| In the Box | Elo Pay M60 mobile POS computer (E863128) with installed 4000 mAh battery, USB Type-C charger (Qualcomm Quick Charge 4), Google Mobile Services (GMS) preinstalled, quick install guide – docking station, hand strap and payment application NOT included |
Need mobile data and a barcode scanner? The Elo Pay M60SC (E897852) adds 4G LTE and an SE4720 2D imager. For a rugged IP68 enterprise handheld with Wi-Fi 6E and SE4100 scanner, see the Elo M51 (E449855). Elo's latest payment handheld is the Elo Pay M100 (E121973). Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
