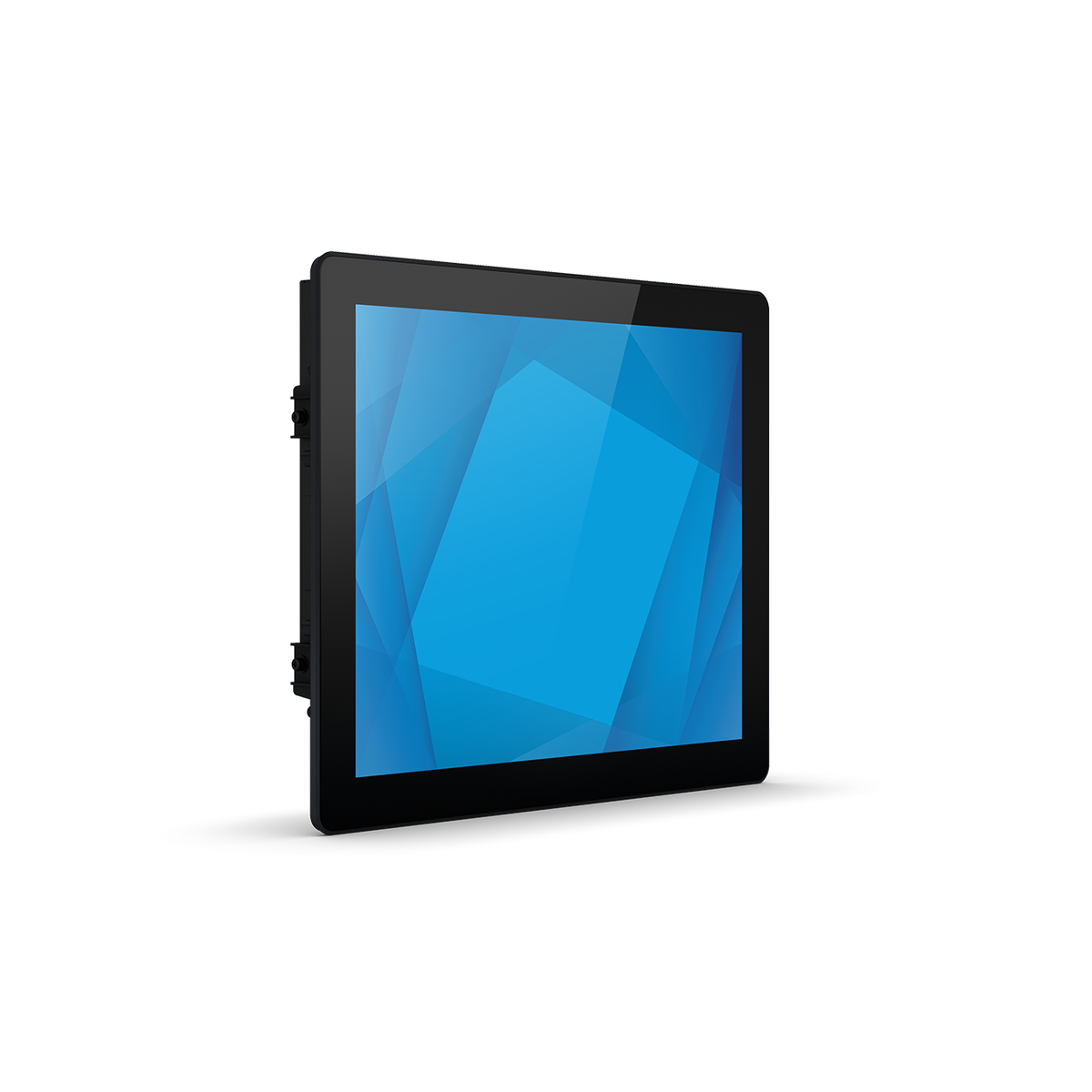

Elo 1790L 17" Open-Frame Touch Monitor, PCAP 10-touch, SXGA, Zero-Bezel (E330225)

The Elo 1790L is a 17" open-frame touch monitor from Elo's 90 Series, designed to be built into kiosks, machines, gaming cabinets and self-service terminals. The 17" 5:4 format with a fast 5 ms panel is a long-standing standard for kiosks, gaming and industrial terminals. It pairs a 17" 5:4 LCD panel (SXGA, 1280 × 1024) with Elo TouchPro projected-capacitive touch with 10 touch points that also works through protective glass up to 6 mm thick. HDMI, VGA and DisplayPort inputs and a compact metal chassis with VESA 75 × 75 / 100 × 100 mm mounting make integration easy, backed by a 3-year Elo warranty. This version, E330225, is the TouchPro PCAP zero-bezel model with a flush, edge-to-edge glass front sealed to IP65 at the front; HDMI, VGA and touch USB cables, a remote OSD keypad and mounting brackets are included, while the 12 V power supply is ordered separately.

Key Features

• TouchPro PCAP, 10 touch points – multi-touch gestures, touch-through up to 6 mm protective glass and an easy-to-clean glass surface
• SXGA 17" display (5:4) – 250 cd/m² LCD panel, 1000:1 contrast, 5 ms response time
• Three video inputs – HDMI, VGA and DisplayPort for easy connection to practically any PC, media player or Elo Backpack
• Built for integration – compact metal chassis, VESA 75 × 75 / 100 × 100 mm, mounting points on all four sides and flush-mount brackets for a seamless front
• Tamper-resistant controls – tethered remote OSD keypad with OSD and power lock-outs for public installations
• Sealed front – IP65 front-side protection, touchscreen sealed to the bezel and the LCD
• Commercial-grade reliability – 50,000-hour MTBF and a 3-year Elo warranty, extendable to 4 or 5 years

Ideal Applications

• Self-service and self-ordering kiosks
• Ticketing, vending and parcel-locker terminals
• Industrial HMI and machine control panels
• Gaming, lottery and amusement machines
• Interactive digital signage and wayfinding

Technical Specifications

Choosing the right version: The Elo 90 Series covers 10.1" to 27" in classic 4:3 / 5:4 and widescreen 16:9 formats. Choose TouchPro PCAP for multi-touch and a flush glass front, IntelliTouch for a pure glass surface with single touch, or AccuTouch resistive for operation with gloves and stylus; high-brightness and outdoor models are available for bright locations. Browse all Monitors to compare sizes and touch technologies, or contact us for volume pricing, project quotes and integration advice.
