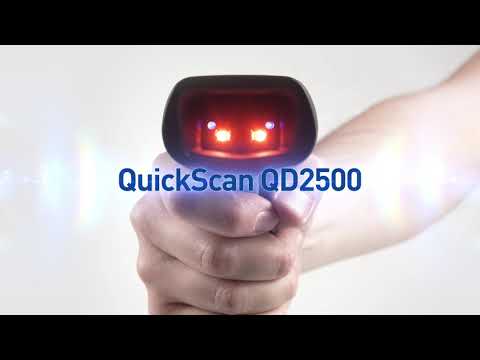

The Datalogic QuickScan QD2500 (corded model QD2590) is a 2D handheld barcode scanner with a 1 MP imager that reads 1D, 2D and Digimarc codes from paper labels and phone screens, with Datalogic's Green Spot good-read confirmation. It is built for busy retail counters and service desks and comes with a 5-year Datalogic warranty. This version, QD2590-BK, comes in black and is supplied as the scanner only – an interface cable is not included.
📦 What's in the box – QD2590-BK
- ✅ Datalogic QuickScan QD2590 scanner – Black
- ❌ Interface cable – NOT included
- ❌ Stand – not included
⚠️ Please note: this version does not include a cable. The scanner cannot be connected to a computer or POS system without one, so please order an interface cable separately – for most setups the Datalogic USB cable 90A052258 is the right choice. Alternatively, choose a version that already includes a USB cable (see the comparison table below).
💡 Want hands-free scanning? Add the Datalogic stand STD-QW25-BK or the Datalogic Smartstand STD-AUTFLX-QD25-BK to your order. The scanner switches to hands-free mode automatically when placed in the stand.
Key Features
- Reads 1D, 2D and Digimarc codes – omnidirectional reading of linear, 2D, postal, stacked and composite codes plus Digimarc digital watermarks, on paper labels and on phone screens.
- 1 MP high-performance imager – snappy reading with a wide depth of field: up to 51 cm on 13 mil EAN/UPC and down to 3 mil codes.
- Datalogic Green Spot – a green light projected onto the barcode confirms every good read, even in noisy environments.
- Motionix motion sensing – switches automatically between handheld and presentation reading modes.
- Precision aiming – a blue LED aiming system makes it easy to pick the right code on crowded labels.
- Flexible connectivity – multi-interface USB, USB-C and RS-232 depending on the cable; easy setup with the free Datalogic Aladdin configuration tool and OPOS/JavaPOS utilities.
- Built to last – withstands repeated 1.5 m drops to concrete, IP52 sealed, trigger rated for 10 million actuations, with a 5-year (60-month) Datalogic warranty.
Ideal Applications
- Retail point of sale – check-out, loyalty cards and electronic coupons
- Commercial services – postal, banking, public administration and utilities
- Hospitality and transport – ticketing for events, concerts and travel
- Healthcare – laboratories, pharmacies and patient care
- Government lottery and gaming, light manufacturing work-in-progress tracking
All QuickScan QD2500 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Color | Cable | Stand | |
|---|---|---|---|---|
| QD2590-BK (this version) | Black | ❌ Not included | — | Viewing |
| QD2590-BKK1 | Black | USB, straight 2 m | — | View product |
| QD2590-BKK1S | Black | USB, straight 2 m | ✅ Smartstand | View product |
| QD2590-BKK1B | Black | USB, straight 2 m | ✅ Tilt stand | View product |
| QD2590-WH | White | ❌ Not included | — | View product |
| QD2590-WHK1 | White | USB, straight 2 m | — | View product |
Technical Specifications
| Part Number | QD2590-BK |
|---|---|
| Model | Datalogic QuickScan QD2590 (QD2500 series) |
| Scanner Type | Corded handheld 2D area imager |
| Image Sensor | 1 MP (1280 × 800 pixels) |
| Light Source | Aiming: 468 nm blue LED; illumination: 617 nm red LED |
| Depth of Field (typical) | Code 39 5 mil: 0.5–25 cm; Code 39 10 mil: 0.5–38 cm; EAN/UPC 13 mil: 0.5–51 cm; Data Matrix 10 mil: 0.5–21.5 cm; PDF417 6.7 mil: 0.5–21 cm; QR Code 20 mil: 0–37 cm |
| Maximum Resolution | 1D: 3 mil (0.077 mm); PDF417: 3 mil; Data Matrix: 5 mil (0.127 mm); QR Code: 6.7 mil (0.17 mm) |
| Motion Tolerance | 30 IPS (76 cm/s) |
| Minimum Print Contrast | 15% |
| Reading Angles | Pitch ±65°, roll 360°, skew ±65° |
| 1D Symbologies | All standard 1D codes incl. GS1 DataBar linear codes (auto-discrimination) |
| 2D Symbologies | Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR Code, DotCode |
| Postal Codes | Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet, Postnet, Royal Mail RM4SCC |
| Stacked / Composite Codes | PDF417, MicroPDF417, MacroPDF, GS1 DataBar stacked / expanded / composite, EAN/UPC composites |
| Digital Watermark | Digimarc Barcode |
| Host Interfaces | USB, USB-C, RS-232 multi-interface – interface depends on the cable used |
| Reading Indicators | Datalogic Green Spot, good-read LED, beeper (adjustable tone and volume) |
| Color | Black |
| Dimensions | 14.8 × 6.8 × 12.6 cm |
| Weight | 145 g |
| Input Voltage | 5 VDC |
| Current Draw | Operating: < 400 mA; standby: < 90 mA (at 5 V) |
| Environmental Sealing | IP52 |
| Drop Resistance | Repeated 1.5 m drops to concrete |
| Electrostatic Discharge | 16 kV (air discharge) |
| Ambient Light Immunity | 0–110,000 lux |
| Trigger Life | 10 million actuations |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 0–95% RH, non-condensing |
| Software & Management | Datalogic Aladdin configuration tool, OPOS / JavaPOS utilities, remote host download |
| Warranty | 60 months |
| In the Box | QuickScan QD2590 scanner – interface cable NOT included (order separately) |
Not sure which version you need? If you already have a compatible Datalogic cable at the checkout, the scanner-only version is the most economical choice; for a new workstation, pick a USB kit – with a Smartstand or tilt stand if you also want hands-free scanning. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
Available Versions
QD2590-BK
Selected
Color
Black
handheld scanner, 2D, imager, Digimarc, multi-interface (RS232, KBW, USB), protection class: IP52, order separately: interface cable, colour: black
76,09 €In Stock
QD2590-BKK1
Color
Black
handheld scanner, 2D, imager, Digimarc, multi-interface (RS232, KBW, USB), protection class: IP52, incl.: cable (USB, straight, 2 m, black), colour: black
QD2590-BKK1B
Color
Black
handheld scanner, 2D, imager, Digimarc, multi-interface (RS232, KBW, USB), protection class: IP52, incl.: cable (USB, straight, 2 m, black), stand (tilt stand), colour: black
QD2590-BKK1S
Color
Black
handheld scanner, 2D, imager, Digimarc, multi-interface (RS232, KBW, USB), protection class: IP52, incl.: cable (USB, straight, 2 m, black), stand (Smartstand), colour: black
QD2590-WH
Color
White
handheld scanner, 2D, imager, Digimarc, multi-interface (RS232, KBW, USB), protection class: IP52, order separately: interface cable, colour: white
QD2590-WHK1
Color
White
handheld scanner, 2D, imager, Digimarc, multi-interface (RS232, KBW, USB), protection class: IP52, incl.: cable (USB, straight, 2 m, white), colour: white
