Datalogic Magellan 9550i Counter Scanner (957011001-00351)

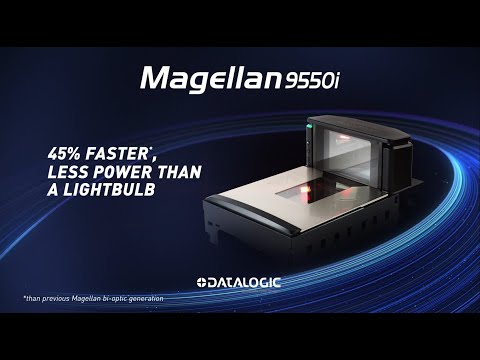

The Datalogic Magellan 9550i is a multi-plane (bi-optic) in-counter barcode scanner for high-volume checkouts. Its horizontal and vertical windows read 1D and 2D barcodes seamlessly on all sides of an item – 2D codes up to 45% faster than the previous Magellan bi-optic generation – with out-of-the-box GS1 Digital Link support, while drawing less power than a light bulb (2.6 W operating). It uses the same form factor, power supply and interface cables as earlier Magellan bi-optic scanners, so it drops straight into existing checkstands. This version, 957011001-00351, is the short scanner (35.6 cm) with shelf mount, supplied as a ready-to-run kit with a USB cable (external power type), power supply and EU power cord.

Key Features

• Fast 1D and 2D reading in all planes – reads 2D codes up to 45% faster than the previous Magellan bi-optic generation; seamless reading on 5 sides of the item (plus the optional Customer Service Scanner) and out-of-the-box GS1 Digital Link support.
• Very low power consumption – 12 VDC, 2.6 W operating and 1.7 W idle (nominal, Eco Mode) – less than a light bulb, cutting running costs and the carbon footprint.
• Simple drop-in replacement – same form factor as other Magellan bi-optic scanners; uses the same power supply, scale display and interface cables as the Magellan 9300i, 9400i, 9600i and 9900i, which makes stocking accessories easier.
• Multi-interface with peripheral ports – RS-232 (single/dual cable), USB COM, OEM (IBM) USB and USB Keyboard; two powered USB Type A host ports, a remote scale display port and an EAS controller port; optional Magellan Customer Service Scanner (CSS) with omni-mount for reading phones, coupons and loyalty cards.
• Loss prevention – integrated EAS antenna support for Checkpoint and Nedap and a Sensormatic deactivation controller; other factory configurations add an in-bonnet USB color camera for AI workflows such as produce recognition.
• Enterprise-ready management – remote management via OPOS and JavaPOS on Windows or Linux, Toshiba Remote Management Agent and DLRMUS; free Aladdin configuration software; EASEOFCARE service plans and a 1-year factory warranty.

Ideal Applications

• Supermarket and grocery checkout lanes (installed in the counter)
• Hypermarkets and other high-volume retail checkouts
• Self-checkouts and assisted checkouts
• Replacing older Magellan bi-optic scanners in existing checkstands
• Reading mobile coupons, loyalty cards and GS1 Digital Link codes

All Magellan 9550i Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? All Magellan 9550i versions use the same bi-optic imaging engine. First choose the size: the short scanner (957011001…) for compact checkouts, the medium Adaptive Scale version (957022201…) with flip-up produce rail, or the long scanner (957013101) with fixed produce rail and flange mount. Then choose the kit: scanner only, with the OEM (IBM) USB POT cable for IBM/Toshiba terminals, or with the EU power supply and a USB or RS-232 cable. Need an integrated weighing scale? Ask us about the Magellan 9550i scanner/scale models. Compare other models in our In-Counter Barcode Scanners collection or contact our team for volume pricing.
