Datalogic Heron HD3430 Barcode Scanner (HD3430-BKK1S)

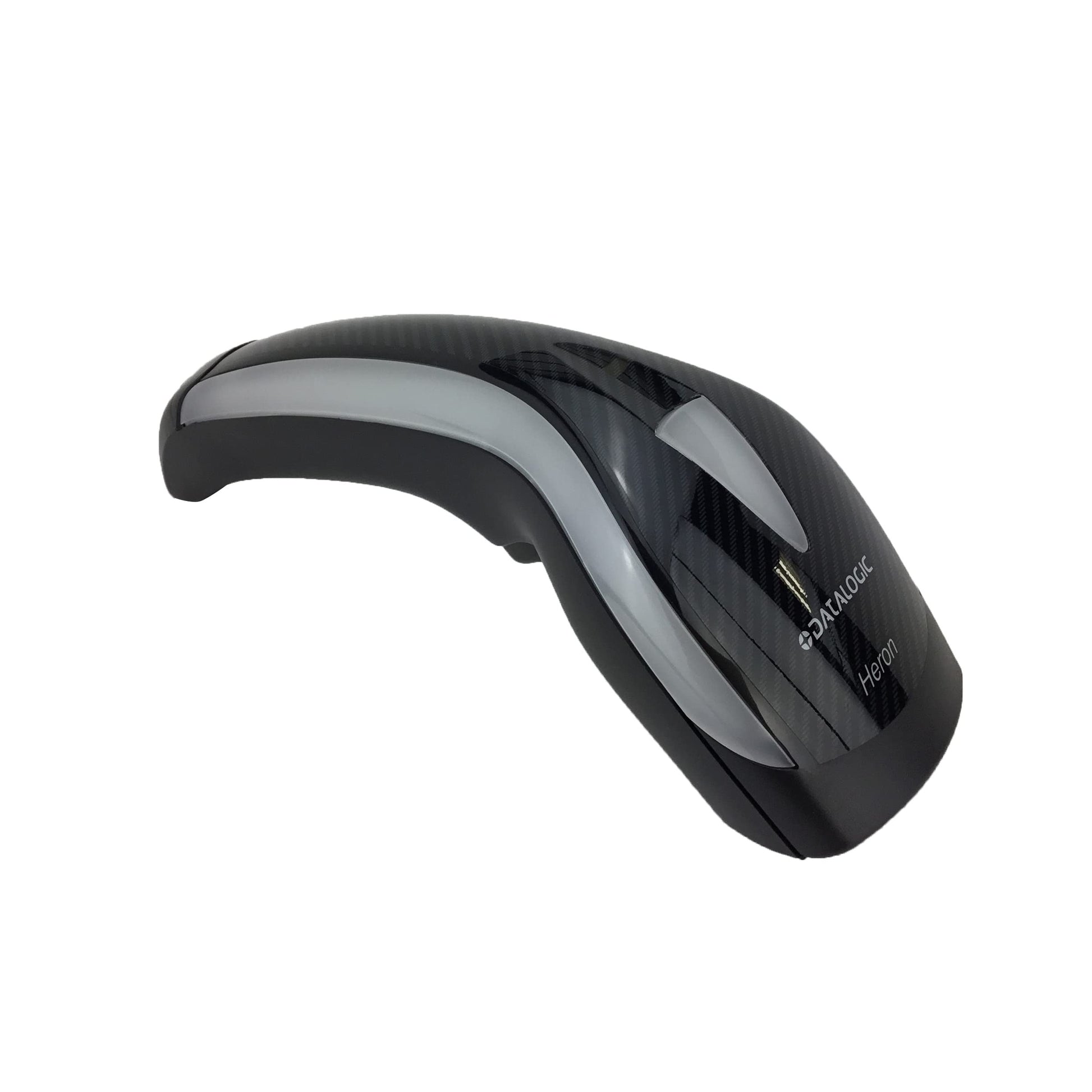

The Datalogic Heron HD3430 is a stylish corded 2D area imager designed for modern point-of-sale checkouts, especially in fashion and specialty retail. Its distinctive design, in-mold decorated top cover, colour-changing LEDs and polyphonic speaker make it a real eye-catcher on the counter, while the Wide VGA imager with white illumination reads all standard 1D barcodes as well as 2D codes such as QR Code, Data Matrix and PDF417 – in any orientation. The scanner comes with a stand and switches automatically between handheld and hands-free scanning. This black version, HD3430-BKK1S, is the USB kit with Flex stand, supplied with the flexible AutoSense Flex stand and a 2 m USB cable, ready to plug in and scan.

Key Features

• 2D area imager – reads all standard 1D barcodes including GS1 DataBar, 2D codes such as QR Code, Micro QR, Data Matrix, Aztec and MaxiCode, PDF417 and composite codes as well as postal codes – omnidirectionally, with resolution down to 4 mil.
• Comfortable reading range – up to 40 cm on 13 mil EAN barcodes and up to 25 cm on 15 mil Data Matrix codes – ideal for the checkout counter.

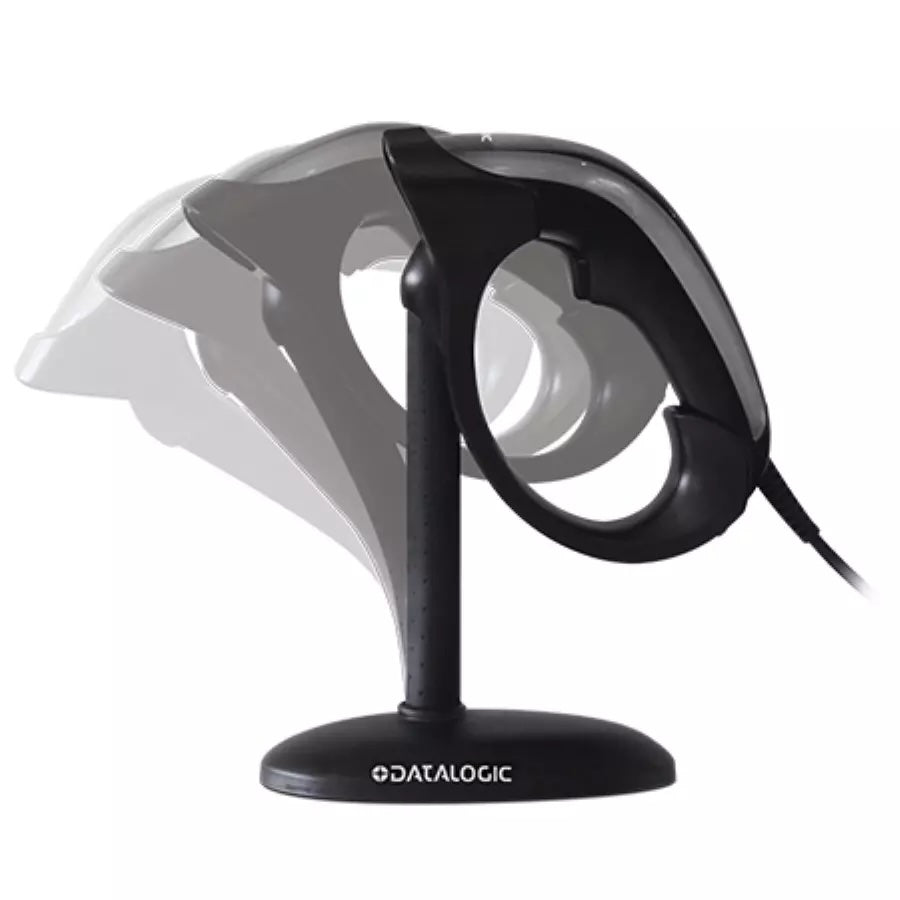

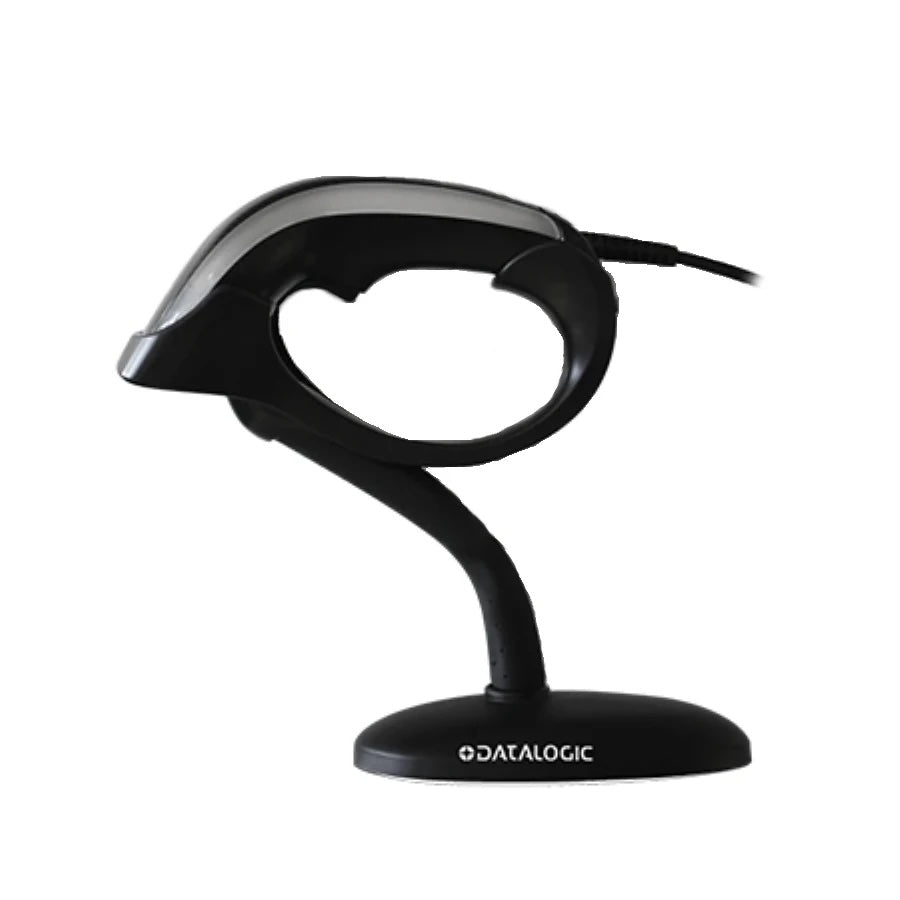

• Handheld or hands-free – every version includes a stand (the K1S kits come with the flexible AutoSense Flex stand), and the scanner switches automatically between handheld and hands-free operation.
• Datalogic Green Spot – a green spot projected onto the barcode confirms every good read, even in noisy environments; a bright 650 nm laser aimer makes it easy to target the right code.
• Eye-catching, customisable design – in-mold decorated top cover (carbon-fibre or silver design), colour-changing LEDs on the sides and top and a polyphonic speaker; for larger orders the scanner can be customised with your logo, top cover and light and sound feedback (minimum order quantities apply).
• Multi-interface – USB, RS-232 and keyboard wedge in one scanner, the interface is selected by the cable; 5 VDC input; image capture (BMP, JPEG, TIFF); easy setup with the free Datalogic Aladdin tool and OPOS/JavaPOS utilities.
• Built for daily use – IP40 sealed, withstands repeated 1.5 m drops to concrete and works in lighting of up to 100,000 lux; 5-year Datalogic warranty.

Ideal Applications

• Fashion and specialty retail – stylish checkout counters
• Retail point of sale – reading product barcodes, QR coupons and loyalty cards
• Pharmacies and drugstores – Data Matrix codes on medicine packs
• Hospitality – hotel front desks, cafés and restaurants
• Service counters – post offices, libraries and ticket offices

All Heron HD3430 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? For a PC or POS with a standard USB port, choose a USB kit – the K1B kits with the classic AutoSense stand or the K1S kits with the flexible AutoSense Flex stand – both are ready to use straight out of the box. If you need an RS-232 or keyboard wedge connection or want to reuse an existing Datalogic cable, choose the HD3430-BK or HD3430-WH and order the matching cable. Only need to read 1D barcodes? The Heron HD3130 1D model is a cost-effective alternative. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
