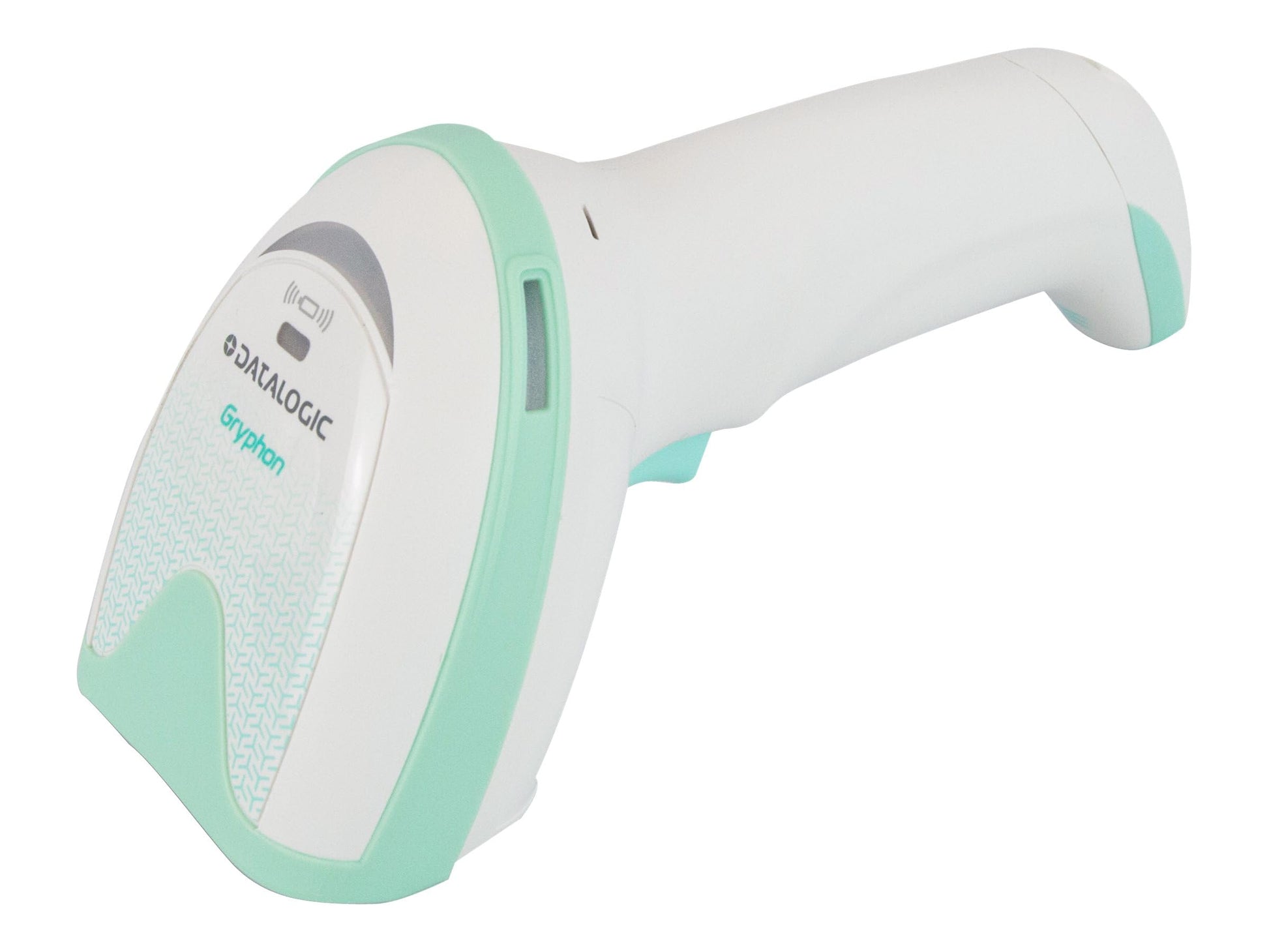

Datalogic Gryphon I GBT4500 Barcode Scanner (GBT4500-HC-HD-WLC)

The Datalogic Gryphon I GBT4500-HC is the healthcare version of Datalogic's premium cordless Gryphon 4500 2D imager. Its white, disinfectant-ready housing (with light green details) is treated with antimicrobial additives (ISO 22196 compliant) and withstands daily cleaning with harsh disinfectant solutions, while Bluetooth® 4.0 with BLE gives up to 100 m of freedom around the bed, the ward or the lab. The scanner charges wirelessly (inductively) in its base – no charging contacts to clean or wear out – and the 1 MP sensor with warm white illumination reads patient wristbands, medication labels, specimen tubes and codes on phone screens and monitors, confirming every read with Green Spot, 3GL™ and an optional silent vibration. In this version, GBT4500-HC-HD-WLC, the scanner has High Density (HD) optics – optimised for very small, dense codes; it is supplied as the scanner only (with battery) – the WLC4090-HC-BT base station and an interface cable are not included; it is intended for expanding an existing GBT4500 Bluetooth installation or replacing a scanner.

Key Features

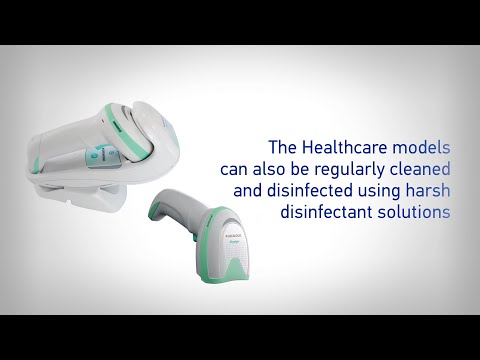

• Disinfectant-ready healthcare housing – white enclosure with antimicrobial additives (ISO 22196 compliant), designed to withstand daily wipe-down with harsh disinfectant solutions – ideal for infection control in wards, laboratories and pharmacies.
• High Density (HD) optics – reads tiny, dense codes down to 3 mil (linear and PDF417) and 4 mil Data Matrix – ideal for small labels on electronics, pharmaceuticals, jewellery and lab samples.
• Reads every code in the care chain – omnidirectional reading of 1D, 2D, postal, stacked and composite codes plus Dot Code: patient wristbands, medication and unit-dose labels, specimen tubes, and codes on LCD monitors, smartphones and other mobile devices; plus image and document capture as BMP, JPEG or TIFF.
• 1 MP imager with white illumination – Datalogic's highly visible warm-white illumination and 4-dot aimer with centre cross make targeting easy, and improved motion tolerance (35 IPS) captures fast-moving codes.
• Bluetooth® 4.0 with BLE – up to 100 m range with the base station (Class 1, open air), data encryption and scanner authentication; up to 7 scanners per base, or a direct connection to a Bluetooth-enabled host via the Serial Port Profile (SPP).
• Wireless charging, long battery life – inductive charging in the WLC4090 base eliminates charging contacts that need cleaning or wear out; the adjustable-position base keeps the scanner reading hands-free while it charges (Scan-While-Charging), and the user-replaceable 3250 mAh Li-ion battery delivers up to 80,000 reads per charge.
• Green Spot, 3GL™ and silent vibration – a green spot projected onto the code, Three Green Lights and a vibration alert confirm every good read; combined with the silent operating mode, even night-time bedside scanning does not disturb patients.
• Motionix™ motion sensing – switches seamlessly between handheld and presentation reading modes.
• Flexible connectivity – the WLC4090 Bluetooth base is a USB and RS-232 multi-interface, depending on the cable; free Datalogic Aladdin configuration tool, OPOS/JavaPOS utilities and Remote Host Download.
• Built to last – withstands repeated 1.8 m drops onto concrete, IP52 sealed, with a 3-year Datalogic factory warranty.

Ideal Applications

• Patient identification – scanning wristbands and patient records at the bedside
• Medication administration (BCMA) – matching patient, medication and caregiver at the point of care
• Laboratories – specimen tubes, sample labels and small, dense 2D codes
• Pharmacies – dispensing, 2D Data Matrix codes on medicine packs and e-prescriptions on phone screens
• Clinics, care homes and admissions desks – patient check-in, documents and appointment QR codes

All Gryphon I GBT4500-HC Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose GBT4500-HC-BTK1 (Standard Range) for a complete, ready-to-use healthcare setup with the WLC4090-HC-BT Bluetooth base, cart clip and white USB cable; GBT4500-HCK10-BPOC contains the same items in the BPOC (barcode point of care) kit version. The scanner-only versions – GBT4500-HC-WLC (Standard Range) and GBT4500-HC-HD-WLC (High Density, for very small, dense codes such as specimen-tube and unit-dose labels) – are ideal as additional or replacement scanners for an existing WLC4090 Bluetooth base. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
