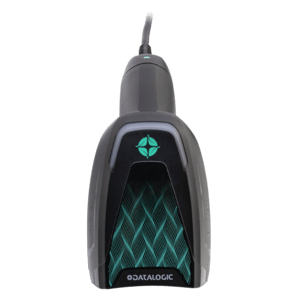

Datalogic Gryphon GD4620 Barcode Scanner (GD4620-BKK1B-HD)

The Datalogic Gryphon GD4600 series is Datalogic's newest generation of premium corded 2D handheld imagers. AI-powered neural decoding on a dual-core processor, dual-colour (warm white / Hyper Red) illumination and a green cross aimer read 1D, 2D, postal and Digimarc codes – from paper labels and from phone screens – and every good read is confirmed by Datalogic's Green Spot and 3GL™. This version, GD4620-BKK1B-HD, is the GD4620 USB-only model (USB Type A or USB-C host cable): it has High Density (HD) single-sensor optics for small, dense codes and is supplied with a 2 m USB cable and a presentation mode base for hands-free scanning at the counter.

Key Features

• AI-powered neural decoding – a high-speed dual-core processor with AI algorithms and neural-network decoding reads damaged, poorly printed or distorted 1D and 2D codes faster, also on shiny, reflective or curved surfaces.
• High Density (HD) optics – a single 1.5 MP sensor tuned for small, dense codes: reads 3 mil linear and PDF417 codes, 4 mil Data Matrix and 13 mil EAN/UPC codes up to 50 cm.
• Reads everything at the counter – 1D, 2D, postal, stacked and composite codes, GS1 Digital Link, Digimarc digital watermarks and OCR (OCR-A, OCR-B, MICR), from paper labels and from phone screens; plus image capture as BMP, JPEG or TIFF.
• Dual-colour illumination and green cross aimer – user-selectable warm white or Hyper Red LED illumination adapts to any application, the highly visible green central cross makes targeting easy, and 70 IPS motion tolerance reads fast-moving codes first time.
• Green Spot and 3GL™ feedback – a green spot projected onto the code plus Three Green Lights confirm every good read, even in noisy environments.
• Motionix™ motion sensing – switches seamlessly between handheld and presentation reading modes.
• Simple USB connectivity – USB-only model for USB Type A or USB-C host cables, powered by the USB port (5 VDC); free Datalogic Aladdin configuration tool, Datalogic Connect, OPOS/JavaPOS utilities and Remote Host Download.
• Eco-designed and built to last – over 70% recycled plastic parts; withstands repeated 1.8 m drops onto concrete and 2,000 tumbles, IP52 sealed, with a trigger rated for 10 million presses.

Ideal Applications

• Retail point of sale – checkout, loyalty cards and mobile coupons
• Healthcare – laboratories, pharmacies and in-room patient care
• Light manufacturing – work-in-progress tracking and order processing
• Access control, transport and entertainment – ticketing and admissions
• Commercial services – post offices, banks, public administration and utilities

All Gryphon GD4620 / GD4690 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose the GD4620 (High Density) if you connect via USB and scan small, dense codes at close range, or the GD4690 (High Performance) for the longest reading range and RS-232 support. Kits (K1) include the Datalogic USB cable 90A052258; K1S kits add an auto-sense stand and K1B kits a presentation base. Scanner-only versions need a separately ordered interface cable. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
