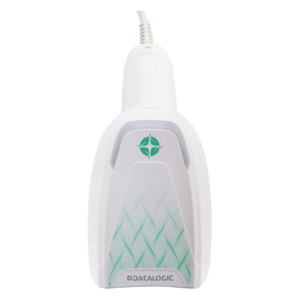

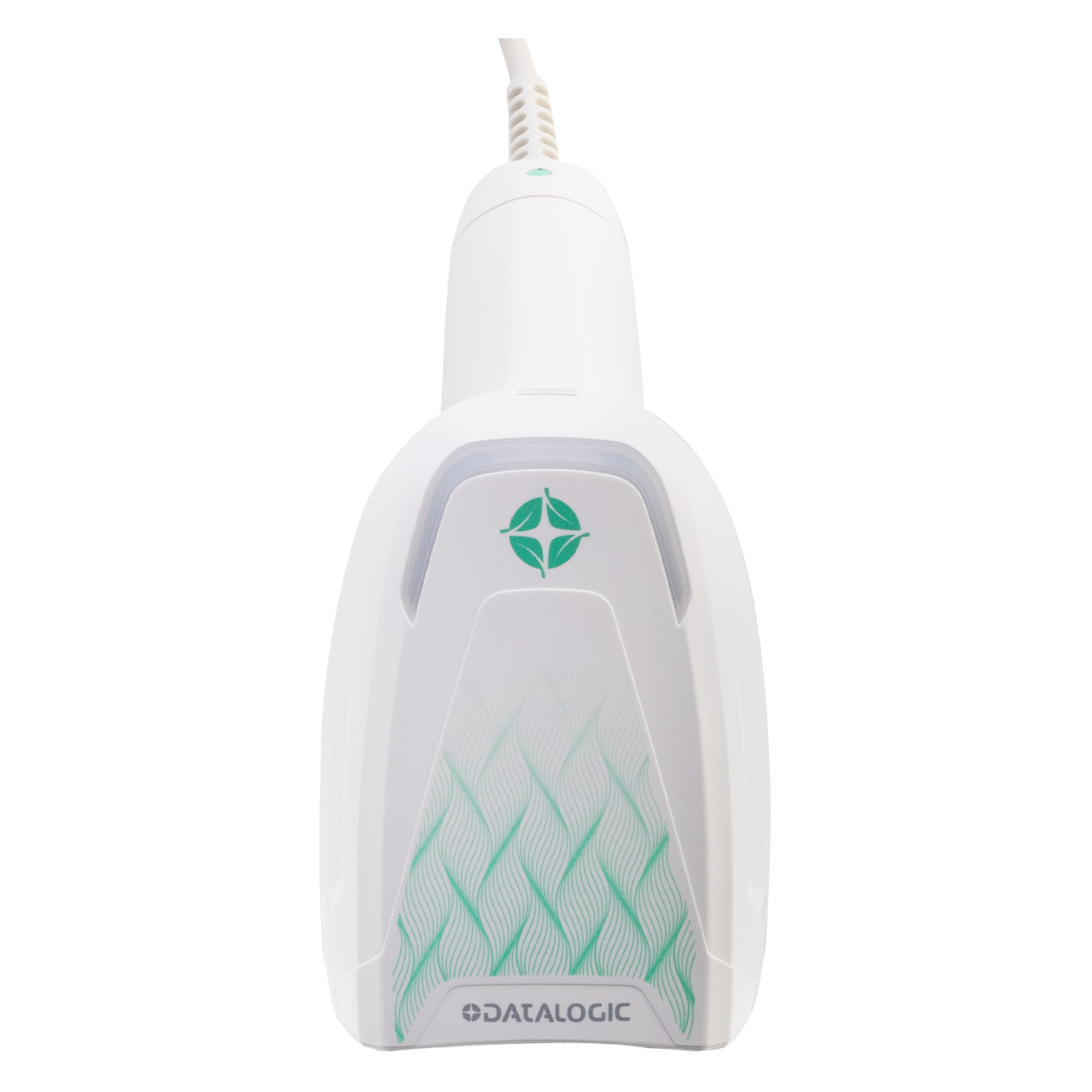

Datalogic Gryphon GD4600 HC Barcode Scanner (GD4620-HCK1-HD)

The Datalogic Gryphon GD4600 HC is the healthcare version of Datalogic's newest premium corded 2D handheld imager. Its white, disinfectant-ready housing is treated with antimicrobial additives (ISO 22196 compliant) and is designed to withstand daily cleaning with harsh disinfectant solutions, while AI-powered neural decoding, dual-colour (warm white / Hyper Red) illumination and a green cross aimer read patient wristbands, medication packs, lab sample tubes and codes on phone screens first time. This version, GD4620-HCK1-HD, is the GD4620 USB-only model (USB Type A or USB-C host cable): it has High Density (HD) single-sensor optics for small, dense codes and is supplied with a white 2 m USB cable, ready to plug in and scan.

Key Features

• AI-powered neural decoding – a high-speed dual-core processor with AI algorithms and neural-network decoding reads damaged, poorly printed or distorted 1D and 2D codes faster, also on shiny, reflective or curved surfaces.
• High Density (HD) optics – a single 1.5 MP sensor tuned for small, dense codes: reads 3 mil linear and PDF417 codes, 4 mil Data Matrix and 13 mil EAN/UPC codes up to 50 cm.
• Disinfectant-ready healthcare housing – white enclosure with antimicrobial additives (ISO 22196 compliant), designed to withstand daily wipe-down with harsh disinfectant solutions – ideal for infection control in wards, laboratories and pharmacies.
• Reads every code in the care chain – 1D, 2D, stacked and composite codes, GS1 DataBar, GS1 Digital Link, Digimarc digital watermarks and OCR (OCR-A, OCR-B, MICR): patient wristbands, medication and unit-dose labels, specimen tubes, and e-prescriptions or appointment QR codes on phone screens; plus image capture as BMP, JPEG or TIFF.
• Dual-colour illumination and green cross aimer – user-selectable warm white or Hyper Red LED illumination adapts to any application, the highly visible green central cross makes targeting easy, and 70 IPS motion tolerance reads fast-moving codes first time.
• Green Spot and 3GL™ feedback – a green spot projected onto the code plus Three Green Lights confirm every good read visually – helpful both in quiet patient rooms and on busy, noisy wards; the beeper tone is adjustable.
• Motionix™ motion sensing – switches seamlessly between handheld and presentation reading modes.
• Simple USB connectivity – USB-only model for USB Type A or USB-C host cables, powered by the USB port (5 VDC); free Datalogic Aladdin configuration tool, Datalogic Connect, OPOS/JavaPOS utilities and Remote Host Download.
• Eco-designed and built to last – over 70% recycled plastic parts; withstands repeated 1.8 m drops onto concrete and 2,000 tumbles, IP52 sealed, with a trigger rated for 10 million presses.

Ideal Applications

• Patient identification – scanning wristbands and patient records at the bedside
• Medication administration (BCMA) – matching patient, medication and caregiver at the point of care
• Laboratories – specimen tubes, sample labels and small, dense 2D codes
• Pharmacies – dispensing, 2D Data Matrix codes on medicine packs and e-prescriptions on phone screens
• Clinics, care homes and admissions desks – patient check-in, documents and appointment QR codes

All Gryphon GD4600 HC Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose the GD4620-HCK1-HD (High Density, USB) for bedside and laboratory scanning of small, dense codes such as specimen-tube labels, or the GD4690-HCK1-HP (High Performance; USB, plus RS-232 with a separately ordered cable) for the longest reading range and older RS-232 systems. Both kits include the white Datalogic USB cable 90A052278; a matching white auto-sense stand or holder can be ordered separately. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
