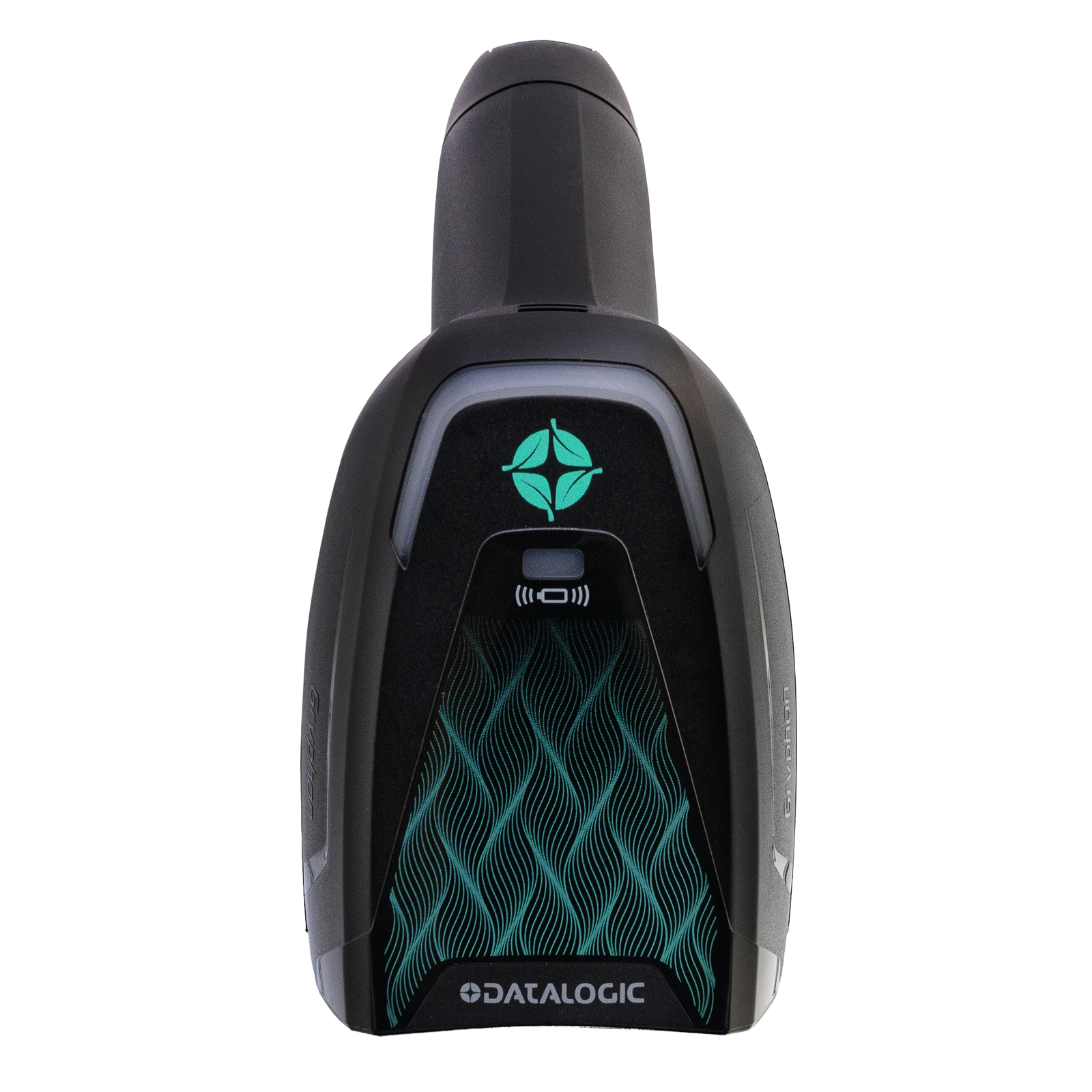

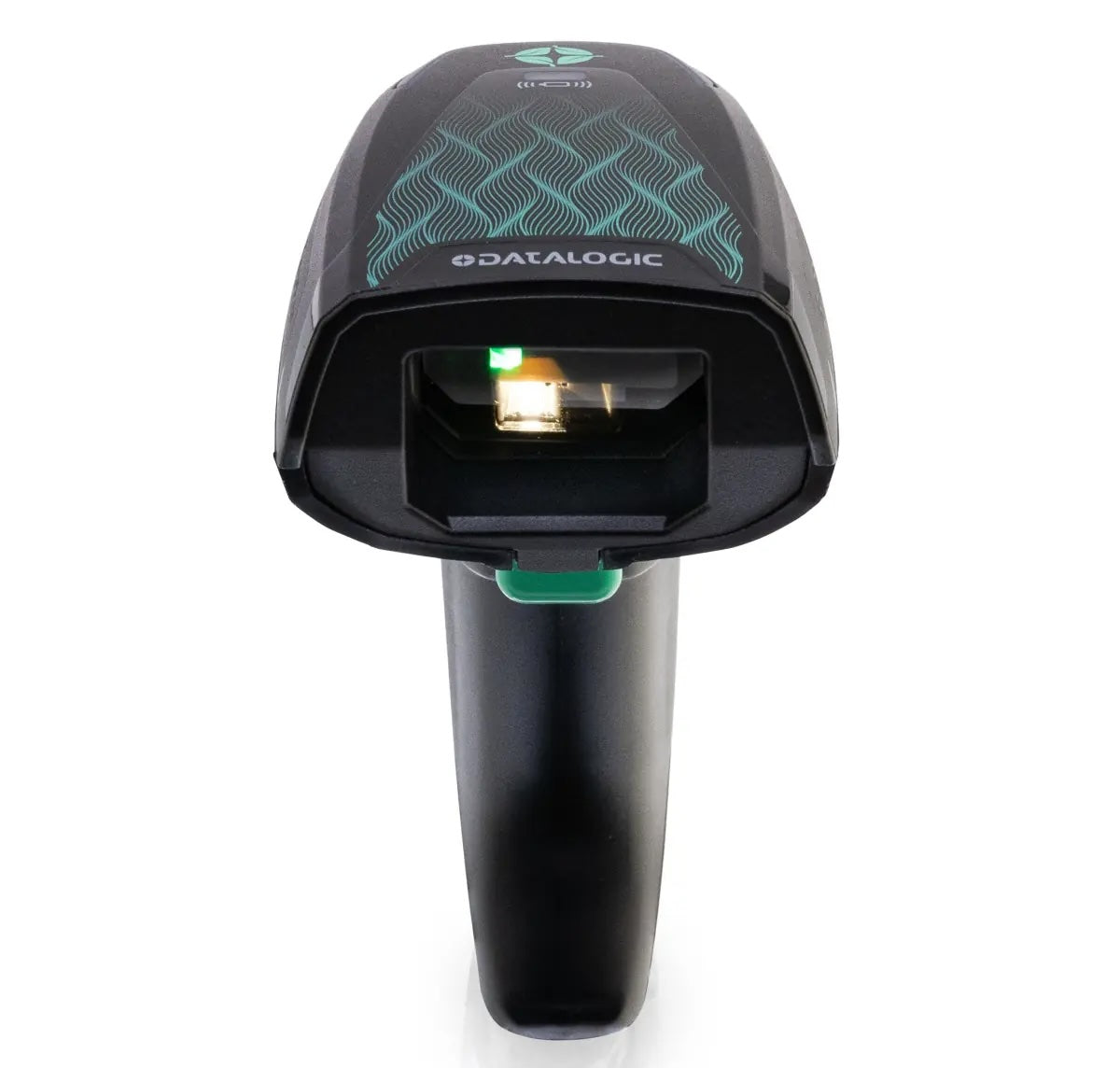

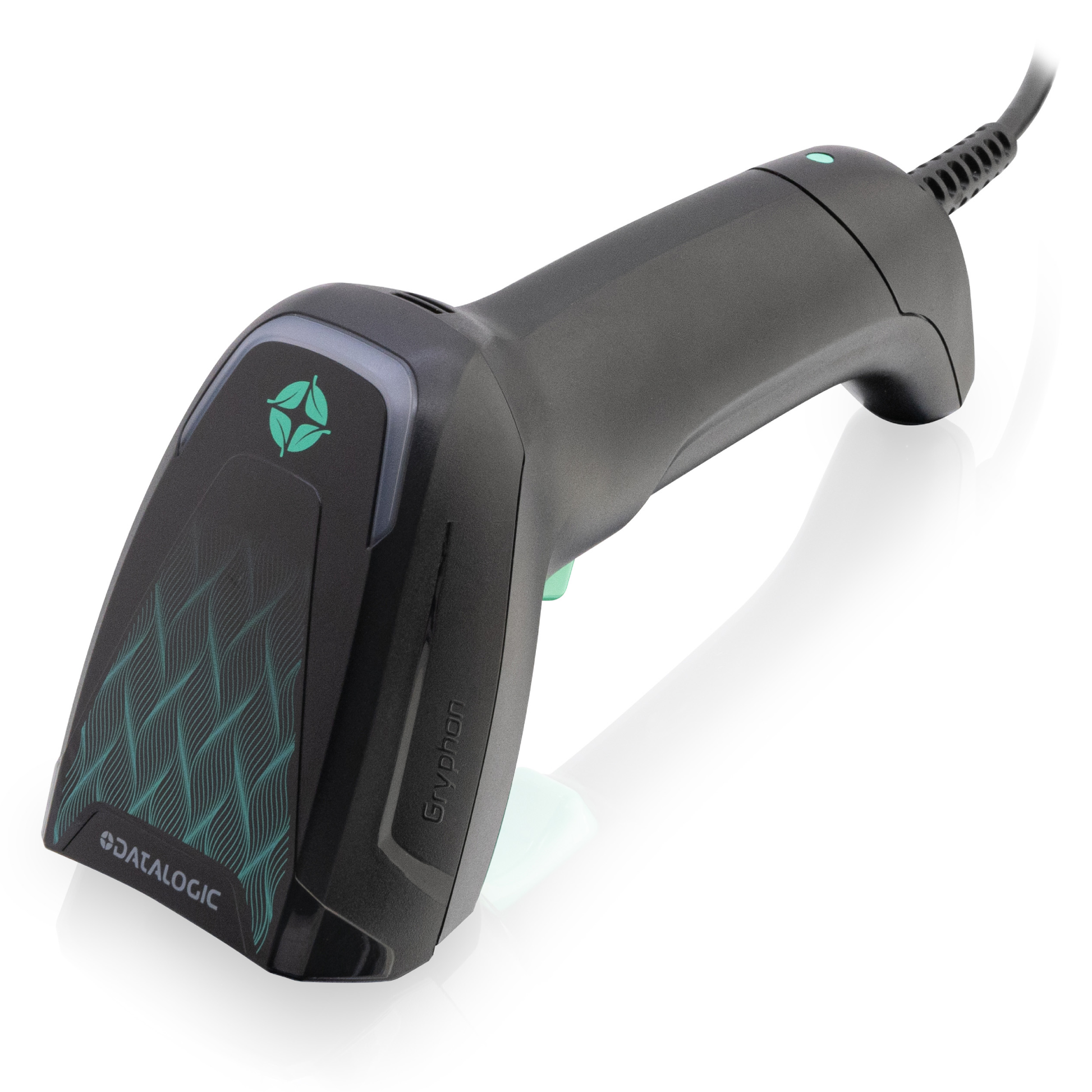

Datalogic Gryphon GBT4600 Barcode Scanner (GBT4600-BK-HP)

The Datalogic Gryphon GBT4600 is the Bluetooth® cordless version of Datalogic's newest premium Gryphon 4600 2D handheld imager. It combines Bluetooth 5.2 Classic and Low Energy with up to 100 m range from its base station and wireless (inductive) charging – there are no charging contacts to clean or wear out. High Performance (HP) dual-sensor optics and AI-powered neural decoding read 1D, 2D, postal and Digimarc codes from near contact to long range, from paper labels and phone screens, and every good read is confirmed by Green Spot, 3GL™ and vibration. The scanner works with the WLC4690-BK-BT base or pairs directly with Bluetooth PCs, tablets and smartphones. This version, GBT4600-BK-HP, is black and is supplied as the scanner only, with a 3250 mAh battery – the WLC4690-BK-BT charging base and an interface cable are not included; it is intended as an additional or replacement scanner for an existing WLC4690-BK-BT base.

Key Features

• AI-powered neural decoding – a high-speed dual-core processor with AI algorithms and neural-network decoding reads damaged, poorly printed or distorted 1D and 2D codes faster, also on shiny, reflective or curved surfaces.
• High Performance (HP) dual-sensor optics – 1.5 MP + VGA sensors read from near contact to long range: 13 mil EAN/UPC up to 100 cm and 20 mil Code 39 up to 125 cm, while still resolving 3 mil codes.
• Bluetooth 5.2 Classic and Low Energy – up to 100 m range with the base station (Class 1, open air), data encryption and scanner authentication; up to 7 scanners per base, or pair the scanner directly with Bluetooth PCs, tablets and smartphones (HID, HOGP or SPP).
• Wireless charging – battery or SuperCap – inductive charging in the WLC4690 base eliminates charging contacts that need cleaning or wear out; choose the removable 3250 mAh Li-ion battery (more than 80,000 scans per charge) or the battery-free SuperCap pack that recharges fully in approx. 30 minutes.
• Reads everything at the counter – 1D, 2D, postal, stacked and composite codes, GS1 Digital Link, Digimarc digital watermarks and OCR (OCR-A, OCR-B, MICR), from paper labels and from phone screens; plus image capture as BMP, JPEG or TIFF.
• Dual-colour illumination and green cross aimer – user-selectable warm white or Hyper Red LED illumination adapts to any application, the highly visible green central cross makes targeting easy, and 70 IPS motion tolerance reads fast-moving codes first time.
• Green Spot, 3GL™ and vibration feedback – a green spot projected onto the code, Three Green Lights and a vibration alert confirm every good read, even in noisy environments.
• Flexible connectivity – the WLC4690 base offers USB, USB-C and RS-232 multi-interface, depending on the cable; free Datalogic Aladdin configuration tool, Datalogic Connect, OPOS/JavaPOS utilities and Remote Host Download.
• Eco-designed and built to last – over 70% recycled plastic parts; withstands repeated 1.8 m drops onto concrete and 2,000 tumbles, IP52 sealed, with a trigger rated for 10 million presses.

Ideal Applications

• Retail point of sale – checkout, loyalty cards and mobile coupons
• Healthcare – laboratories, pharmacies and in-room patient care
• Light manufacturing – work-in-progress tracking and order processing
• Access control, transport and entertainment – ticketing and admissions
• Commercial services – post offices, banks, public administration and utilities

All Gryphon GBT4600 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose GBT4600-BK-BTK1-HP for a complete, ready-to-use USB setup with the long-lasting 3250 mAh battery, GBT4600-BK-BTK1-SC for a battery-free SuperCap kit that recharges in approx. 30 minutes on the base, or GBT4600-BK-HP as an additional or replacement scanner for an existing WLC4690-BK-BT base. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
