Citizen CL-E730 industrial label printer, black Hi-Open metal case, LCD panel, tear-off, 300 dpi, thermal transfer (1000854) – front view

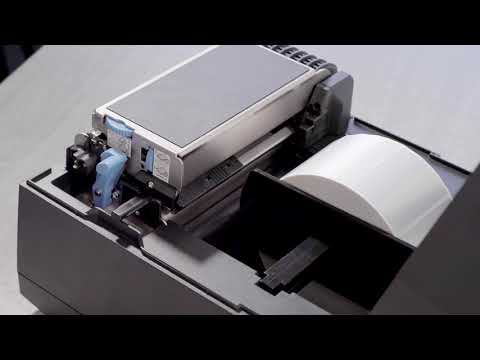

Media Width and Thickness Adjustment for Citizen CL-S521/621 and CL-E720 Label Printers

Citizen CL-E730 Label Printer (1000854)

Name: Citizen CL-E730 Label Printer (1000854)
Brand: CITIZEN
SKU: cite730
Availability: InStock

878,20 € +VAT

Product variants

Resolution (dpi)

203300

Print Method

Direct thermalThermal transfer

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

Available: In Stock
Vendor: CITIZEN
Type: Midrange Printers
Barcode: 1000854
Collections: GHS / CLP Chemical Label Printers , Label Printers , Midrange Label Printers

📄 Download Product Brochure (PDF)

CITIZEN

Citizen CL-E730 Label Printer (1000854)

878,20 € +VAT

Description

Description

The Citizen CL-E730 (1000854) is a cost-effective 4-inch industrial label printer that fits where floor space is tight: its Hi-Open™ metal case lifts vertically, so the footprint stays the same when it is open. This version prints thermal transfer or direct thermal at 300 dpi and up to 150 mm/s (6 ips), takes label rolls up to 200 mm (8") on 1"–3" cores, runs 360 m ribbons with the ink side in or out, and has USB and Ethernet built in plus a free slot for an optional Wi-Fi, serial or parallel card.

📦 What's in the box – 1000854

✅ Citizen CL-E730 label printer – 300 dpi
✅ Power cord – EU plug (Schuko); the power supply is built into the printer – no external adapter
✅ Media holder bar + media holder guide – for label rolls up to 200 mm (8") on 1"–3" cores
✅ Ribbon holder + paper core (take-up) – for ribbons up to 360 m on 1" cores, ink side in or out
✅ Sample ribbon – a starter ribbon to try thermal-transfer printing
✅ Head cleaner – keeps the print head clean for sharp prints
✅ Test label media – for checking the set-up – order labels for your application separately
✅ Quick-start guide + safety sheet – drivers, utilities and manuals are a free download from Citizen
❌ USB or Ethernet cable – NOT included – connect via USB 2.0 or the built-in Ethernet port – cables are not in the box
❌ Production ribbons – NOT included – needed for thermal-transfer labels – see the compatible ribbons below
❌ Labels – NOT included – choose labels to suit your application (see compatible labels below)
❌ Cutter, peeler and interface cards – NOT included – optional extras – see the accessories below

⚠️ Please note: no interface cable is in the box. To connect the printer to your computer, please order a USB A-to-B cable separately – e.g. the Honeywell 321-576-004 – or use any standard USB A-to-B printer cable (or a standard RJ45 patch cable for the network).

💡 Useful extras: the auto-cutter Citizen 2000424; the peeler Citizen 2000454; an interface card for the free slot (Citizen PPZ60108S, Citizen IF1-ES04, Citizen TZ66801-0, Citizen TZ66802-0); Citizen 3000166 head-cleaning pens.

Key Features

Hi-Open™ metal case – lifts vertically with a soft-close action: no extra space needed when open, safe to close
300 dpi print head – crisp small barcodes, 2D codes and fine text for component, pharmacy and laboratory labels
Hi-Lift™ metal mechanism – wide-opening print head for fast media loading and simple maintenance from the front
ARCP™ ribbon control – automatic ribbon tension and auto-sensing of ink-in or ink-out ribbons up to 360 m
Large media capacity – rolls up to 200 mm (8") on 1"–3" cores, fanfold through the rear slot, media 12.5–118 mm wide
Cross-Emulation™ – automatic switching between Zebra® ZPL II® and Datamax® DMX, plus a BASIC interpreter: replaces installed printers without changing label formats
USB + Ethernet as standard – LinkServer™ web tool for remote set-up and status; free slot for a Wi-Fi, serial or parallel card
2-colour backlit graphic LCD with 4 buttons and status LED – clear printer status at a glance
ENERGY STAR® power supply built in – only 2.6 W in standby; power cord in the box

Ideal Applications

Courier and parcel labels
Logistics and transport: shipping and pallet labels
Manufacturing: product, carton and component labels
Retail: price, shelf-edge and back-store labels
Warehousing: location, picking and goods-in labels
Durable asset and chemical labels on synthetic media with resin ribbons

All Citizen CL-E700 Versions

The highlighted row is the version you are currently viewing.

Part Number	Model	Print method	Resolution	Max speed
1000853	CL-E720	Thermal transfer + direct thermal	203 dpi	200 mm/s	View product
1000854 (this version)	CL-E730	Thermal transfer + direct thermal	300 dpi	150 mm/s	Viewing
1000852	CL-E720DT	Direct thermal	203 dpi	200 mm/s	View product

Technical Specifications

Part Number	1000854
Model	Citizen CL-E730 (CL-E700 series)
Printer Type	4-inch industrial label printer
Print Method	Thermal transfer and direct thermal
Resolution	300 dpi (11.8 dots/mm)
Print Speed	Up to 150 mm/s (6 ips)
Max Print Width	104 mm (4.1")
Max Print Length	1,879.6 mm (74")
Media Width	12.5–118 mm (0.5–4.6")
Media Thickness	0.0635–0.254 mm
Label Length	6.4–1,879.6 mm
Roll Diameter	Max. 200 mm (8") outer diameter
Core Size	25–75 mm (1–3")
Media Types	Roll or fanfold (rear slot); die-cut, continuous and perforated labels, tags and tickets; inside or outside wound; thermal transfer and direct thermal media
Sensors	Fully adjustable gap sensor, reflective black-mark sensor, ribbon near-end sensor
Ribbon	Width 25.4–114 mm; max. 360 m; max. roll diameter 74 mm; 1" (25.4 mm) core; ink side in or out (auto-sensing); wax, wax/resin or resin; ARCP™ automatic tension
Interfaces	USB 2.0, Ethernet 10/100 (LinkServer™ web management); interface slot for an optional serial (TZ66801-0), parallel (TZ66802-0), Wi-Fi (PPZ60108S) or premium LAN / Wi-Fi card (IF1-ES04, IF1-WF5S/L)
Wireless	None as standard (optional Wi-Fi card)
Printer Languages	Cross-Emulation™ (automatic Zebra® ZPL II® / Datamax® DMX & I-Class switching), BASIC interpreter; Linux CUPS
Processor	32-bit, up to 400 MHz
Memory	16 MB Flash (4 MB user area), 32 MB RAM (4 MB user area)
Display	2-colour backlit graphic LCD, 4 buttons, status LED
Media Options	Tear-off (standard); optional basic peeler (2000454) and guillotine auto-cutter (2000424)
Drivers & Software	Windows drivers, utilities and manuals – free download from Citizen; Windows 7/10/11, Windows Server, Linux and macOS
Power Supply	Built-in power supply 230 V AC, ENERGY STAR®: 65 W operating, 2.6 W standby – EU power cord included
Dimensions (W × D × H)	250 × 458 × 261 mm
Weight	11 kg
Color	Black
Construction	Hi-Open™ metal case (soft-close, opens vertically), Hi-Lift™ metal mechanism
Certifications	CE, TÜV, UL, ENERGY STAR®
Warranty	Printer 2 years; print head 6 months or 50 km
In the Box	Citizen CL-E730 printer (300 dpi, thermal transfer + direct thermal, built-in power supply), power cord (EU plug), media holder bar + media holder guide, ribbon holder, paper core (ribbon take-up), sample ribbon, head cleaner, test label media, quick-start guide, safety sheet – USB / Ethernet cable, production ribbons and labels NOT included

The CL-E700 series combines industrial roll capacity with a tight-space Hi-Open™ design. Compare other models in our Midrange Label Printers collection or contact our team for volume pricing.
