The BIXOLON XM7-20 is a rugged 2-inch mobile label printer for logistics, warehousing, field service, retail and healthcare. It prints 203 dpi direct thermal labels, tags and receipts on media 25–58 mm wide (print width up to 48 mm) at up to 152 mm/s, and combines a large colour display, a built-in peeler, IP54 sealing and a 2.1 m drop rating in a compact housing. This version, XM7-20IaK/BEG, connects via Bluetooth 5.0 (Apple MFi certified, Easy Bluetooth Pairing™ via NFC), plus USB Type-C and RS-232. In the box: battery, AC/DC adapter with power cord, belt strap and media disks – ready to print.
📦 What's in the box – XM7-20IaK/BEG
- ✅ Printer – BIXOLON XM7-20 – Bluetooth 5.0 (MFi) + USB-C + RS-232
- ✅ Battery – Li-ion battery pack 7.3 V, 2850 mAh – removable
- ✅ AC/DC adapter – charges the battery inside the printer (spare unit: PBC-2000/STD)
- ✅ Power cord – EU plug, C7 connector
- ✅ Belt strap – for hands-free carrying on your belt

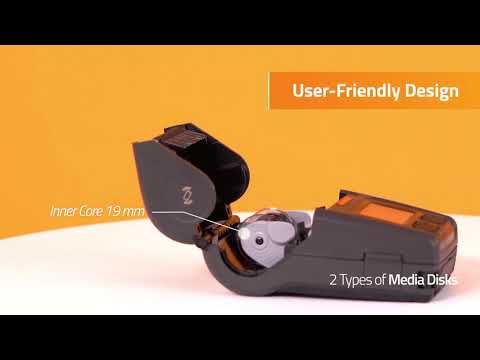

- ✅ Media disks – for label rolls with a 12 mm (0.5") core – rolls with a 19 mm core fit directly
- ✅ Installation guide
- ❌ USB Type-C cable – NOT included – only needed for wired use or charging over USB-C – any USB 2.0 Type-C cable works
- ❌ Serial / USB interface cable – NOT included – optional BIXOLON cables for the 14-pin port: PIC-R300U/STD (USB A) or PIC-R300S/STD (D-Sub 9)
- ❌ Labels / paper rolls – NOT included – please order matching media separately
- ℹ️ Drivers, SDKs & manuals – free download from BIXOLON (Windows, iOS, Android, mPrint app)
💡 Ready to print wirelessly: pair the printer via Bluetooth (or NFC tap-to-pair) straight out of the box – battery, adapter and power cord are included.
💡 Useful extras: a spare battery (BIXOLON PBP-S300/STD); a spare AC/DC adapter (BIXOLON PBC-2000/STD) with power cord FIG8EURO (EU) or FIG8UK (UK); the BIXOLON PCC-2000/STD vehicle adapter for charging on the road; the BIXOLON PVH-L3000R/STD vehicle holder with RAM mount; spare belt straps (BIXOLON PBS-2000/STD, pack of 10); a USB Type-C cable (BIXOLON PIC-3000U/STD); matching label rolls (Zebra 3007842-T (50.8 × 25.4 mm) or Zebra 3012910-T (50.8 × 25.4 mm)) and receipt rolls (Zebra 3013689 (58 mm)).
Key Features
- Labels, tags and receipts – 48 mm print width on 25–58 mm media, rolls up to Ø 57 mm on 19 mm cores (12 mm cores with the supplied media disks); gap and black-mark sensing with Smart Media Detection™.
- Fast, sharp output – up to 152 mm/s at 203 dpi for crisp, scannable barcodes, on liner and linerless media.
- Works with your existing labels – SLCS, BPL-Z™ (ZPL II compatible), BPL-C™ (CPCL compatible) and BXL/POS are switched automatically without changing modes; Anywhere Anyfont™ Unicode support.
- Smart power – the 7.3 V 2850 mAh Li-ion battery can be swapped for the optional 3400 mAh Smart Battery; charge inside the printer with the supplied AC/DC adapter or via USB Type-C Power Delivery, plus optional battery chargers and a vehicle adapter.
- Connected your way – Bluetooth (Apple MFi, Easy Bluetooth Pairing™ via NFC) and dual-band Wi-Fi 802.11a/b/g/n, simultaneously on dual versions; SoftAP for simple Wi-Fi setup; USB Type-C and RS-232 on board.
- Rugged and easy to use – IP54 dust and splash protection, 2.1 m drop rating, −15 °C to +50 °C; 240 × 320 colour IPS display for setup and battery status, built-in peeler and easy paper loading.
- Easy to deploy and manage – BIXOLON Profile Manager (XPM™, XCM™) and SOTI Connect, direct printing from SAP® Smart Forms, SDKs for Android, iOS, Windows, Linux, Web, Xamarin and Cordova, plus the Label Artist™ and mPrint apps.
Ideal Applications
- Warehouse picking, put-away, shelf and bin labelling
- Shipping, parcel and delivery labels on the route
- Retail price markdowns, shelf-edge labels and mobile point of sale
- Field service – asset tags, service reports and receipts on site
- Healthcare – specimen, medication and asset labels at the point of care
All XM7-20 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Wireless | |
|---|---|---|
| XM7-20IaK/BEG (this version) | Bluetooth 5.0 (MFi) | Viewing |
| XM7-20IWK/BEG | Bluetooth + Wi-Fi | View product |
| XM7-20WDAK/BEG | Wi-Fi | View product |
Technical Specifications
| Part Number | XM7-20IaK/BEG |
|---|---|
| Model | BIXOLON XM7-20 |
| Printer Type | Mobile direct thermal label, tag and receipt printer |
| Print Method | Direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 152 mm/s – liner and linerless media |
| Max Print Width | 48 mm |
| Media Width | 25–58 mm |
| Roll Diameter | Max. 57 mm |
| Core Size | 19 mm; 12 mm with the supplied media disks |
| Media Thickness | 0.07–0.19 mm |
| Media Type | Liner labels (gap / black mark / notch), continuous media, tags, receipt paper |
| Sensors | Paper end, gap, black mark, cover open, peel-off; Smart Media Detection™ |
| Media Options | Tear-off; built-in peeler (label dispensing) |
| Interfaces | USB 2.0 Hi-Speed via USB Type-C (also Power Delivery charging); 14-pin port for RS-232 serial or USB (optional BIXOLON cables PIC-R300S/STD, PIC-R300U/STD) |
| Wireless | Bluetooth 5.0, Apple MFi certified; Easy Bluetooth Pairing™ via NFC |
| Printer Languages | SLCS, BPL-Z™ (ZPL II compatible), BPL-C™ (CPCL compatible), BXL/POS – switched automatically |
| Fonts / Character Sets | Bitmap fonts: 10 SLCS™, 16 BPL-Z™, 7 BPL-C™; scalable fonts: 1 SLCS™, 1 BPL-Z™; 23 code pages; Unicode (UTF-8, UTF-16LE/BE) – Anywhere Anyfont™; user-defined fonts, graphics, formats and logos |
| Barcodes | 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, Industrial 2 of 5, Interleaved 2 of 5, Logmars, MSI, Plessey, Postnet, GS1 DataBar, Standard 2 of 5, UPC-A, UPC-E, UPC/EAN extensions, IMB; 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39 |
| Memory | 128 MB SDRAM, 256 MB Flash |
| Display | Colour TFT LCD (IPS), 240 × 320 pixels |
| Drivers & Software | Windows driver (Europlus / Seagull), Linux / Mac CUPS driver, Virtual COM USB driver, OPOS / JPOS, SAP® device driver, Label Artist-II™, BarTender UL, Network Auto Installer; SDKs for Android, iOS, Windows, Linux, Chrome, Xamarin, Web Print, Cordova |
| Mobile Printing | Android, iOS (Apple MFi), Windows; Label Artist™ Mobile and mPrint apps; direct printing from SAP® Smart Forms; MDM: BIXOLON Profile Manager (XPM™, XCM™), SOTI Connect |
| Battery | Battery pack, Li-ion 7.3 V, 2850 mAh (nominal), removable; optional 7.2 V 3400 mAh Smart Battery PBP-S300/STD |
| Charging Options | In the printer with the supplied AC/DC adapter (spare: PBC-2000/STD) or via USB Type-C Power Delivery; optional vehicle adapter PCC-2000/STD, single / quad battery chargers, single docking cradle |
| Dimensions (W × D × H) | 93 × 168 × 69 mm |
| Weight | 600 g including battery |
| Color | Black |
| Operating Temperature | −15 °C to 50 °C |
| Storage Temperature | −30 °C to 70 °C |
| Humidity | 10–80% RH |
| Environmental Sealing | IP54 |
| Drop Specification | 2.1 m |
| Certifications | Energy Star, Apple MFi |
| Warranty | 24 months |
| In the Box | BIXOLON XM7-20 printer (Bluetooth 5.0 MFi + USB-C + RS-232), Li-ion battery pack 7.3 V 2850 mAh, AC/DC adapter (spare part PBC-2000/STD) with EU power cord (C7), belt strap, media disks for 12 mm cores, installation guide – USB Type-C cable, serial/USB cable (PIC-R300S/STD / PIC-R300U/STD) and labels/paper NOT included |
Need a different width? The BIXOLON XM7-30 (3-inch, 80 mm) and BIXOLON XM7-40 (4-inch, 112 mm) share the same platform, software and many accessories. Compare other models in our Mobile Label Printers collection or contact our team for volume pricing.
Available Versions
| Part Number | Wireless | Price | ||
|---|---|---|---|---|
 |
XM7-20IaK/BEGViewing | Bluetooth | 481,82 €+VATOut of Stock | |
 |
XM7-20IWK/BEG | Wi-Fi + Bluetooth | 553,45 €+VATOut of Stock | View |
 |
XM7-20WDAK/BEG | Wi-Fi | 520,88 €+VATOut of Stock | View |
No matching products.
Accessories
| Product | Price | ||
|---|---|---|---|
 |
Bixolon spare batteryPBP-S300/STD | 67,01 €+VATOut of Stock | View |
 |
Bixolon spare power supplyPBC-2000/STD | 33,05 €+VATOut of Stock | View |
 |
Bixolon power cord, C7, EUFIG8EURO | 6,43 €+VATOut of Stock | View |
 |
Bixolon power cord, C7, UKFIG8UK | 9,18 €+VATOut of Stock | View |
 |
Bixolon vehicle power supplyPCC-2000/STD | 38,56 €+VATOut of Stock | View |
 |
Bixolon vehicle holderPVH-L3000R/STD | 159,73 €+VATOut of Stock | View |
 |
Bixolon belt strap, pack of 10PBS-2000/STD | 120,26 €+VATOut of Stock | View |
| Bixolon connection cable, USBPIC-3000U/STD | 9,18 €+VATOut of Stock | View | |
 |
Bixolon connection cable, USBPIC-R300U/STD | 9,18 €+VATIn Stock | |
 |
Bixolon connection cable, RS232PIC-R300S/STD | 11,93 €+VATOut of Stock | View |
 |
Bixolon cleaning pen, pack of 10PCP-R200II/STD | 32,13 €+VATOut of Stock | View |
No matching products.
Compatible Labels
| Product | Size (W × H) | Material | Labels / roll | Core | Price | ||
|---|---|---|---|---|---|---|---|
 |
Zebra Z-Perform 1000D3007842-T | 50.8 × 25.4 mm | Thermal Paper | 430 | 19 mm | 3,70 €+VATIn Stock | |
 |
Zebra PolyPro 4000D3003347 | 50.8 × 25.4 mm | Synthetic | 340 | 19 mm | 8,54 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D3012910-T | 50.8 × 25.4 mm | Thermal Paper | 353 | 19 mm | 3,12 €+VATIn Stock | |
 |
Zebra PolyPro 4000D3006404-T | 50.8 × 50.8 mm | Synthetic | 200 | 19 mm | 8,09 €+VATOut of Stock | View |
 |
Zebra Z-Perform 1000D3008872-T | 38.1 × 38.1 mm | Thermal Paper | 270 | 19 mm | 4,49 €+VATOut of Stock | View |
 |
Zebra Z-Perform 1000D3013758 | 54.5 × 38.1 mm | Thermal Paper | — | 19 mm | 3,37 €+VATOut of Stock | View |
 |
Tsc W: 55 mm38-T055070-14LF | 55 × 70 mm | Thermal Paper | 200 | 19 mm | 2,07 €+VATOut of Stock | View |
 |
Tsc W: 32 mm38-T032020-14LF | 32 × 20 mm | Thermal Paper | 650 | 19 mm | 1,67 €+VATOut of Stock | View |
 |
Zebra Z-Select 2000D3014816-T | 50.8 × 25.4 mm | Thermal Paper | 446 | 19 mm | 5,78 €+VATOut of Stock | View |
 |
Tsc W: 40 mm38-T040040-14LF | 40 × 40 mm | Thermal Paper | 350 | 19 mm | 1,60 €+VATOut of Stock | View |
 |
Tsc W: 45 mm38-T045030-14LF | 45 × 30 mm | Thermal Paper | 450 | 19 mm | 2,06 €+VATOut of Stock | View |
 |
Tsc W: 50 mm38-T050020-14LF | 50 × 20 mm | Thermal Paper | 650 | 19 mm | 2,20 €+VATOut of Stock | View |
 |
Tsc W: 50 mm38-T050035-14LF | 50 × 35 mm | Thermal Paper | 400 | 19 mm | 1,96 €+VATOut of Stock | View |
 |
Tsc W: 47 mm38-T047047-14LF | 47 × 47 mm | Thermal Paper | 300 | 19 mm | 1,89 €+VATOut of Stock | View |
 |
Tsc W: 50 mm38-T050050-14LF | 50 × 50 mm | Thermal Paper | 300 | 19 mm | 2,11 €+VATOut of Stock | View |
No matching products.
Compatible Receipt Rolls
| Product | Width | Length | Roll Ø | Core | Price | ||
|---|---|---|---|---|---|---|---|
 |
Zebra Z-Perform 1000D 60 Receipt3013689 | 58 mm | 15.54 m | 40 mm | 12.7 mm | 2,76 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D 80 Receipt3013690 | 58 mm | 11.28 m | 40 mm | 12.7 mm | 2,53 €+VATOut of Stock | View |
 |
Citizen Thermal Paper3621900 | 58 mm | — | 48 mm | 12.7 mm | 45,19 €+VATOut of Stock | View |
 |
Zebra Z-Perform 1000D 80 Receipt3006129 | 50 mm | — | 46 mm | 19 mm | 3,26 €+VATOut of Stock | View |
 |
Zebra Z-Perform 1000D 80 Receipt3003061 | 50 mm | 19 m | 53 mm | 19 mm | 3,71 €+VATOut of Stock | View |
