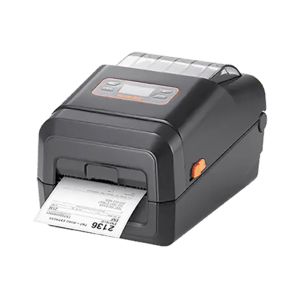

BIXOLON XL5-40CT Desktop Label Printer (XL5-43CTOEWG/BEG)

The BIXOLON XL5-43CT (XL5-43CTOEWG/BEG) is a 4-inch direct-thermal desktop label printer built for linerless labels – no backing paper, no liner waste and up to 40% more labels per roll. It prints at 300 dpi and up to 127 mm/s (5 ips), cuts every label cleanly with its full-width guillotine cutter, and its label-taken sensor waits until the previous label has been removed before printing the next. Rolls up to 127 mm on 1.5" or 1" cores fit inside, standard linered labels and fan-fold media are supported too, and BPL-Z™/BPL-E™ emulation speaks ZPL II and EPL. It connects via USB, USB host, RS-232 and 10/100 Ethernet plus dual-band Wi-Fi (2.4/5 GHz) and has a 200 × 100 pixel LCD with menu buttons. Power adapter, EU power cord and USB cable are included – ready to print.

Key Features

• Direct thermal at 300 dpi – up to 127 mm/s (5 ips), max. print width 105.7 mm; no ribbon needed
• Linerless labels with no backing paper – no liner waste, lower freight costs and up to 40% more labels per roll; standard linered labels (gap, black mark, fan-fold) are supported as well
• Full-width guillotine auto cutter with label-taken sensor and a media support that stops cut labels falling to the floor; anti-curl paper path
• Two long-life platen rollers – when the lower roller is worn, simply swap in the upper one
• Media 20–114 mm wide, rolls up to 127 mm on 38.1 mm (1.5") or 25.4 mm (1") cores, 0.09–0.20 mm thick; label length 30–1,000 mm
• USB, USB host, RS-232 serial and 10/100 Ethernet for shared network printing – plus built-in dual-band Wi-Fi 802.11a/b/g/n (2.4/5 GHz) with SoftAP and Smart Connection™ set-up
• FSTN LCD (200 × 100 pixels) with menu buttons – settings and status at a glance
• 64 MB SDRAM and 128 MB Flash; SLCS™, BPL-Z™ (ZPL II) and BPL-E™ (EPL) emulation as a drop-in replacement
• Label Artist™-II, Label Artist™ Mobile, mPrint and BarTender® UltraLite; Windows/Mac/Linux drivers, XPM™/XCM™ management and SDKs for Android, iOS, Windows and Linux
• ENERGY STAR® certified, compact 186 × 287.7 × 173 mm footprint

Ideal Applications

• Food service and quick-service restaurants – order, delivery and takeaway labels
• Retail and supermarkets – deli, bakery, scale and price labels
• Logistics and e-commerce – shipping and parcel labels in variable lengths
• Hospitality – kitchen, bar and order-ticket labels
• Manufacturing – work-in-progress and product labels without liner waste

All XL5-40CT Series Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Need another resolution or interface? All XL5-40CT Series versions are listed above. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
