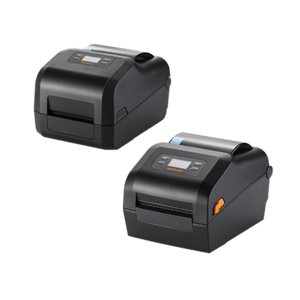

The BIXOLON XD5-40IIt (XD5-40IItEK/BEG) is a robust 4-inch desktop label printer for thermal-transfer and direct-thermal printing at 203 dpi and up to 203 mm/s (8 ips). It runs 74 m ribbons on a 0.5" core as well as 300 m ribbons on a 1" core. It takes label rolls up to 127 mm on 1" or 1.5" cores, speaks ZPL II and EPL via BPL-Z™/BPL-E™ emulation and connects via USB, USB host, RS-232 and 10/100 Ethernet. Power adapter, EU power cord and USB cable are included – ready to print. As the second generation of the XD5-40 Series it prints faster than its predecessor (up to 8 ips instead of 6 ips) and has 512 MB SDRAM + 512 MB Flash.
📦 What's in the box – XD5-40IItEK/BEG
- ✅ BIXOLON XD5-40IIt label printer – 203 dpi, USB, USB host, RS-232, Ethernet 10/100
- ✅ Power supply – external AC/DC power adapter, 100–240 V AC
- ✅ Power cord – EU plug (Schuko)
- ✅ USB cable – USB A-to-B – connect and print straight away
- ✅ Ribbon holders and paper cores – 2 ribbon holders for 1" ribbons plus empty 0.5" and 1" paper cores for ribbon take-up
- ✅ Setup guide – quick start guide
- ✅ Drivers & label software – Windows/Mac/Linux drivers, Label Artist™-II and BarTender® UltraLite – free download from BIXOLON
- ❌ Thermal-transfer ribbon – NOT included – needed for thermal-transfer printing only – direct-thermal labels print without a ribbon
- ❌ Labels – NOT included – order labels to suit your application (see compatible labels below)
- ❌ Ethernet (LAN) cable – NOT included – use any standard RJ45 patch cable
- ❌ Serial (RS-232) cable – NOT included – only needed for a serial connection – e.g. the BIXOLON SER-KAB-9-9
✅ Ready to print: power adapter, power cord and USB cable are in the box – you only need labels (and a ribbon for thermal-transfer printing).
💡 Useful extras: the optional field-installable peeler and auto cutter (ask us for availability); ribbons with the ink on the OUTSIDE, e.g. the Zebra 2300 (02300BK11030) (110 mm × 300 m on a 1" core); the BIXOLON LES-400G external roll holder for large rolls; BIXOLON PCP-R200II/STD printhead cleaning pens.
Key Features
- Thermal transfer and direct thermal at 203 dpi – up to 203 mm/s (8 ips), max. print width 108 mm
- Flexible ribbon use: 74 m ribbons on a 0.5" core or 300 m ribbons on a 1" core, 33–110 mm wide, ink outside (wax, wax/resin, resin)
- Media 15–118 mm wide, rolls up to 127 mm on 25.4–38.1 mm cores, fanfold; gap, black-mark, notch and continuous media with adjustable black-mark sensor
- USB, USB host, RS-232 serial and 10/100 Ethernet for shared network printing
- Simple operation with status LED and feed button (an LCD version is also available)
- 512 MB SDRAM and 512 MB Flash for fonts, graphics and formats; SLCS™, BPL-Z™ (ZPL II), BPL-E™ (EPL) and BPL-D™ (DPL) emulation as a drop-in replacement

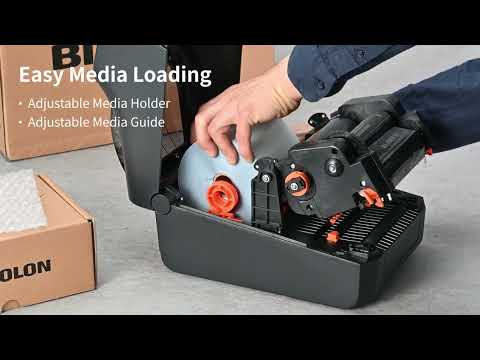

- Clamshell design with adjustable media guide and holder; field-installable peeler and auto cutter
- Label Artist™-II, Label Artist™ Web / Mobile, mPrint app and BarTender® UltraLite; Windows/Mac/Linux drivers, XPM™/XCM™ management and SDKs for Android, iOS, Windows, Linux, MAUI, Flutter and React Native
- ENERGY STAR® certified, compact 210 × 284 × 188 mm footprint
Ideal Applications
- Manufacturing – durable product, compliance and rating-plate labels
- Chemicals – GHS/CLP and hazardous goods labels on synthetic media
- Warehousing and logistics – pallet, shelf and asset labels
- Retail – price tags and long-life shelf labels
- Healthcare and laboratories – sample and specimen labels

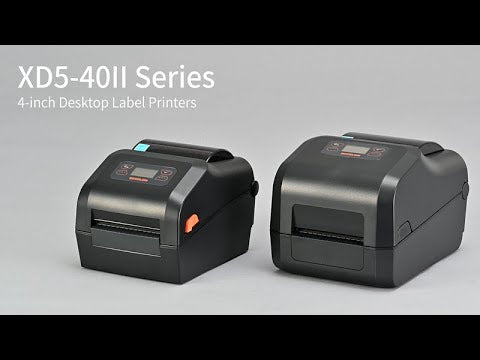

All XD5-40II Series Versions
The highlighted row is the version you are currently viewing.
| Part Number | Model | Resolution | Interfaces | Wireless | Display | |
|---|---|---|---|---|---|---|
| XD5-40IIdOEWK/BEG | XD5-40IId | 203 dpi | USB, USB host, RS-232, Ethernet | Wi-Fi | LCD | View product |
| XD5-43IIdK/BEG | XD5-43IId | 300 dpi | USB, USB host | — | — | View product |
| XD5-43IIdEK/BEG | XD5-43IId | 300 dpi | USB, USB host, RS-232, Ethernet | — | — | View product |
| XD5-43IIdOEK/BEG | XD5-43IId | 300 dpi | USB, USB host, RS-232, Ethernet | — | LCD | View product |
| XD5-43IIdEBK/BEG | XD5-43IId | 300 dpi | USB, USB host, RS-232, Ethernet | Bluetooth | — | View product |
| XD5-43IIdOEBK/BEG | XD5-43IId | 300 dpi | USB, USB host, RS-232, Ethernet | Bluetooth | LCD | View product |
| XD5-43IIdEWK/BEG | XD5-43IId | 300 dpi | USB, USB host, RS-232, Ethernet | Wi-Fi | — | View product |
| XD5-43IIdOEWK/BEG | XD5-43IId | 300 dpi | USB, USB host, RS-232, Ethernet | Wi-Fi | LCD | View product |
| XD5-40IItK/BEG | XD5-40IIt | 203 dpi | USB, USB host | — | — | View product |
| XD5-40IItEK/BEG (this version) | XD5-40IIt | 203 dpi | USB, USB host, RS-232, Ethernet | — | — | Viewing |
| XD5-40IItOEK/BEG | XD5-40IIt | 203 dpi | USB, USB host, RS-232, Ethernet | — | LCD | View product |
| XD5-40IItEBK/BEG | XD5-40IIt | 203 dpi | USB, USB host, RS-232, Ethernet | Bluetooth | — | View product |
| XD5-40IItOEBK/BEG | XD5-40IIt | 203 dpi | USB, USB host, RS-232, Ethernet | Bluetooth | LCD | View product |
| XD5-40IItEWK/BEG | XD5-40IIt | 203 dpi | USB, USB host, RS-232, Ethernet | Wi-Fi | — | View product |
| XD5-40IItOEWK/BEG | XD5-40IIt | 203 dpi | USB, USB host, RS-232, Ethernet | Wi-Fi | LCD | View product |
| XD5-43IItK/BEG | XD5-43IIt | 300 dpi | USB, USB host | — | — | View product |
| XD5-43IItEK/BEG | XD5-43IIt | 300 dpi | USB, USB host, RS-232, Ethernet | — | — | View product |
| XD5-43IItOEK/BEG | XD5-43IIt | 300 dpi | USB, USB host, RS-232, Ethernet | — | LCD | View product |
| XD5-43IItEBK/BEG | XD5-43IIt | 300 dpi | USB, USB host, RS-232, Ethernet | Bluetooth | — | View product |
| XD5-43IItOEBK/BEG | XD5-43IIt | 300 dpi | USB, USB host, RS-232, Ethernet | Bluetooth | LCD | View product |
| XD5-43IItEWK/BEG | XD5-43IIt | 300 dpi | USB, USB host, RS-232, Ethernet | Wi-Fi | — | View product |
| XD5-43IItOEWK/BEG | XD5-43IIt | 300 dpi | USB, USB host, RS-232, Ethernet | Wi-Fi | LCD | View product |
Technical Specifications
| Part Number | XD5-40IItEK/BEG |
|---|---|
| Model | BIXOLON XD5-40IIt (XD5-40II Series) |
| Printer Type | 4-inch desktop thermal transfer label printer |
| Print Method | Thermal transfer and direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 203 mm/s (8 ips) |
| Max Print Width | 108 mm (4.25") |
| Max Print Length | 1,000 mm (39.4") |
| Media Width | 15–118 mm (0.59"–4.65"), incl. liner |
| Media Thickness | 0.06–0.20 mm |
| Roll Diameter | Up to 127 mm (5") OD |
| Core Size | 25.4–38.1 mm (1"–1.5") |
| Media Types | Gap (die-cut), black mark, notch, continuous, fanfold |
| Sensors | Transmissive gap sensor (fixed), reflective black-mark sensor (adjustable), head-open sensor, ribbon-end sensor |
| Ribbon | Wax, wax/resin, resin; ink OUTSIDE; width 33–110 mm; up to 300 m on 1" (25.4 mm) core, 74 m on 0.5" (12.7 mm) core |
| Interfaces | USB (Type B), USB host, RS-232 serial, Ethernet 10/100 Mbps |
| Wireless | None (Bluetooth or Wi-Fi versions available) |
| Memory | 512 MB SDRAM, 512 MB Flash |
| Real-Time Clock | Optional |
| Printer Languages | SLCS™, BPL-Z™ (ZPL II compatible), BPL-E™ (EPL compatible), BPL-D™ (DPL compatible) |
| Fonts / Character Sets | Bitmap fonts (10 SLCS, 16 BPL-Z, 5 BPL-E, 9 BPL-D), scalable fonts (1 SLCS, 1 BPL-Z, 1 BPL-D), 23 code pages, Unicode (UTF-8, UTF-16LE/BE); downloadable TTF/TTE/FNT fonts, graphics, formats and logos |
| Barcodes | 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8/13, Industrial/Interleaved/Standard 2 of 5, LOGMARS, MSI, Plessey, Postnet, GS1 DataBar, UPC-A/E, IMB, ISBT-128; 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39 |
| Display | No LCD – status LED and feed button |
| Media Options | Tear-off (standard); field-installable peeler and auto cutter (optional) |
| Options | Peeler, auto cutter, external paper supply, serial cable |
| Drivers & Software | Windows driver (Europlus / Seagull), Linux/Mac CUPS, virtual COM USB/Ethernet, OPOS/JPOS, SAP device driver, network auto installer; Label Artist™-II, Label Artist™ Web / Mobile, mPrint app, BarTender® UltraLite for BIXOLON; XPM™/XCM™ management (optional); Android/iOS/Windows/Linux, Xamarin, Web Print, MAUI, Flutter, React Native SDKs |
| Power Supply | External AC/DC power adapter, 100–240 V AC, 50/60 Hz; ENERGY STAR® certified |
| Dimensions (W × D × H) | 210 × 284 × 188 mm |
| Weight | 2.48 kg |
| Color | Black |
| Operating Temperature | 0–41 °C |
| Storage Temperature | −40–60 °C |
| Humidity | Operating 10–80% RH, storage 5–95% RH (non-condensing) |
| Warranty | 36 months |
| In the Box | BIXOLON XD5-40IIt printer (203 dpi, USB, USB host, RS-232, Ethernet 10/100), external AC/DC power adapter (100–240 V AC), power cord (EU plug), USB cable, 2 ribbon holders + empty 0.5" and 1" paper cores, quick start guide; drivers and Label Artist-II / BarTender UltraLite software as free download – labels and ribbon NOT included |
Looking for the first-generation model? See the BIXOLON XD5-40t (XD5-40TEK) from the XD5-40 Series. Need another resolution, interface or display? All XD5-40II Series versions are listed above. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
