| Part Number |
XT5-46NS |
| Model |

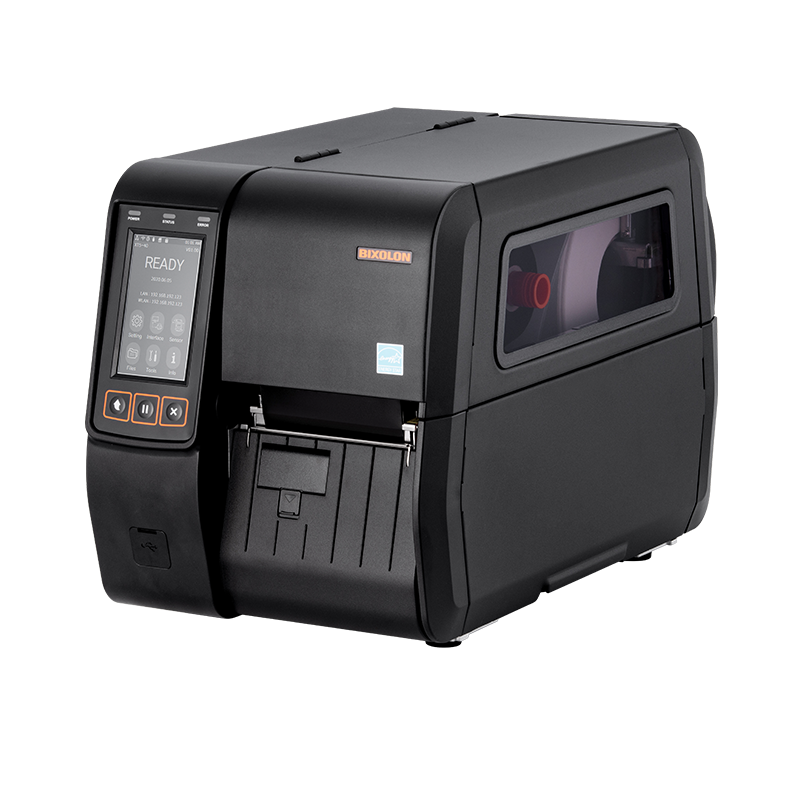

BIXOLON XT5-46 (XT5-40 series) |
| Printer Type |
4-inch industrial thermal transfer label printer |
| Print Method |
Thermal transfer and direct thermal |
| Resolution |
600 dpi (24 dots/mm) |
| Print Speed |
Up to 127 mm/s (5 ips) |
| Max Print Width |
105.6 mm |
| Label Length |
Up to 1,000 mm |
| Media Width |
25–114 mm |
| Roll Diameter |
Max. 203 mm |
| Core Size |
38.1–76.2 mm (25.4 mm with the optional 1" core media supply hanger) |
| Media Thickness |
0.06–0.30 mm |
| Media Type |
Labels with gap, black mark or notch, continuous media, fanfold; thermal transfer and direct thermal |
| Sensors |
Transmissive (gap, adjustable), reflective (black mark, adjustable), ribbon end, head open |
| Ribbon |
Wax, wax/resin, resin – ink side outside or inside; width 50–110 mm; length up to 450 m; core 25.4 mm (1") |
| Media Options |
Tear-off – factory options across the series: peeler, auto-cutter, rewinder + peeler; optional 1" core media supply hanger |
| Interfaces |
USB 2.0 (Type B), RS-232 (DB9), Gigabit Ethernet 10/100/1000 Mbps, 2 × USB host |
| Wireless |
Not fitted in this version (WLAN / Bluetooth versions are separate part numbers) |
| Printer Languages |
SLCS™, BPL-Z™ (ZPL II compatible), BPL-E™ (EPL compatible), BPL-D™ (DPL compatible) |
| Fonts / Character Sets |
Bitmap fonts: 10 SLCS™, 16 BPL-Z™, 5 BPL-E™, 9 BPL-D™; scalable fonts: 1 SLCS™, 1 BPL-Z™, 1 BPL-D™; 23 code pages; Unicode (UTF-8, UTF-16LE/BE); user-defined fonts, graphics, formats and logos |
| Barcodes |
1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, Industrial 2 of 5, Interleaved 2 of 5, Logmars, MSI, Plessey, Postnet, GS1 DataBar, Standard 2 of 5, UPC-A, UPC-E, UPC/EAN extensions, IMB; 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39 |
| Memory |
512 MB SDRAM, 512 MB Flash |
| Display |
4.3" full-colour touch LCD |
| Real-Time Clock |
Yes (standard) |
| Drivers & Software |
Windows driver (Europlus / Seagull), Linux / Mac CUPS driver, Virtual COM USB / Ethernet driver, OPOS / JPOS, SAP® device driver, Label Artist-II™, BarTender® UltraLite for BIXOLON, Network Auto Installer; SDKs for Android, iOS, Windows, Linux, Chrome, Xamarin, Web Print |
| Device Management |
BIXOLON Profile Manager XPM™ / XCM™ (Windows, Android), Twin function™ (copy settings and data via USB memory), SoftAP on WLAN versions |
| Mobile Printing |
Label Artist™ Mobile and mPrint apps (Android, iOS) |
| Power Supply |
Built-in power supply, 100–120 / 200–240 V AC, 50/60 Hz (24 V DC, 7.5 A) |
| Housing |
Aluminium body, adhesive-free metal case, double-folding door with window |
| Dimensions (W × D × H) |
269 × 490 × 324 mm |
| Weight |
13.98 kg |
| Color |
Black |
| Operating Temperature |
5 °C to 40 °C |
| Storage Temperature |
−20 °C to 60 °C |
| Humidity |
Operating 10–80% RH, storage 10–90% RH |
| Warranty |
24 months |
| In the Box |
BIXOLON XT5-46 printer (600 dpi, 4.3" full-colour touch LCD, tear-off, USB, RS-232, Gigabit Ethernet, 2× USB host), built-in power supply, power cord (EU plug, C13), empty ribbon core, quick installation guide – USB cable, serial cable, labels and ribbon NOT included |
