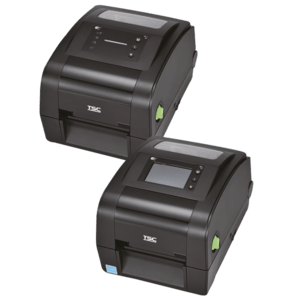

TSC DH340 (DH340-A001-1042) ir 4 collu tiešās termodrukas galda etiķešu printeris, kas drukā ar izšķirtspēju 300 dpi un ātrumu līdz 152 mm/s (6 ips), maks. drukas platums 105.7 mm – lente nav vajadzīga. LED versija ir vienkārša lietošanā – statusa ikonas un trīs pogas; ideāli, ja nepieciešama minimāla konfigurācija. Tas izmanto 127 mm (5") etiķešu ruļļus bez pamatnes, atbalsta TSPL-EZD ar automātisku EPL, ZPL un DPL emulāciju un savienojas, izmantojot USB 2.0, RS-232, 10/100 Ethernet un USB resursdatora portu. Rūpnīcā uzstādīts noplēšanas komplekts etiķetēm bez pamatnes (nelīpošs veltnis un noplēšanas mala) drukā uz etiķetēm bez pamatnes – bez pamatnes atkritumiem. Komplektā barošanas bloks, strāvas vads (ES Schuko kontaktdakša) un USB kabelis – gatavs drukāšanai.
📦 Iepakojuma saturs – DH340-A001-1042
- ✅ Etiķešu printeris TSC DH340 – 300 dpi, 4" (105.7 mm), USB 2.0 + RS-232 + Ethernet + USB host
- ✅ Etiķešu bez pamatnes noplēšanas komplekts (rūpnīcā uzstādīts) – nelīpošs veltnis un noplēšanas mala etiķetēm bez pamatnes
- ✅ Barošanas bloks – ārējs universālais barošanas bloks, 100–240 V AC → 24 V DC, 90 W
- ✅ Strāvas vads – ES kontaktdakša (Schuko)
- ✅ USB kabelis – USB 2.0 A–B – pievienojiet un drukājiet uzreiz
- ✅ Draiveri un programmatūra – Windows draiveris, TSC Console un etiķešu programmatūra – bezmaksas lejupielāde no TSC
- ✅ Uzstādīšanas pamācība
- ❌ Etiķetes bez pamatnes – NAV iekļauts – šī versija drukā tikai uz tiešās termodrukas materiāla bez pamatnes – skatiet saderīgos ruļļus zemāk
- ❌ Ethernet (LAN) kabelis – NAV iekļauts – der jebkurš standarta RJ45 tīkla kabelis
✅ Gatavs drukāšanai: barošanas bloks, strāvas vads un USB kabelis ir komplektā – nepieciešamas tikai tiešās termodrukas etiķetes bez pamatnes (lente nav vajadzīga).
💡 Noderīgi papildinājumi: tīrīšanas komplekts TSC SP-COM-0025 printeriem bez pamatnes, kas pasargā nelīpošo veltni un griezēju no līmes; ārējais ruļļu turētājs TSC OP-COM-0002 lieliem ruļļiem uz 3" serdes; Wi-Fi + Bluetooth 5.0 modulis TSC WF-TH240-2001 bezvadu drukai; akumulatoru bloks TSC BP-4000-0002 darbam bez elektrības kontaktligzdas.
Galvenās iespējas
- Tiešā termodruka ar 300 dpi – līdz 152 mm/s (6 ips), maks. drukas platums 105.7 mm; lente nav jāpērk un jāmaina
- LED statusa un ikonu indikatori un padeves, pauzes un atkārtotas drukas pogas – nav displeja, ko konfigurēt
- Tiešās termodrukas etiķetes bez pamatnes līdz 120 mm platumam uz 25,4–38,1 mm serdes (maks. ārējais diametrs 127 mm) – bez pamatnes atkritumiem un ar vairāk etiķetēm rullī
- TSPL-EZD programmaparatūra ar automātisku EPL, ZPL/ZPL II un DPL valodas pārslēgšanu – esošās etiķešu veidnes drukā bez izmaiņām
- Standarta USB 2.0, RS-232, 10/100 Ethernet un USB resursdators; Wi-Fi 802.11ac + Bluetooth 5.0 vai Bluetooth 5.0 moduli var pievienot vēlāk
- 128 MB Flash, 128 MB SDRAM, microSD slots (līdz 512 GB) un reāllaika pulkstenis
- Attālināta pārvaldība ar iebūvēto tīmekļa lapu, virtuālo vadības paneli, TSC Console un SOTI Connect; HTTPS, SNMPv3 un 802.1X drošība
- TPH Care drukas galviņas diagnostika un drukas galviņas un veltņa nomaiņa bez instrumentiem
- Rūpnīcā uzstādīts noplēšanas komplekts etiķetēm bez pamatnes ar nelīpošu veltni
- Ekodizains: 100% pārstrādājams iepakojums un korpuss ar 30% pārstrādātas plastmasas; 3 gadu TSC garantija EMEA reģionā
Ideāli piemērots
- Ātrās ēdināšanas restorāni un ēdiena piegāde – pasūtījumu un līdzņemšanas etiķetes
- Pārtikas veikali un svaigi produkti – svaru, cenu un datuma etiķetes
- Mazumtirdzniecība – cenu un akciju etiķetes bez pamatnes atkritumiem
- Transports un loģistika – sūtījumu etiķetes ar mazāk atkritumiem
Visas DH sērija versijas
Iezīmētā rinda ir versija, kuru pašlaik skatāties.
| Daļas numurs | Modelis | Drukas platums | Izšķirtspēja | Displejs | Materiāla apstrāde | Interfeisi | Strāvas vads | |
|---|---|---|---|---|---|---|---|---|
| DH220-A001-0002 | DH220T | 2" (54 mm) | 203 dpi | 3,5" skārienekrāns | Noplēšana | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH220-A001-1002 | DH220 | 2" (54 mm) | 203 dpi | LED (bez displeja) | Noplēšana | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH220E-A001-0002 | DH220E | 2" (54 mm) | 203 dpi | LED (bez displeja) | Noplēšana | Tikai USB | ES (Schuko) | Skatīt produktu |
| DH220E-A001-0003 | DH220E | 2" (54 mm) | 203 dpi | LED (bez displeja) | Noplēšana | Tikai USB | UK | Skatīt produktu |
| DH320-A001-0002 | DH320T | 2" (56.9 mm) | 300 dpi | 3,5" skārienekrāns | Noplēšana | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH320-A001-1002 | DH320 | 2" (56.9 mm) | 300 dpi | LED (bez displeja) | Noplēšana | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH320E-A001-0002 | DH320E | 2" (56.9 mm) | 300 dpi | LED (bez displeja) | Noplēšana | Tikai USB | ES (Schuko) | Skatīt produktu |
| DH320E-A001-0003 | DH320E | 2" (56.9 mm) | 300 dpi | LED (bez displeja) | Noplēšana | Tikai USB | UK | Skatīt produktu |
| DH240-A001-0002 | DH240T | 4" (108 mm) | 203 dpi | 3,5" skārienekrāns | Noplēšana | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH240-A001-0032 | DH240T | 4" (108 mm) | 203 dpi | 3,5" skārienekrāns | Bez pamatnes (griezējs) | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH240-A001-1002 | DH240 | 4" (108 mm) | 203 dpi | LED (bez displeja) | Noplēšana | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH240-A001-1012 | DH240 | 4" (108 mm) | 203 dpi | LED (bez displeja) | Etiķešu atdalītājs | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH240-A001-1022 | DH240 | 4" (108 mm) | 203 dpi | LED (bez displeja) | Griezējs | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH240-A001-1032 | DH240 | 4" (108 mm) | 203 dpi | LED (bez displeja) | Bez pamatnes (griezējs) | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH240-A001-1042 | DH240 | 4" (108 mm) | 203 dpi | LED (bez displeja) | Bez pamatnes (noplēšana) | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH340-A001-0002 | DH340T | 4" (105.7 mm) | 300 dpi | 3,5" skārienekrāns | Noplēšana | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH340-A001-1002 | DH340 | 4" (105.7 mm) | 300 dpi | LED (bez displeja) | Noplēšana | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH340-A001-1012 | DH340 | 4" (105.7 mm) | 300 dpi | LED (bez displeja) | Etiķešu atdalītājs | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH340-A001-1022 | DH340 | 4" (105.7 mm) | 300 dpi | LED (bez displeja) | Griezējs | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH340-A001-1032 | DH340 | 4" (105.7 mm) | 300 dpi | LED (bez displeja) | Bez pamatnes (griezējs) | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatīt produktu |
| DH340-A001-1042 (šī versija) | DH340 | 4" (105.7 mm) | 300 dpi | LED (bez displeja) | Bez pamatnes (noplēšana) | USB, RS-232, Ethernet, USB resursdators | ES (Schuko) | Skatāt |
Tehniskās specifikācijas
| Daļas numurs | DH340-A001-1042 |
|---|---|
| Modelis | TSC DH340 (DH Series, 4-inch) |
| Printera tips | 4-inch desktop direct thermal label printer |
| Drukas metode | Direct thermal |
| Izšķirtspēja | 300 dpi (12 dots/mm) |
| Drukas ātrums | Up to 152 mm/s (6 ips) |
| Maks. drukas platums | 105.7 mm (4.16") |
| Maks. drukas garums | 11,430 mm (450") |
| Materiāla platums | 15–120 mm (0.59"–4.72"); 10 mm with the optional narrow media adaptor |
| Materiāla biezums | 0.06–0.19 mm (2.36–7.48 mil) |
| Ruļļa diametrs | 127 mm (5") OD |
| Serdes izmērs | 25.4–38.1 mm (1"–1.5") |
| Materiālu veidi | Linerless direct thermal labels (outside wound); label length 5 mm – 11,430 mm |
| Sensori | Transmissive gap sensor, reflective black-mark sensor (position adjustable), head-open sensor |
| Lente (ribbon) | Not required – direct thermal printing |
| Interfeisi | USB 2.0, RS-232 serial, internal Ethernet 10/100 Mbps, USB host; microSD card slot |
| Bezvadu savienojums | None as standard – optional Wi-Fi 802.11a/b/g/n/ac + Bluetooth 5.0 combo module or Bluetooth 5.0 module |
| Procesors | 32-bit RISC CPU |
| Atmiņa | 128 MB Flash, 128 MB SDRAM; microSD expansion up to 512 GB (FAT32/exFAT) |
| Reāllaika pulkstenis | Standard |
| Printera valodas | TSPL-EZD with automatic EPL, ZPL, ZPL II and DPL language switching |
| Fonti / rakstzīmju kopas | 8 alphanumeric bitmap fonts; Monotype true-type engine with CG Triumvirate Bold Condensed; ARIALUNI.TTF Unicode font (UTF-8); 0/90/180/270° rotation |
| Svītrkodi | 1D: Code 39, Code 93, Code 128 (UCC, subsets A/B/C), Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN/UPC add-on, MSI, Plessey, Postnet, China Post, ITF-14, EAN-14, Code 11, Telepen, Planet, Code 49, Deutsche Post Identcode/Leitcode, LOGMARS; 2D: TLC39, Codablock F, PDF417, MicroPDF417, MaxiCode, DataMatrix, QR Code, Aztec, GS1 DataBar |
| Displejs | No display – LED status and icon indicators; power, feed, pause and reprint buttons |
| Materiāla apstrādes iespējas | Linerless tear-off kit: non-stick linerless platen roller and tear bar (factory-fitted) |
| Papildaprīkojums | Peel-off module, guillotine cutter, linerless tear-off kit, linerless cutter kit, Wi-Fi + Bluetooth 5.0 combo module, Bluetooth 5.0 module, MFi Bluetooth 5.0 (factory option), external label roll mount, KP-200 Plus keyboard, 10 mm narrow media adaptor, BP-4000 battery pack |
| Pārvaldība un drošība | Internal embedded web page, virtual control panel, TSC Console, SOTI Connect (licence); HTTPS, SNMPv3, 802.1X, TCP/IP port 9100 filter; TPH Care printhead diagnostics |
| Barošana | External universal switching power supply: 100–240 V AC, 2.0 A, 50–60 Hz input; 24 V DC, 3.75 A, 90 W output |
| Izmēri (P × Dz × A) | 208 × 235 × 170 mm (W × D × H) |
| Svars | 2.1 kg |
| Krāsa | Black |
| Darba temperatūra | 0–40 °C, 25–85% RH non-condensing |
| Uzglabāšanas temperatūra | −40–60 °C, 10–90% RH non-condensing |
| Sertifikāti | CB, FCC Class B, IC, cTÜVus, NOM, CE Class B, UKCA, EAC, CCC, BIS, RCM, KC, ENERGY STAR 3.0; RoHS, REACH, WEEE |
| Garantija | Printer: 3 years (TSC EMEA, purchases from 1 June 2024); printhead 25 km or 12 months, platen 50 km or 12 months (whichever comes first) |
| Iepakojuma saturs | TSC DH340 printer (300 dpi, LED indicators, no display, USB 2.0 + RS-232 + Ethernet + USB host, factory-fitted linerless tear-off kit (linerless platen roller + tear bar)), external power supply (24 V DC, 90 W), power cord (EU Schuko plug), USB cable, quick start guide – linerless labels NOT included (direct thermal, no ribbon needed) |
Nepieciešams cits platums, izšķirtspēja, displejs vai materiāla apstrādes veids? Visas DH sērijas versijas ir norādītas augstāk. Salīdziniet citus modeļus mūsu kolekcijā Galda etiķešu printeri vai sazinieties ar mūsu komandu par vairumcenām.
Pieejamās versijas
DH220-A001-0002
Resolution (dpi)
203
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Form Factor
2-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
3.5" colour touchscreen
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 60 mm, print width (max.): 54 mm, roll diameter (max.): 127 mm, speed (max.): 203 mm/s, display (touch screen), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit (external), power cable (EU)
DH220-A001-1002
Resolution (dpi)
203
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Form Factor
2-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
None (LED indicators)
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 60 mm, print width (max.): 54 mm, roll diameter (max.): 127 mm, speed (max.): 203 mm/s, real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit (external), power cable (EU)
DH220E-A001-0002
Resolution (dpi)
203
Wired Interfaces
USB
Linerless
No
Form Factor
2-inch desktop
Memory
RAM: 16 MB, Flash: 8 MB
Display
None (LED indicators)
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 60 mm, print width (max.): 54 mm, roll diameter (max.): 127 mm, speed (max.): 203 mm/s, connection: USB (type B), RAM: 16 MB, Flash: 8 MB, incl.: cable (USB), power supply unit (external), power cable (EU)
DH220E-A001-0003
Resolution (dpi)
203
Wired Interfaces
USB
Linerless
No
Form Factor
2-inch desktop
Memory
RAM: 16 MB, Flash: 8 MB
Display
None (LED indicators)
label printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 60 mm, print width (max.): 54 mm, roll diameter (max.): 127 mm, speed (max.): 203 mm/s, connection: USB (type B), RAM: 16 MB, Flash: 8 MB, incl.: cable (USB), power supply unit (external), power cable (UK)
DH240-A001-0002
Resolution (dpi)
203
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Form Factor
4-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
3.5" colour touchscreen
label printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 120 mm, print width (max.): 108 mm, roll diameter (max.): 127 mm, speed (max.): 203 mm/s, display (touch screen), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit, power cable (EU)
DH240-A001-0032
Resolution (dpi)
203
Wired Interfaces
USB, RS232, Ethernet
Linerless
Yes
Form Factor
4-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
3.5" colour touchscreen
label printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 120 mm, print width (max.): 108 mm, roll diameter (max.): 127 mm, speed (max.): 203 mm/s, cutter, linerless platen, display (touch screen), real time clock, Black Mark Sensor, Gap Sensor, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit, power cable (EU)
DH240-A001-1002
Resolution (dpi)
203
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Form Factor
4-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
None (LED indicators)
label printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 120 mm, print width (max.): 108 mm, roll diameter (max.): 127 mm, speed (max.): 203 mm/s, display (LED), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit, power cable (EU)
DH240-A001-1012
Resolution (dpi)
203
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Form Factor
4-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
None (LED indicators)
label printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 120 mm, print width (max.): 108 mm, roll diameter (max.): 127 mm, speed (max.): 203 mm/s, peeler, display (LED), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit, power cable (EU)
DH240-A001-1022
Resolution (dpi)
203
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Form Factor
4-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
None (LED indicators)
label printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 120 mm, print width (max.): 108 mm, roll diameter (max.): 127 mm, speed (max.): 203 mm/s, cutter, display (LED), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit, power cable (EU)
DH240-A001-1032
Resolution (dpi)
203
Wired Interfaces
USB, RS232, Ethernet
Linerless
Yes
Form Factor
4-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
None (LED indicators)
label printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 120 mm, print width (max.): 108 mm, roll diameter (max.): 127 mm, speed (max.): 203 mm/s, cutter, linerless platen, display (LED), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit, power cable (EU)
DH240-A001-1042
Resolution (dpi)
203
Wired Interfaces
USB, RS232, Ethernet
Linerless
Yes
Form Factor
4-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
None (LED indicators)
label printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 120 mm, print width (max.): 108 mm, roll diameter (max.): 127 mm, speed (max.): 203 mm/s, linerless platen, display (LED), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit, power cable (EU)
DH320-A001-0002
Resolution (dpi)
300
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Form Factor
2-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
3.5" colour touchscreen
label printer, direct thermal, 12 dots/mm (300 dpi), media width (max.): 60 mm, print width (max.): 56 mm, roll diameter (max.): 127 mm, speed (max.): 152 mm/s, display (touch screen), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit (external), power cable (EU)
DH320-A001-1002
Resolution (dpi)
300
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Form Factor
2-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
None (LED indicators)
label printer, direct thermal, 12 dots/mm (300 dpi), media width (max.): 60 mm, print width (max.): 56 mm, roll diameter (max.): 127 mm, speed (max.): 152 mm/s, real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit (external), power cable (EU)
DH320E-A001-0002
Resolution (dpi)
300
Wired Interfaces
USB
Linerless
No
Form Factor
2-inch desktop
Memory
RAM: 16 MB, Flash: 8 MB
Display
None (LED indicators)
label printer, direct thermal, 12 dots/mm (300 dpi), media width (max.): 60 mm, print width (max.): 54 mm, roll diameter (max.): 127 mm, speed (max.): 152 mm/s, connection: USB (type B), RAM: 16 MB, Flash: 8 MB, incl.: cable (USB), power supply unit (external), power cable (EU)
DH320E-A001-0003
Resolution (dpi)
300
Wired Interfaces
USB
Linerless
No
Form Factor
2-inch desktop
Memory
RAM: 16 MB, Flash: 8 MB
Display
None (LED indicators)
label printer, direct thermal, 12 dots/mm (300 dpi), media width (max.): 60 mm, print width (max.): 54 mm, roll diameter (max.): 127 mm, speed (max.): 152 mm/s, connection: USB (type B), RAM: 16 MB, Flash: 8 MB, incl.: cable (USB), power supply unit (external), power cable (UK)
DH340-A001-0002
Resolution (dpi)
300
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Form Factor
4-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
3.5" colour touchscreen
label printer, direct thermal, resolution: 12 dots/mm (300 dpi), media width (max.): 120 mm, print width (max.): 106 mm, roll diameter (max.): 127 mm, speed (max.): 152 mm/s, display (touch screen), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit, power cable (EU)
DH340-A001-1002
Resolution (dpi)
300
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Form Factor
4-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
None (LED indicators)
label printer, direct thermal, resolution: 12 dots/mm (300 dpi), media width (max.): 120 mm, print width (max.): 106 mm, roll diameter (max.): 127 mm, speed (max.): 152 mm/s, display (touch screen), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit, power cable (EU), buzzer
DH340-A001-1012
Resolution (dpi)
300
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Form Factor
4-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
None (LED indicators)
label printer, direct thermal, resolution: 12 dots/mm (300 dpi), media width (max.): 120 mm, print width (max.): 106 mm, roll diameter (max.): 127 mm, speed (max.): 152 mm/s, peeler, display (touch screen), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit, power cable (EU), buzzer
DH340-A001-1022
Resolution (dpi)
300
Wired Interfaces
USB, RS232, Ethernet
Linerless
No
Form Factor
4-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
None (LED indicators)
label printer, direct thermal, resolution: 12 dots/mm (300 dpi), media width (max.): 120 mm, print width (max.): 106 mm, roll diameter (max.): 127 mm, speed (max.): 152 mm/s, cutter, display (touch screen), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit, power cable (EU), buzzer
DH340-A001-1032
Resolution (dpi)
300
Wired Interfaces
USB, RS232, Ethernet
Linerless
Yes
Form Factor
4-inch desktop
Memory
—
Display
None (LED indicators)
DH340-A001-1042
Izvēlēts
Resolution (dpi)
300
Wired Interfaces
USB, RS232, Ethernet
Linerless
Yes
Form Factor
4-inch desktop
Memory
RAM: 128 MB, Flash: 128 MB
Display
None (LED indicators)
label printer, direct thermal, resolution: 12 dots/mm (300 dpi), media width (max.): 120 mm, print width (max.): 106 mm, roll diameter (max.): 127 mm, speed (max.): 152 mm/s, linerless platen, display (touch screen), real time clock, connection: USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 128 MB, Flash: 128 MB, incl.: cable (USB), power supply unit, power cable (EU), buzzer
702,70 €Nav noliktavā
Piederumi
Saderīgās etiķetes
Nesen skatītie
Neaizmirstiet! Produkti, kurus skatījāties. Pievienojiet tos grozam tūlīt.
Citi iegādājās arī
Šeit ir līdzīgi produkti, ko pērk citi klienti. Noklikšķiniet un atklājiet.
