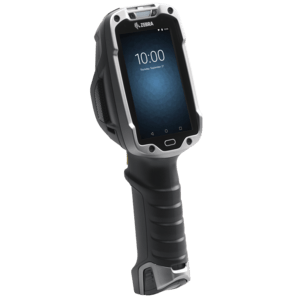

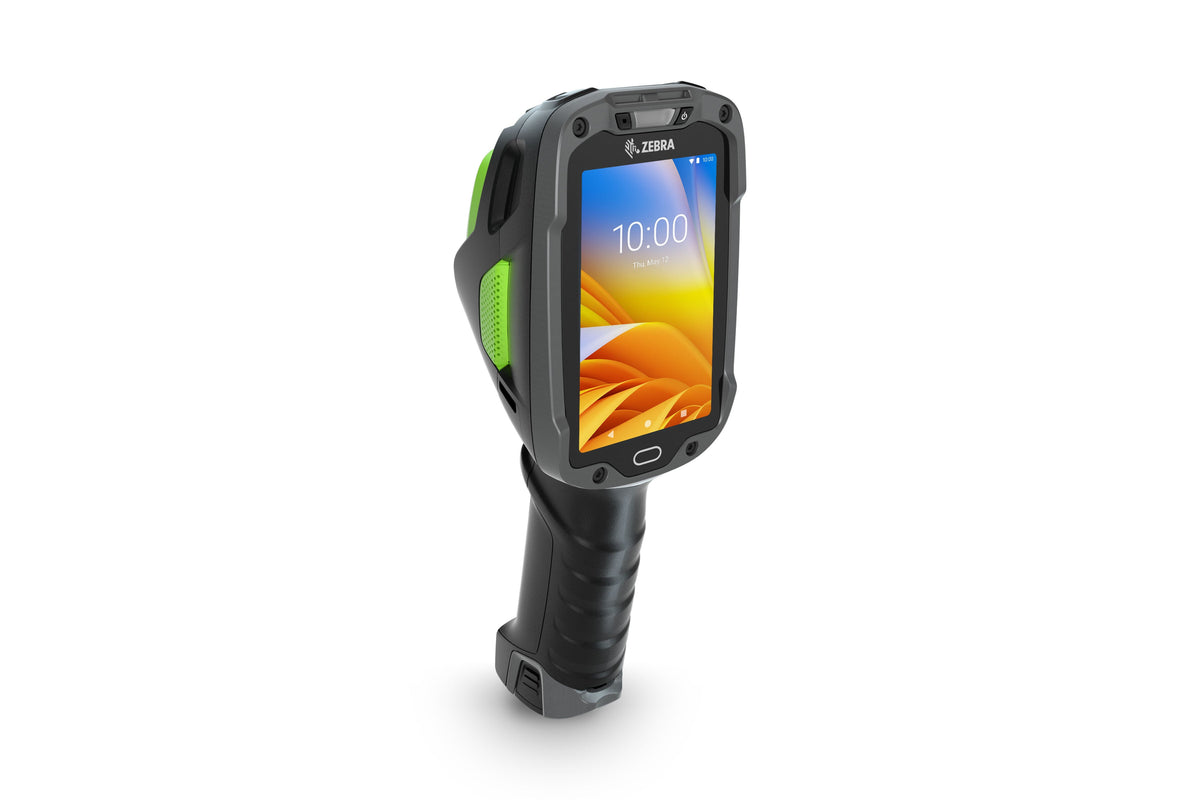

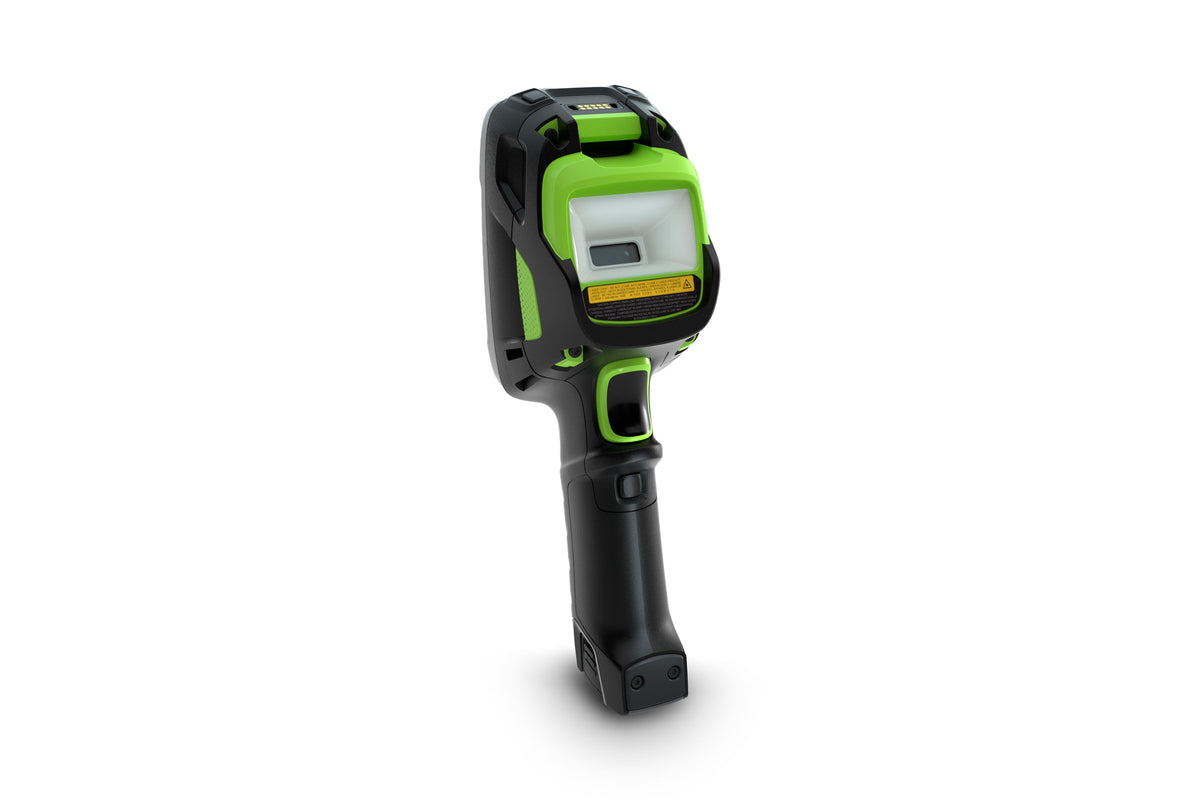

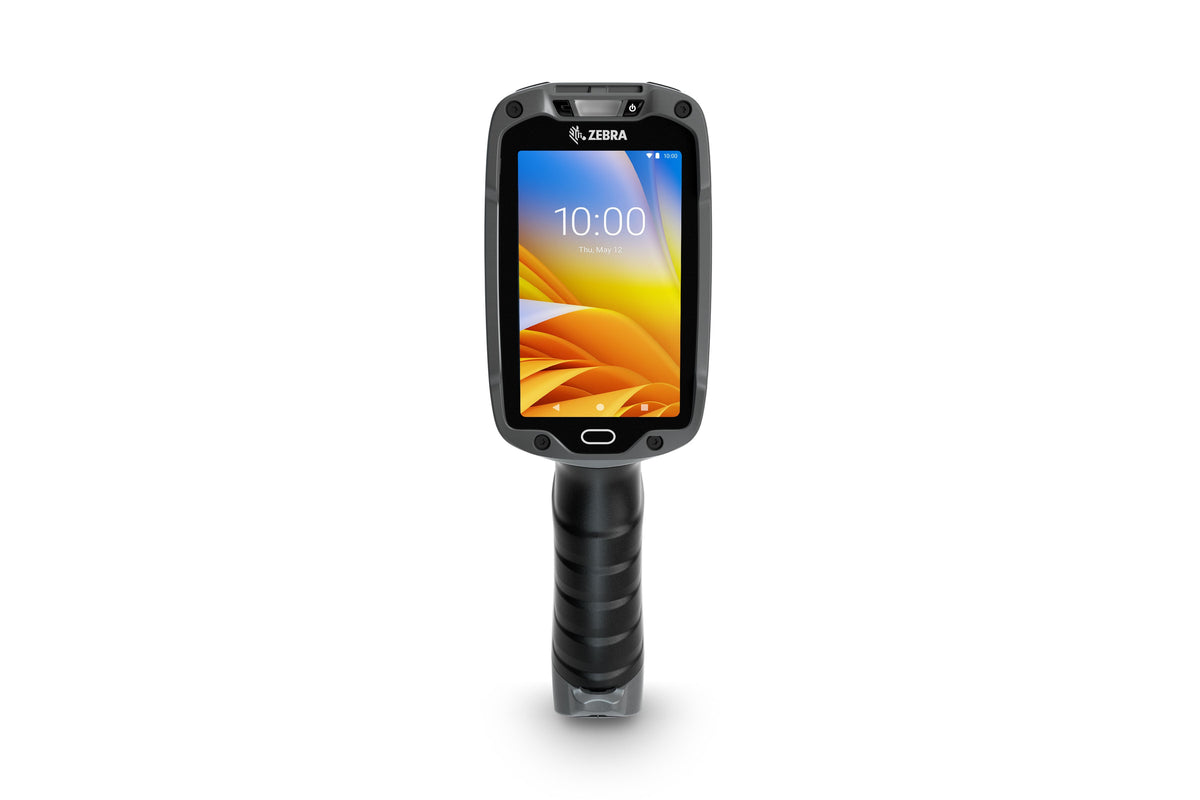

The Zebra TC8300 is a rugged Android touch computer designed for intensive warehouse work – receiving, put-away, picking, cross-docking and cold-chain operations. Its unique angled design keeps the scanner and the 4" touchscreen in line with the worker's natural wrist position, cutting wrist motion by 55% and raising productivity by 14%. A Snapdragon 660 octa-core processor, Wi-Fi 802.11ac with 2x2 MU-MIMO, Bluetooth 5.0 and a 7000 mAh hot-swap battery for up to three shifts complete the package. Configuration of TC83BH-6205A710RW: SE4770 standard-range imager, 13 MP autofocus camera and NFC (premium model).
📦 What's in the box – TC83BH-6205A710RW
- ✅ Zebra TC8300 – mobile computer, Wi-Fi 802.11ac, Bluetooth 5.0, NFC, 13 MP, SE4770, 4 GB / 32 GB
- ✅ Battery – standard 7000 mAh Li-ion, user-replaceable (BTRY-TC8X-70MA1-01)
- ✅ Google Mobile Services (GMS) – licensed and preinstalled – Google Play and Google apps ready to use
- ✅ Regulatory guide – printed safety and regulatory information; user guides are a free download from Zebra
- ❌ Charger / power supply – NOT included – needed to charge the battery – see the options below
- ❌ Charging cradle – NOT included
- ❌ Hand strap – NOT included
⚠️ Please note: no charger, charging cable or cradle is included. To charge the TC8300, please order separately: the Zebra CRD-TC8X-2SUCHG-01 charging cradle with the Zebra PWR-BGA12V50W0WW power supply, the Zebra CBL-DC-388A1-01 DC cable and the Zebra 50-16000-220R mains cord; or the Zebra KT-TC8-01 single-slot charging cradle kit (power supply and DC cable included) plus the Zebra 50-16000-220R mains cord.
💡 Useful extras: a spare battery for hot-swapping (Zebra BTRY-TC8X-70MA1-01); multi-slot charging cradles for teams (Zebra CRD-TC8X-5SCHG-01 or Zebra CRD-TC8X-5SC4BC-01); the Zebra SAC-TC8X-4SCHG-01 4-slot spare battery charger; the Zebra SG-TC8X-QDHLST-01 holster; the Zebra SG-TC8X-HDSTP-01 hand strap; a vehicle holder (Zebra MNT-TC8X-FHKT-01); a service plan with fast repair and battery replacement (Zebra OneCare Essential 3 years (Z1AE-TC83XX-3C00) or Zebra OneCare Essential 5 years (Z1AE-TC83XX-5C00)).
Interactive 3D Model
Drag to rotate, scroll or pinch to zoom. Official Zebra 3D viewer – open in full screen ↗
Key Features
- Ergonomic angled design – the scan angle eliminates constant wrist tilting: 55% less wrist motion, 15% less muscle effort and 14% higher productivity than traditional designs.
- Enterprise scanning – SE4770 standard-range imager with a wide field of view for fast close-range scanning; SimulScan captures multiple barcodes and text fields on a label with a single scan.
- Hands-free proximity scanning – the proximity sensor triggers scanning automatically when the device is worn on the hip or shoulder strap, or placed in a cart or on a desk.
- Triple-shift battery – 7000 mAh PowerPrecision+ battery with hot-swap backup and detailed battery health metrics.
- Powerful Android platform – Qualcomm Snapdragon 660 octa-core 2.2 GHz, 4 GB RAM / 32 GB pSLC Flash, microSD slot; launched with Android 8.1 Oreo (GMS), upgradeable to Android 14 with LifeGuard security updates.
- Fast, reliable wireless – Wi-Fi 802.11ac with 2x2 MU-MIMO and 802.11r/k fast roaming, Bluetooth 5.0 with BLE.
- Built for the warehouse – IP65, repeated 2.4 m drops to concrete, 2,000 tumbles at 1 m, −20 °C to +50 °C operation and thermal shock resistance; Corning Gorilla Glass touch panel and scanner window.
- Camera and NFC – 13 MP autofocus rear camera to document proof of condition and compliance, plus NFC for tap-to-pair and contactless cards.
- TE migration out of the box – run existing terminal emulation (TE) apps unchanged and turn them into All-touch TE screens without coding.
Ideal Applications
- Warehouse: receiving, put-away, picking, replenishment and cross-docking
- Cold chain: receiving and picking in refrigerated storage
- Manufacturing: inventory management, supply-line replenishment and parts tracking
- Retail back of store: inventory, price audits and order fulfilment
- Transport and logistics: returns processing and EDI transactions
All TC8300 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Scan Engine | Edition | |
|---|---|---|---|
| TC83B0-6005A510RW | SE4770 standard range | Standard | View product |
| TC83B0-2005A510RW | SE4750 mid range | Standard | View product |
| TC83B0-3005A510RW | SE4850 extended range | Standard | View product |
| TC83B0-3005A61CRW | SE4850 extended range | Condensation resistant | View product |
| TC83BH-6205A710RW (this version) | SE4770 standard range | Premium (13 MP, NFC) | Viewing |
| TC83BH-2205A710RW | SE4750 mid range | Premium (13 MP, NFC) | View product |
| TC83BH-3205A710RW | SE4850 extended range | Premium (13 MP, NFC) | View product |
Technical Specifications
| Part Number | TC83BH-6205A710RW |
|---|---|
| Model | Zebra TC8300 (Package 1 – camera + NFC) |
| Operating System | Android with Google Mobile Services (GMS); launched with Android 8.1 Oreo, upgradeable to Android 14 (LifeGuard for Android) |
| Processor | Qualcomm Snapdragon 660 octa-core, 2.2 GHz |
| Memory (RAM / Flash) | 4 GB RAM / 32 GB pSLC Flash |
| Expansion | SDXC-compliant microSD slot |
| Display | 4.0" WVGA (800 × 480), transflective colour LCD, 400 nits |
| Touch Panel | Multi-touch projected capacitive – bare or gloved finger or conductive stylus (sold separately); Corning Gorilla Glass |
| Keypad | On-screen keypad |
| Scan Engine | SE4770 1D/2D standard-range omnidirectional imager; Corning Gorilla Glass scanner window; hands-free proximity scanning; SimulScan |
| Rear Camera | 13 MP autofocus colour camera, f/2.4 |
| Wi-Fi | IEEE 802.11a/b/g/n/ac/d/h/i/r/k/w, 2x2 MU-MIMO; 5 GHz up to 866.7 Mbps; fast roaming PMKID / CCKM / OKC / 802.11r |
| Bluetooth | Bluetooth 5.0, Class 2, Bluetooth Low Energy (BLE) |
| NFC | ISO 14443 A/B, FeliCa, ISO 15693; tap-to-pair, P2P, host card emulation |
| Mobile Data (WWAN) | Not available – Wi-Fi only |
| Voice & Audio | Dual speakers, Bluetooth headsets; wired headsets via audio adapter cable |
| Ports | USB 2.0 OTG via docking connector (cradle or snap-on USB/charge cable) |
| Sensors | Light sensor, 3-axis accelerometer, 3-axis gyroscope, proximity sensor (hands-free scanning), magnetic sensor (cart/holster detection) |
| Battery | 7000 mAh PowerPrecision+ Li-ion with hot-swap battery backup (BTRY-TC8X-70MA1-01) |
| Battery Life | Up to three shifts (typical user profile) |
| Charging | Via single- or multi-slot TC8X ShareCradles or the snap-on USB/charge cable – not included |
| Form Factor | Angled warehouse touch computer (scan angle reduces wrist motion by 55%) |
| Dimensions | 233 × 76 × 64 mm (L × W × D) |
| Weight | 500 g (Package 1) |
| Drop Spec | Multiple 2.4 m drops to concrete at room temperature (MIL-STD-810G); 1.8 m to concrete across the operating temperature range |
| Tumble Spec | 2,000 tumbles at 1 m |
| Sealing | IP65 |
| Operating Temperature | −20 °C to +50 °C |
| Storage Temperature | −40 °C to +70 °C |
| Humidity | 5–95% non-condensing |
| Notifications | Audible tone, multi-colour LEDs, vibration |
| Software & Management | Zebra Mobility DNA: StageNow (incl. GMS Restricted Mode), WorryFree WiFi, PowerPrecision Console, LifeGuard Analytics, All-touch Terminal Emulation |
| Colour | Black / grey |
| Warranty | 12 months (Zebra 1-year hardware warranty); Zebra OneCare Essential service plans available |
| In the Box | Zebra TC8300 touch computer (TC83BH-6205A710RW), 7000 mAh PowerPrecision+ Li-ion battery (BTRY-TC8X-70MA1-01), Google Mobile Services (GMS), regulatory guide – charging cradle, power supply, charging cable and hand strap NOT included (order separately) |
The TC8300 succeeds Zebra's TC8000 and shares its accessory ecosystem (TC8X cradles, batteries and holsters). Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
Available Versions
TC83B0-2005A510RW
Scanner Type
SE4750 mid range
portable data collection device, 2D, imager (medium range), brightness: 400cd, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 800x480 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP65, incl.: battery, 7000 mAh
TC83B0-3005A510RW
Scanner Type
SE4850 extended range
portable data collection device, 2D, imager (extended range), brightness: 400cd, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 800x480 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP65, incl.: battery, 7000 mAh
TC83B0-3005A61CRW
Scanner Type
SE4850 extended range
portable data collection device, 2D, imager (extended range), condensation resistant, vibration, brightness: 400cd, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 800x480 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP65, incl.: battery, 7000 mAh
TC83B0-6005A510RW
Scanner Type
SE4770 standard range
portable data collection device, 2D, imager (standard range, SE4770), brightness: 400cd, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 800x480 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP65, incl.: battery, 7000 mAh
TC83BH-2205A710RW
Scanner Type
SE4750 mid range
portable data collection device, 2D, imager (medium range), Cam (13MP, auto-focus), brightness: 400cd, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), NFC, 800x480 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP65, incl.: battery, 7000 mAh
TC83BH-3205A710RW
Scanner Type
SE4850 extended range
portable data collection device, 2D, imager (extended range), Cam (13MP, auto-focus), vibration, brightness: 400cd, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), NFC, 800x480 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP65, incl.: battery, 7000 mAh
TC83BH-6205A710RW
Selected
Scanner Type
SE4770 standard range
portable data collection device, 2D, imager (standard range), Cam (13MP, auto-focus), vibration, brightness: 400cd, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), NFC, 800x480 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP65, incl.: battery, 7000 mAh
3.114,36 €In Stock
