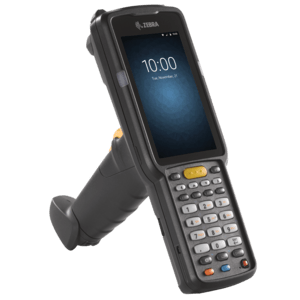

Zebra MC3300 Terminal (MC330L-SM4EG4RW)

The Zebra MC3300x is a rugged Android mobile computer that pairs a physical keypad with a 4" touchscreen – built for scan-intensive work in warehouses, distribution centres, manufacturing and retail backrooms. A Snapdragon 660 octa-core processor with 4 GB RAM / 32 GB Flash, Wi-Fi 5 with 2x2 MU-MIMO, Bluetooth 5.0, NFC, IP64 sealing, 1.8 m drop resistance and a 7000 mAh battery for up to three shifts make it the dependable successor to the MC3300 and MC3200. This version, MC330L-SM4EG4RW: 45° angled scan head, SE4770 standard-range 1D/2D imager and 13 MP rear camera, 47-key alphanumeric keypad.

Key Features

• 45° angled scan head – lets workers scan and read the screen at the same time with a natural wrist position; hand strap fitted.
• SE4770 standard-range imager – reads 1D and 2D barcodes up to approx. 60 cm with a large sweet spot for point-and-shoot simplicity, even scratched, dirty or shrink-wrapped codes.
• 13 MP rear camera with LED flash – document proof of condition, damage and delivery directly on the device.
• Keypad plus touchscreen – a bright 4" WVGA touch display with Corning Gorilla Glass for modern apps, plus a physical keypad (29-key numeric, 38-key function numeric or 47-key alphanumeric) for fast data entry, even with gloves.
• Built for all-day business – multiple 1.8 m drops to concrete across the operating temperature range, 3,000 tumbles at 1 m and IP64 dust and water protection.
• Power for up to three shifts – 7000 mAh PowerPrecision+ battery with battery-health metrics and hot swap; MC3300 5200 mAh batteries also fit.
• Fast and secure – Snapdragon 660 octa-core 2.2 GHz, 4 GB RAM / 32 GB Flash, microSD up to 512 GB, Android with GMS upgradeable to Android 14 and LifeGuard security updates.
• Wi-Fi 5 and Bluetooth 5.0 – 2x2 MU-MIMO for range and speed, fast roaming, plus NFC for tap-to-pair with printers, ring scanners and headsets.
• Ready for your applications – Zebra Mobility DNA (DataWedge, StageNow, Device Tracker, Enterprise Home Screen, PTT Express) and All-Touch Terminal Emulation for existing green-screen apps.
• Protects your accessory investment – uses MC3300 cradles, chargers, holsters and most MC3200 accessories.

Ideal Applications

• Warehouse and distribution: picking, put-away, receiving and returns processing
• Inventory counts, cycle counting and stock replenishment
• Manufacturing: parts tracking, line replenishment and quality checks
• Retail backrooms: store receiving, price updates and stock management
• Yard management and EDI transactions
• Voice-directed and terminal-emulation (green-screen) applications

All MC3300x / MC3300xR Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

The MC3300x is the second generation of Zebra's MC3300 series, with more power, a larger battery and higher rugged specifications. Prefer Wi-Fi 6 and a battery with BLE beacon? See the Zebra MC3300ax. For UHF RFID inventory, choose the Zebra MC3330xR (integrated RFID, approx. 12 m) or the long-range Zebra MC3390xR (approx. 18 m+). The successor of the series is the Zebra MC3400 – a new generation with a faster processor, Wi-Fi 6E and the latest Android versions. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
