The Zebra LI2208 is a corded 1D linear imager – a fast, rugged and affordable handheld barcode scanner for checkouts, offices, libraries and light warehousing. Its linear imager captures up to 547 scans per second and reads all common 1D (linear) barcodes from 2.5 cm to about 78 cm on standard EAN/UPC codes – printed on paper labels and packaging and displayed on phone, tablet or computer screens (mobile coupons, loyalty cards, e-tickets). It connects to USB, RS232, keyboard wedge and IBM 46xx hosts with the matching cable. Please note: the LI2208 reads 1D barcodes only – it does not read 2D codes such as QR codes, Data Matrix or PDF417. This version, LI2208-SR7U2100SGW, comes in black (Twilight Black) and is supplied with a USB cable and a gooseneck Intellistand for hands-free scanning.
📦 What's in the box – LI2208-SR7U2100SGW
- ✅ Zebra LI2208 scanner – Black (Twilight Black)

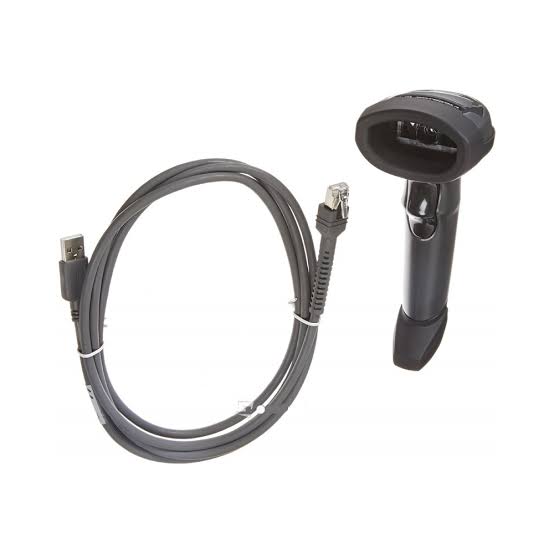

- ✅ USB cable – straight, 2.1 m (7 ft), Zebra CBA-U21-S07ZBR

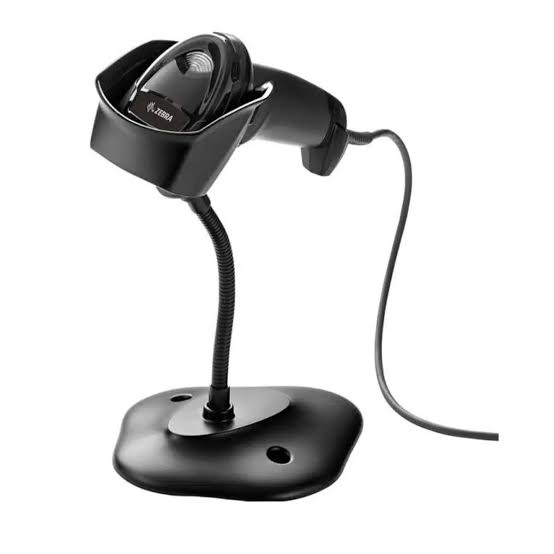

- ✅ Stand – Zebra gooseneck Intellistand 20-61022-04R (black), for hands-free scanning
Key Features
- Fast 1D linear imaging – up to 547 scans per second and a single bright amber aiming line read all common 1D barcodes (EAN/UPC, Code 128, GS1-128, Code 39, Interleaved 2 of 5, GS1 DataBar and more) at the first attempt – even damaged, poorly printed or low-contrast (15%) codes.
- Reads from paper and screens – unlike a laser scanner, the LI2208 also reads 1D barcodes displayed on mobile phones, tablets and computer monitors – ideal for mobile coupons, loyalty cards and e-tickets.
- 1D only – please check your barcodes – the LI2208 does not read QR codes, Data Matrix, PDF417 or other 2D codes. If you need them, choose the Zebra DS2208 2D scanner.
- Wide working range – from 2.5 cm to about 78 cm on standard 100% EAN/UPC (13 mil) barcodes and up to 140 cm on large 200% UPC codes; also reads high-density codes down to 3 mil.
- Universal interfaces – one scanner for USB, RS232, keyboard wedge (KBW) and IBM 468x/469x hosts – just change the cable. Auto-host detect cables recognise the connected interface automatically.
- Handheld or hands-free – placed in the optional gooseneck Intellistand, the scanner switches between handheld and hands-free presentation scanning automatically.
- Built for all-day use – IP42 sealing, survives 1.8 m drops to concrete and 2,000 tumbles; no moving parts in the scan engine and a 60-month Zebra hardware warranty.
- Easy to deploy and manage – just 140 g, over 90 international keyboards supported, and free 123Scan, Scanner Management Service (SMS) and Scanner SDK tools for configuration, firmware updates and remote management.
Ideal Applications
- Retail and grocery checkouts – EAN/UPC barcodes on packaging plus mobile coupons and loyalty cards on phones
- Ticketing, events and transport – 1D barcodes on printed or mobile e-tickets
- Offices, service desks and libraries – documents, files, books and asset tags
- Warehousing and light logistics – receiving, picking and stock counts with 1D labels
- Light manufacturing – work orders and component labels
All LI2208 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Cable | Stand | |
|---|---|---|---|
| LI2208-SR00007ZZWW | ❌ Not included | — | View product |
| LI2208-SR7U2100AZW | USB, straight 2.1 m | — | View product |
| LI2208-SR7U2100SGW (this version) | USB, straight 2.1 m | ✅ Yes | Viewing |
Technical Specifications
| Part Number | LI2208-SR7U2100SGW |
|---|---|
| Model | Zebra LI2208 |
| Scanner Type | Corded handheld 1D linear imager (reads 1D barcodes on paper and on phone, tablet and computer screens) |
| Light Source | 617 nm amber LED, single bright aiming line |
| Scan Rate | 547 scans per second |
| Field of View | 35° horizontal |
| Scan Range | Code 39 4 mil: 10.2–25.4 cm; Code 39 5 mil: 7.6–33 cm; Code 39 7.5 mil: 3.8–48.3 cm; 100% UPC-A 13 mil: 2.5–78.7 cm; Code 39 20 mil: 2.5–106.7 cm; 200% UPC-A 26 mil: 7.6–140 cm (typical) |
| Minimum Element Resolution | 3 mil (Code 39) |
| Minimum Print Contrast | 15% minimum reflective difference |
| Reading Angles | Skew ±65°, pitch ±65°, roll ±45° |
| Motion Tolerance | Up to 63.5 cm/s |
| 1D Symbologies | UPC/EAN (UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN, UCC Coupon Extended Code), GS1-128 (incl. ISBT 128, ISBT concatenation), Code 39 (incl. Trioptic, Full ASCII, Code 32 / Italian Pharmacy), Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar (NW-7), MSI, IATA, GS1 DataBar (Omnidirectional, Limited, Expanded), inverse 1D |
| 2D Symbologies | Not supported – 1D linear imager; does not read 2D codes (QR Code, Data Matrix, PDF417) |
| Host Interfaces | USB, RS232, Keyboard Wedge, IBM 468x/469x (RS485) – interface depends on the cable used (auto-host detect cables) |
| Keyboard Support | More than 90 international keyboards |
| Reading Indicators | Good-decode LED, beeper (adjustable tone and volume) |
| Color | Black (Twilight Black) |
| Dimensions | 16 × 6.7 × 9.9 cm (H × W × L) |
| Weight | 140 g |
| Input Voltage | 5 V DC ± 10%; host powered or external power supply |
| Current Draw | <165 mA scanning; <40 mA standby (typical) |
| Environmental Sealing | IP42 |
| Drop / Tumble | Over 100 drops from 1.5 m at room temperature; withstands 1.8 m drops to concrete; 1,000 tumbles (2,000 drops) at 0.5 m |
| Ambient Light Immunity | Up to 108,000 lux |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 5–95% RH, non-condensing |
| LED Safety | LED Class 1 device |
| Software & Management | 123Scan, Scanner Management Service (SMS), Zebra Scanner SDK |
| Warranty | 60 months |
| In the Box | LI2208 scanner, USB cable (straight, 7 ft / 2.1 m, CBA-U21-S07ZBR), Gooseneck Intellistand (black, 20-61022-04R) |
Not sure which version you need? If you already have a compatible Zebra cable (e.g. from a DS2208 or LS2208 scanner), the scanner-only version is the most economical choice; for a new workstation, pick the USB kit – with the gooseneck Intellistand if you also want hands-free scanning. Need to read QR codes or other 2D codes? Choose a 2D scanner such as the Zebra DS2208. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
Available Versions
LI2208-SR00007ZZWW
1D linear imager, black
Interface cable not included
handheld scanner, 1D, linear imager, 547 scans/sec., multi-interface (RS232, KBW, USB, IBM), IP42, order separately: interface cable, colour: black
LI2208-SR7U2100AZW
1D linear imager, black
Includes: USB cable (straight, 2.1 m)
handheld scanner, 1D, linear imager, 547 scans/sec., multi-interface (RS232, KBW, USB, IBM), IP42, incl.: cable (USB), colour: black
LI2208-SR7U2100SGW
Selected
1D linear imager, black
Includes: USB cable (straight, 2.1 m), gooseneck Intellistand
handheld scanner, 1D, linear imager, 547 scans/sec., multi-interface (RS232, KBW, USB, IBM), IP42, incl.: cable (USB), stand, colour: black
55,56 €Out of Stock
