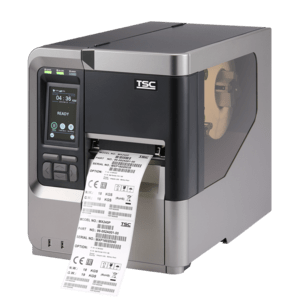

TSC MX641P Industrial Label Printer (MX641P-A001-0002)

The TSC MX641P from the MX241P Series is a high-performance industrial label printer built for around-the-clock, mission-critical labelling – one of the fastest in its class. A rugged die-cast print mechanism, precise registration for labels as short as 3 mm and a 4.3-inch colour touchscreen make it ideal for manufacturing, logistics, shipping and product identification. It prints in thermal transfer and direct thermal at 600 dpi and up to 152 mm/s, takes 203 mm (8-inch) label rolls and 600 m ribbons, and connects via USB, RS-232, Ethernet and two USB host ports as standard. This version, MX641P-A001-0002, comes with the standard tear-off bar – optional peel-off, cutter and internal rewinder kits are available.

Key Features

• Rugged high-performance build – die-cast print mechanism with a large clear media window, built for 24/7 high-volume printing, with robust peel-off capability for labels of all sizes.
• 4.3-inch colour touchscreen – intuitive multi-language menus with touch and six-button operation, plus LED status indicators.
• Thermal transfer and direct thermal – up to 152 mm/s at 600 dpi with a maximum print width of 104 mm.
• 600 dpi for micro labels – ideal for very small 2D codes, fine print, logos and other ultra-high-resolution images, e.g. on electronic components.
• Large media capacity – label rolls up to 203 mm in diameter on 76 mm cores, media 20–114 mm wide; continuous, die-cut, black-mark, notched and fanfold media.
• 600 m ribbons – long ribbons on a 1-inch core mean fewer changes; ribbons coated inside or outside both work.
• Multi-connectivity – USB 2.0, RS-232, 10/100 Ethernet and two front USB host ports as standard; optional Wi-Fi 802.11ac + Bluetooth 4.2 module and GPIO + parallel interface for applicators.
• TSC Sense Care and remote management – self-diagnostic printhead care, near real-time status and warnings, plus SOTI Connect and TSC Console for remote fleet management.
• Easy replacement of other brands – TSPL-EZD with EPL, ZPL, ZPL II and DPL emulation runs existing label formats without changes.
• Upgrade options – regular guillotine or rotary heavy-duty cutter, peel-off module, internal full-roll rewinder (8-inch OD), Wi-Fi + Bluetooth module, GPIO + parallel and KP-200 Plus keyboard display.

Ideal Applications

• Manufacturing – work-in-process, product marking, compliance and industrial-duty labels
• Transport and logistics – packing, order fulfilment, shipping and receiving, pallet labels
• Warehousing – inventory, location and asset labels
• Healthcare and pharma – specimen, pharmaceutical and asset tracking labels
• Electronics and jewellery – micro labels, tiny 2D codes and fine print at 600 dpi

All MX241P Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Which MX241P should you choose? 203 dpi is the fastest choice for barcodes and shipping labels, 300 dpi gives crisper small text and logos, and 600 dpi is made for micro labels and tiny 2D codes. Compare other models in our Industrial Label Printers collection or contact our team for volume pricing.
