RAM Mounts Form-Fit Powered Dock (USB-A) for Zebra EC50 & EC55 (RAM-HOL-ZE16U)
Regular price
77,23 € +VAT

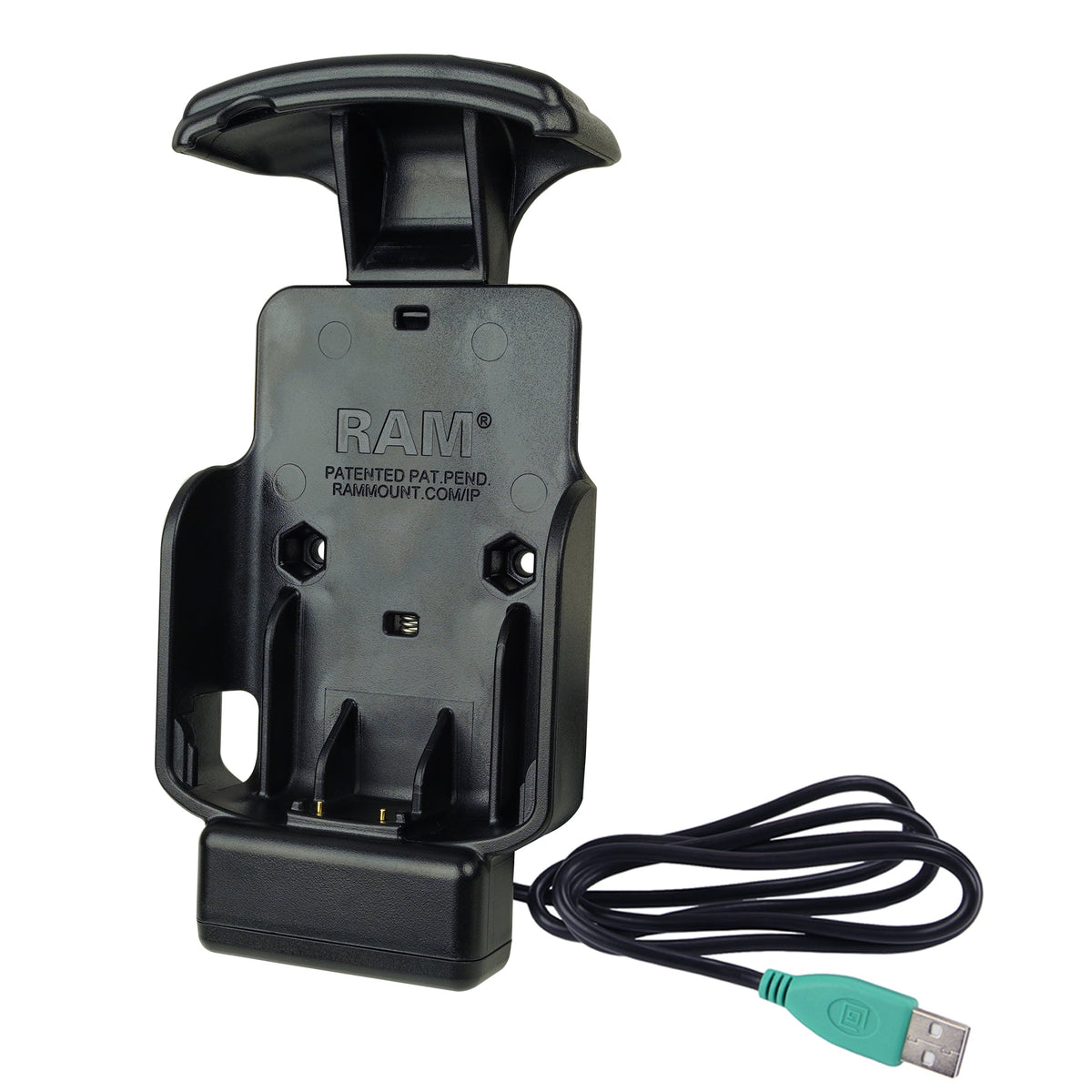

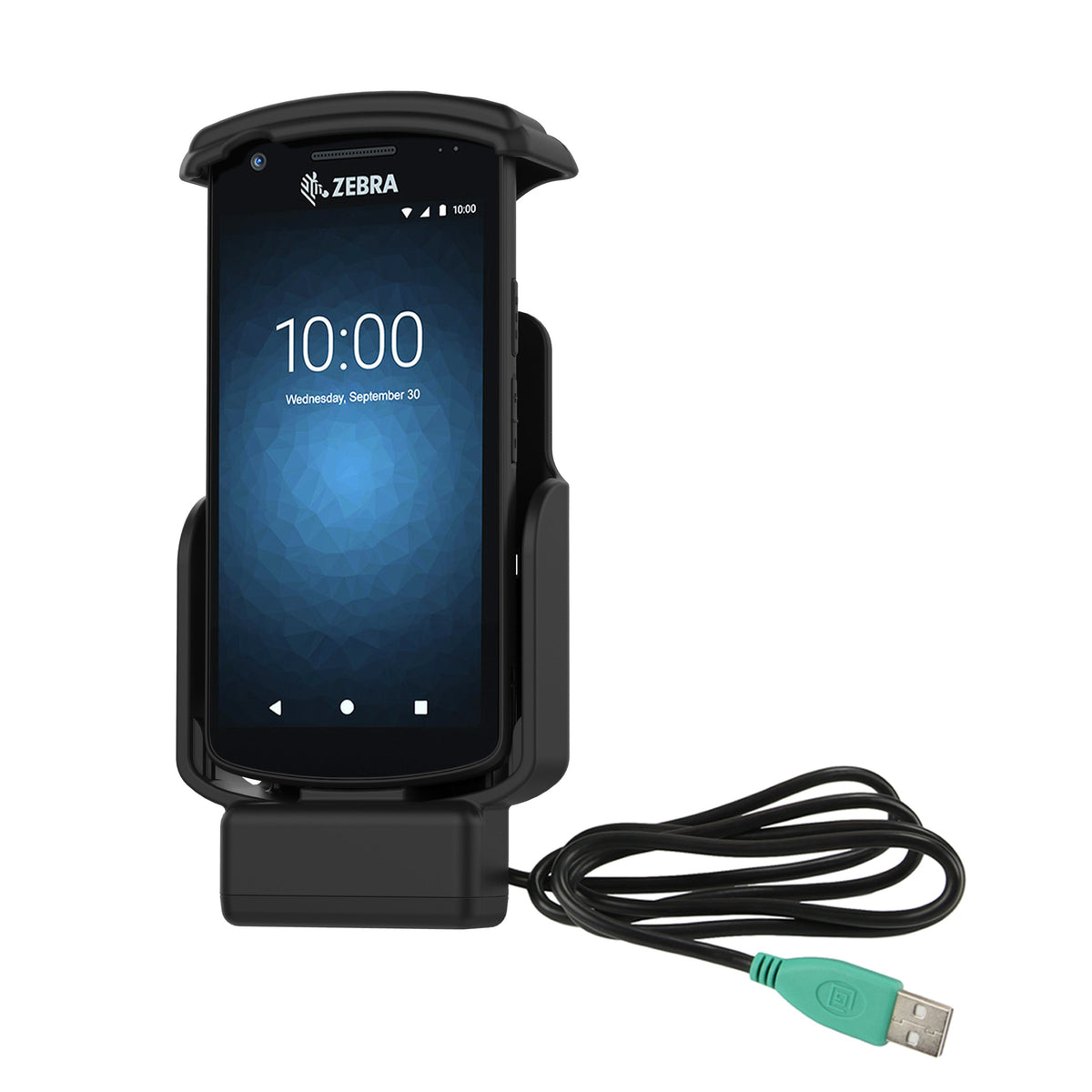

RAM Mounts Form-Fit Powered Dock (USB-A) (RAM-HOL-ZE16U) is made for the Zebra EC50 and EC55 enterprise mobile computers and suits vehicles, carts and other mobile workstations where the device should charge while mounted. The spring-loaded cradle holds the device securely and charges it through two integrated pogo pins; power comes from a 1.25 m cable with a USB Type-A connector. The top scanner, buttons and camera stay exposed and usable, and the back leaves room for standard and extended battery packs and the OEM hand strap.
📦 What's in the box – RAM-HOL-ZE16U
- Form-Fit Powered Dock (USB-A) – for Zebra EC50 & EC55, 1.25 m cable with USB-A connector
- Mounting hardware – machine screws (2× #8-32 x 5/8") and nyloc nuts (2× #8-32)
💡 To get started, you might also consider a B-size diamond ball base and a B-size double socket arm to mount the dock, plus a USB-A power source in the vehicle.
Key Features
- Spring-loaded Form-Fit dock – shaped for the Zebra EC50 and EC55; the top scanner, buttons and camera stay exposed
- Pogo-pin charging – two integrated pogo pins; 1.25 m power cable with USB Type-A connector
- Room for accessories – space for standard and extended battery packs and the OEM hand strap
- B-size mounting – 2-hole AMPS (48.6 mm) pattern for RAM B-size diamond ball bases and B-size arms
- Built to last – high-strength composite, backed by a 3-year RAM warranty
Compatibility
- Zebra EC50
- Zebra EC55
- RAM B-size diamond ball bases (2-hole AMPS, 48.6 mm)
Technical Specifications
| Part Number | RAM-HOL-ZE16U |
|---|---|
| Product Type | Spring-loaded Form-Fit charging dock (USB-A powered) |
| Compatible Devices | Zebra EC50, Zebra EC55 |
| Connection | RAM B-size diamond ball bases (2-hole AMPS, 48.6 mm) |
| Locking | Non-locking |
| Power / Charging | 1.25 m input cable with USB Type-A connector; charging via 2 pogo pins |
| Material | High-strength composite |
| Weight | 0.20 kg (0.45 lb) |
| Warranty | 3 years (RAM Mounts) |
| In the Box | Form-Fit Powered Dock (USB-A), mounting hardware |
Looking for the device itself? Browse our Handheld Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
