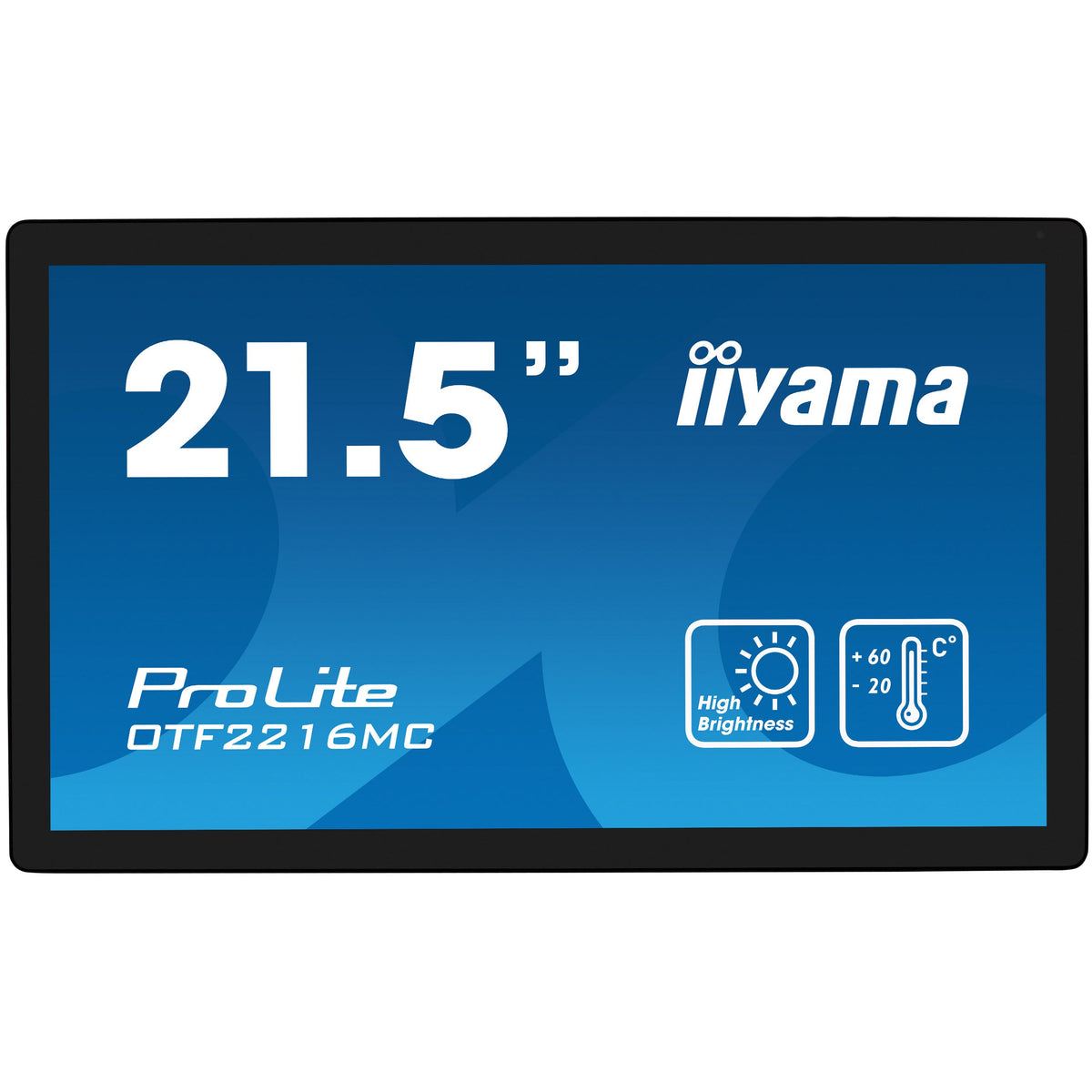

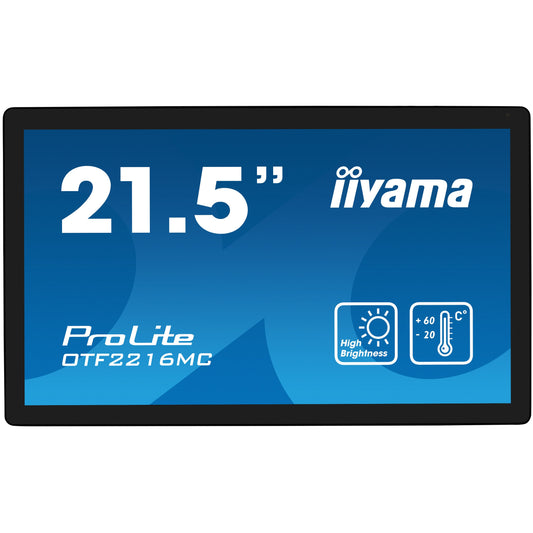

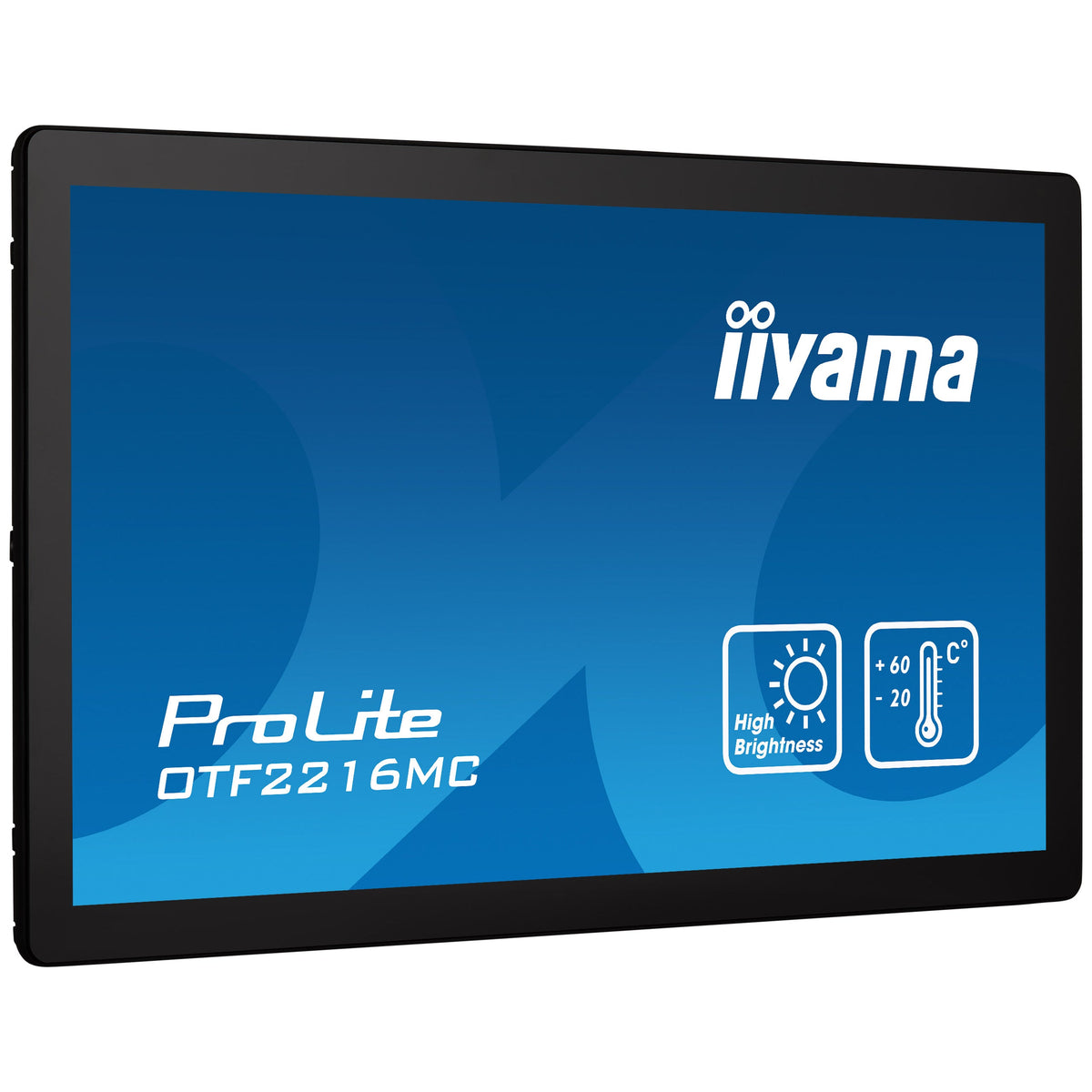

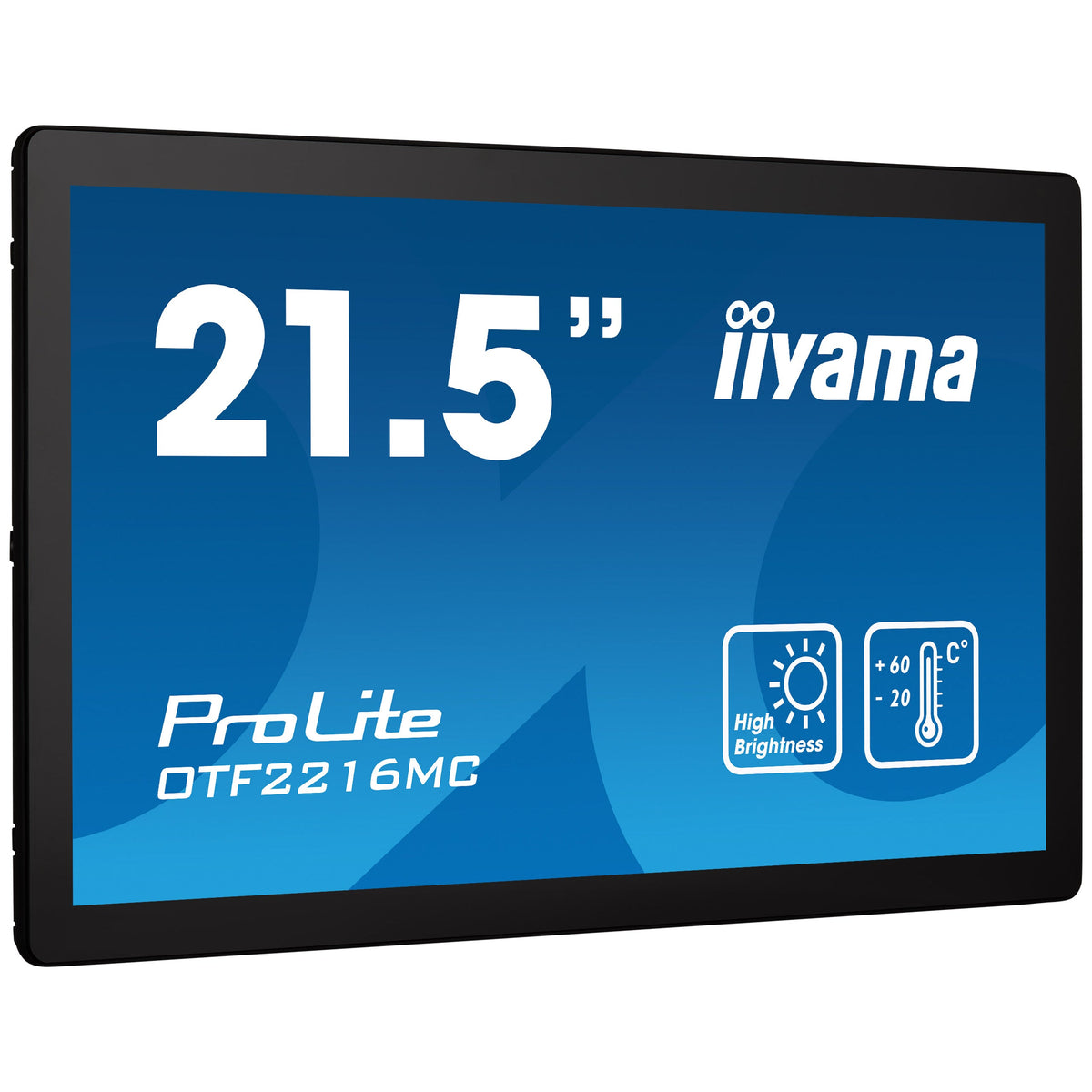

iiyama ProLite OTF2216MC-B1 21.5" Open-Frame Touch Monitor, PCAP 10-touch, FHD, 1100 cd/m² (OTF2216MC-B1)

The iiyama ProLite OTF2216MC-B1 is a 21.5" open-frame touch monitor with projected-capacitive (PCAP) 10-point touch, built for integration into kiosks, ticket and vending machines, pick-up lockers and custom enclosures. Its Full HD VA panel sits behind toughened glass with an IP65 sealed front, and the touch even works through an additional protective glass layer up to 6 mm thick. With 1100 cd/m² panel brightness, 24/7 operation and a -20 to 60 °C operating range it is designed for semi-outdoor and sunlit installations. VGA, HDMI and DisplayPort inputs plus USB touch make it plug-and-play with Windows and Linux systems. This version, OTF2216MC-B1, is the 21.5" Full HD model with anti-glare glass, an external OSD control pad and 1100 cd/m² outdoor-grade brightness and a -20…60 °C range. It ships with an external 12 V power adapter, USB/HDMI/DisplayPort cables, an external OSD control pad and a cable cover.

Key Features

• Projected-capacitive touch – 10-point HID multi-touch, driver-free under Windows and Linux, works through glass up to 6 mm
• IP65 sealed front – dust- and splash-proof once built into a kiosk or machine front
• Full HD VA panel – 1100 cd/m² (935 cd/m² with touch), contrast 5000:1, viewing angle 178° (H)
• Flexible integration – landscape, portrait or face-up installation, VESA 100×100 mm
• Universal connectivity – VGA ×1, HDMI ×1, DisplayPort ×1, touch via USB
• Toughened glass – 3.15 mm glass, 7H hardness, anti-glare and anti-fingerprint nano coating
• External control pad – OSD controls can be mounted away from the screen, out of customers' reach
• 24/7 rated – designed for non-stop operation in public installations

Ideal Applications

• Self-service kiosks – ticketing, check-in and ordering terminals
• Vending & pick-up points – parcel lockers, vending and reverse-vending machines
• Industrial HMI – machine panels and control stations
• Semi-outdoor terminals – fuel stations, EV chargers, drive-through and sunlit shop windows
• Gaming & amusement – cabinet integration with sealed touch front

Technical Specifications

Versions in this open-frame line differ in screen size and resolution, touch points, glass finish (standard or anti-glare) and whether an external OSD control pad is supplied. Browse all models in our Monitors collection, and contact us for volume pricing, project quotes and availability.
