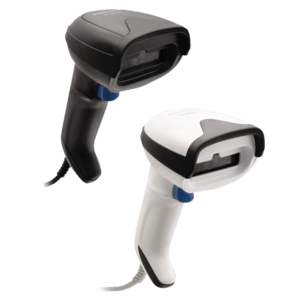

The Datalogic Gryphon I GD4200 is a premium corded 1D linear imager that reads all standard 1D barcodes quickly and reliably – including high-density, low-contrast and damaged codes as well as codes on mobile phone screens – at distances of up to 90 cm. Every good read is confirmed by Datalogic's Green Spot and 3GL indicators, and the disinfectant-ready IP52 housing stands up to daily cleaning. This version, GD4290-WH, comes in white and is the multi-interface GD4290 model (USB, USB-C and RS-232), supplied as the scanner only – an interface cable is not included.
📦 What's in the box – GD4290-WH
- ✅ Datalogic Gryphon I GD4290 scanner – white, multi-interface: USB, USB-C, RS-232
- ❌ Interface cable – NOT included
- ❌ Stand – not included
⚠️ Please note: this version does not include a cable. The scanner cannot be connected to a computer or POS system without one, so please order the interface cable for your host separately – for a USB port the Datalogic USB cable 90A052278 (white) is the right choice; for an RS-232 serial port choose e.g. the Datalogic RS-232 cable 90A051230 (9-pin female, straight, 1.8 m) (if the port does not supply power on pin 9, also add the Datalogic 12 V power supply 8-0935 with a power cord). Alternatively, choose the GD4220 kit, which already includes a USB cable (see the comparison table below).
💡 Want hands-free scanning? Add the white Datalogic hands-free stand STD-G041-WH or the white Datalogic desk/wall holder HLD-G041-WH to your order. The scanner switches to hands-free mode automatically when placed in the stand.
Key Features
- 1D linear imager – reads all standard 1D barcodes, including GS1 DataBar, as well as high-density, low-contrast, poorly printed or damaged codes and 1D codes on mobile phone screens. Please note: it does not read 2D codes such as QR codes or Data Matrix; for those, choose a 2D model such as the Datalogic Gryphon I GD4500.
- Long reading range – up to 90 cm on 13 mil EAN/UPC and 147 cm on 20 mil Code 39, with resolution down to 3 mil and up to 400 scans per second.
- Soft line viewfinder – a clearly visible aiming line makes it quick to target the right barcode, even on crowded labels.
- Green Spot and 3GL feedback – a green light projected onto the barcode plus three green lights (3GL) on the scanner confirm every good read, even in noisy or dark environments.
- Motionix motion sensing – detects when the scanner is picked up and switches automatically between handheld and presentation (stand) mode.
- Multi-interface – USB, USB-C and RS-232 in one scanner, the interface is selected by the cable; 4.5–14 VDC input; easy setup with the free Datalogic Aladdin tool and OPOS/JavaPOS utilities.
- Disinfectant-ready and rugged – housing built for daily cleaning with harsh disinfectants, IP52 sealed and withstands repeated 1.8 m drops to concrete.
Ideal Applications
- Retail point of sale – check-out, loyalty cards and coupons
- Commercial services – post offices, banks, public administration and utilities
- Light manufacturing – work-in-progress tracking and order processing
- Healthcare – laboratories and pharmacies (disinfectant-ready housing)
- Access control – ticketing for events and entertainment
All Gryphon I GD4200 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Interface | Color | Cable | |
|---|---|---|---|---|
| GD4220-BKK1 | USB only | Black | USB, straight 2 m | View product |
| GD4220-WHK1 | USB only | White | USB, straight 2 m | View product |
| GD4290-BK | USB, USB-C, RS-232 | Black | ❌ Not included | View product |
| GD4290-WH (this version) | USB, USB-C, RS-232 | White | ❌ Not included | Viewing |
Technical Specifications
| Part Number | GD4290-WH |
|---|---|
| Model | Datalogic Gryphon I GD4290 (GD4200 series) |
| Scanner Type | Corded handheld 1D linear imager (does not read 2D codes) |
| Image Sensor | Solid-state CCD linear sensor |
| Light Source | Dual LED array, 612–630 nm |
| Depth of Field (typical) | Code 39 5 mil: 5–37 cm; Code 39 7.5 mil: 5–54 cm; Code 39 10 mil: 5–73.5 cm; Code 39 20 mil: 2.5–147 cm; EAN/UPC 13 mil: 3.5–90 cm |
| Maximum Resolution | 3 mil (0.077 mm) |
| Scan Rate | Up to 400 scans/s (1,000,000 pixels/s) |
| Minimum Print Contrast | 15% |
| Reading Angles | Pitch ±65°, roll ±45°, skew ±65° |
| Symbologies | All standard 1D codes incl. GS1 DataBar linear codes (auto-discrimination) |
| Host Interfaces | USB, USB-C, RS-232 multi-interface – interface depends on the cable used |
| Reading Indicators | Datalogic Green Spot, 3GL (three green lights), dual good-read LEDs, adjustable beeper |
| Color | White |
| Housing | Disinfectant-ready enclosure (built for daily cleaning with harsh disinfectants) |
| Dimensions | 16.6 × 6.8 × 10.9 cm |
| Weight | 163 g |
| Input Voltage | 4.5–14 VDC |
| Current Draw | Operating: < 350 mA at 5 V, < 150 mA at 12 V; standby: < 60 mA at 5 V, < 30 mA at 12 V |
| Environmental Sealing | IP52 |
| Drop Resistance | Repeated 1.8 m drops to concrete |
| Electrostatic Discharge | 16 kV (air discharge) |
| Ambient Light Immunity | 0–130,000 lux |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −20 °C to 70 °C |
| Humidity | 0–95% RH, non-condensing |
| Software & Management | Datalogic Aladdin configuration tool, OPOS / JavaPOS utilities, remote host download |
| Warranty | 36 months |
| In the Box | Gryphon I GD4290 scanner – interface cable NOT included (order separately) |
Not sure which version you need? For a PC or POS with a standard USB port, the GD4220 kit with its USB cable is ready to use straight out of the box. If you need an RS-232 connection or want to reuse an existing Datalogic cable, choose the multi-interface GD4290 and order the matching cable. Need to read QR codes or other 2D codes? Choose a 2D scanner instead, for example from the Gryphon I GD4500 series. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
