Datalogic Gryphon I GBT4500 Barcode Scanner (GBT4500-BK-BTK1HDD)

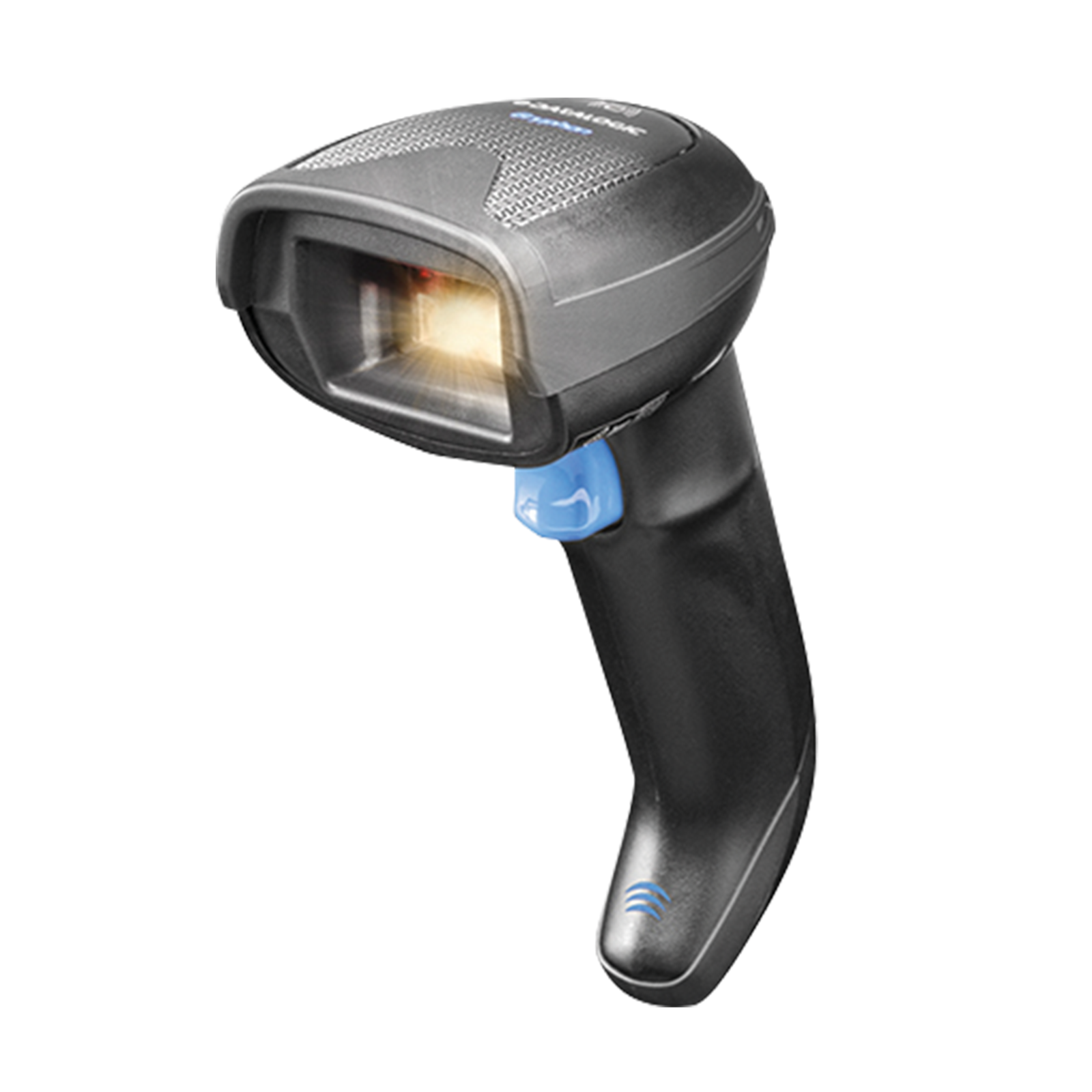

The Datalogic Gryphon I GBT4500 is the Bluetooth® cordless version of Datalogic's premium Gryphon 4500 2D handheld imager. It combines Bluetooth 4.0 with BLE – up to 100 m range from its base station – with wireless (inductive) charging in the base, so there are no charging contacts to clean or wear out. A 1 MP sensor with white illumination reads 1D, 2D, postal and stacked codes from paper labels and phone screens, every good read is confirmed by Green Spot, 3GL™ and vibration, and the removable 3250 mAh battery lasts for up to 80,000 reads per charge. In this version, GBT4500-BK-BTK1HDD, the scanner has High Density (HD) optics – optimised for very small, dense codes, is black with an antimicrobial (DRA) housing and is supplied as a complete USB kit with the WLC4090-BK-BT-DRA wireless charging base station and a 2 m USB cable, ready to plug in and scan.

Key Features

• Reads 1D, 2D and postal codes – omnidirectional reading of linear, 2D, postal, stacked and composite codes, from paper labels and from phone or tablet screens (mobile tickets, loyalty cards, e-coupons).
• 1 MP imager with white illumination – Datalogic's highly visible warm-white illumination and 4-dot aimer with centre cross make targeting easy, and improved motion tolerance (35 IPS) captures fast-moving codes.
• High Density (HD) optics – reads tiny, dense codes down to 3 mil (linear and PDF417) and 4 mil Data Matrix – ideal for small labels on electronics, pharmaceuticals, jewellery and lab samples.
• Bluetooth® 4.0 with BLE – up to 100 m range with the base station (Class 1, open air), data encryption and scanner authentication; up to 7 scanners per base, or a direct connection to a Bluetooth-enabled host via the Serial Port Profile (SPP).

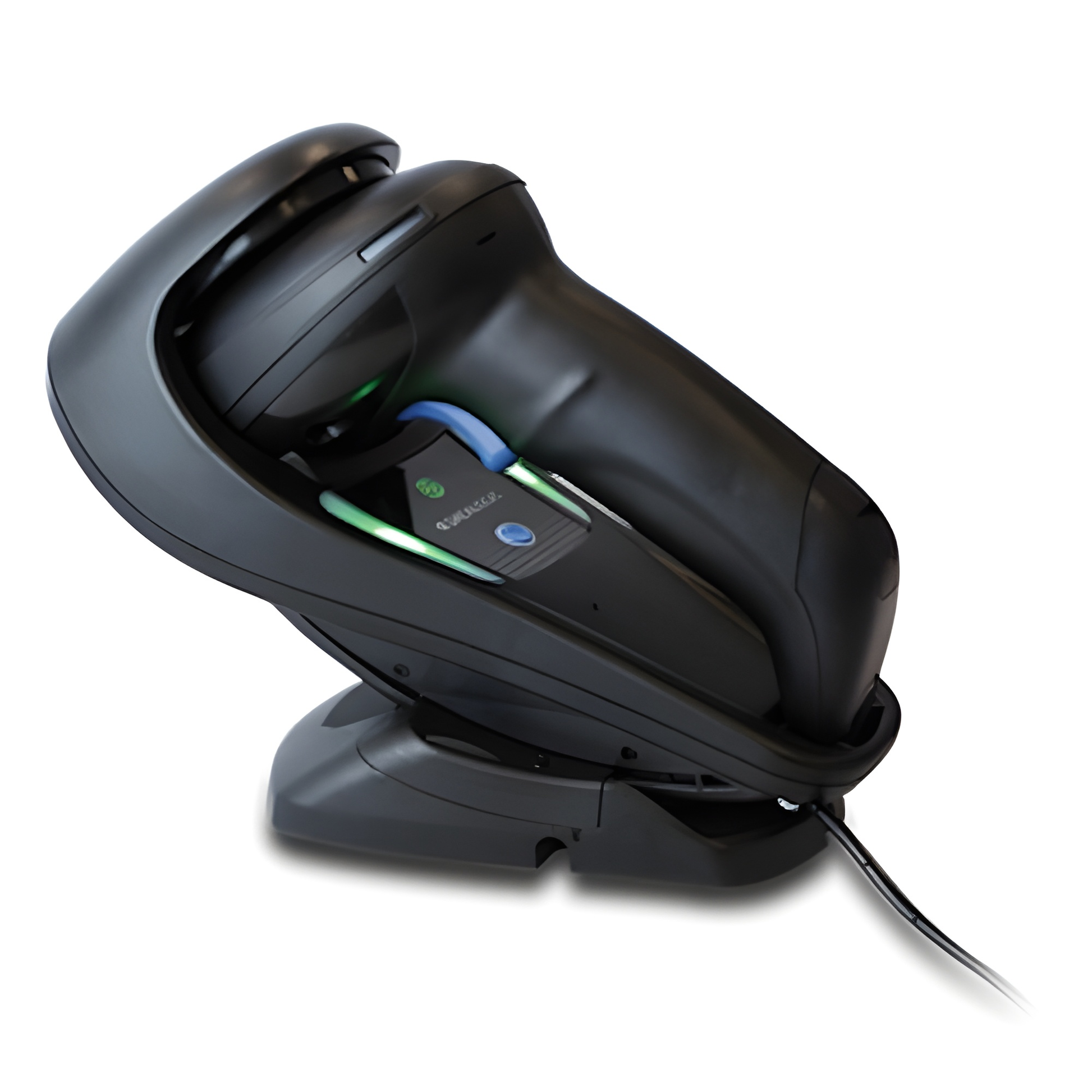

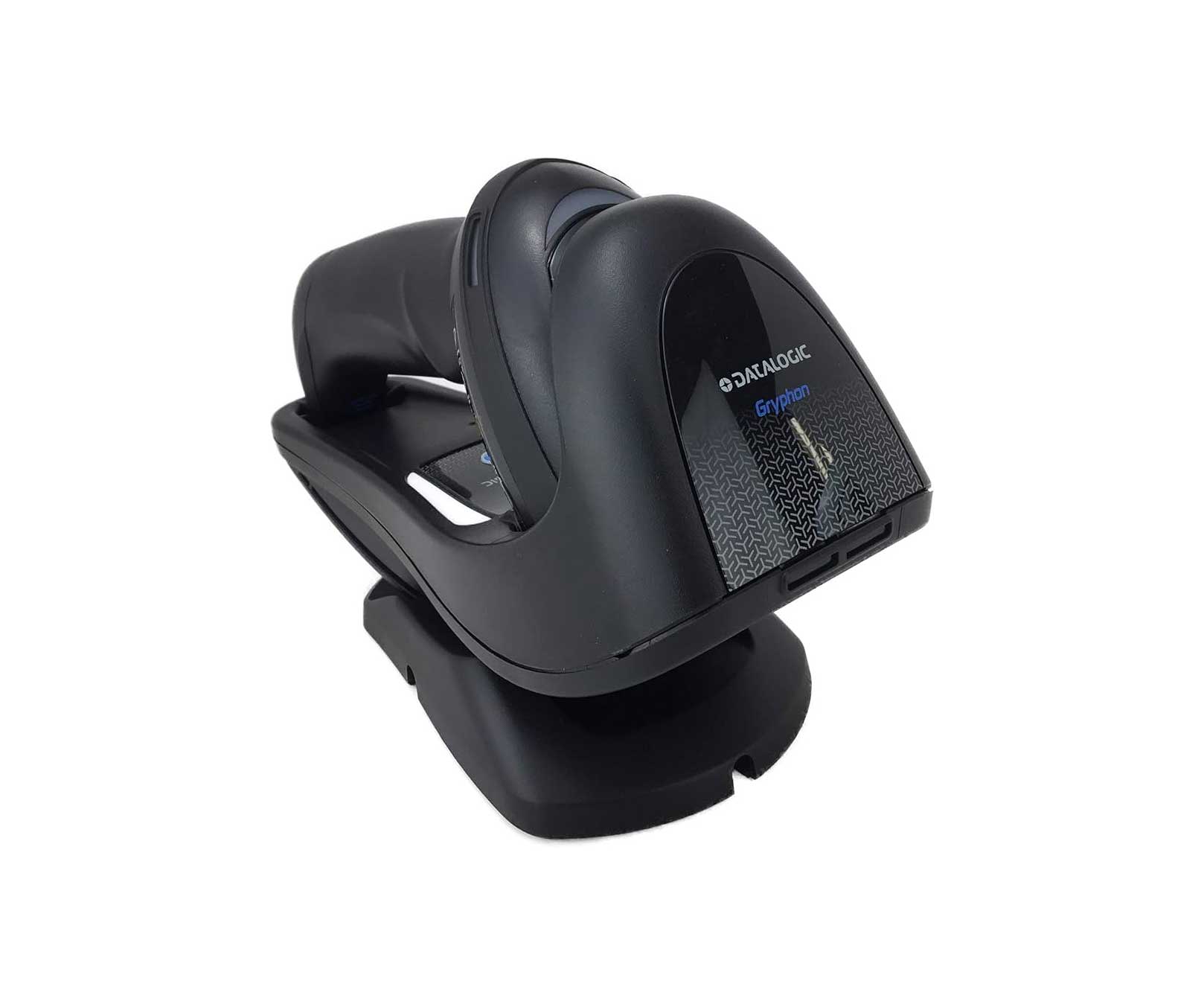

• Wireless charging, long battery life – inductive charging in the WLC4090 base eliminates charging contacts that need cleaning or wear out; the adjustable-position base keeps the scanner reading hands-free while it charges (Scan-While-Charging), and the user-replaceable 3250 mAh Li-ion battery delivers up to 80,000 reads per charge.
• Green Spot, 3GL™ and vibration feedback – a green spot projected onto the code, Three Green Lights and a vibration alert confirm every good read, even in noisy environments.
• Motionix™ motion sensing – switches seamlessly between handheld and presentation reading modes.
• Flexible connectivity – the WLC4090 Bluetooth base is a USB and RS-232 multi-interface, depending on the cable; free Datalogic Aladdin configuration tool, OPOS/JavaPOS utilities and Remote Host Download.
• Disinfectant-ready housing – withstands regular daily cleaning with the harsh disinfectant solutions commonly used in healthcare.
• Antimicrobial housing (DRA) – the disinfectant-ready enclosure is additionally treated with antimicrobial additives (ISO 22196 compliant) – ideal for healthcare, pharmacies and shared workstations.
• Built to last – withstands repeated 1.8 m drops onto concrete, IP52 sealed, with a 3-year Datalogic factory warranty.

Ideal Applications

• Retail point of sale – checkout, loyalty cards and mobile coupons
• Healthcare – laboratories, pharmacies and in-room patient care
• Light manufacturing – work-in-progress tracking and order processing
• Access control, transport and entertainment – ticketing and admissions
• Commercial services – post offices, banks, public administration and utilities

All Gryphon I GBT4500 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose GBT4500-BK-BTK1 for a complete, ready-to-use setup with Bluetooth base and USB cable, or one of the antimicrobial DRA kits – GBT4500-BK-BTK1DRA (Standard Range) or GBT4500-BK-BTK1HDD (High Density) – for healthcare, pharmacies and shared workstations. The scanner-only versions – GBT4500-BK-WLC (black), GBT4500-WH-WLC (white), GBT4500-BK-HD-WLC (High Density, for very small codes) and GBT4500-BK-DGM-WLC (Digimarc) – are ideal as additional or replacement scanners for an existing WLC4090 Bluetooth base. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
