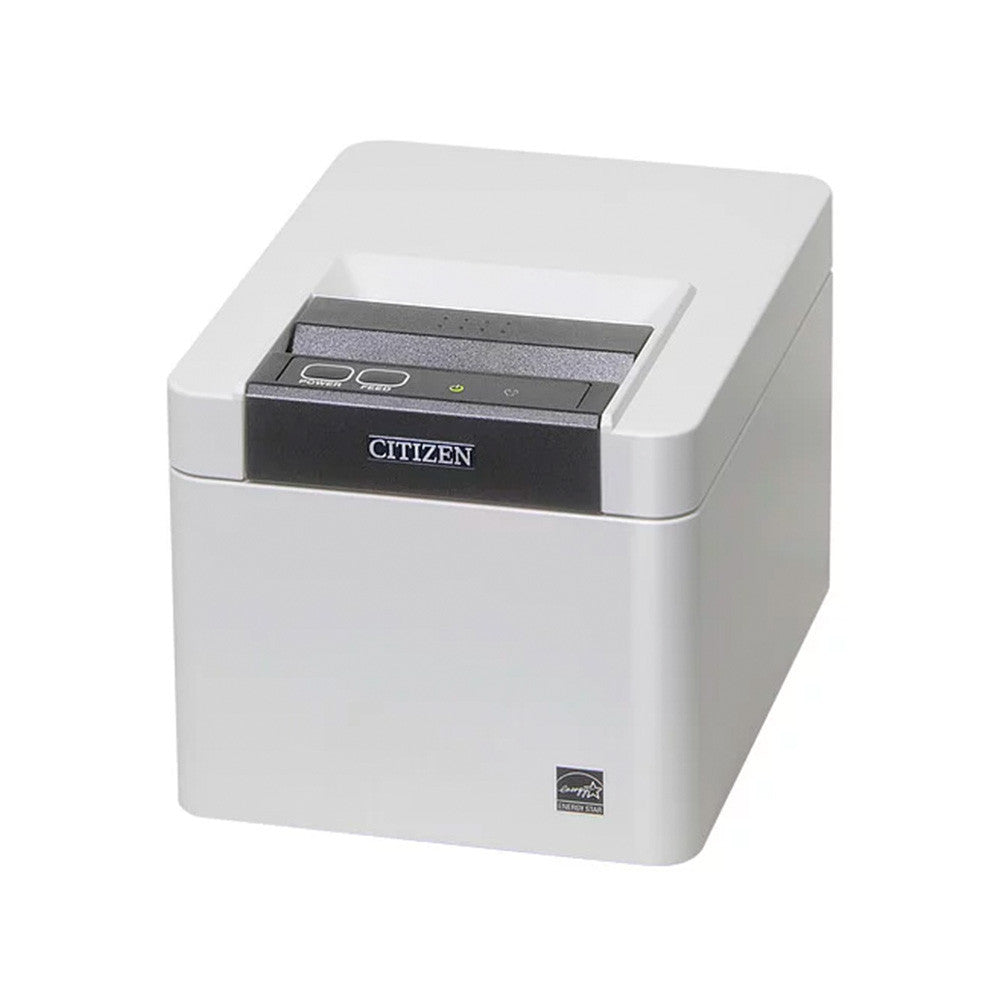

The Citizen CT-E301 is a compact, fast 80 mm thermal receipt printer with an antibacterial, disinfectant-resistant housing – ideal for retail checkouts, restaurants, kitchens, pharmacies and healthcare counters. It prints sharp 203 dpi receipts at up to 250 mm/s on 80 or 58 mm paper, cuts them cleanly with a full/partial auto-cutter and takes up only 125 × 165 mm of counter space. This version, CTE301X3EWX, is white with USB, serial (RS-232) and Ethernet (LAN) interfaces (triple interface); it comes with an external power supply and a power cord with an EU plug – the interface cable is not included.
📦 What's in the box – CTE301X3EWX
- ✅ Citizen CT-E301 printer – white, USB + serial (RS-232, 9-pin) + Ethernet (LAN)
- ✅ Power supply – Citizen AC adapter 37AD5 – external, 24 V DC
- ✅ Power cord – EU plug (Schuko)
- ❌ USB cable – NOT included – USB A to B – needed to connect the printer to your PC or POS system
- ❌ Ethernet (LAN) cable – NOT included
- ❌ Serial (RS-232) cable – NOT included – only needed for an RS-232 connection
- ❌ Starter paper roll – NOT included – order 80 mm thermal paper rolls separately
- ✅ Paper roll spacer – fitted in seconds to switch to 58 mm paper rolls
- ✅ Setup guide – drivers, utilities and manuals are a free download from Citizen
⚠️ Please note: no interface cable is included. The printer cannot be connected to your computer or POS system without one – please order a USB cable separately: the Bixolon USB-KAB-G USB cable (USB A to B) fits, as does any standard USB 2.0 A-to-B printer cable. For a network connection, use a standard RJ45 Ethernet patch cable (not included). No paper roll is included either – please order 80 mm thermal paper rolls (Zebra Z-Perform 1000D 60 (3013286) or Zebra Z-Perform 1000D 80 (3012973)) together with the printer.
💡 Useful extras: 58 mm thermal paper rolls (Citizen 3621900) for use with the supplied partition; the Bixolon SER-KAB-9-9 RS-232 cable (9-pin) for a serial connection. The drawer kick-out port (24 V) can open up to two standard cash drawers automatically with every sale.
Key Features
- 250 mm/s printing – crisp 203 dpi receipts, logos and barcodes in an instant keep queues short.
- Hygienic housing – antibacterial surface (SIAA mark, ISO 22196) and a casing designed to withstand disinfectant chemicals – perfect for healthcare, pharmacies and food service.
- Compact, top-exit design – a footprint of just 125 × 165 mm with top paper exit fits tight checkouts, kiosks and kitchens.

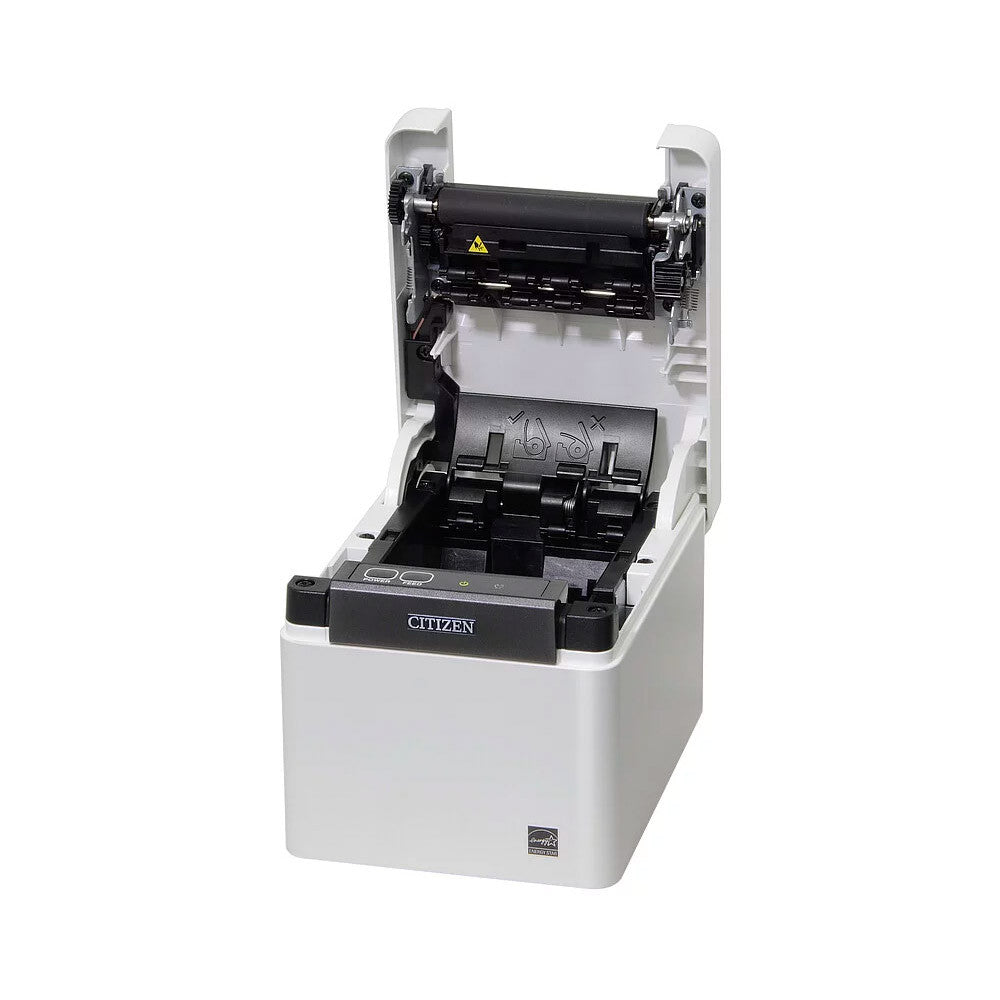

- Drop-in paper loading – 80 or 58 mm rolls up to 83 mm in diameter; the supplied partition switches the printer to 58 mm paper.
- Full and partial cut – the guillotine auto-cutter is rated for 1.5 million cuts.
- Triple interface – USB, RS-232 serial and Ethernet on one printer: share it on the network between several POS terminals, tablets and smartphones (network settings via a built-in web page) or connect legacy cash registers via the 9-pin serial port.
- 8 MB flash memory – stores logos and user-defined characters (384 KB user area); prints 1D barcodes, GS1 DataBar, PDF417 and QR codes.
- Two cash drawers – the 24 V drawer kick-out port opens up to two cash drawers automatically with every sale.
- Tool-free maintenance – quick cleaning and part replacement without tools minimise downtime.
- Energy saving – approx. 1 W in standby.
- ESC/POS compatible – Windows, OPOS, JavaPOS and CUPS (macOS / Linux) drivers; works with most POS software, including Loyverse.
Ideal Applications
- Retail checkouts, convenience stores and boutiques
- Restaurants, cafés, bars and kitchens – receipts and kitchen order tickets
- Pharmacies, clinics and healthcare reception desks
- Queue management, ticketing and self-service kiosks
- Hotels, hospitality and service counters
All CT-E301 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Color | Interfaces | |
|---|---|---|---|
| CTE301XXEWX | White | USB | View product |
| CTE301XXEBX | Black | USB | View product |
| CTE301X3EWX (this version) | White | USB + RS-232 + Ethernet | Viewing |
| CTE301X3EBX | Black | USB + RS-232 + Ethernet | View product |
Technical Specifications
| Part Number | CTE301X3EWX |
|---|---|
| Model | Citizen CT-E301 triple interface (USB + Serial + Ethernet) |
| Printer Type | POS thermal receipt printer (single-station, top paper exit) |
| Print Method | Direct thermal line printing |
| Resolution | 203 × 203 dpi (8 dots/mm) |
| Print Speed | Max. 250 mm/s (at 100% print density) |
| Paper Width | 80 mm (79.5 ± 0.5 mm) or 58 mm (57.5 ± 0.5 mm, with the supplied partition); print width 72 mm / 576 dots |
| Characters per Line | 80 mm: 48 (Font A) / 64 (Font B) / 72 (Font C); 58 mm: 35 / 46 / 52 |
| Roll Diameter | Max. 83 mm (core 12 mm inner / 18 mm outer diameter) |
| Paper Thickness | 53–85 µm |
| Auto-cutter | Yes – guillotine auto-cutter, full and partial cut; life 1,500,000 cuts (80 mm paper) |
| Interfaces | USB 2.0 Full Speed (Type-B) + Serial RS-232C (D-sub 9-pin) + Ethernet 10/100Base-T (RJ45, web configuration page) |
| Wireless | Not supported |
| Drawer Kick-out | Yes – up to 2 cash drawers, 24 V DC |
| Emulation / Command Set | ESC/POS |
| Fonts / Character Sets | Font A 12 × 24, Font B 9 × 24, Font C 8 × 16 dots; alphanumeric, international, Katakana, Thai, TCVN-3, Kanji, GB18030, BIG5, Hangul; code pages PC437, 850, 852, 857, 858, 860, 863, 864, 865, 866, WPC1252 |
| Barcodes | 1D: UPC-A, UPC-E, EAN-13, EAN-8, ITF, Code 39, Code 93, Code 128, Codabar, GS1 DataBar; 2D: PDF417, QR Code |
| Drivers & Software | Windows driver, OPOS, JavaPOS, CUPS (macOS / Linux), Citizen utilities – free download from Citizen |
| Data Buffer | 4 KB or 45 bytes (selectable) |
| Memory | 8 MB flash; 384 KB user memory for logos and user-defined characters |
| Sensors | Paper end |
| Power Supply | External Citizen AC adapter 37AD5 (included): AC 100–240 V, 50/60 Hz input; 24 V DC, 2.1 A output – power cord with EU plug included |
| Power Consumption | Approx. 45 W printing; approx. 1 W standby; approx. 0.3 W switched off |
| Dimensions (W × D × H) | 125 × 165 × 108 mm |
| Weight | Approx. 1.2 kg |
| Color | Pure white |
| Installation | Horizontal desktop use – top paper exit, drop-in paper loading |
| Operating Temperature | 5 °C to 45 °C |
| Storage Temperature | −20 °C to 60 °C |
| Humidity | 10–90% RH, non-condensing |
| Reliability | Auto-cutter: 1,500,000 cuts (80 mm) / 1,000,000 cuts (58 mm) |
| Print Head Life | 150 km / 200 million pulses |
| Certifications | CE, UKCA, UL, cUL, FCC Class A, VCCI, CCC; SIAA antibacterial mark (ISO 22196); disinfectant-resistant housing |
| Warranty | 24 months |
| In the Box | Citizen CT-E301 printer (USB + Serial + Ethernet, pure white), Citizen AC adapter 37AD5 (24 V DC), AC power cord with EU (Schuko) plug, 58 mm paper partition, quick start guide – USB, RS-232 and Ethernet interface cables and paper roll NOT included (order separately) |
Which version should you choose? Pick the USB version (CTE301XXEWX white, CTE301XXEBX black) for a single checkout connected to one POS PC. Choose the USB + serial + Ethernet version (CTE301X3EWX white, CTE301X3EBX black) to share the printer over the network, print from tablets or connect an RS-232 cash register. All versions include an external power supply and a power cord with an EU (Schuko) plug; interface cables and paper rolls are sold separately. Compare other models in our POS Receipt Printers collection or contact our team for volume pricing.
